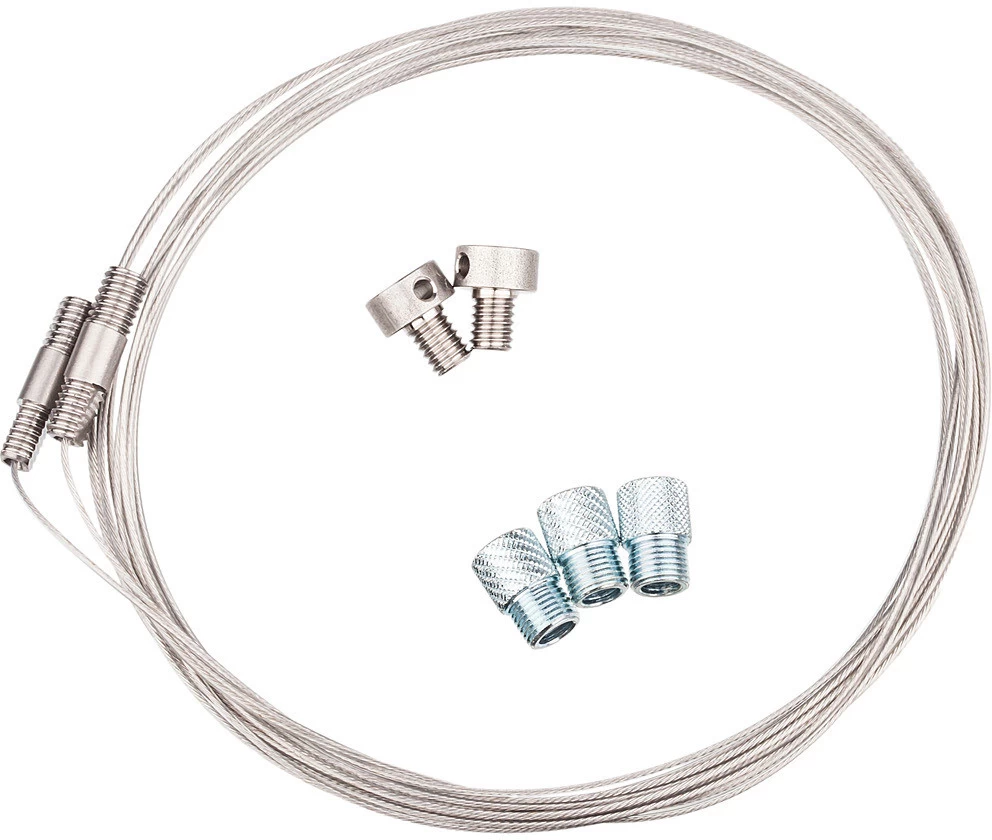

Campagnolo® Installation Tool For EPS V2 Power Unit

Tool for internal assembly of the EPS V2 Power Unit. In two different versions.

In addition, the (Super) Record EPS Magnet Set for cable routing or the Athena/Chorus EPS Magnet Set for cable routing is recommended.
Compatibility:Super Record EPSRecord EPSChorus EPSAthena EPSModels:Seat Tube:
Use: mounting the EPS V2 power unit inside the seat tube (with more space on top) or mounting the EPS V2 power unit inside the seat tube w/ cables on top (more space on the bottom)Application: recommended for normal and large frames as well as small frames where the power unit could touch the seatpostManufacturer Number: UT-PU010
Down Tube:
Use: mounting the EPS V2 power unit inside the down tube­ Application: recommended for frames with a narrow seat tube
Manufacturer Number: UT-PU030Note:When mounting inside the seat tube with cables pointing upwards, attention must be paid to the space required for the rivets inside the frame. The inner diameter of the seat tube therefore corresponds to: Diameter Power Unit + protrusion rivet inside the seat tube.When mounting inside the seat tube with cables pointing upwards, the adapter UT-PU020 for upside-down installation (reverse installation) must also be used.When installing inside the downtube, the head tube must be wide enough for the power unit to fit through into the down tube.Contents:1 x Campagnolo EPS installation tool
