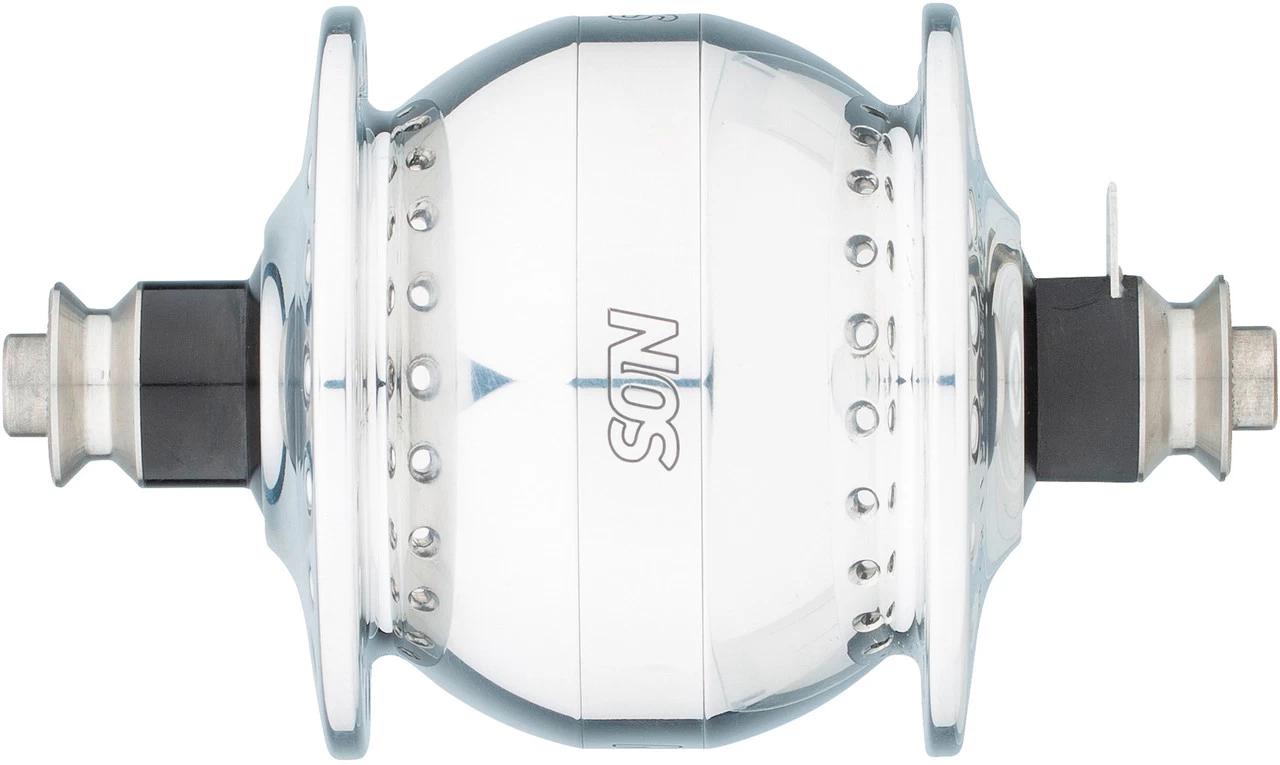

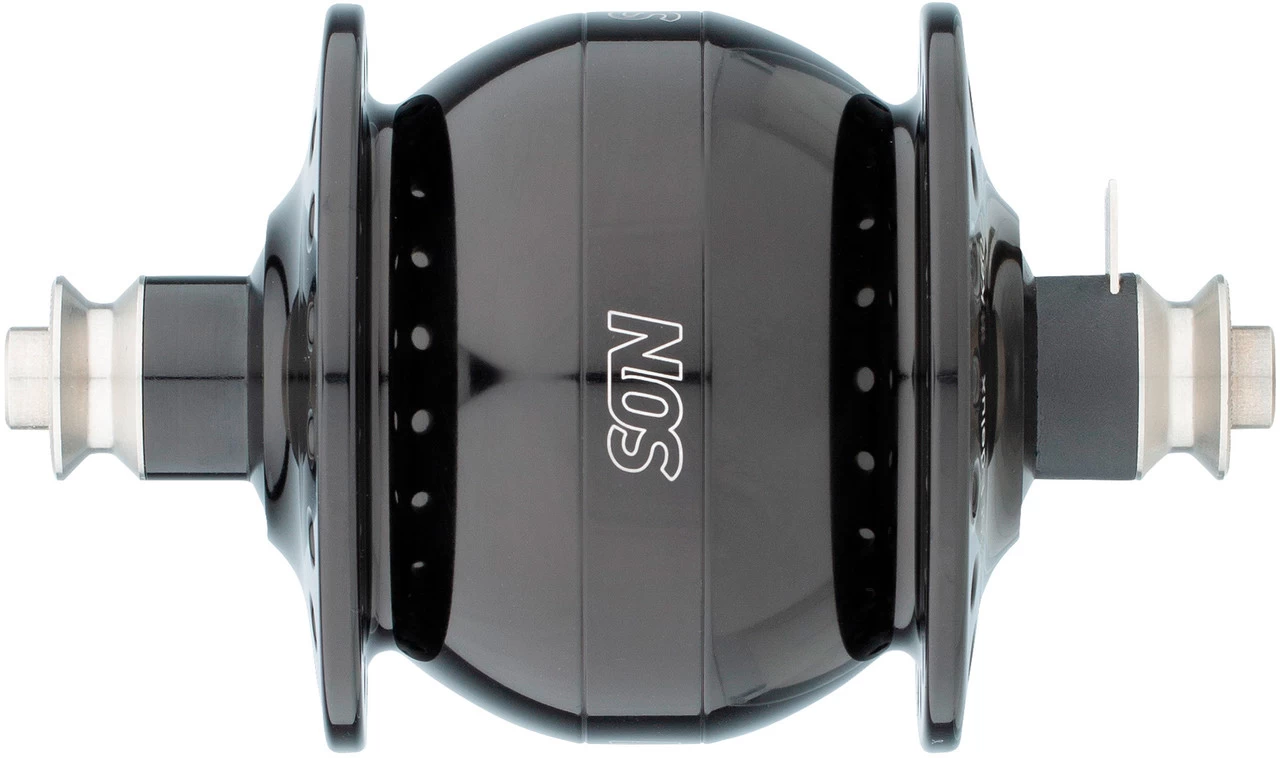

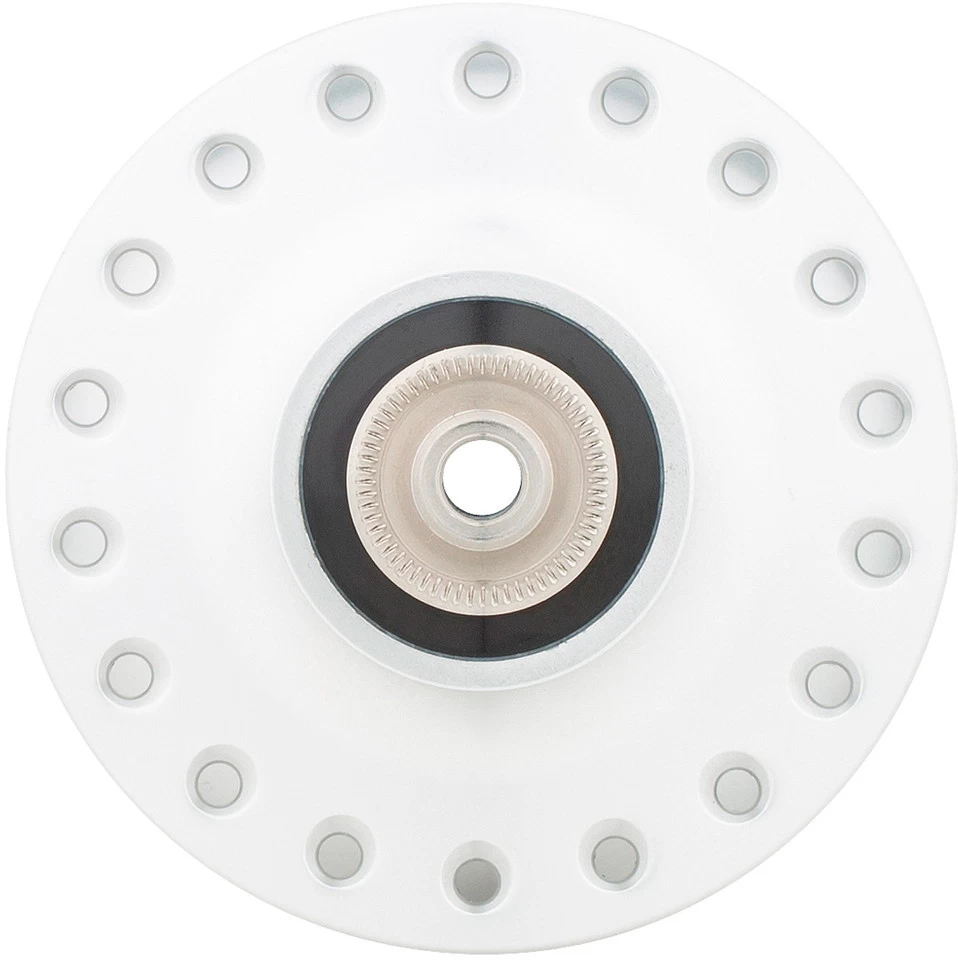

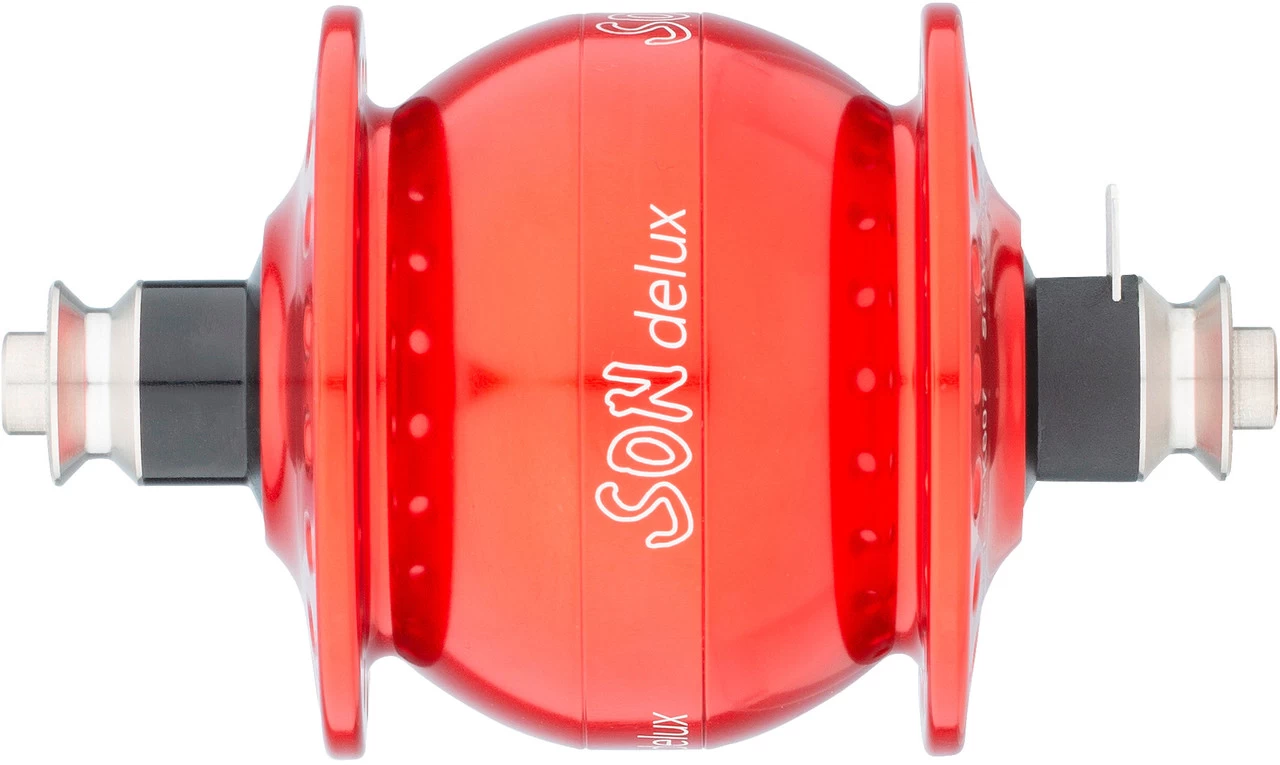

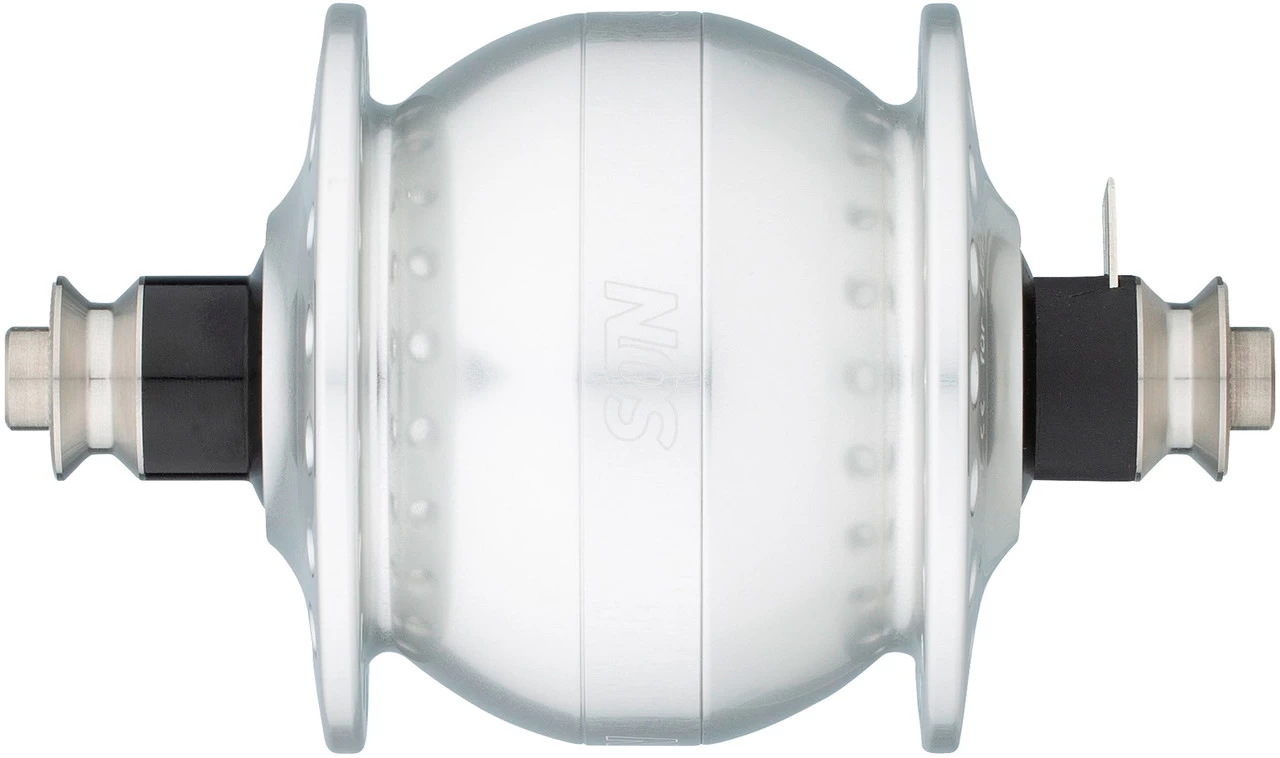

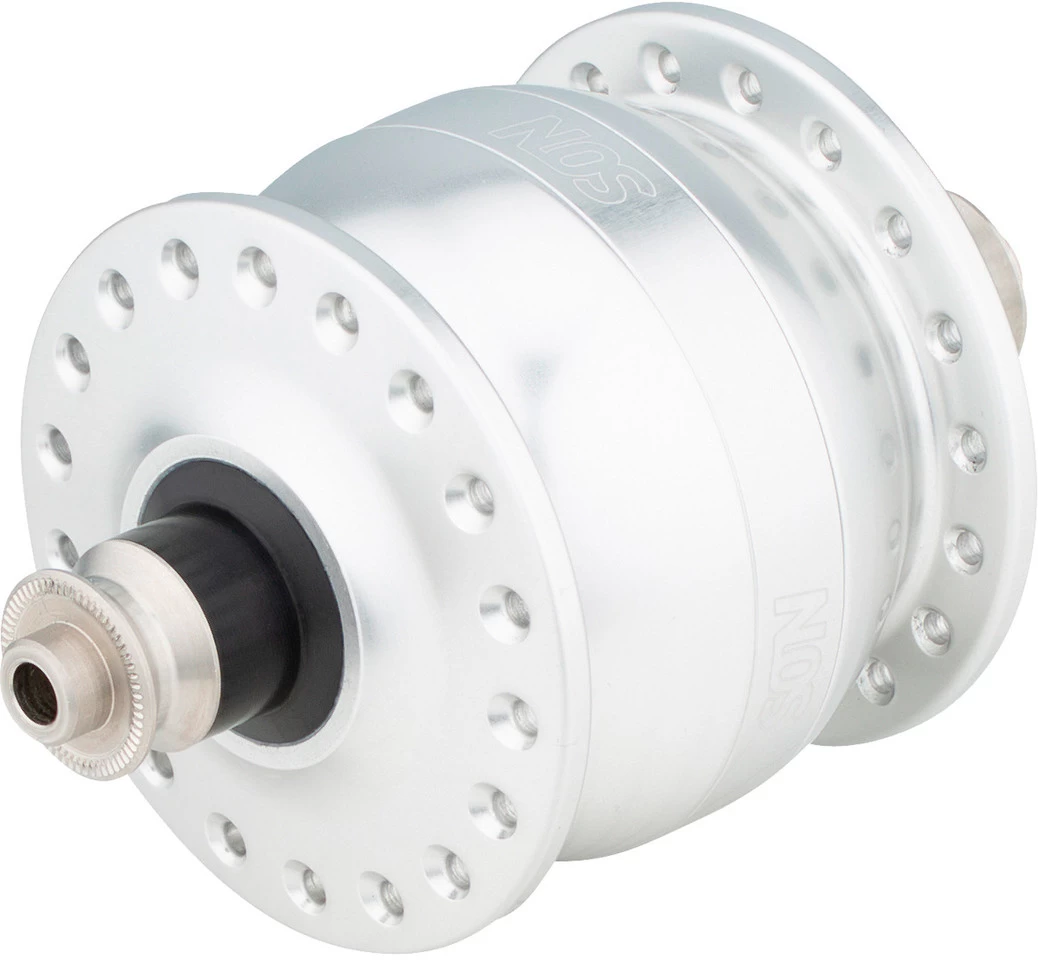

Delux Dynamo Hub

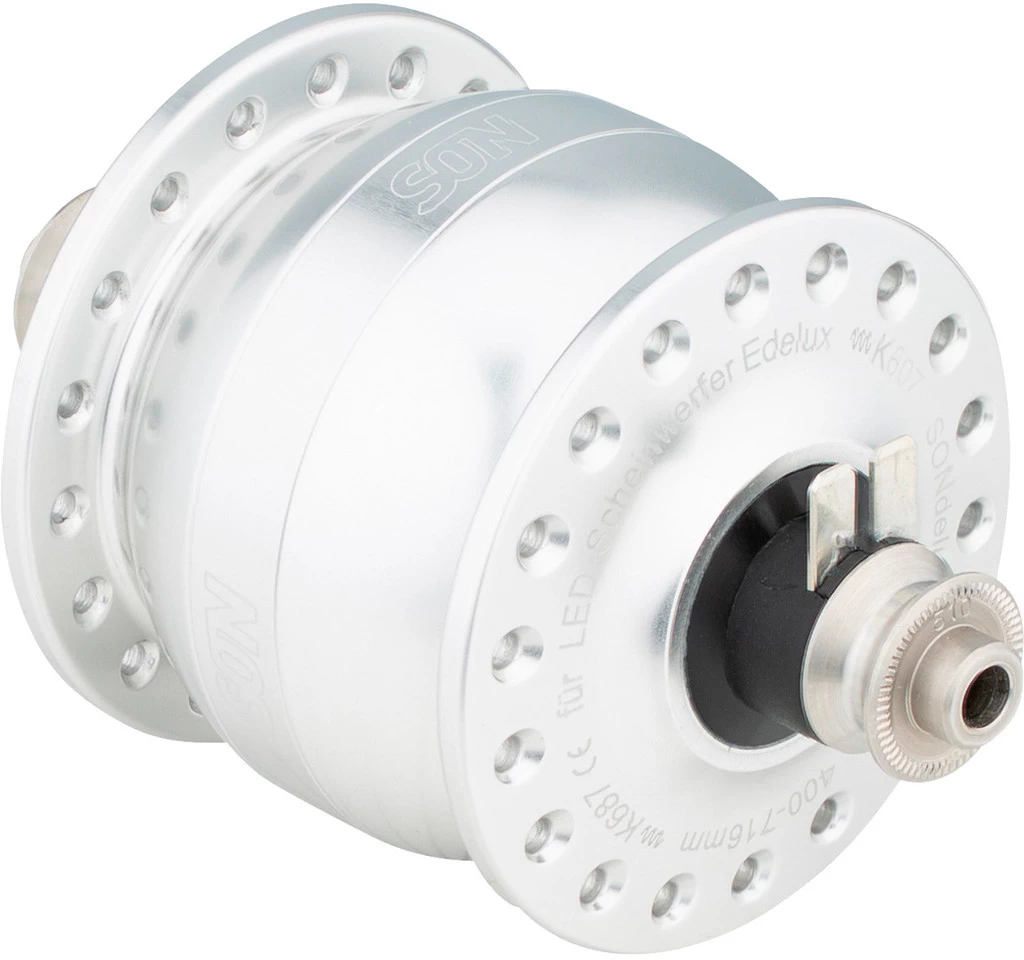

For self-sufficient light at all times: the Son Delux hub dynamo by SON
The Son Delux is the first hub dynamo whose generator is specially designed for modern LED front lights (like Edelux and B&M Cyo). Since December 2009 the Son Delux – in conjunction with the SON Edelux – has StVZO approval for all wheel sizes (16″ -28″ ).
In contrast to a halogen bulb, an LED is highly effective even at a partial load, i.e. when it is operated below its rated output. Therefore it is no longer necessary to build the dynamo in such a way that it already reaches its full power at the lowest possible speed. The Son Delux is therefore smaller and lighter than a hub dynamo for halogen lighting (SON 28).
The power consumption at idle is reduced by 30 to 35% compared to the SON 28. However, in its robustness and in the high-quality built, the Son Delux corresponds to the SON 28.
Information regarding the return of batteries and electrical equipment:Information on the return and disposal of used batteries and electrical equipment can be found here.
Specifications:Output:6V/3W (according to StVZO)Efficiency:65% at 15 km/h in a 28″ wheelPower Consumption at Idle Speed:0.4 W at 15 km/h in a 28″ wheelOver Locknut Dimension:9 x 100 mm quick releaseSpoke Hole Count:20 hole, 24 hole, 28 hole, 32 hole, 36 holeBrake Type:rim brakeTechnical Information:Series:Son DeluxApplication:City & TouringBody Material:aluminium (6082-T6)Bearings:deep groove ball bearing 629-2RSH (SKF)Seals:labyrinth seal, gaskets and pressure compensation systemFlange Distance (L/R):50 mm (25 mm/25 mm)Partial Bolt Circle Diameter (L/R):54 mm/54 mmSpoke Hole Diameter:2 mmWire Connector:4.8 mm flat plug, 2-pole, insulated returnApproved For:Street Use in Germany:yes, in conjunction with LED lights (SON Edelux / Edelux II)Check Number:K~~687Compatibility:for 16″ to 28″ wheels (400-716 mm)for 3 mm coaxial cableFeatures:neodymium iron boron magnetic rotor, 26-poleshollow axle (10 mm) made of aluminium 7075-T6stainless steel axle endsManufacturer Numbers:polished 20 hole:262002black 20 hole:262012polished 24 hole:262402black 24 hole:262412polished 28 hole:262802black 28 hole:262812polished 32 hole:263202black 32 hole:263212silver-anodised 32 hole:263292red 32 hole:263222polished 36 hole:263602black 36 hole:263612silver-anodised 36 hole:263692red 36 hole:263622Contents:1 x SON Son Delux dynamo hub1 x bolt-on axle (hex socket)
