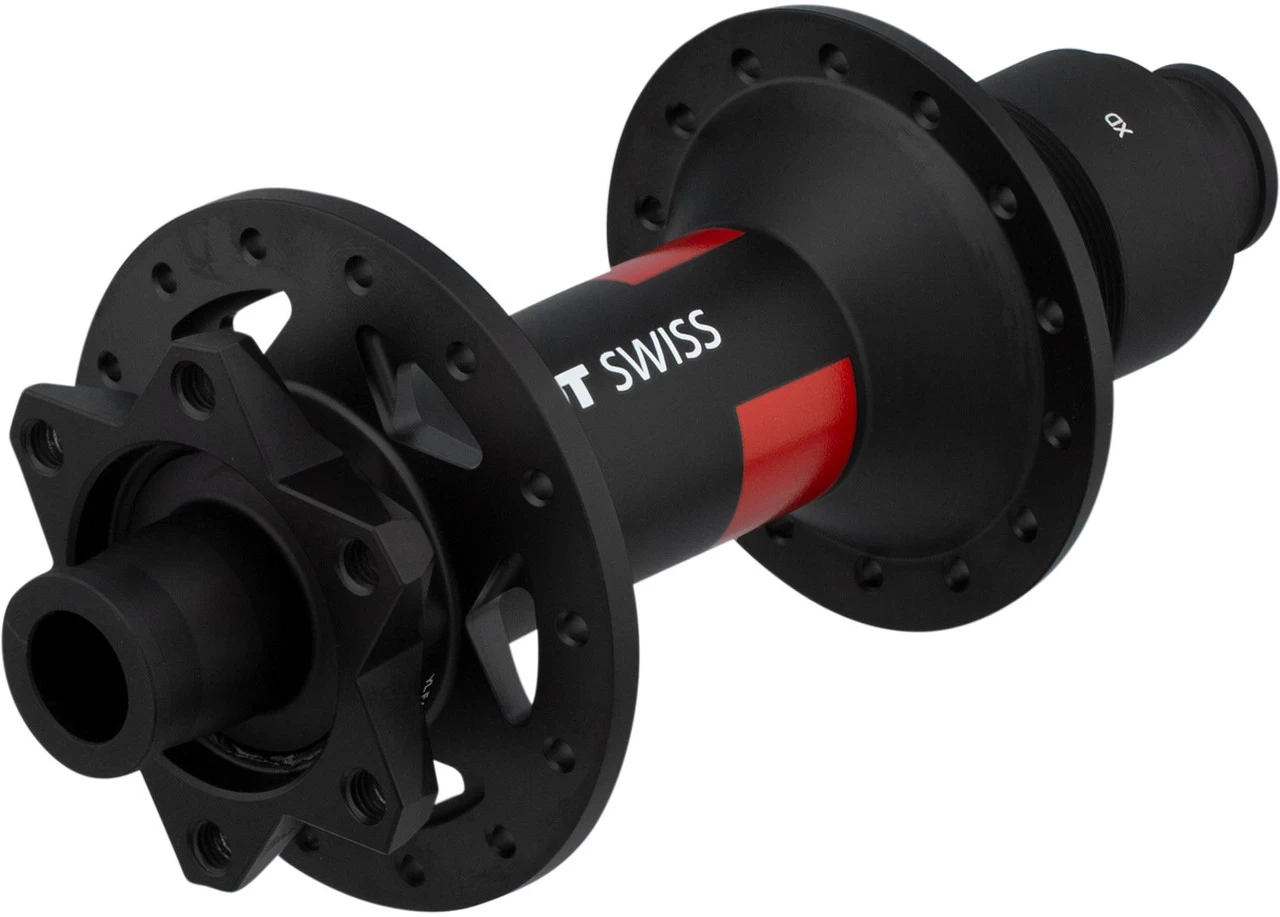

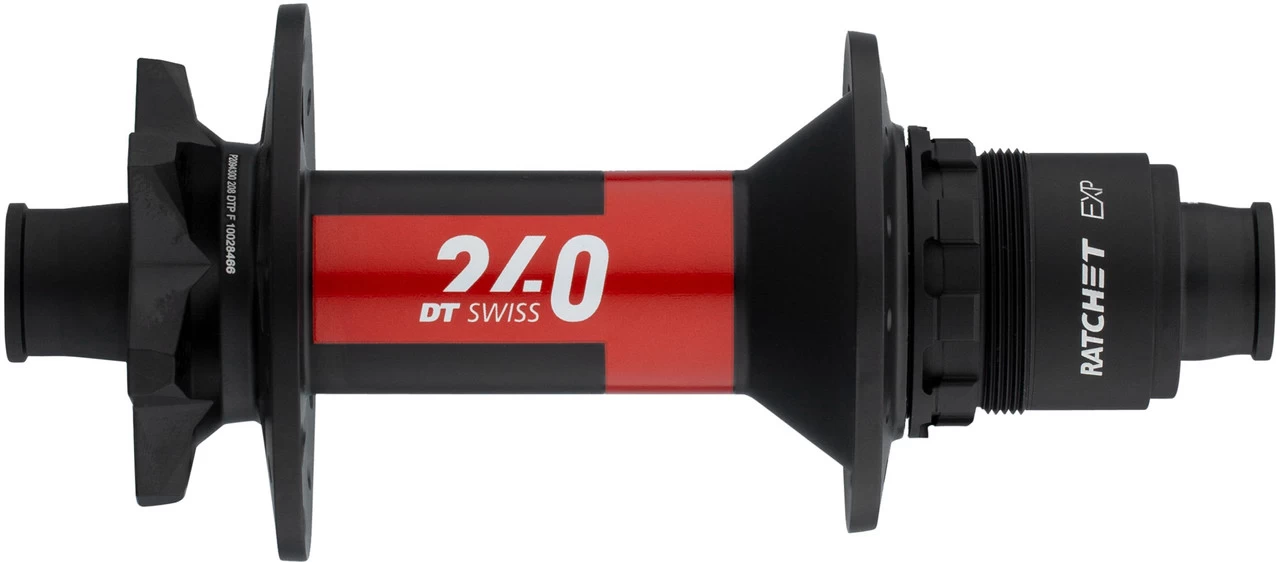

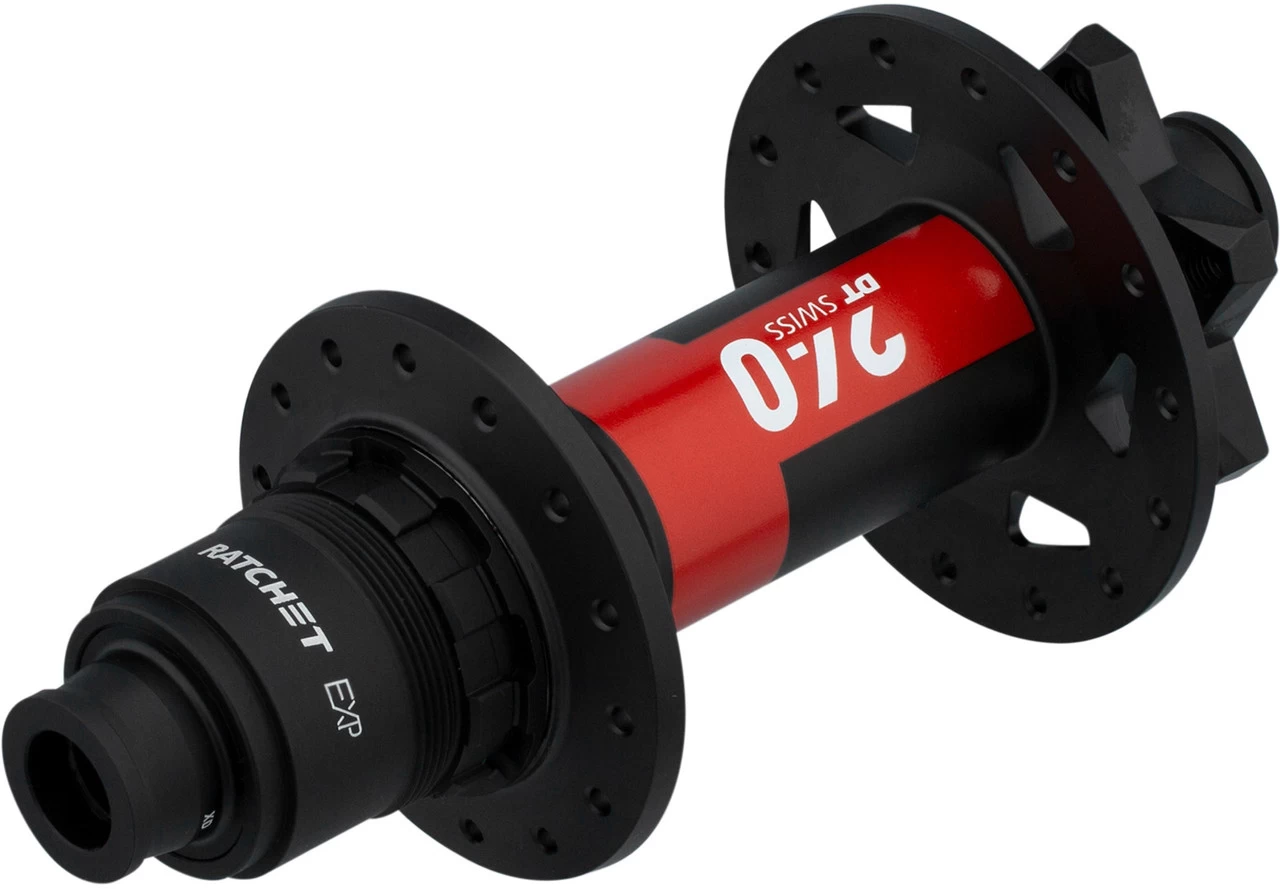

Dt-swiss 240 Classic MTB 6-Bolt Disc Rear Hub

DT Swiss 240 Classic MTB 6-Bolt Disc rear hub – precise, light and durable
The 240 Classic MTB hub from DT Swiss in the disc brake version for 6-bolt brake rotors is the first choice for the rear wheel of your mountain bike. The Ratchet EXP freehub uses the advantages of a ratchet with 36 teeth. These offer precise power transmission, preventing undesirable idling. Through the bearings which are integrated into the threaded rings, the distance between the bearings is increased. As a result, the axis moves less, which leads to a lower load on the bearings. This gives the hub an increased durability. Due to the no-tool concept, you can service the 240 Classic without tools and change the freehub body.
Specifications:Application:All MountainBrake Type:6-bolt discFreehub Body Type:Ratchet EXP 36Technical Information:Body Material:aluminiumBearings:steel bearingsSeals:precision sealTechnology:Ratchet EXP:
A ratchet and a threaded ring are integrated into the hub. This reduces the number of components required, resulting in less wear and tear and a lower weight. In addition, the heavy-duty and reliable ratchet system can be easily and quickly maintained. The no-tool concept plays a decisive role, as it allows the freehub to be replaced without any tools. The freehub has two ratchets which engage simultaneously. This means that the contact surface is large and the point load is kept small, which relieves the material and allows the freehub to work particularly reliably and precisely.
Models:12 x 142 mm / 28 hole / Shimano:
Over Locknut Dimension:12 x 142 mm thru-axleSpoke Hole Count:28Freehub:Shimano MTBGearing:8-/9-/10-/11-speedFlange Distance (L/R):53.7 mm (34.1 mm/19.6 mm)Partial Bolt Circle Diameter (L/R):57 mm/49.9 mmManufacturer Number:H240NDDBR28SA5051S
12 x 150 mm / 28 hole / Shimano:
Over Locknut Dimension:12 x 150 mm thru-axleSpoke Hole Count:28Freehub:Shimano MTBGearing:8-/9-/10-/11-speedFlange Distance (L/R):68.7 mm (41.6 mm/27.1 mm)Partial Bolt Circle Diameter (L/R):56.7 mm/49.9 mmManufacturer Number:H240LDDBR28SA8470S
12 x 150 mm / 32 hole / Shimano:
Over Locknut Dimension:12 x 150 mm thru-axleSpoke Hole Count:32Freehub:Shimano MTBGearing:8-/9-/10-/11-speedFlange Distance (L/R):68.7 mm (41.6 mm/27.1 mm)Partial Bolt Circle Diameter (L/R):56.7 mm/49.9 mmManufacturer Number:H240LDDBR32SA8470S
12 x 142 mm / 28 hole / SRAM XD:
Over Locknut Dimension:12 x 157 mm thru-axleSpoke Hole Count:28Freehub:SRAM XDGearing:11-/12-speedFlange Distance (L/R):68.7 mm (41.6 mm/27.1 mm)Partial Bolt Circle Diameter (L/R):56.7 mm/49.9 mmManufacturer Number:H240NDDRR28SA6346S
12 x 150 mm / 28 hole / SRAM XD:
Over Locknut Dimension:12 x 150 mm thru-axleSpoke Hole Count:28Freehub:SRAM XDGearing:11-/12-speedFlange Distance (L/R):68.7 mm (41.6 mm/27.1 mm)Partial Bolt Circle Diameter (L/R):56.7 mm/49.9 mmManufacturer Number:H240LDDRR28SA8466S
12 x 150 mm / 32 hole / SRAM XD:
Over Locknut Dimension:12 x 150 mm thru-axleSpoke Hole Count:32Freehub:SRAM XDGearing:11-/12-speedFlange Distance (L/R):68.7 mm (41.6 mm/27.1 mm)Partial Bolt Circle Diameter (L/R):56.7 mm/49.9 mmManufacturer Number:H240LDDRR32SA8466SContents:1 x DT Swiss 240 Classic MTB rear hub
