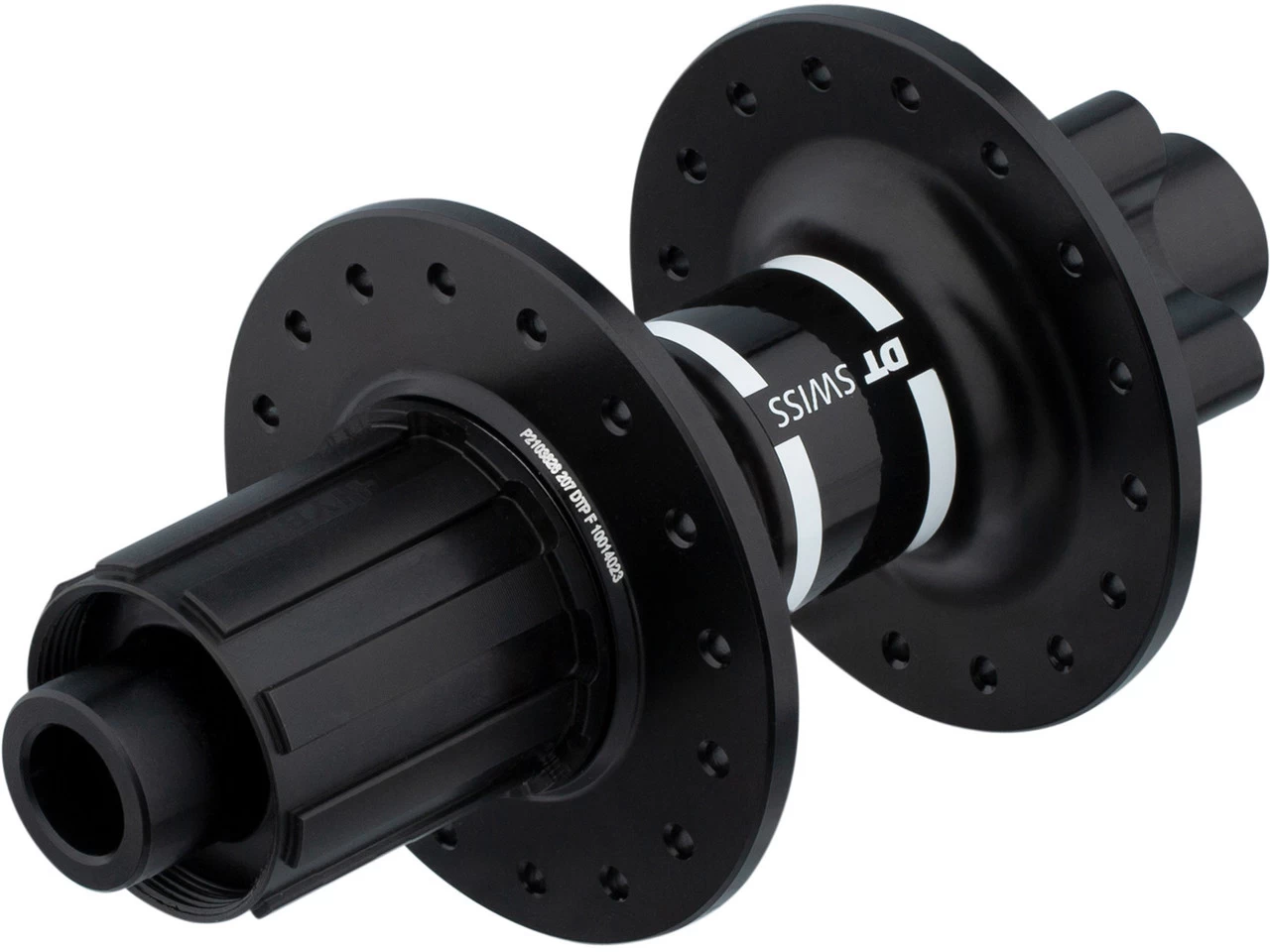

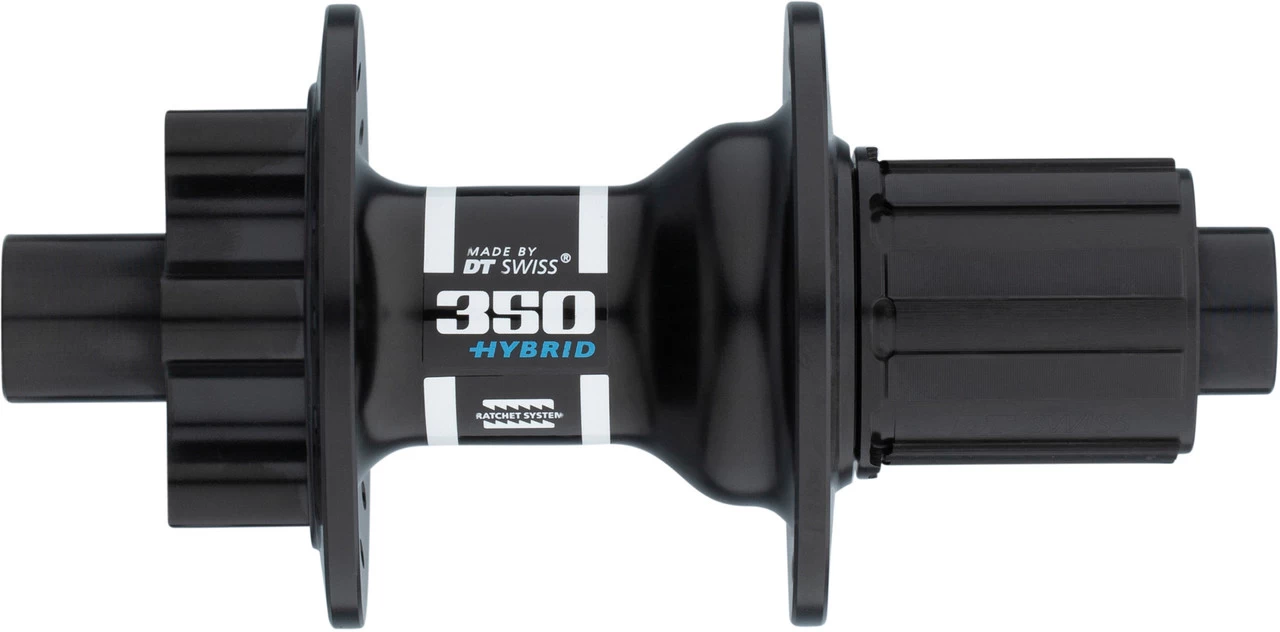

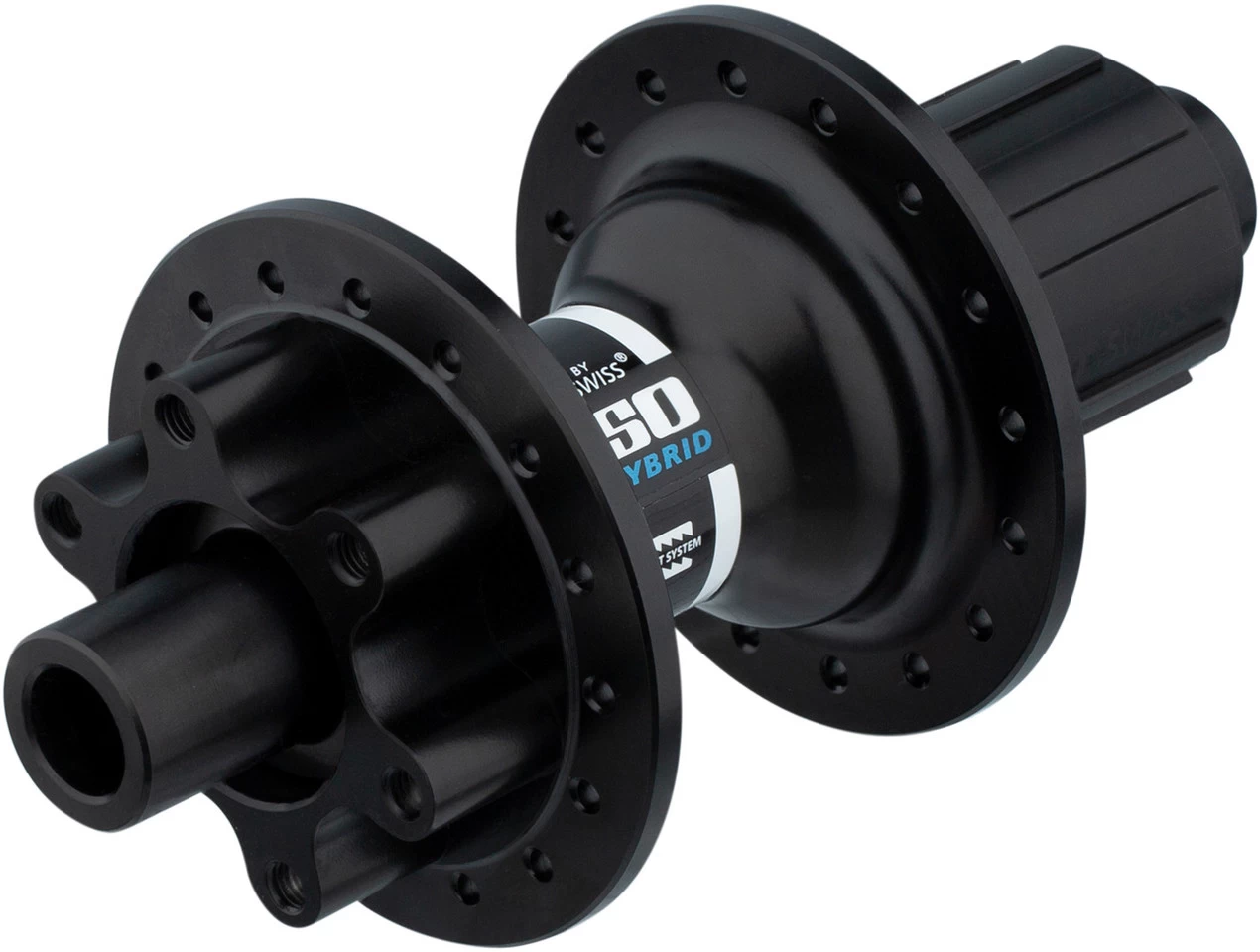

Dt-swiss 350 Classic Hybrid 6-Bolt Disc Rear Hub

DT Swiss 350 Classic Hybrid 6-Bolt Disc rear hub – for All Mountain e-bikes
The 350 Classic Hybrid hub from DT Swiss is suitable for rear wheels of MTBs with electric drive. The Ratchet System 24 freehub (with 24 teeth) provides an effective conversion of your pedalling power into propulsion. Through the engagement angle the contact surface of both ratchets increases, in such a way that the power transmission is almost optimal and you hardly feel any unwanted idling. The solid e-bike hub with J-bend spokes forms the centre of a robust rear wheel, over which you have the control at all times due to the 6-bolt mount for disc brakes.
Guidelines for Replacing E-bike Components:Before you replace components on your e-bike, please read through the guidelines for component replacement for CE-marked e-bikes/pedelecs with pedal assistance.
Specifications:Application:All Mountain, EnduroBrake Type:6-bolt discFreehub:Ratchet System 24Technical Information:Body Material:aluminiumBearings:steel bearingsSeals:precision sealTechnology:Ratchet System:
The robust and reliable star ratchets freehub system can be maintained easily and quickly. The no-tool concept contributes to this, because it allows disassembly without any tools. The freehub has two ratchets which engage simultaneously. This means that the contact surface is large and the point load is kept small, which relieves the material and allows the freehub to work particularly reliably and precisely.
Models:12 x 142 mm / 32 hole / Shimano:
Over Locknut Dimension:12 x 142 mm thru-axleSpoke Hole Count:32Freehub:Shimano MTBGearing:8-/9-/10-/11-speedFlange Distance (L/R):52.5 mm (33.3 mm/19.2 mm)Partial Bolt Circle Diameter (L/R):58 mm / 58 mmManufacturer Number:H350NDDSR32SA4023S
12 x 142 mm / 36 hole / Shimano:
Over Locknut Dimension:12 x 142 mm thru-axleSpoke Hole Count:36Freehub:Shimano MTBGearing:8-/9-/10-/11-speedFlange Distance (L/R):52.5 mm (33.3 mm/19.2 mm)Partial Bolt Circle Diameter (L/R):58 mm / 58 mmManufacturer Number:H350NDDSR36SA4023SContents:1 x DT Swiss 350 Classic Hybrid rear hub
