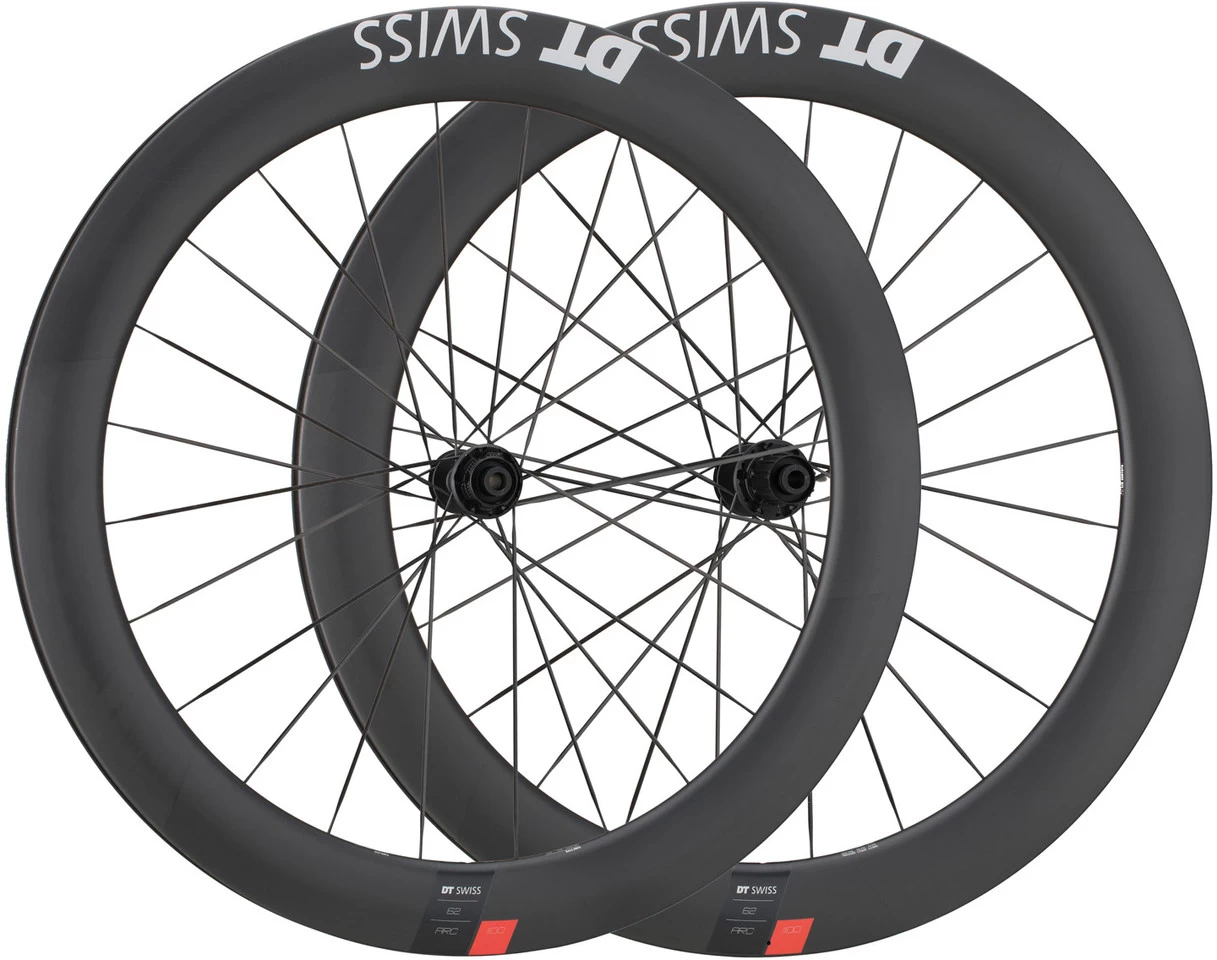

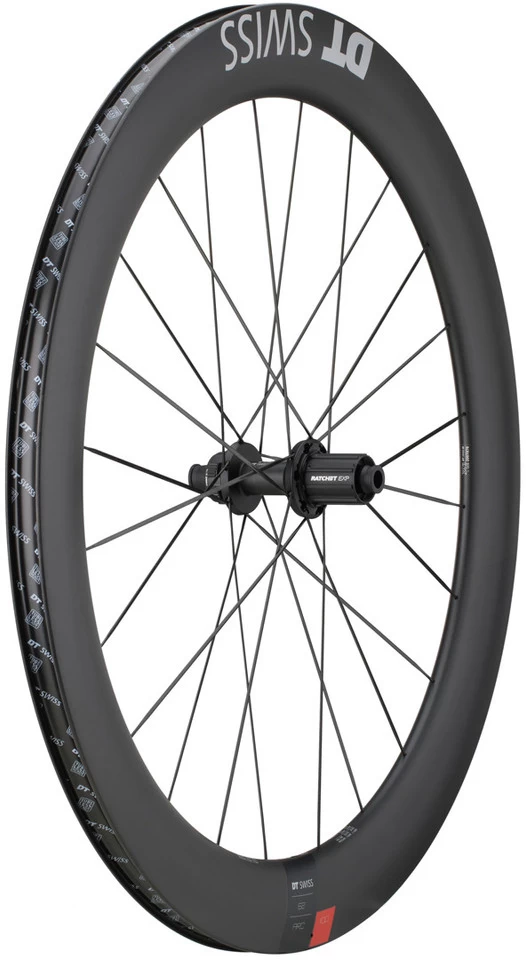

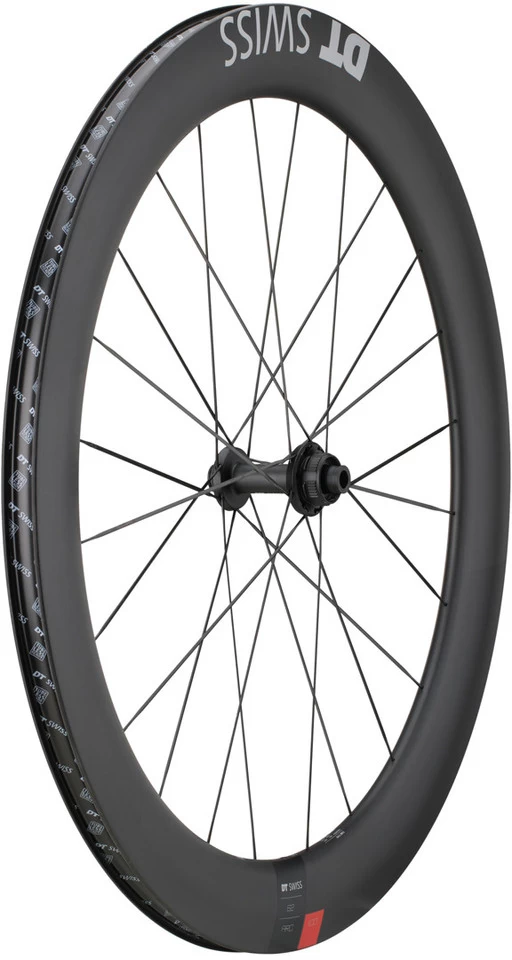

Dt-swiss ARC 1100 DICUT 62 Carbon Center Lock Disc 28″ Wheelset

DT Swiss ARC 1100 DICUT 62 Carbon Disc Centre Lock 28″ wheelset – Aero wheels of medium depth

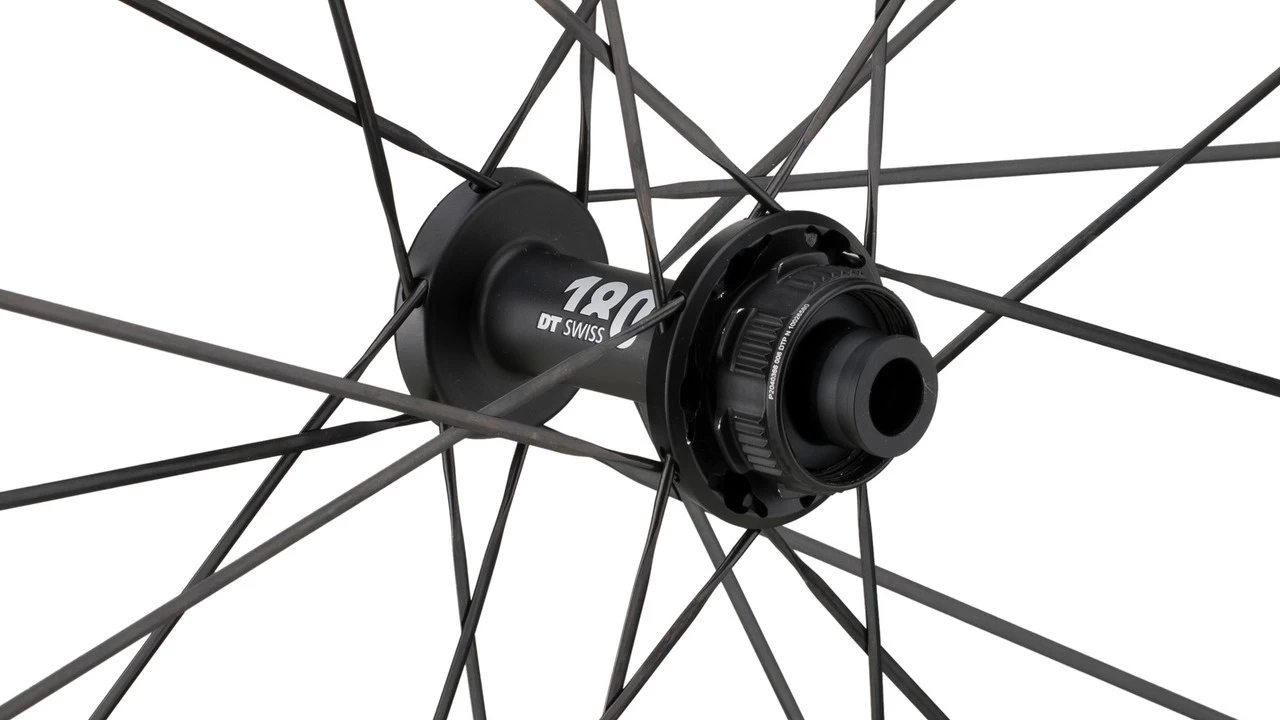

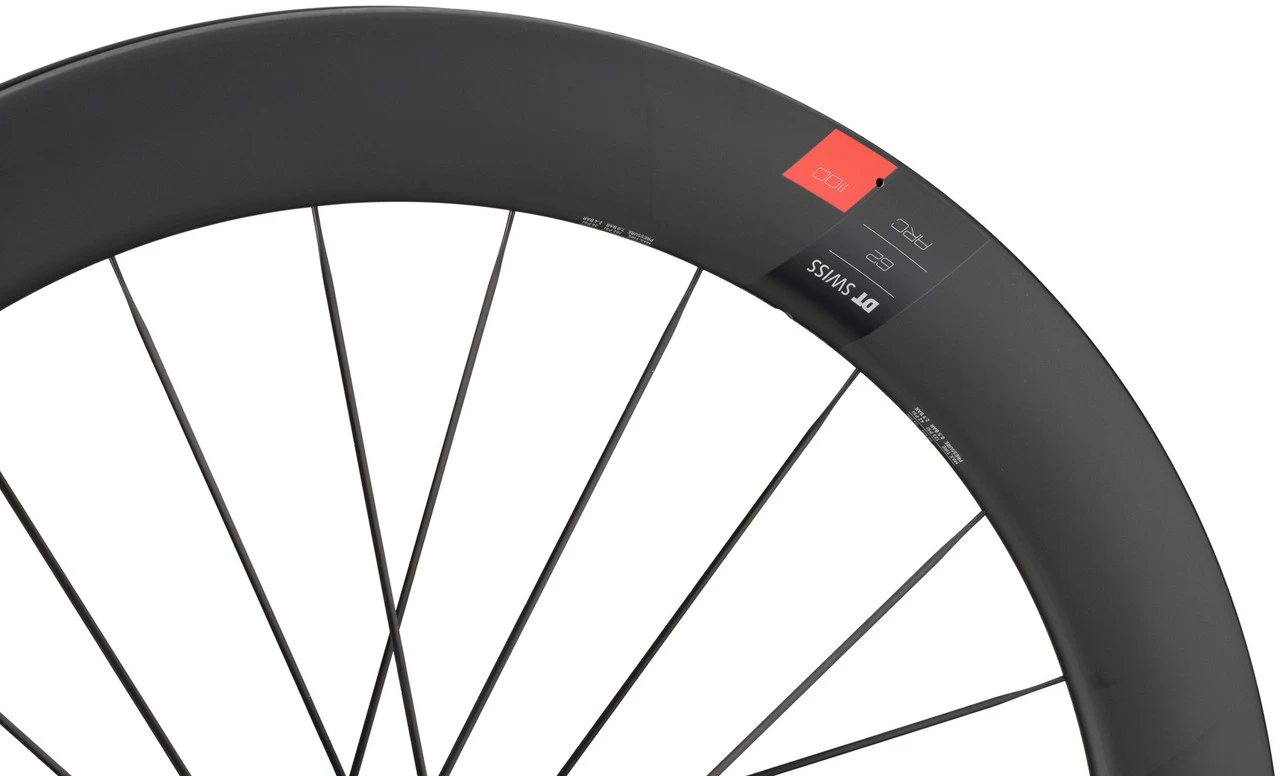

The ARC 1100 DICUT wheelset from DT Swiss gives your aero or time trial bike improved aerodynamics. The 62 mm deep carbon DICUT rim has received an optimised design. This gives it more inside rim width. Through this change, more comfortable, wider tyres from 25 to 28 mm can also be used on your road bike without increasing the rolling resistance. Despite a rim depth of 62 mm, the steering behaviour can be controlled safely. You also benefit from a noticeable sailing effect during crosswinds. The good steering control is achieved, among other things, by the aerodynamic 180 hub and new Aerolite II spokes. They are able to reduce the air resistance caused by the rotation of the wheels. The flat forged Aerolite II straight pull spokes have a T-shaped spoke head which sits securely in the hub. Due to the advanced freehub technology, from the Ratchet EXP 36 tooth freehub, uncomfortable idling is kept to a minimum so that your pedalling power is immediately available when you push your legs into the pedals.
Specifications:Application:Road, Triathlon & Time TrialWheel Size:28″Tyre Type:clincher tyreNumber of Spokes:24Brake Type:Center Lock DiscTubeless System:Tubeless ReadyTechnical Information – Rim:Rim Flange:with hookDimensions (ETRTO):20-622Inner Width:20 mmOuter Width:27 mmDepth:62 mmValve Hole Diameter:SV/Presta (6.5 mm)Rim Material:CarbonTechnical Information – Front Hub:Type:180 straight pullOver Locknut Dimension:12 x 100 mm thru-axle, convertible to 9 x 100 mm quick releaseBearings:Ceramic bearings (SINC)Body Material:aluminiumTechnical Information – Rear Hub:Type:180 straight pullOver Locknut Dimension:12 x 142 mm thru-axle, convertible to 10 x 135 mm quick releaseBearings:Ceramic bearings (SINC)Body Material:aluminiumFreehub Body Material:aluminiumFreehub Body:Ratchet EXP 36Technical Information – Lacing:Front Lacing Pattern:2-crossRear Lacing Pattern:2-crossSpoke Type:DT Aerolite II T-HeadSpoke Material:stainless steelNipple Type:DT Pro Lock HiddenNipple Size:12 mm (length) / 2 mm (diameter)Nipple Material:aluminiumApproved For:Weight Limit:110 kg (system weight)Air Pressure (max.):8.5 barsRecommended Tyre Width:25 – 34 mmTechnology:Intended use – Category 1
Suitable for predominantly paved surfaces.

SINC
Robust steel bearing rings are combined with ceramic balls. This means that the rolling resistance is low. The rolling resistance is further reduced by the seal on the outside and a protective ring on the inside. Furthermore, the combination of materials prevents corrosion between the ring and balls. This increases the durability of the ball bearings.

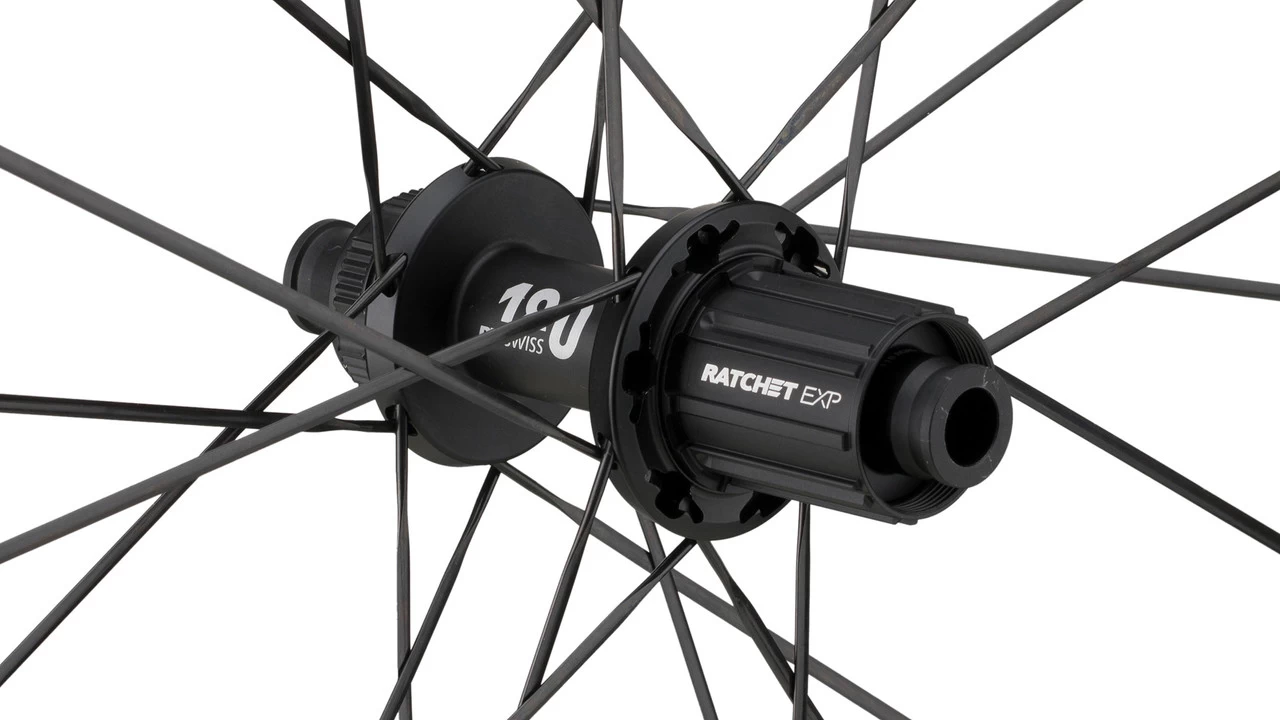

Ratchet EXP
A ratchet and a threaded ring are integrated into the hub. This reduces the number of components required, resulting in less wear and tear and a lower weight. In addition, the heavy-duty and reliable ratchet system can be easily and quickly maintained. The no-tool concept plays a decisive role, as it allows the freehub to be replaced without any tools. The freehub has two ratchets which engage simultaneously. This means that the contact surface is large and the point load is kept small, which relieves the material and allows the freehub to work particularly reliably and precisely.

Pro Lock
The nipple thread is coated with two-component adhesive to increase the durability of the wheels. It can still be re-trued several times without any problems, but the adhesive strength decreases slightly. The connection between the spoke and nipple cannot loosen by itself.
Colour Info:black:
Rim: blackHubs: blackSpokes: blackNipples: blackModels:28″ set (front 12×100 + rear 12×142) Shimano:
Freehub:Shimano RoadGearing:8-/9-/10-/11-/12-speedNote:Assembly of 8-/9-/10-speed cassettes on Shimano Road freehub bodies requires a 1.85 mm spacer.Manufacturer Numbers:WARC110AIDXCA12564 + WARC110NIDJCA12565Contents:1 x DT Swiss ARC 1100 DICUT carbon wheelset (front and rear wheel)1 x DT Swiss SRAM XDR freehub body2 x DT Swiss wheel bags2 x DT Swiss tubeless valves2 x rolls DT Swiss tubeless rim tape
