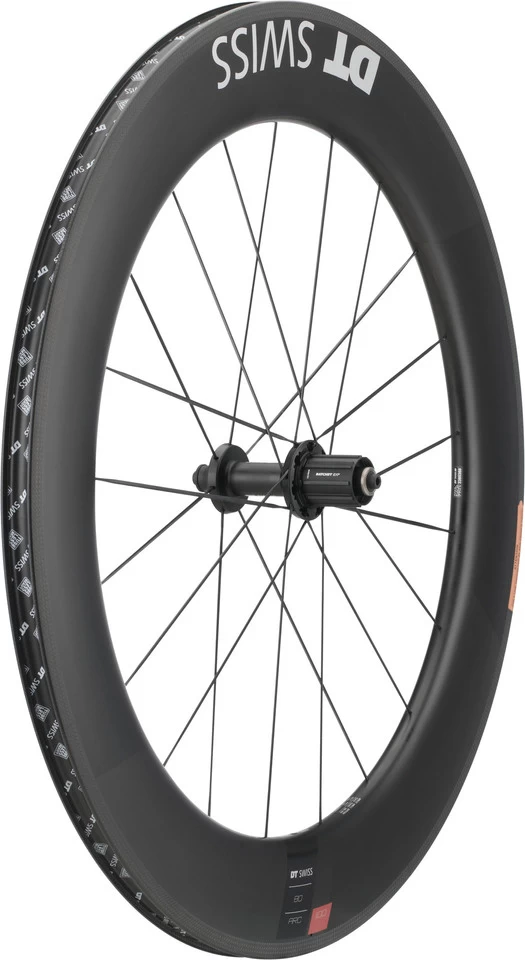

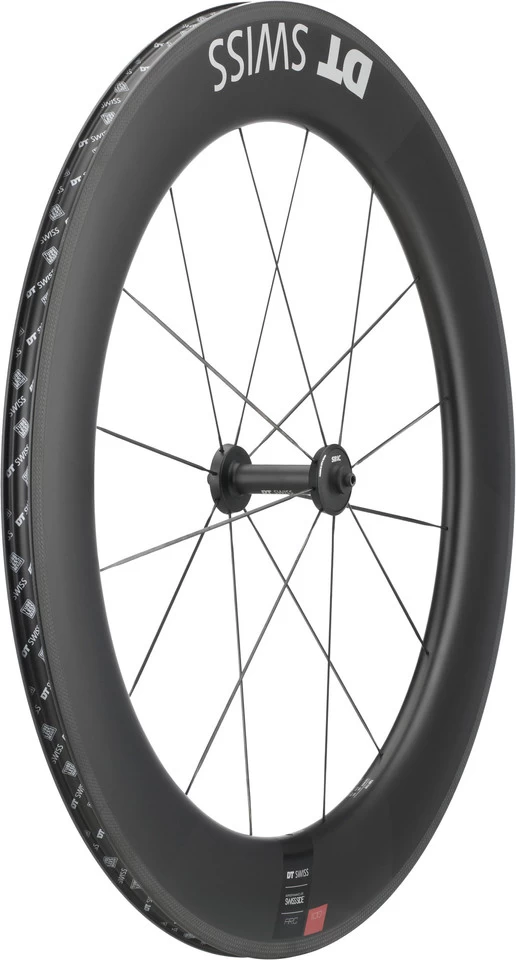

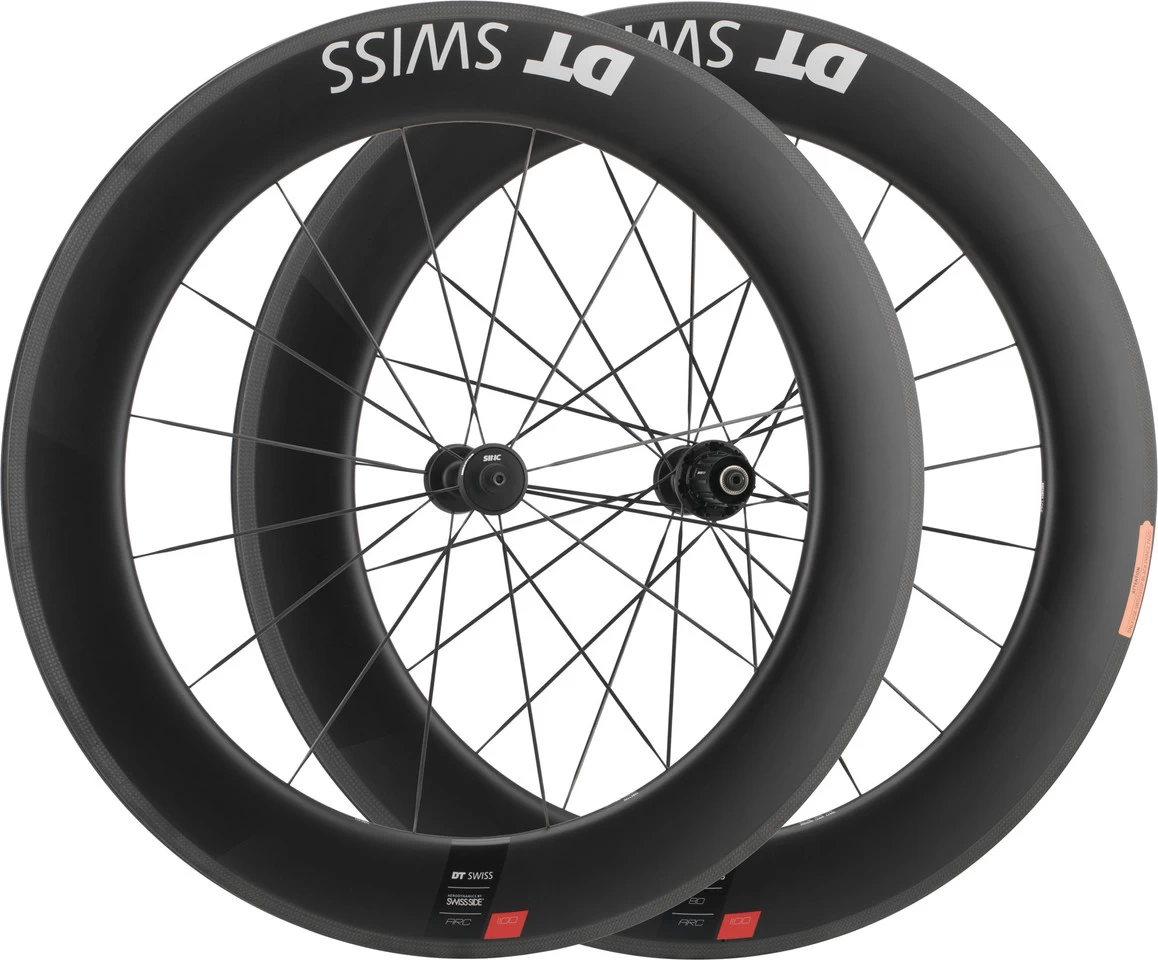

DT Swiss ARC 1100 DICUT 80 Carbon rim brake 28″ wheelset – high-performance with sailing effect

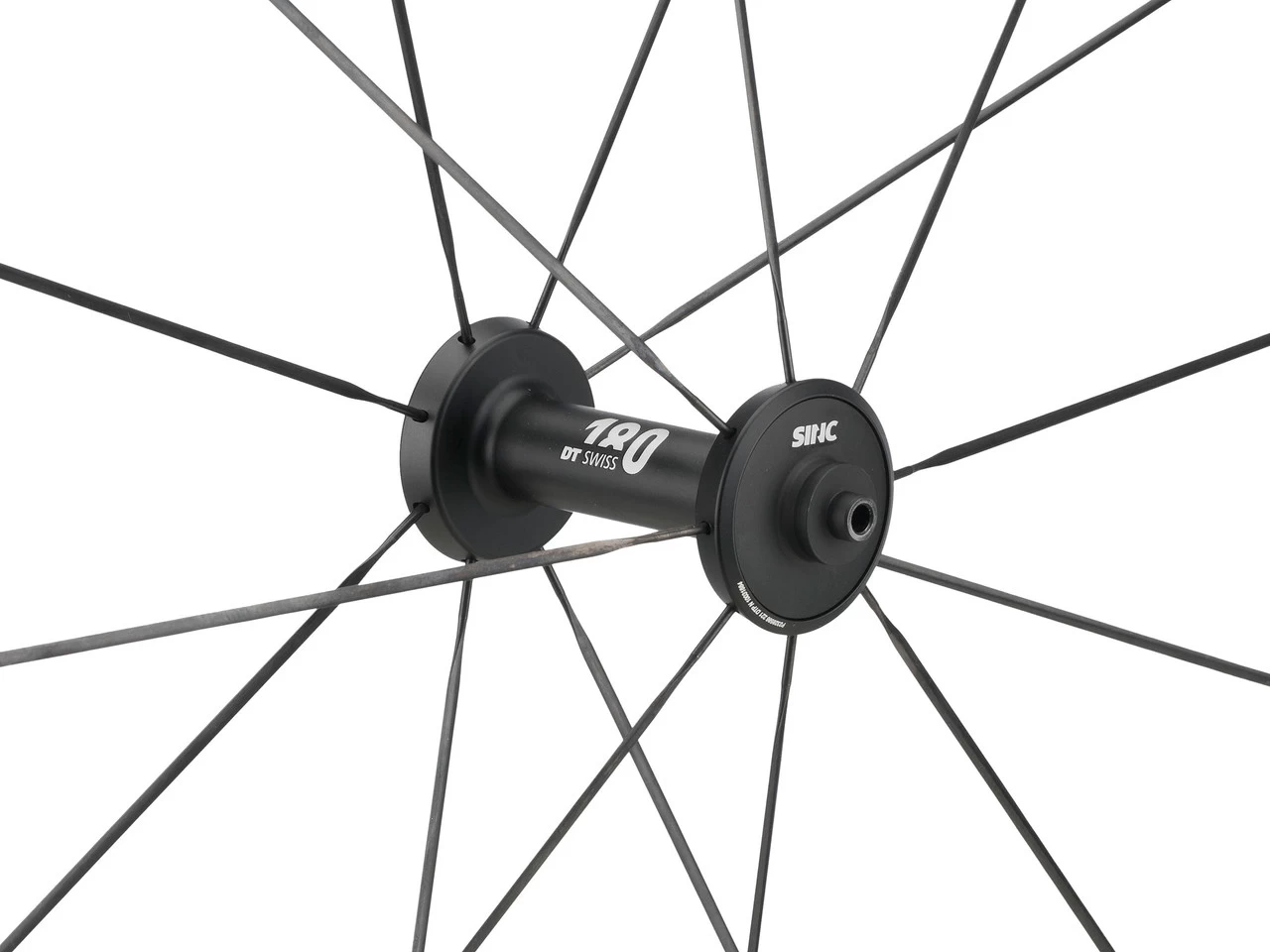

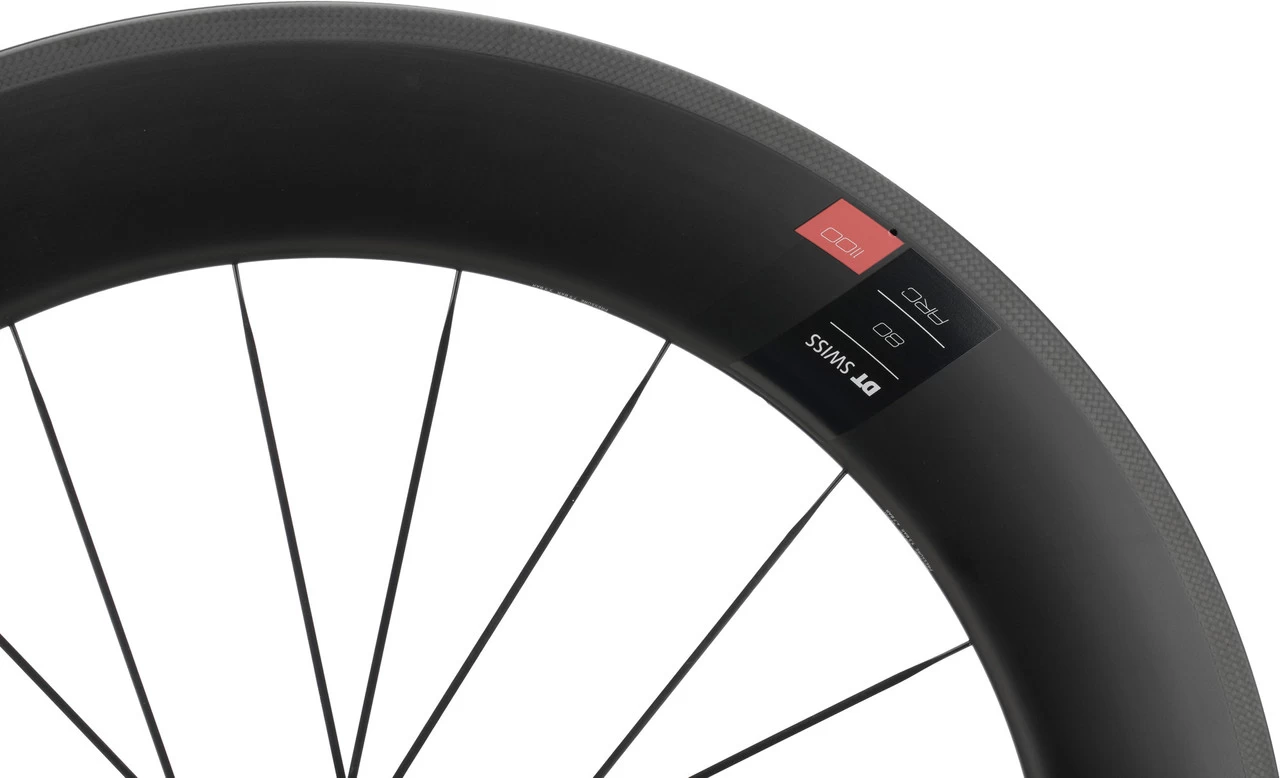

The ARC 1100 DICUT wheelset from DT Swiss gives your road or triathlon with rim brakes improved aerodynamic properties. The design of the 80 mm deep DICUT carbon rim has been optimised. This made it possible to increase the jaw width. As a result, wider and more comfortable 25 to 28 mm tyres can be used on your time trial bike without perceiving disadvantages in the rolling resistance. Despite a full 80 mm rim depth, the steering behaviour remains well under control. This is achieved, among other things, by the streamlined 180 hub and the Aerolite II straight pull spokes. In addition, you benefit from a noticeable sailing effect during crosswinds. To ensure that your leg power can develop ideally, the rear wheel has the modern Ratchet- EXP freehub. It has 36 teeth, which ensure direct power transmission, thus keeping undesired idling during acceleration as low as possible.
Specifications:Application:Road, Triathlon & Time TrialWheel Size:28″Tyre Type:clincher tyreNumber of Spokes:16 (front), 21 (rear)Brake Type:rim brakeTubeless System:Tubeless ReadyTechnical Information – Rim:Rim Flange:with hookDimensions (ETRTO):17-622Inner Width:17 mmOuter Width:28 mmDepth:80 mmValve Hole Diameter:SV/Presta (6.5 mm)Rim Material:CarbonTechnical Information – Front Hub:Type:180 straight pullOver Locknut Dimension:9 x 100 mm quick releaseBearings:Ceramic bearings (SINC)Body Material:aluminiumTechnical Information – Rear Hub:Type:180 straight pullOver Locknut Dimension:10 x 130 mm quick releaseBearings:Ceramic bearings (SINC)Body Material:aluminiumFreehub Body Material:aluminiumFreehub Body:Ratchet EXP 36Technical Information – Lacing:Front Lacing Pattern:radialRear Lacing Pattern:radial (L), 2-cross (R)Spoke Type:DT Aero Comp II T-Head, DT Aerolite II T-HeadSpoke Material:stainless steelNipple Type:DT Pro Lock HiddenNipple Material:aluminiumApproved For:Weight Limit:100 kg (system weight)Air Pressure (max.):see manufacturer’s specificationsRecommended Tyre Width:see manufacturer’s specificationsTechnology:Intended use – Category 1
Suitable for predominantly paved surfaces.

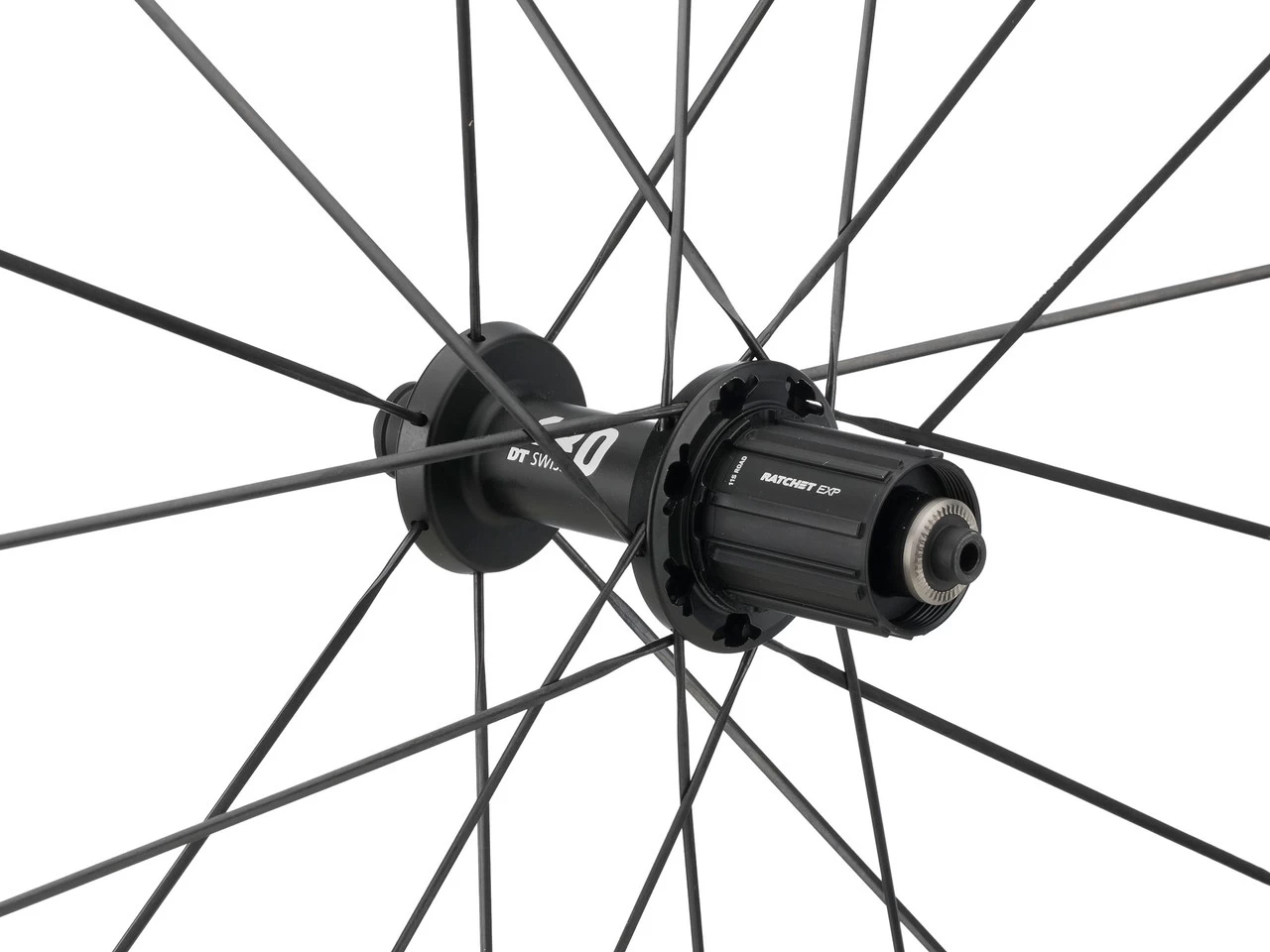

Ratchet EXP
A ratchet and a threaded ring are integrated into the hub. This reduces the number of components required, resulting in less wear and tear and a lower weight. In addition, the heavy-duty and reliable ratchet system can be easily and quickly maintained. The no-tool concept plays a decisive role, as it allows the freehub to be replaced without any tools. The freehub has two ratchets which engage simultaneously. This means that the contact surface is large and the point load is kept small, which relieves the material and allows the freehub to work particularly reliably and precisely.
Pro Lock
The nipple thread is coated with two-component adhesive to increase the durability of the wheels. It can still be re-trued several times without any problems, but the adhesive strength decreases slightly. The connection between the spoke and nipple cannot loosen by itself.
Models:28″ set (front 9×100 + rear 10×130) Shimano:

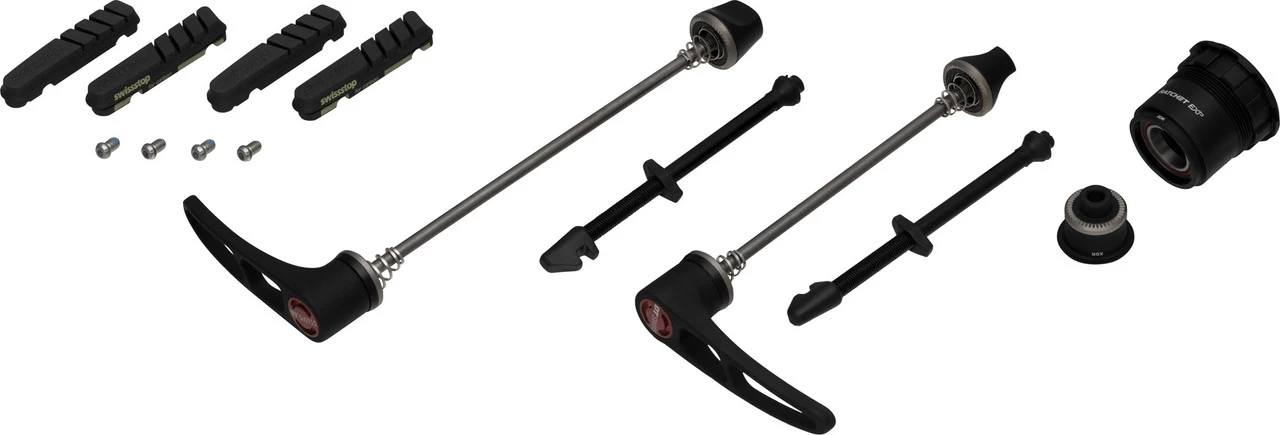

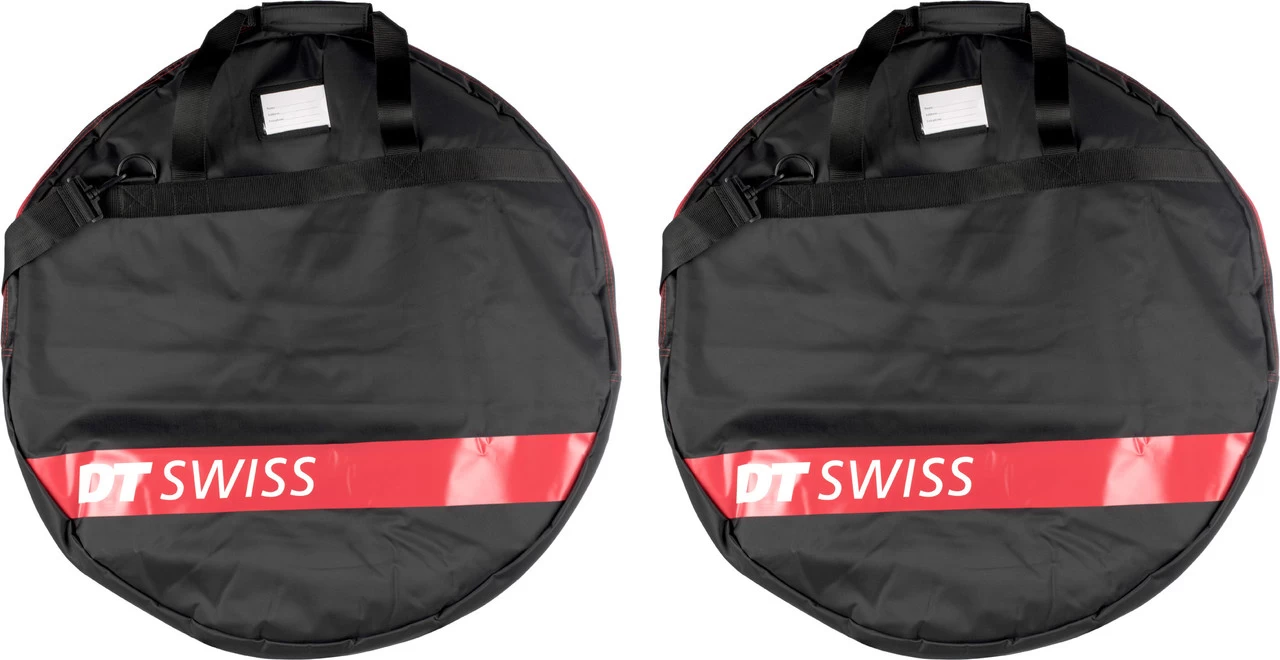

Freehub:Shimano RoadGearing:8-/9-/10-/11-/12-speedNote:Assembly of 8-/9-/10-speed cassettes on Shimano Road freehub bodies requires a 1.85 mm spacer.Manufacturer Numbers:WARC110AAQXCA19291 + WARC110HRQJCA19292Contents:1 x DT Swiss ARC 1100 DICUT 80 Carbon rim brake wheelset (front wheel and rear wheel)1 x DT Swiss SRAM XDR freehub body2 pair of Swissstop Black Prince rim brake pads2 x DT Swiss wheel bags2 x DT Swiss tubeless valves2 x rolls DT Swiss tubeless rim tape
