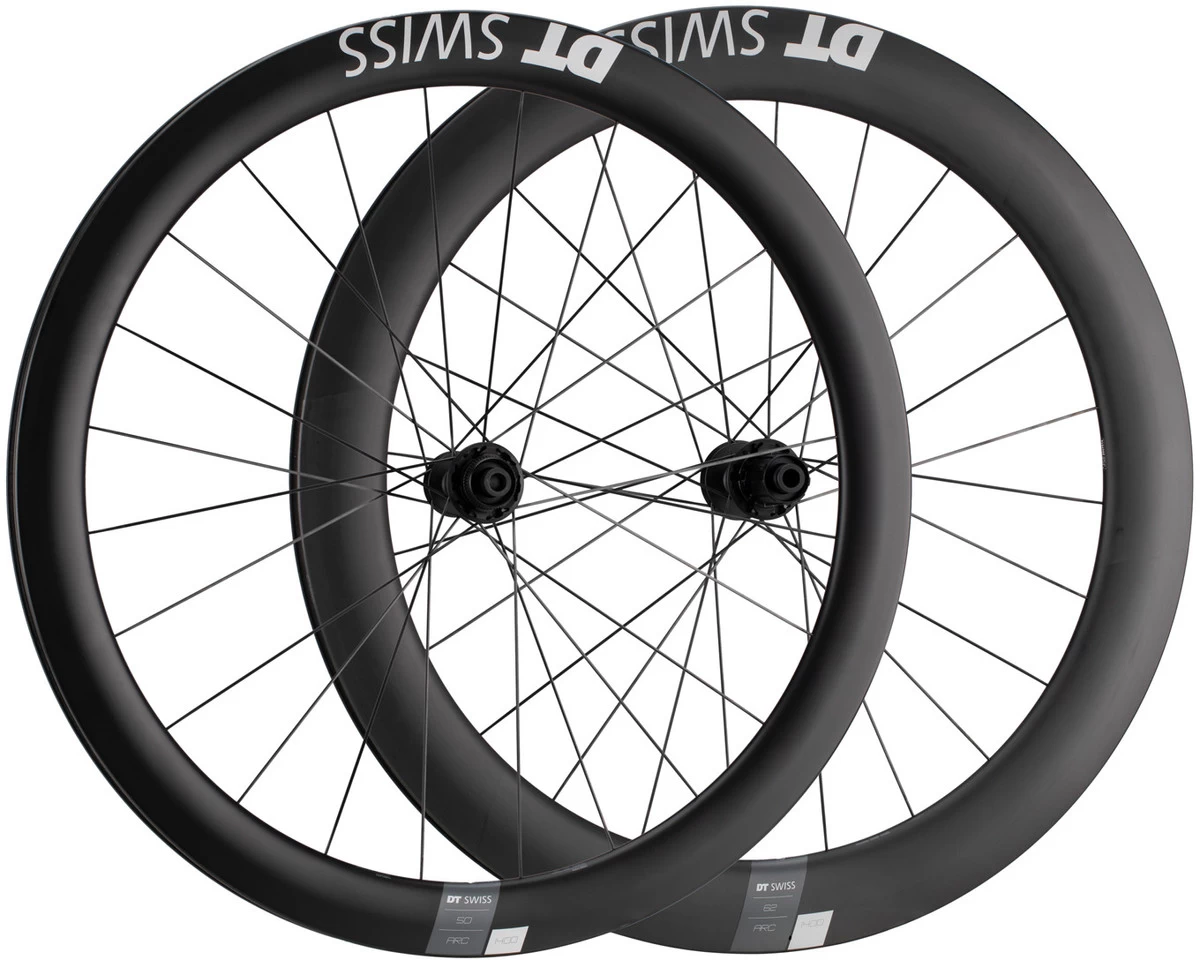

Dt-swiss ARC 1400 DICUT 50/62 Carbon Disc Centre Lock 28″ Wheelset

DT Swiss ARC 1400 DICUT 50/62 Carbon Disc Centre Lock 28″ wheelset – aerodynamic optimisation
With the ARC 1400 DICUT wheelset from DT Swiss, you can make your own road, aero or time trial bike even more streamlined. The front wheel has a rim depth of 50 mm, which maintains good steering control. The rim depth of the rear wheel is 62 mm and provides light forward thrust during crosswinds. Due to the redesign of the DICUT carbon rim, the wider and more comfortable 25 to 28 mm tyres can also be used on a road bike. The rolling resistance remains as low as usual. The new, more streamlined 240 hub is combined with the newly developed Aero Comp II spokes with T-shaped spoke heads. This contributes to the stability of the entire system. The modern Ratchet EXP freehub reduces idle pedalling by transmitting power instantaneously so that your pedalling power is converted into direct forward drive.
Specifications:Application:Road, Triathlon & Time TrialWheel Size:28″Tyre Type:clincher tyreNumber of Spokes:24Brake Type:Center Lock DiscTubeless System:Tubeless ReadyTechnical Information – Rim:Rim Flange:with hookDimensions (ETRTO):20-622Inner Width:20 mmOuter Width:26.5 mm (front), 27 mm (rear)Depth:50 mm (front), 62 mm (rear)Valve Hole Diameter:SV/Presta (6.5 mm)Rim Material:CarbonTechnical Information – Front Hub:Type:240 straight pullOver Locknut Dimension:12 x 100 mm thru-axle, convertible to 9 x 100 mm quick releaseBearings:steel bearingsBody Material:aluminiumTechnical Information – Rear Hub:Type:240 straight pullOver Locknut Dimension:12 x 142 mm thru-axle, convertible to 10 x 135 mm quick releaseBearings:steel bearingsBody Material:aluminiumFreehub Body Material:aluminiumFreehub Body:Ratchet EXP 36Technical Information – Lacing:Front Lacing Pattern:2-crossRear Lacing Pattern:2-crossSpoke Type:DT Aero Comp T-HeadSpoke Material:stainless steelNipple Type:DT Pro Lock HiddenNipple Size:12 mm (length) / 2 mm (diameter)Nipple Material:aluminiumApproved For:Weight Limit:110 kg (system weight)Air Pressure (max.):8.5 barsRecommended Tyre Width:25 – 34 mmTechnology:Intended use – Category 1:
Suitable for predominantly paved surfaces.

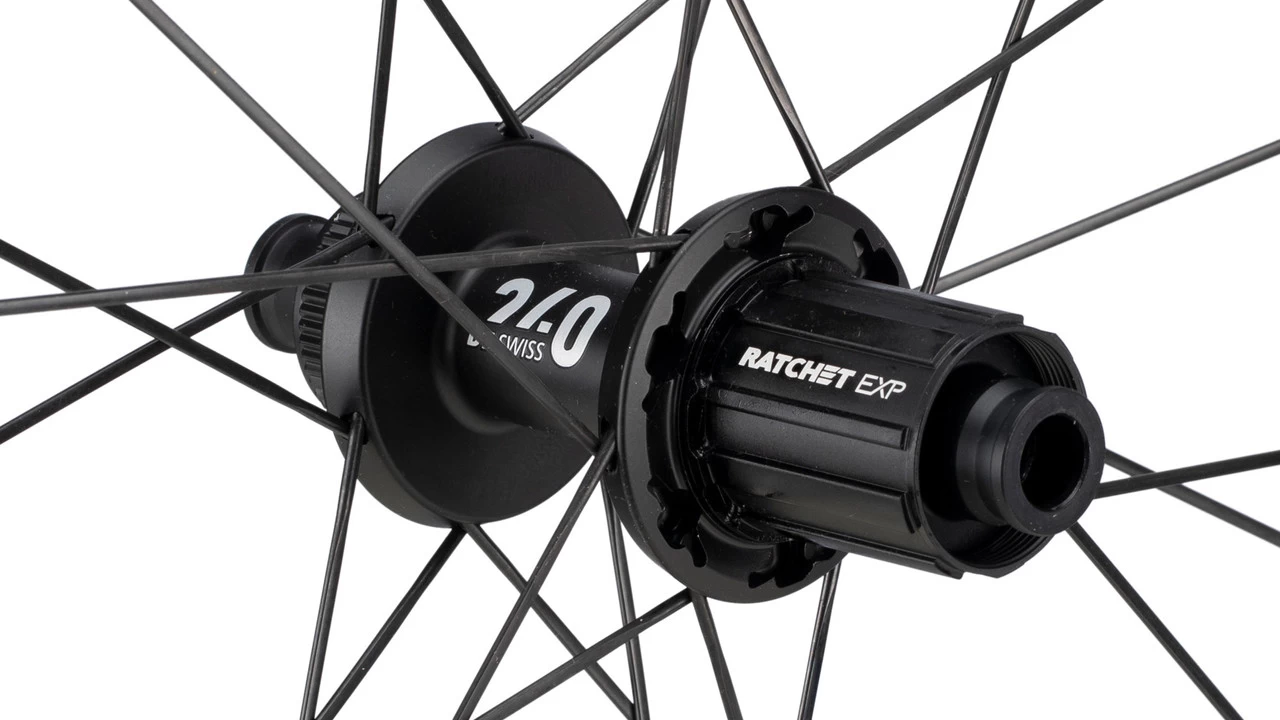

Ratchet EXP:
A ratchet and a threaded ring are integrated into the hub. This reduces the number of components required, resulting in less wear and tear and a lower weight. In addition, the heavy-duty and reliable ratchet system can be easily and quickly maintained. The no-tool concept plays a decisive role, as it allows the freehub to be replaced without any tools. The freehub has two ratchets which engage simultaneously. This means that the contact surface is large and the point load is kept small, which relieves the material and allows the freehub to work particularly reliably and precisely.

Pro Lock:
The nipple thread is coated with two-component adhesive to increase the durability of the wheels. It can still be re-trued several times without any problems, but the adhesive strength decreases slightly. The connection between the spoke and nipple cannot loosen by itself.
Colour Index:black:
Rim: blackHubs: blackSpokes: blackNipples: blackModels:28″ set (front 12×100 + rear 12×142) Shimano:

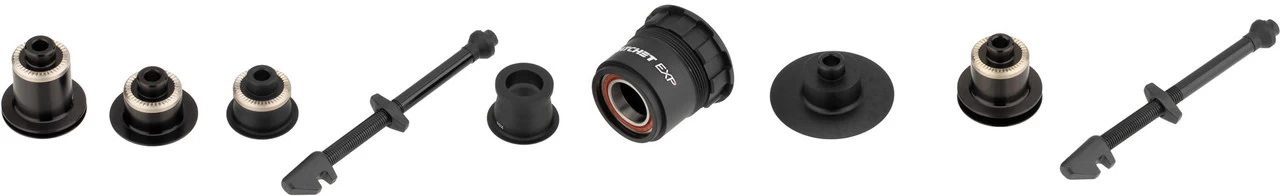

Freehub:Shimano RoadGearing:8-/9-/10-/11-/12-speedNote:Assembly of 8-/9-/10-speed cassettes on Shimano Road freehub bodies requires a 1.85 mm spacer.Manufacturer Numbers:WARC140AIDXCA12593 + WARC140NIDICA12589Contents:1 x DT Swiss ARC 1400 DICUT carbon wheelset (front and rear wheel)1 x DT Swiss SRAM XDR freehub body2 x DT Swiss 5 mm end cap sets2 x DT Swiss tubeless valves2 x rolls DT Swiss tubeless rim tape
