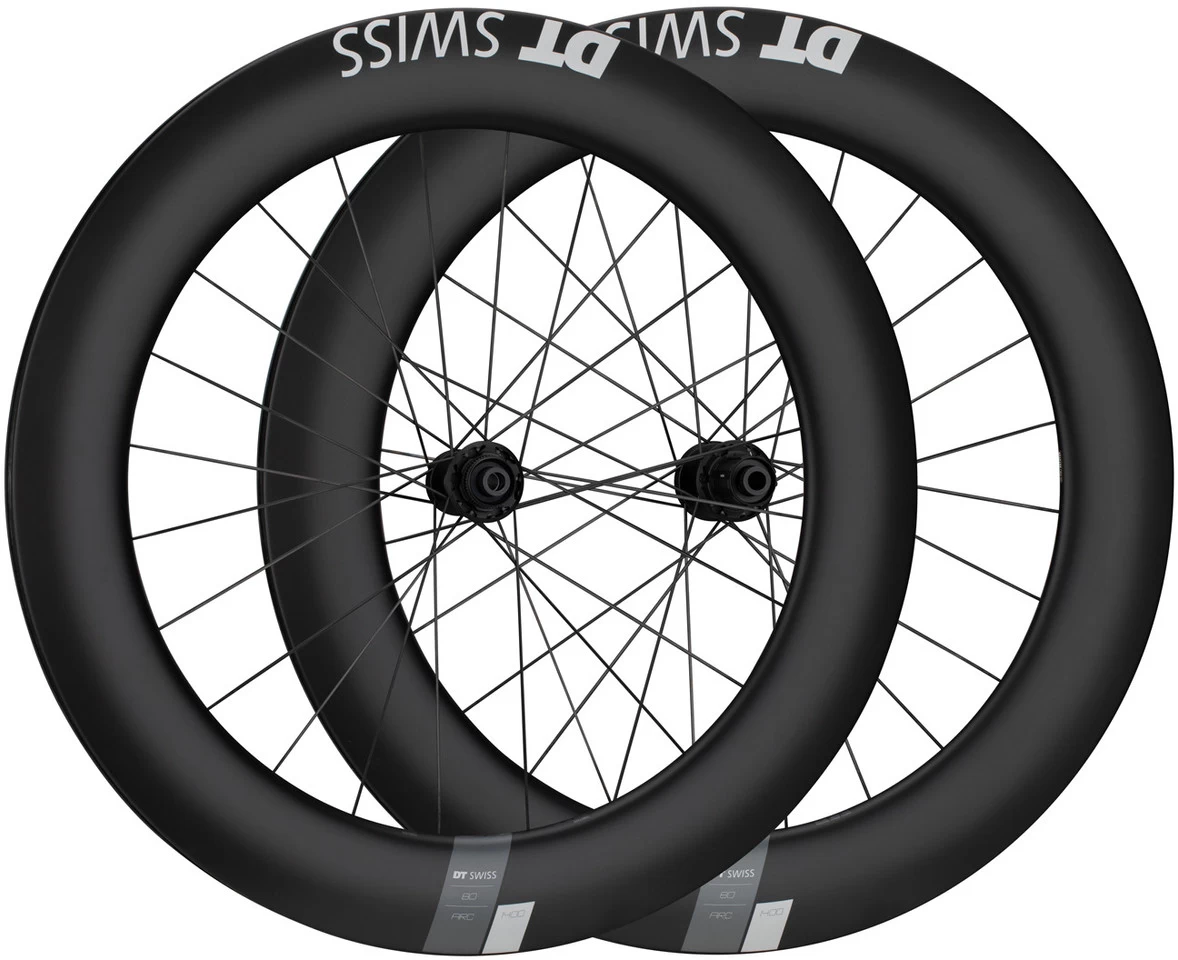

Dt-swiss ARC 1400 DICUT 80 Carbon Center Lock Disc 28″ Wheelset

DT Swiss ARC 1400 DICUT 80 Carbon Disc Centre Lock 28″ wheelset – noticeably strong sailing effect

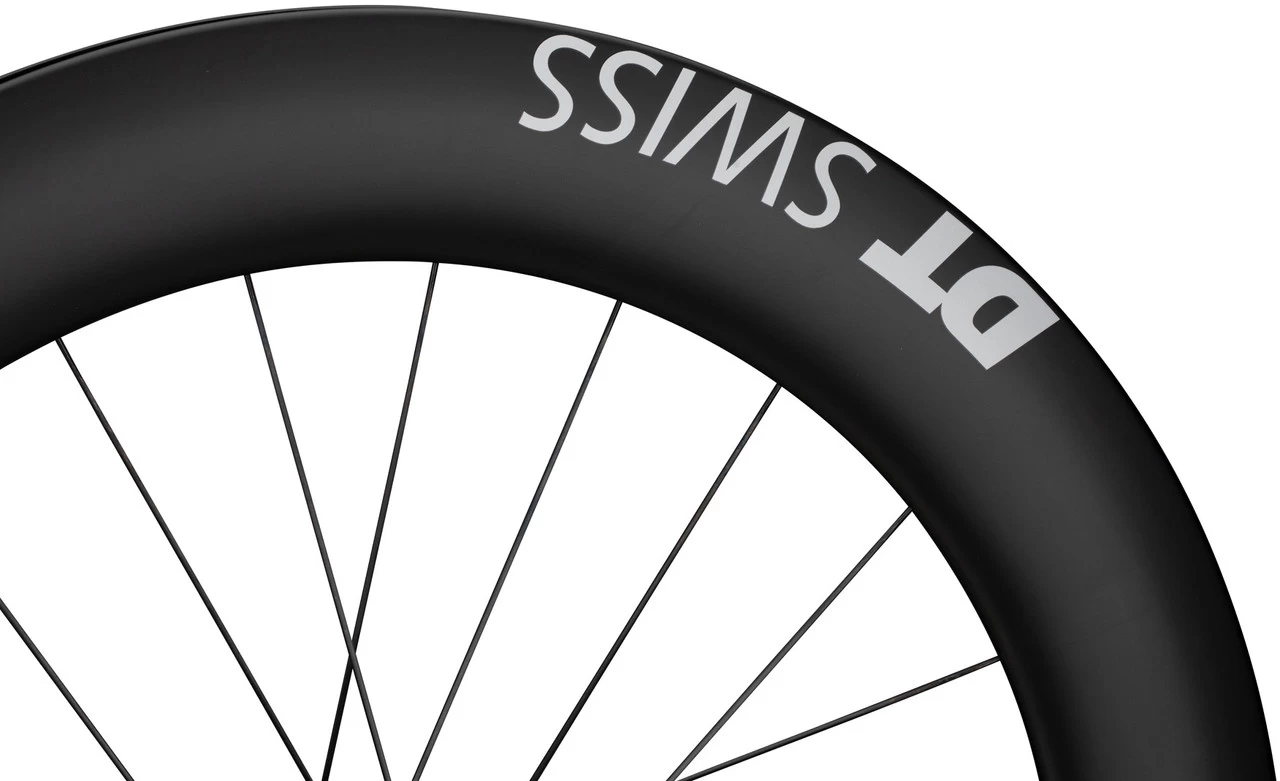

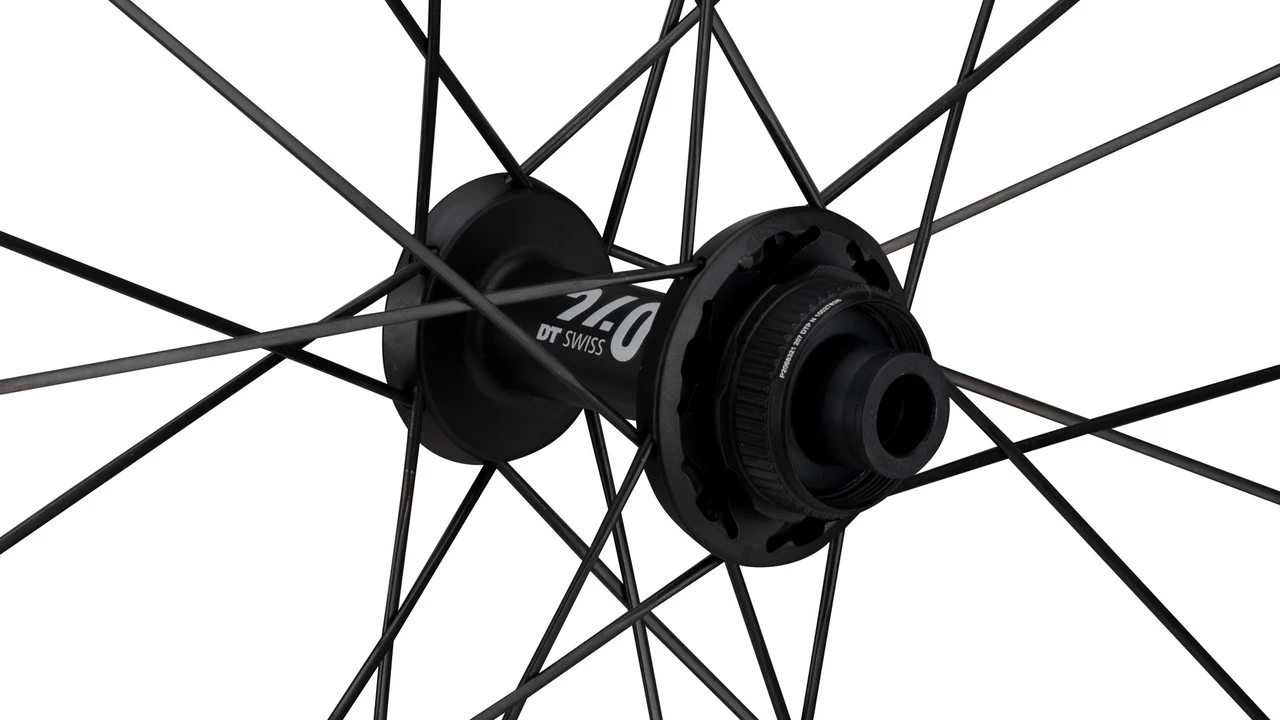

Using the ARC 1400 DICUT wheelset from DT Swiss you can optimise your triathlon or time trial bike in terms of aerodynamics. The 80 mm deep DICUT carbon rim has undergone a redesign which has allowed the rim to be enlarged. This means that wider and more comfortable 25 to 28 mm tyres can be used on aero bikes without increasing rolling resistance. The new, streamlined 240 hub forms the heart of the wheels and is connected to the rim by new Aero Comp II straight pull spokes with T-shaped spoke heads. The whole wheel has been designed in such a way that a sailing effect occurs in crosswind conditions; this can be felt considerably. It is even possible to achieve a negative air resistance, which pushes the road bike forward. To help you get the most out of your leg power, the rear wheel features the advanced Ratchet EXP ratchet freehubs. It has 36 teeth, which ensure direct power transmission. Unwanted idling during the start is kept as short as possible.
Specifications:Application:Road, Triathlon & Time TrialWheel Size:28″Tyre Type:clincher tyreNumber of Spokes:24Brake Type:Center Lock DiscTubeless System:Tubeless ReadyTechnical Information – Rim:Rim Flange:with hookDimensions (ETRTO):20-622Inner Width:20 mmOuter Width:32 mmDepth:80 mmValve Hole Diameter:SV/Presta (6.5 mm)Rim Material:CarbonTechnical Information – Front Hub:Type:240 straight pullOver Locknut Dimension:12 x 100 mm thru-axle, convertible to 9 x 100 mm quick releaseBearings:steel bearingsBody Material:aluminiumTechnical Information – Rear Hub:Type:240 straight pullOver Locknut Dimension: 12 x 142 mm thru-axle, convertible to 10 x 135 mm quick release Bearings:steel bearingsBody Material:aluminiumFreehub Body Material:aluminiumFreehub Body:Ratchet EXP 36Technical Information – Lacing:Front Lacing Pattern:2-crossRear Lacing Pattern:2-crossSpoke Type:DT Aero Comp T-HeadSpoke Material:stainless steelNipple Type:DT Pro Lock HiddenNipple Size:12 mm (length) / 2 mm (diameter)Nipple Material:aluminiumApproved For:Weight Limit:110 kg (system weight)Air Pressure (max.):8.5 barsRecommended Tyre Width:25 – 34 mmTechnology:Intended use – Category 1
Suitable for predominantly paved surfaces.

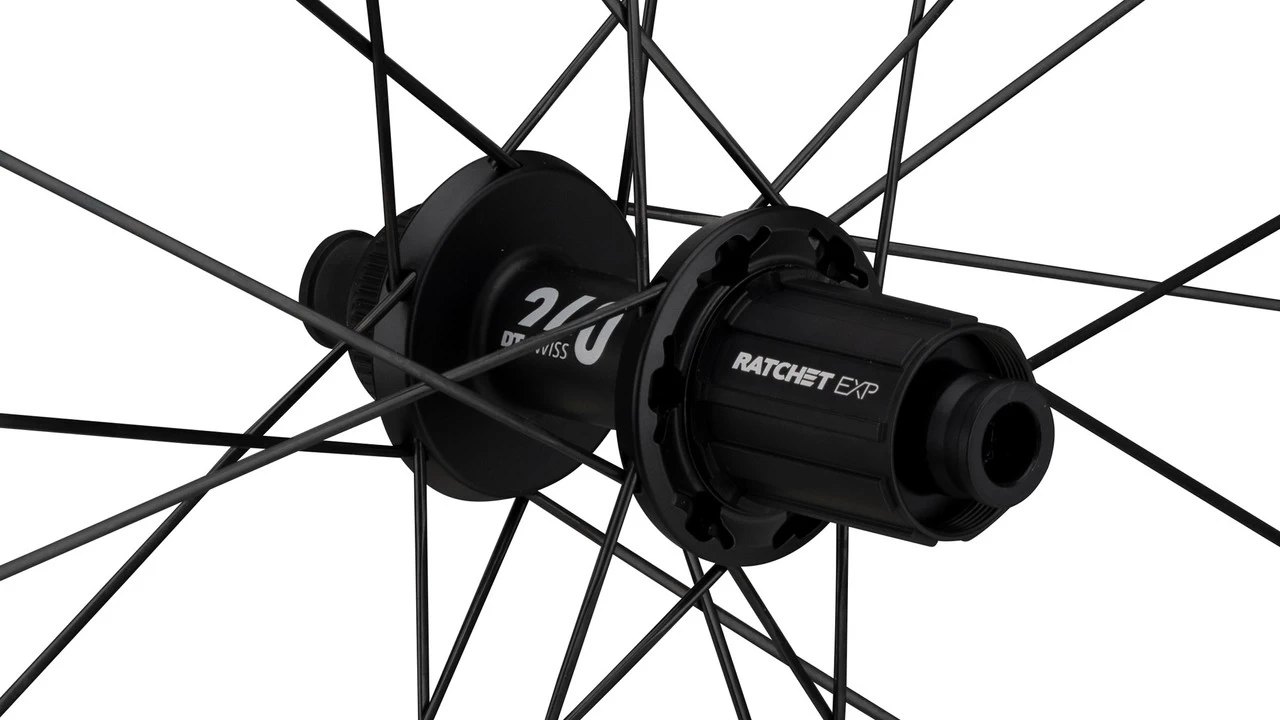

Ratchet EXP
A ratchet and a threaded ring are integrated into the hub. This reduces the number of components required, resulting in less wear and tear and a lower weight. In addition, the heavy-duty and reliable ratchet system can be easily and quickly maintained. The no-tool concept plays a decisive role, as it allows the freehub to be replaced without any tools. The freehub has two ratchets which engage simultaneously. This means that the contact surface is large and the point load is kept small, which relieves the material and allows the freehub to work particularly reliably and precisely.

Pro Lock
The nipple thread is coated with two-component adhesive to increase the durability of the wheels. It can still be re-trued several times without any problems, but the adhesive strength decreases slightly. The connection between the spoke and nipple cannot loosen by itself.
Colour Info:black:
Rim: blackHubs: blackSpokes: blackNipples: blackModels:28″ set (front 12×100 + rear 12×142) Shimano:
Freehub:Shimano RoadGearing:8-/9-/10-/11-/12-speedNote:Assembly of 8-/9-/10-speed cassettes on Shimano Road freehub bodies requires a 1.85 mm spacer.Manufacturer Numbers:WARC140AIDXCA12583 + WARC140NIDICA12584Contents:1 x DT Swiss ARC 1400 DICUT carbon wheelset (front and rear wheel)1 x DT Swiss SRAM XDR freehub body2 x DT Swiss tubeless valves2 x rolls DT Swiss tubeless rim tape
