Specifications:Application:RoadWheel Size:28″Tyre Type:clincher tyreNumber of Spokes:16 (front), 21 (rear)Brake Type:rim brakeTubeless System:DT Swiss Tubeless ReadyFreehub:Shimano RoadGearing:8-/9-/10-/11-speedFreehub Compatibility:Note:Installing 8-/9-/10-speed cassettes on Shimano freehub bodies requires a 1.85 mm spacer.Technical Information – Rim:Dimensions (ETRTO):17-622Inner Width:17 mmOuter Width:27 mmDepth:62 mmRim Material:CarbonTechnical Information – Front Hub:Type:240Over Locknut Dimension:9 x 100 mm quick releaseBearings:precision bearings, sealedBody Material:aluminiumTechnical Information – Rear Hub:Type:240Over Locknut Dimension:10 x 130 mm quick releaseBearings:precision bearings, sealedBody Material:aluminiumFreehub Body:DT Swiss Ratchet System® 18Technical Information – Lacing:Front Lacing Pattern:radialRear Lacing Pattern:radial, 2-crossSpoke Type:DT Aero Comp®, straight pull, double buttedSpoke Size:250 mm (front), 250 mm / 256 mm (rear l/r)Spoke Material:steelNipple Type:DT Pro Lock hiddenNipple Material:aluminiumApproved For:Weight Limit:100Â kg (system weight)Air Pressure (max.):9.5 barsRecommended Tyre Width:20 – 35 mmFeatures:adhesive type Watersliteversatile application possibilitiesAero StabilityIndustry leader in aerodynamics and handlingTechnology:DICUT®

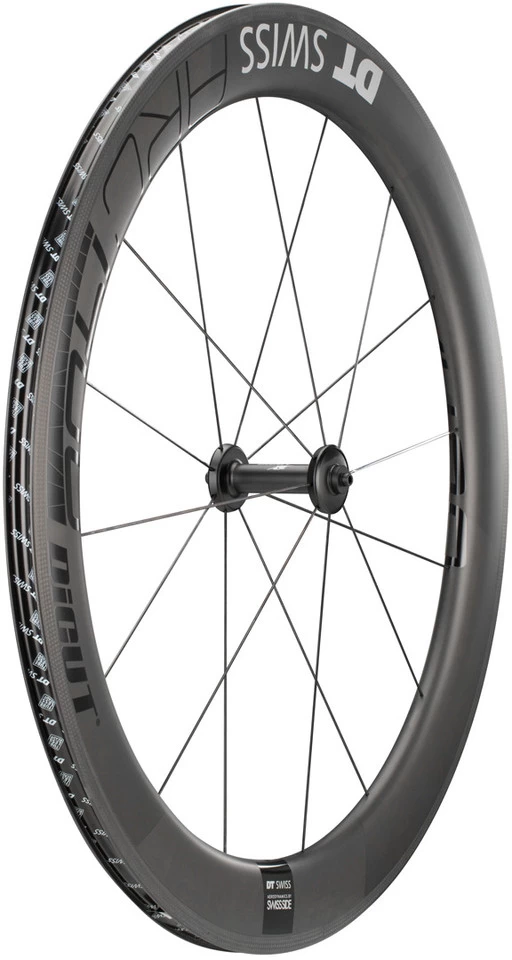

The RRC DICUT line is the perfect combination of aerodynamics, technology and design. From the advanced heat-dissipating rims to the reliable Ratchet System hubs, DICUT wheels are high-end and made for fast times.
Pro Lock
The screw-locking system injected into the nipples enables the construction of extremely durable wheels.
Ratchet System
The patented freehub system with high-precision star ratchets guarantees maximum load capacity and reliability. Thanks to the no-tool concept, the system is very easy and quick to maintain.
Straight Pull
In order to achieve an ideal ratio of weight and stability, many DT Swiss wheels use different forms of straight pull spokes. Straight pull spokes do not need a spoke bend and thus eliminate a weak point. Nevertheless, they can be trued and replaced with standard tools.
Tubeless Ready
Tubeless Ready rims are designed for use with tubeless kits and tyres. They allow a correct fit of the tubeless rim tape (use the appropriate model!) and the tubeless tyre.
Double Butted
These spokes have two different diameters. The spoke is partially butted by cold forging. As a result, the diameter is smaller and thus enables a reduction in weight while at the same time improving the strain values.
RWS
Patented wheel fastening system. Stiffer, safer and easier to use than a quick release. 100% disc brake compatible.
Manufacturer Numbers:28″ front 9×100:WARC140AAQXCA0710728″ rear 10×130 Shimano WARC140HRQICA07108

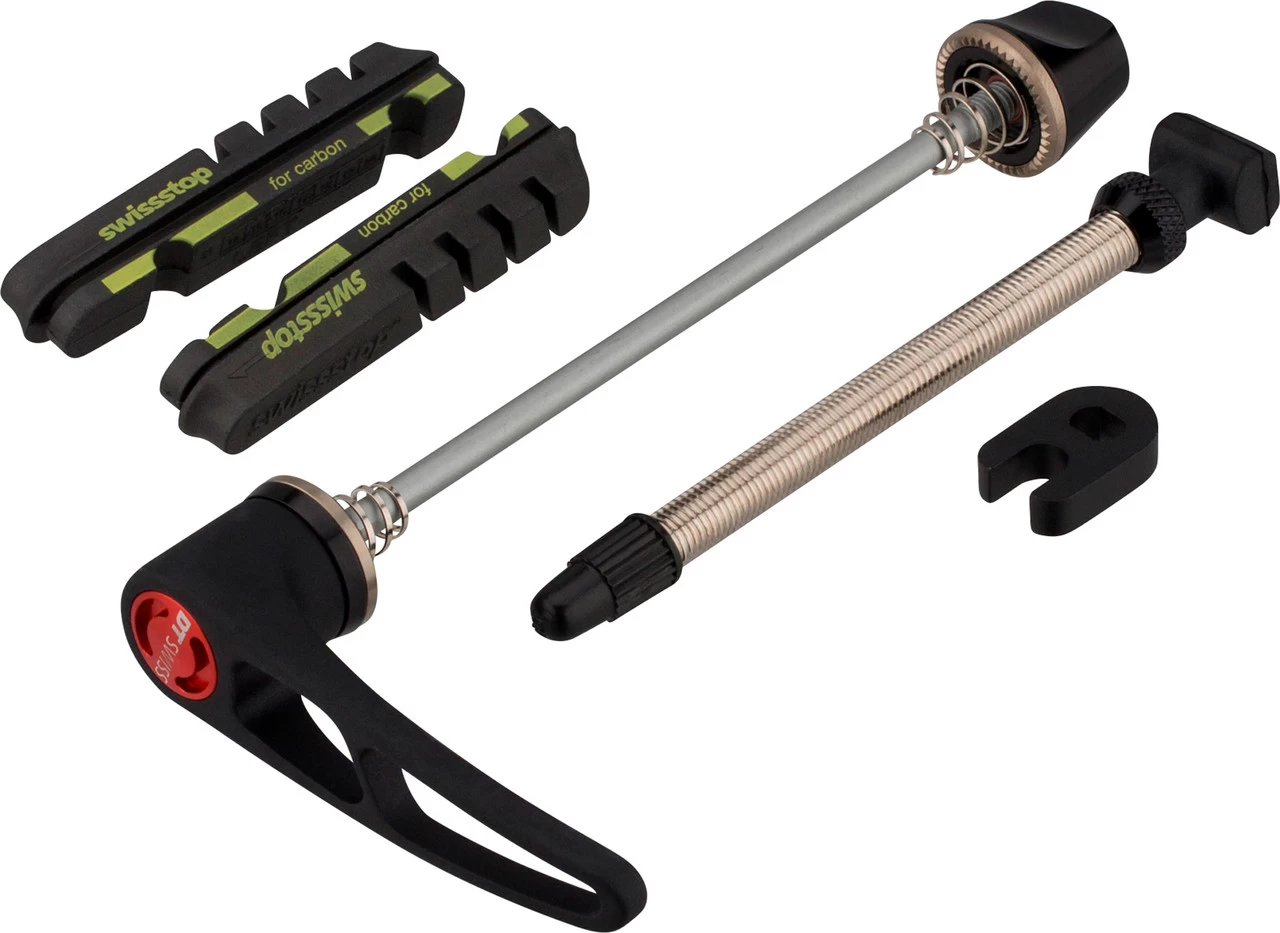

Contents:1 x DT Swiss ARC 1400 Dicut Carbon 62 Road 28″ Wheel (front or rear wheel)1 x roll 19 mm rim tape1 x RWS steel mounts1 x Road 73Â mm tubeless valves1 pairs of Swissstop Black Prince Carbon brake pads1 x valve protection stickers
