Dt-swiss E 1800 SPLINE 23 Center Lock Disc 28″ Wheelset

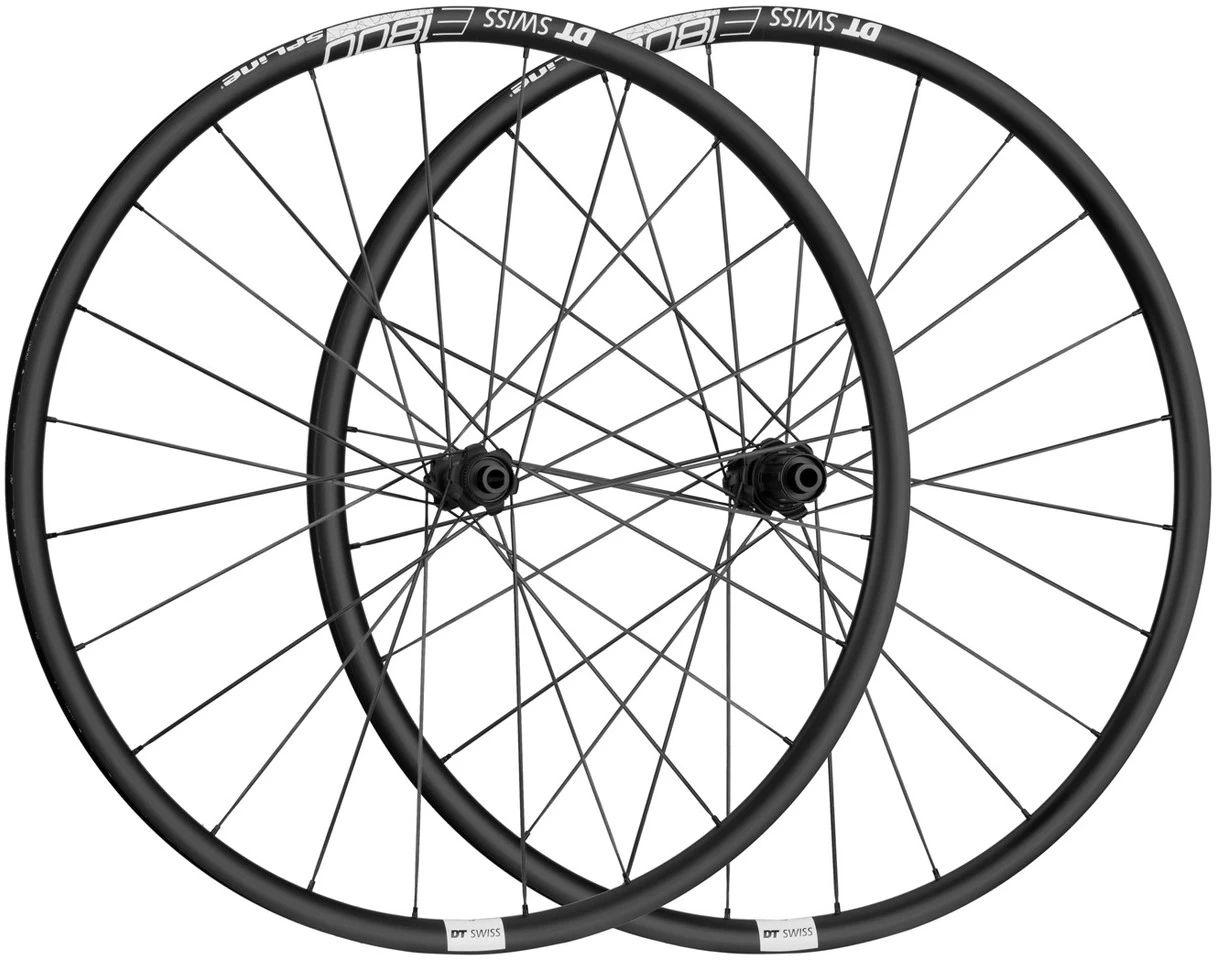

Unlock the full potential of your bike: the E 1800 SPLINE DB 23 wheelset from DT Swiss
Paired with the right tyres, the DT Swiss E 1800 SPLINE DB 23 wheels unlock the full potential of your racing bike. It doesn’t matter if you choose roads or gravel trails– the high-quality hub with the tried-and-tested 3-pinch system and unique DT Swiss aero spokes provide all the makings for a reliable wheel.

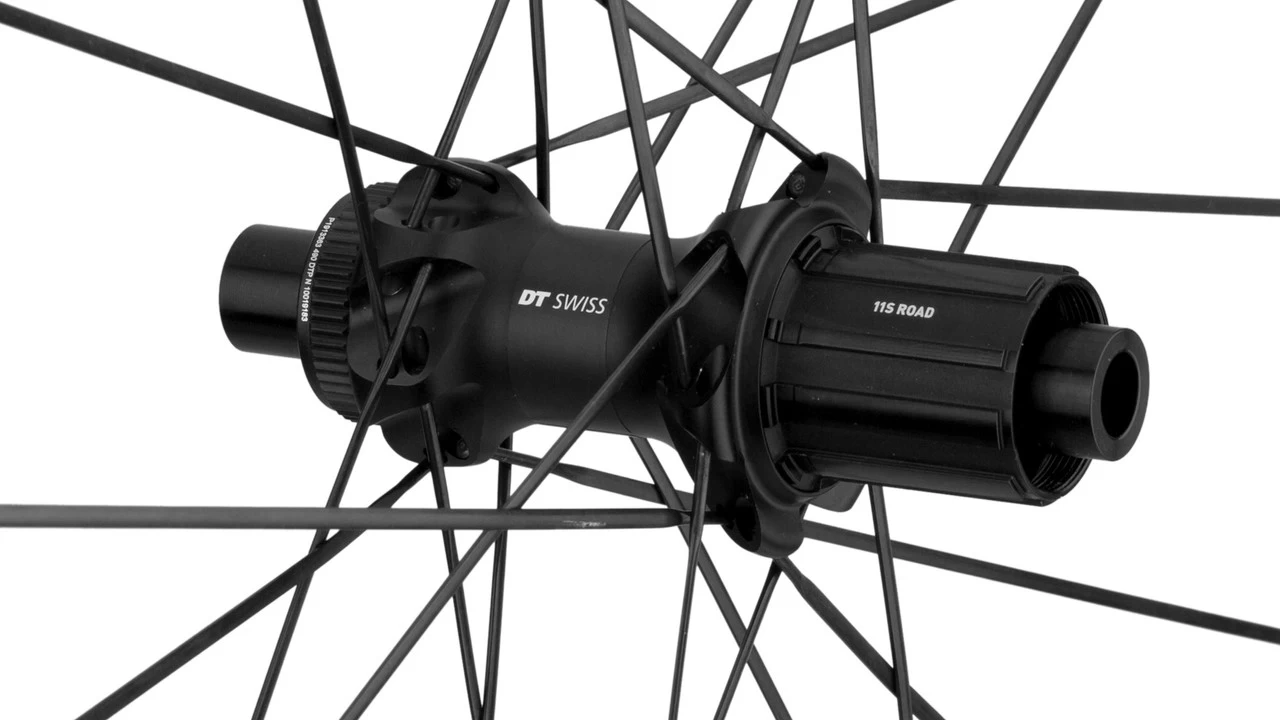

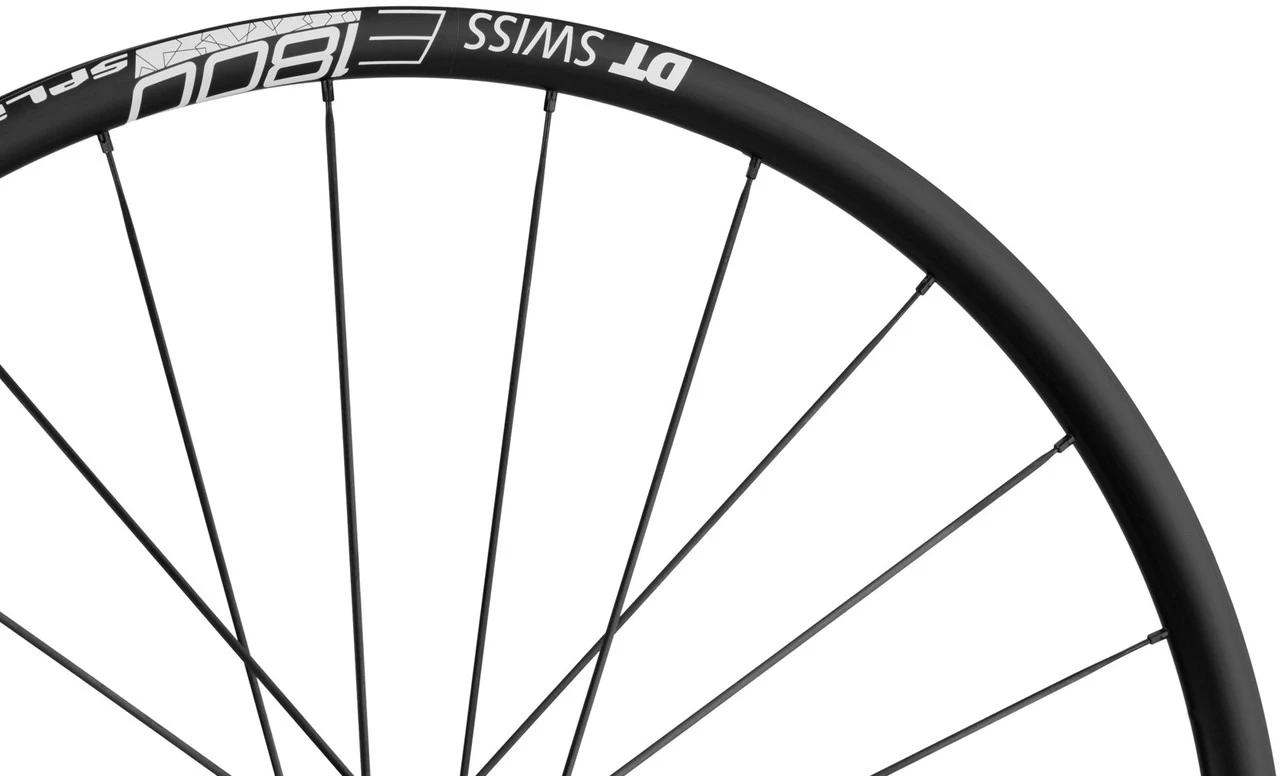

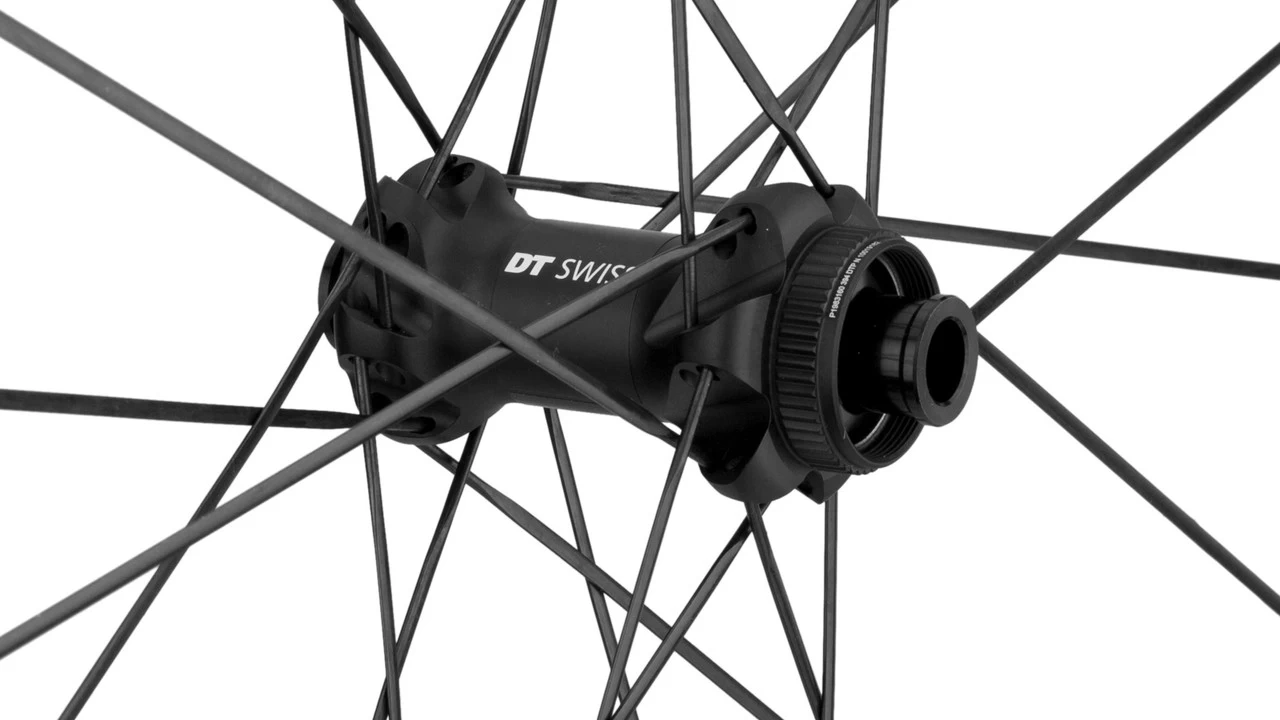

Specifications:Application:Road, GravelWheel Size:28″Tyre Type:clincher tyreNumber of Spokes:24Brake Type:Center Lock Disc (6-bolt conversion w/ adapter)Tubeless System:Tubeless ReadyTechnical Information – Rim:Type:E 1800 SPLINEDimensions (ETRTO):20-622Inner Width:20.0 mmOuter Width:24.0 mmDepth:23.0 mmValve Hole Diameter:SV / Presta (6.5 mm)Rim Material:aluminiumTechnical Information – Front Hub:Type:370Over Locknut Dimension:12 x 100 mm thru-axleBody Material:aluminiumTechnical Information – Rear Hub:Type:370Over Locknut Dimension:12 x 142 mm thru-axleBody Material:aluminiumFreehub Body Material:aluminium / steelFreehub Body:DT Swiss Pawl System® (3 pawls)Technical Information – Lacing:Front Lacing Pattern:2-crossRear Lacing Pattern:2-crossSpoke Type:DT Aero Comp® / straight pullSpoke Size:296 mm/297 mm (front l/r), 297 mm/296 mm (rear l/r)Spoke Material:steelNipple Type:DT Pro Lock® Squorx / Pro HeadNipple Material:aluminiumApproved For:Weight Limit:120 kg system weight (rider + bike + gear)Air Pressure (max.):7.8 barsRecommended Tyre Width:28 – 34 mm (1.10 – 1.35″ )Features:Adhesive: vinyl hub, Waterslide rim20 mm jaw widthTechnology:SPLINE
The SPLINE line is characterised by straight pull hubs with famous DT Swiss technology, straight spokes as well as stable rims. The combination of reliable and ideally matched components makes every SPLINE wheel the perfect training and competition partner.

DT ProLock Squorx Pro Head®
The DT Squorx Pro Head nipple combines ease of assembly and lightweight. With an additional Torx and square drive. The Torx drive provides more contact surface when building wheels, which means that the torque transmitted from the tool to the nipple is better distributed. The spherical contact area in the rim guarantees perfect alignment with the spoke.

Tubeless Ready
Tubeless Ready rims are designed for use with tubeless kits and tyres. They allow a correct fit of the tubeless rim tape (use the appropriate model!) and the tubeless tyre.

Straight Pull
In order to achieve an ideal ratio of weight and stability, many DT Swiss wheels use different forms of straight pull spokes. Straight pull spokes do not need a spoke bend and thus eliminate a weak point. Nevertheless, they can be trued and replaced with standard tools.
Colour Info:black:
Rims: black w/ white accentsHubs: blackSpokes: blackNipples: blackModels:28″ set (front 12×100 + rear 12×142) Shimano:
Freehub: Shimano RoadGearing: 8-/9-/10-/11-speedManufacturer Numbers: W0E1800AIDXSA10607 (front) + W0E1800NIDUSA10608 (rear)Conversion Options: To convert to SRAM XDR, an XDR freehub body is required.Contents:1 x DT Swiss E 1800 SPLINE DB 23 wheelset (front and rear wheel)2 x DT Swiss 23 mm tubeless tape2 x DT Swiss road 32 mm tubeless valves
