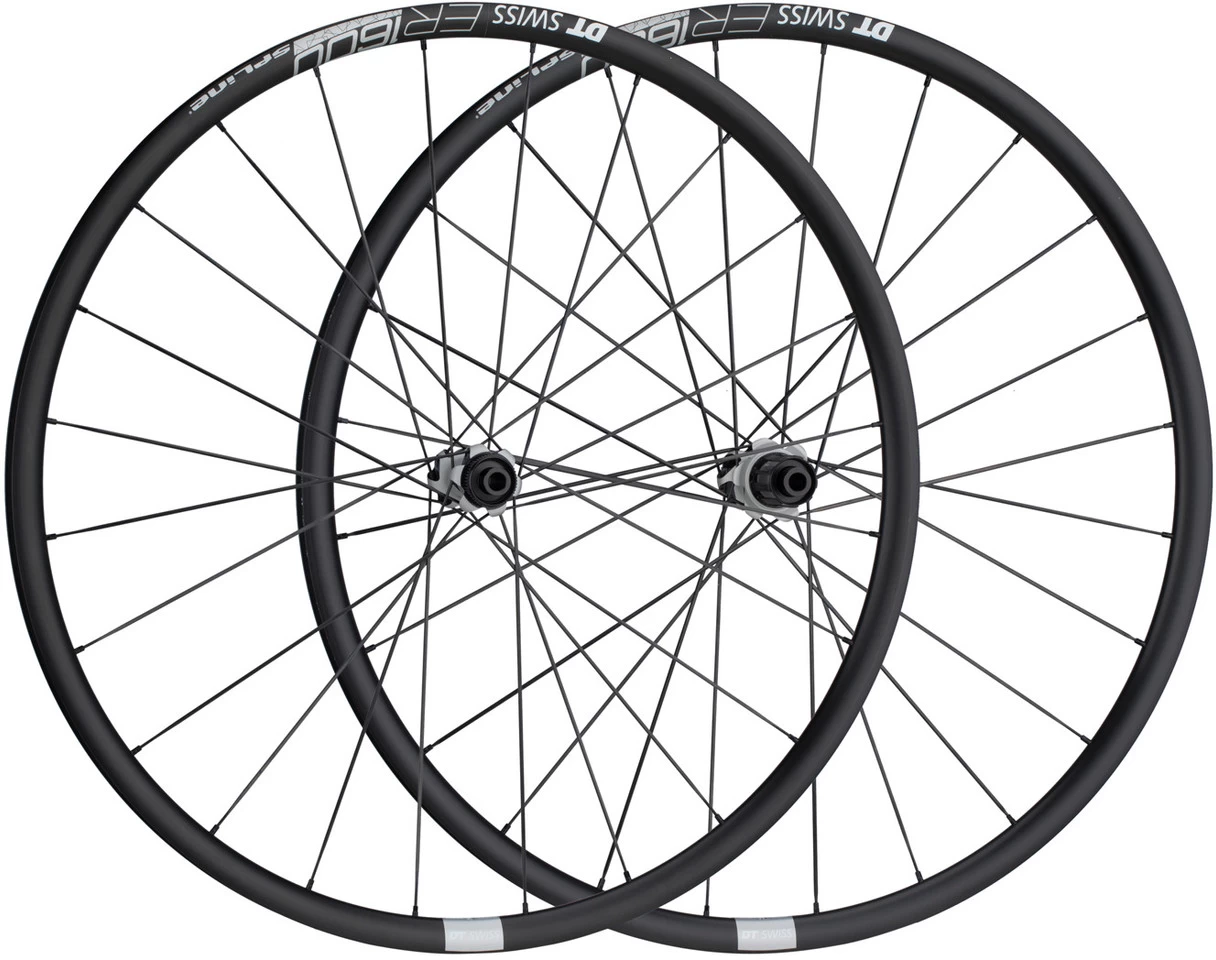

Dt-swiss ER 1600 SPLINE 23 Center Lock Disc 28″ Wheelset

Progress without compromise: the ER 1600 SPLINE® 23 DB wheelset from DT Swiss
With a light rim and strong, stable spokes, the ER 1600 SPLINE® 23 combines lightweight construction, rigidity and precision. A wheel for every application and every challenge, no matter what the road ahead looks like. The wide rim and the 350 hub with Ratchet System ® provide ample support and offer the perfect riding experience – anytime, anywhere.
Specifications:Application:RoadWheel Size:28″Tyre Type:clincher tyreNumber of Spokes:24Brake Type:Center Lock DiscTubeless System:Tubeless ReadyFreehub Compatibility:Shimano Freehub:8/9/10/11-speed Shimano/SRAM (Road)Note:To convert to 11-/12-speed SRAM XD, an XD freehub body is requiredTechnical Information – Rim:Dimensions (ETRTO):20-622Inner Width:20 mmOuter Width:24 mmDepth:23 mmValve Hole Diameter:SV/Presta (6.5 mm)Rim Material:aluminiumTechnical Information – Front Hub:Type:350Over Locknut Dimension:12 x 100 mm thru-axleBody Material:aluminiumTechnical Information – Rear Hub:Type:350Over Locknut Dimension:12 x 142 mm thru-axleBody Material:aluminiumFreehub Body:DT Swiss Ratchet System® (18 T)Technical Information – Lacing:Front Lacing Pattern:1-crossRear Lacing Pattern:1-crossSpoke Type:DT Aero Comp® / straight pullSpoke Material:steelNipple Type:DT Pro Lock / Squorx Pro HeadNipple Material:aluminiumApproved For:Weight Limit:120 kg (system weight)Air Pressure (max.):7.8 barsRecommended Tyre Width:28 – 62 mm (1.1 – 2.5″ )Technology:Pro Lock
The screw-locking system injected into the nipples enables the construction of extremely durable wheels.

SPLINE®
The SPLINE® line features new and lightweight straight pull hubs with well-known DT Swiss technology, straight spokes as well as stable rims. The combination of reliable and ideally matched components makes every SPLINE® wheel the perfect training and competition partner.

Straight Pull
In order to achieve an ideal ratio of weight and stability, many DT Swiss wheels use different forms of straight pull spokes. Straight pull spokes do not need a spoke bend and thus eliminate a weak point. Nevertheless, they can be trued and replaced with standard tools.

Tubeless Ready
Tubeless Ready rims are designed for use with tubeless kits and tyres. They allow a correct fit of the tubeless rim tape (use the appropriate model!) and the tubeless tyre.
Manufacturer Numbers:WER1600AIDXSA04466 + WER1600NIDMSA04468
Contents:1 x DT Swiss ER 1600 SPLINE® DB 23 wheelset (front and rear wheel)2 x DT Swiss road 32 mm tubeless valves2 x rolls DT Swiss rim tape
