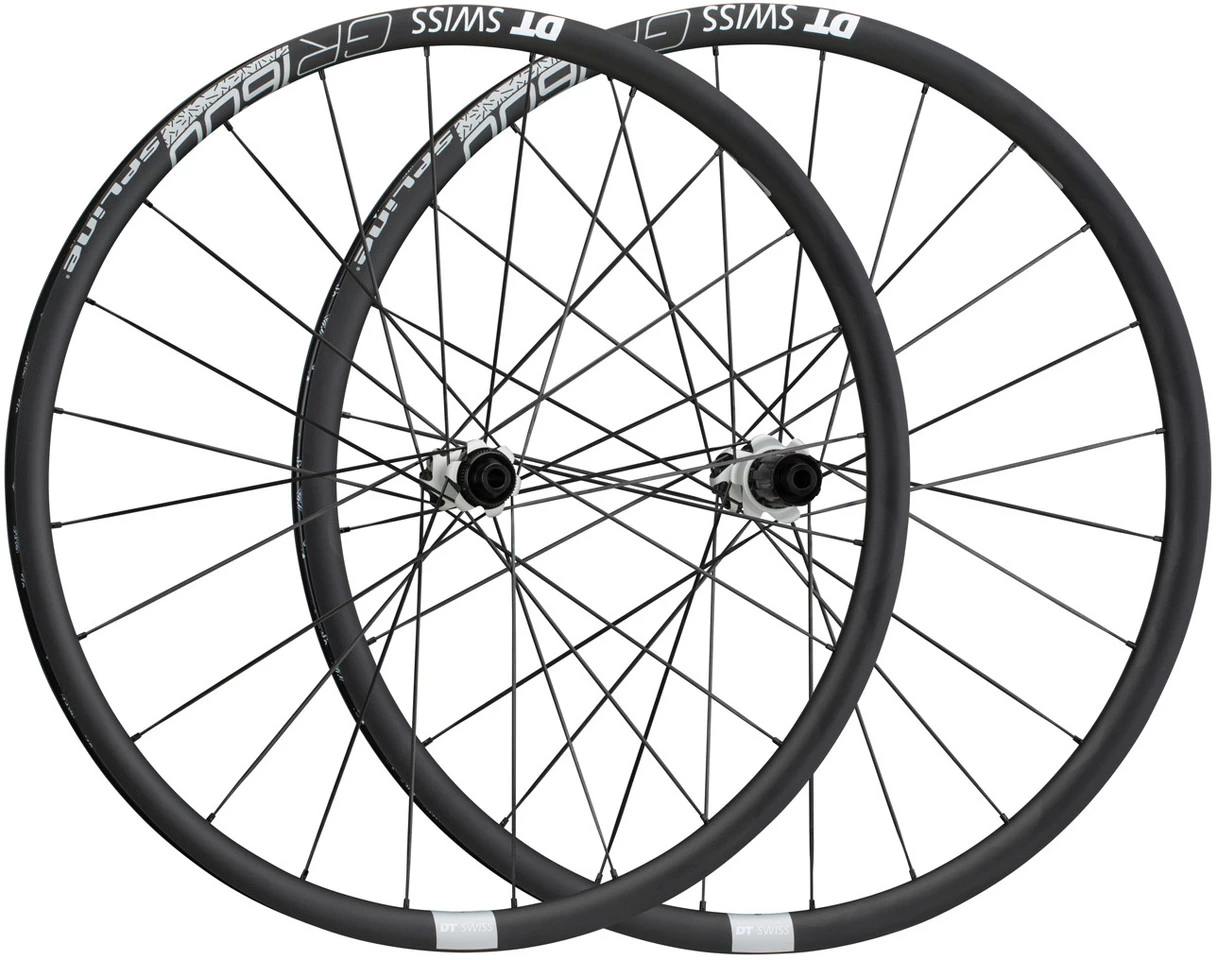

DT Swiss GR 1600 SPLINE DB 25 Center Lock Disc 28″ wheelset – Gravel wheels for off-road use
With the GR 1600 SPLINE wheelset from DT Swiss, your gravel bike is optimally equipped for adventures far off the beaten path. Thanks to SPLINE technology with 350 hub, straight pull spokes and a strong aluminium rim, you get a reliable, durable wheel strong enough to withstand extra luggage for bikepacking trips. The ratchet 18-tooth freehub engages quickly, reducing idle travel when pedalling and allowing you to move forward efficiently. With 28 mm rim depth and 24 mm rim width, you have the option of riding tubeless or tubular. The right choice of tyres and Center Lock disc brakes will allow you to always maintain control, whether on gravel or loose soil.
Specifications:Application:GravelWheel Size:28″Tyre Type:clincher tyreNumber of Spokes:24Brake Type:Center Lock DiscTubeless System:Tubeless ReadyTechnical Information – Rim:Rim Flange:with hookDimensions (ETRTO):24-622Inner Width:24 mmOuter Width:28 mmDepth:25 mmValve Hole Diameter:SV/Presta (6.5 mm)Rim Material:aluminiumTechnical Information – Front Hub:Type:350Over Locknut Dimension:12 x 100 mm thru-axleBearings:precision bearings, sealedBody Material:aluminiumTechnical Information – Rear Hub:Type:350Over Locknut Dimension:12 x 142 mm thru-axleBearings:precision bearings, sealedBody Material:aluminiumFreehub Body Material:aluminiumFreehub Body:DT Swiss Ratchet System 18Technical Information – Lacing:Front Lacing Pattern:2-crossRear Lacing Pattern:2-crossSpoke Type:DT Aero Comp Wide, straight pullSpoke Material:stainless steel (18/10)Nipple Type:DT Pro Lock / Squorx Pro HeadNipple Size:15 mm (length) / 2 mm (diameter)Nipple Material:aluminiumApproved For:Weight Limit:130 kg (system weight)Air Pressure (max.):see manufacturer’s specificationsRecommended Tyre Width:see manufacturer’s specificationsTechnology:Intended use: Category 2
Suitable for use on predominantly paved and partially unpaved ground with a slight slope and a temporary loss of ground contact as well as drops of up to 15 cm.
SPLINE
Straight pull hubs, straight spokes and strong rims result in a durable wheel. It can therefore be reliably used in training and competition.
Pro Lock
The nipple thread is coated with two-component adhesive to increase the durability of the wheels. It can still be re-trued several times without any problems, but the adhesive strength decreases slightly. The connection between the spoke and nipple cannot loosen by itself.
Ratchet System
The robust and reliable star ratchets freehub system can be maintained easily and quickly. A no-tool concept further contributes to this, as it allows disassembly without tools. The freehub has two ratchets which engage simultaneously. This means that the contact surface is large and the point load is kept small, which relieves the material and allows the freehub to work particularly reliably and precisely.
Colour Info:black:
Rims: black w/ white accentsHubs: silverSpokes: blackNipples: blackModels:28″ set (front 12×100 + rear 12×142) Shimano:
Freehub:Shimano RoadGearing:8-/9-/10-/11-/12-speedNote:Assembly of 8-/9-/10-speed cassettes on Shimano Road freehub bodies requires a 1.85 mm spacer.Manufacturer Numbers:WGR1600AIDXSA10676 (front) + WGR1600NIDMSA10677 (rear)
28″ set (front 12×100 + rear 12×142) Campa N3W:
Freehub:Campagnolo N3WGearing:12-/13-speedManufacturer Numbers:WGR1600AIDXSA10676 (front) + WGR1600NID8SA19554 (rear)Contents:1 x DT Swiss GR 1600 Spline DB 25 wheelset (front and rear wheel)2 x tubeless tape, 27 mm2 x DT Swiss road 32 mm tubeless valves1 x SRAM XDR Road freehub body (rear)
