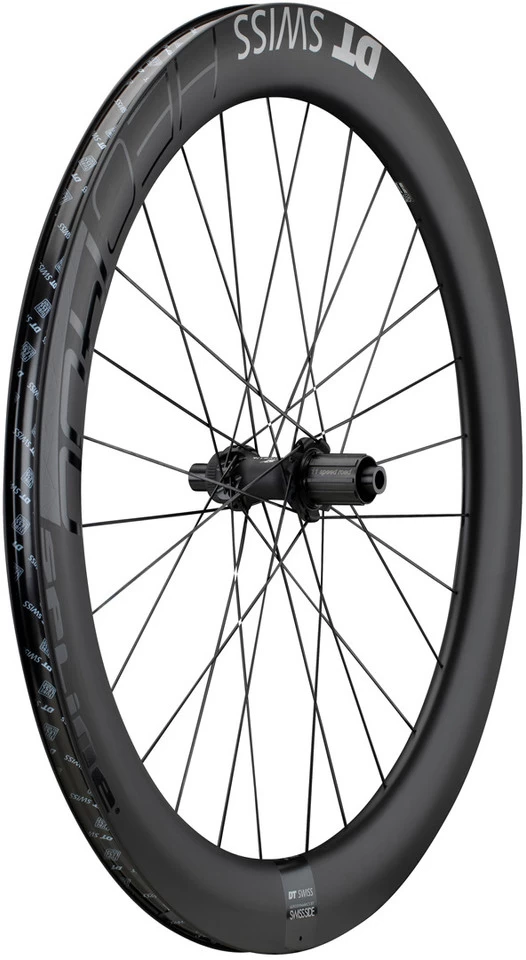

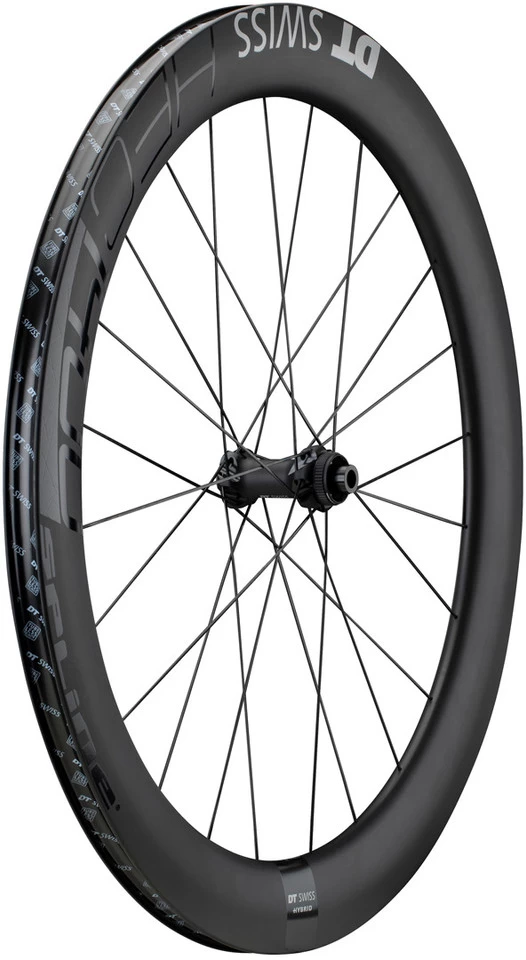

Dt-swiss HEC 1400 SPLINE 62 Carbon Centre Lock Disc Hybrid 28″ Wheelset

DT Swiss HEC 1400 SPLINE 62 Carbon Centre Lock Disc Hybrid 28″ wheelset – for aerodynamic road bikes with an electric drivetrain

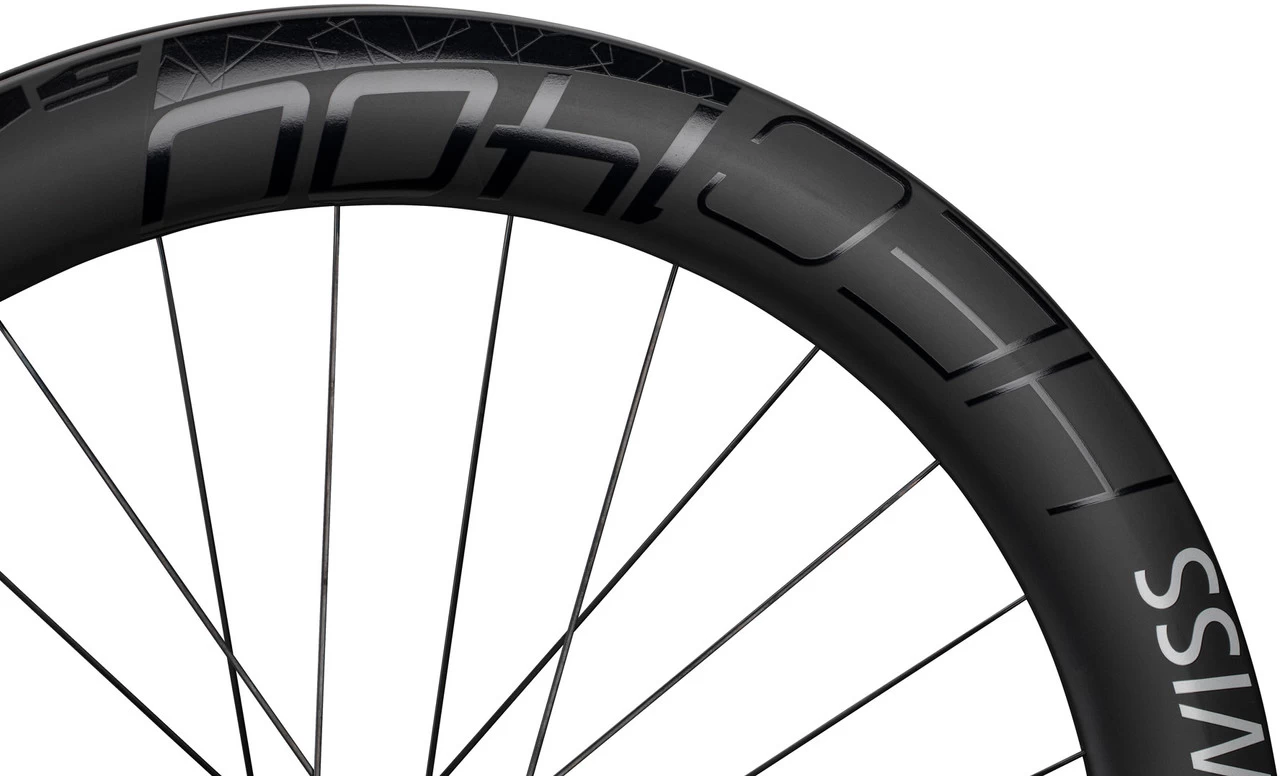

You can equip your electric Endurance road bike with the HEC 1400 Hybrid wheelset from DT Swiss. The HYBRID wheels are designed for the larger weight of e-bikes and are therefore particularly sturdy. The SPLINE construction further supports the stability provided by the steel freehub, robust hub and reinforced carbon rim walls. The rim depth is 62 mm. This makes the wheels aerodynamic, robust, fast and impresses with precise handling characteristics.
Guidelines for Replacing E-bike Components:Before you replace components on your e-bike, please read through the guidelines for component replacement for CE-marked e-bikes/pedelecs with pedal assistance.
Specifications:Application:Road, GravelWheel Size:28″Tyre Type:clincher tyreNumber of Spokes:28Brake Type:Center Lock DiscTubeless System:Tubeless ReadyTechnical Information – Rim:Rim Flange:with hookDimensions (ETRTO):20-622Inner Width:20 mmOuter Width:27 mmDepth:62 mmValve Hole Diameter:SV/Presta (6.5 mm)Rim Material:CarbonTechnical Information – Front Hub:Type:240 straight pullOver Locknut Dimension:12 x 100 mm thru-axleBearings:steel bearingsBody Material:aluminiumTechnical Information – Rear Hub:Type:240 straight pullOver Locknut Dimension:12 x 142 mm thru-axleBearings:steel bearingsBody Material:aluminiumFreehub Body Material:steelFreehub Body:Ratchet System 24Technical Information – Lacing:Front Lacing Pattern:2-crossRear Lacing Pattern:3-crossSpoke Type:DT Aero Comp / straight pullSpoke Material:stainless steel (18/10)Nipple Type:DT Pro Lock HiddenNipple Size:12 mm (length) / 2 mm (diameter)Nipple Material:aluminiumApproved For:Weight Limit:130 kg (system weight)Air Pressure (max.):see manufacturer’s specificationsRecommended Tyre Width:see manufacturer’s specificationsTechnology:Intended use – Category 2
Suitable for use on predominantly paved and partially unpaved ground with a slight slope and a temporary loss of ground contact as well as drops of up to 15 cm.

HYBRID

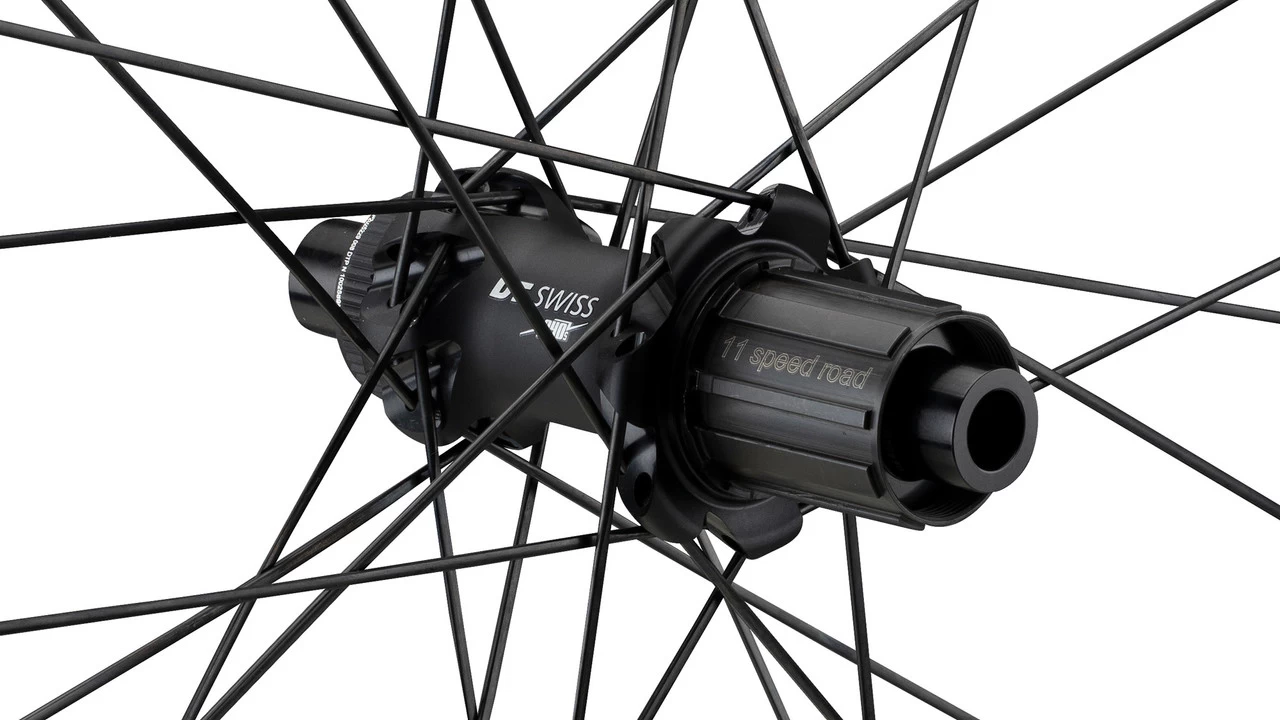

To cope with the higher loads on e-bikes, the hubs, as the heart of the wheel, have a higher wall thickness and larger housings than usual hubs. The spoke holes have been additionally reinforced. The freehub rotor is made from steel and is equipped with 24-tooth ratchets, which are made from special hardened steel. Heavy-duty axles and oversized hubs allow the wheels to work while bearing high loads. The rims have thicker rim walls and offer plenty of traction. The connecting element between rim and hub, the spokes, have reinforced spoke heads and are made of special steel alloys in order to withstand stronger external forces.

SPLINE
Straight pull hubs, straight spokes and strong rims result in a durable wheel. It can therefore be reliably used in training and competition.

Ratchet System
The robust and reliable star ratchets freehub system can be maintained easily and quickly. The no-tool concept contributes to this, because it allows disassembly without any tools. The freehub has two ratchets which engage simultaneously. This means that the contact surface is large and the point load is kept small, which relieves the material and allows the freehub to work particularly reliably and precisely.

Pro Lock
The nipple thread is coated with two-component adhesive to increase the durability of the wheels. It can still be re-trued several times without any problems, but the adhesive strength decreases slightly. The connection between the spoke and nipple cannot loosen by itself.
Colour Info:black:
Rims: black with grey decalsHubs: blackSpokes: blackNipples: blackModels:28″ set (front 12×100 + rear 12×142) Shimano:
Freehub:Shimano RoadGearing:8-/9-/10-/11-/12-speedNote:The assembly of 8-/9-/10-speed cassettes on a Shimano Road freehub body requires a 1.85 mm spacer ring.Manufacturer Numbers:WHEC140AIDXCA11422 + WHEC140NIDVCA11423Contents:1 x DT Swiss HEC 1400 SPLINE 62 Carbon wheelset (front and rear wheel)1 x DT Swiss freehub body to convert to SRAM XDR2 x roll DT Swiss tubeless rim tape2 x DT Swiss tubeless valves2 x DT Swiss valve protectors
