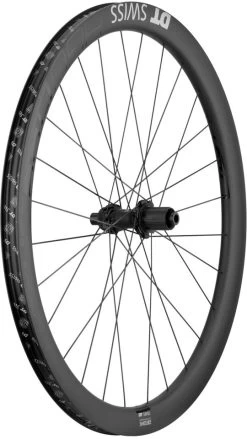

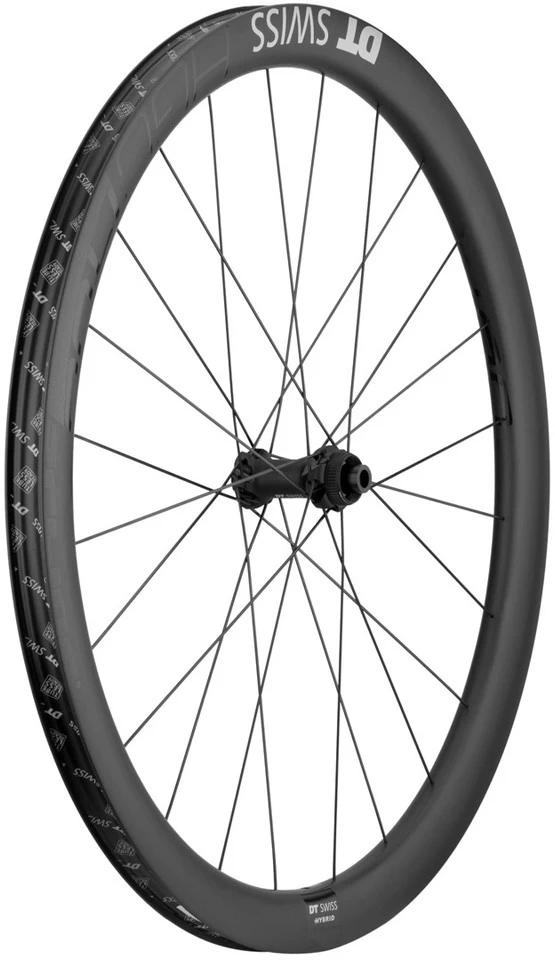

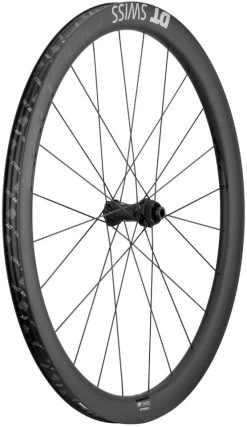

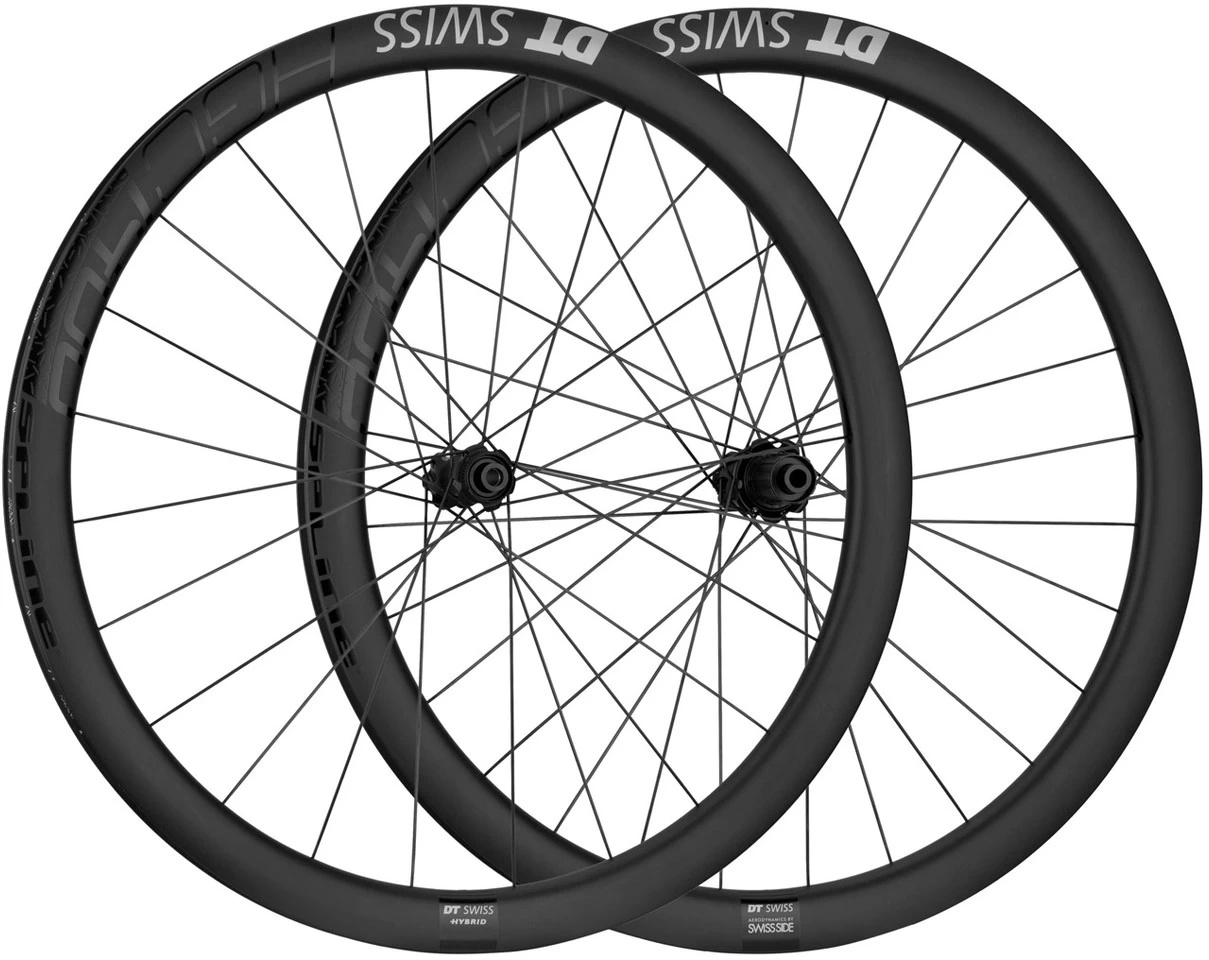

Dt-swiss HGC 1400 SPLINE 42 Center Lock Disc Hybrid 27.5″ Wheelset

Maximum riding fun: the HGC 1400 SPLINE 42 wheelset from DT Swiss
The HGC 1400 SPLINE® belongs to the Hybrid Gravel wheel family, and delivers maximum riding pleasure on gravel roads. These wheels are the answer for all high-end E-gravel bikes that set the standard for a new cycling discipline. With its exquisite blend of high-end E-specific components, this wheel set is the undisputed king of E-Gravel.
Guidelines for Replacing E-bike Components:Before you replace components on your e-bike, please read through the guidelines for component replacement for CE-marked e-bikes/pedelecs with pedal assistance.

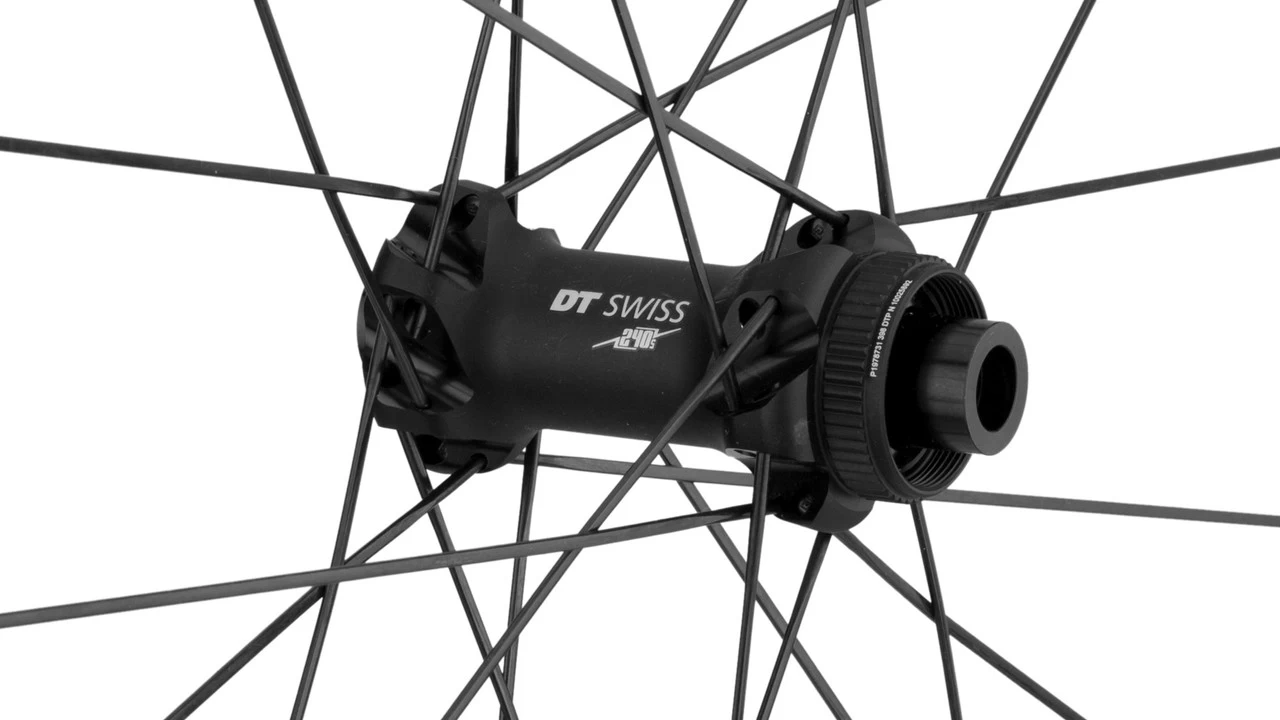

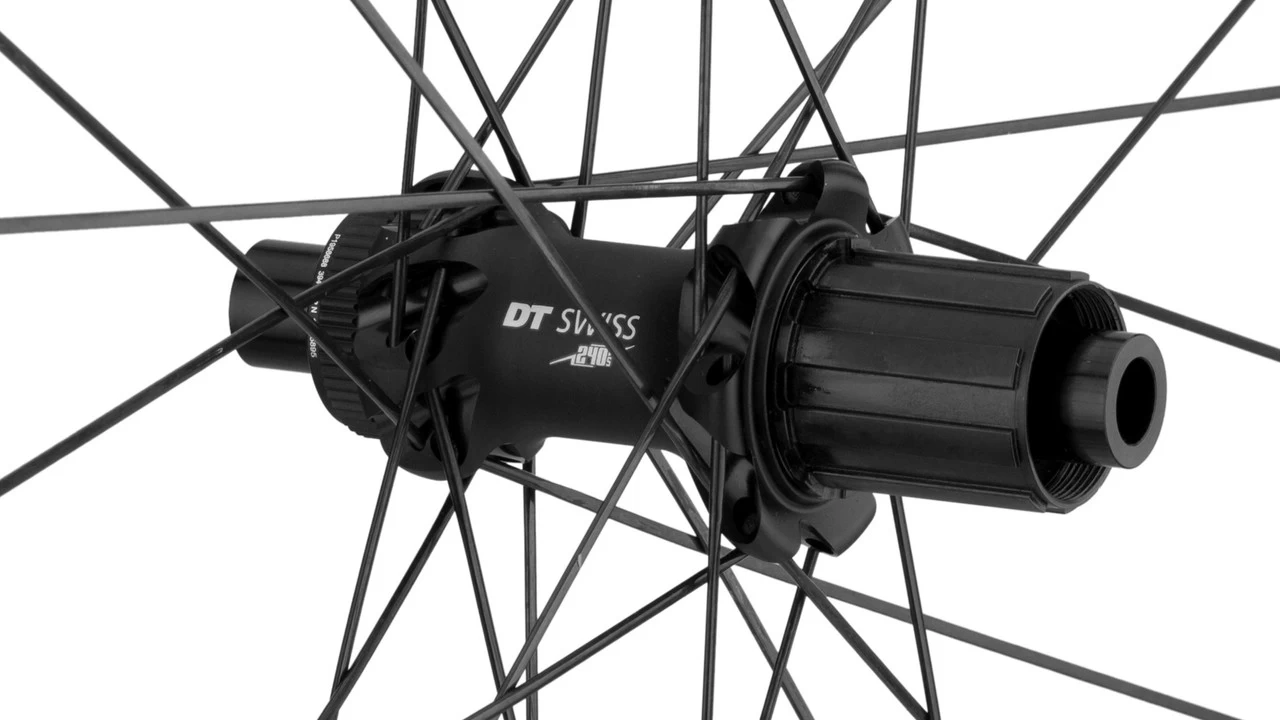

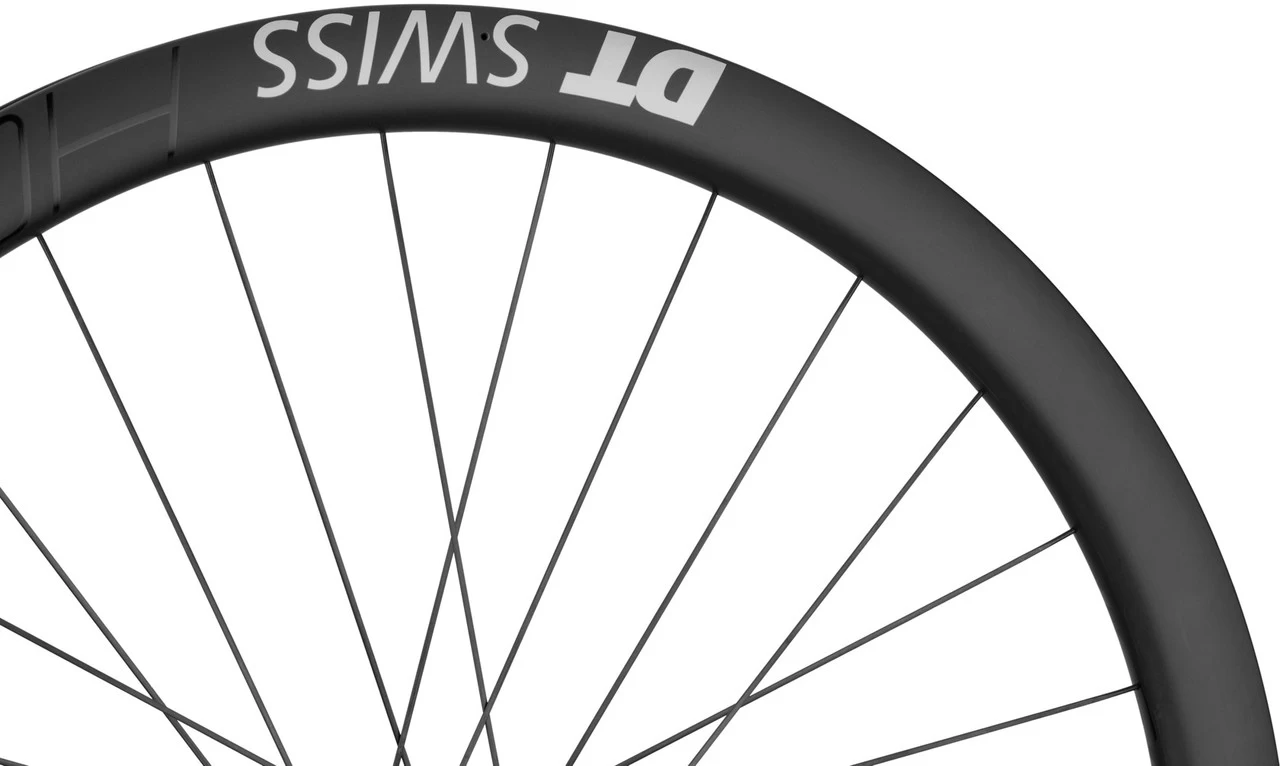

Specifications:Application:E-Bike, GravelWheel Size:27.5″ (650B)Tyre Type:clincher tyreNumber of Spokes:24 (front) / 28 (rear)Brake Type:Center Lock Disc (6-bolt conversion w/ adapter)Tubeless System:Tubeless ReadyTechnical Information – Rim:Type:HGC 1400 SPLINEDimensions (ETRTO):24-584Inner Width:24.0 mmOuter Width:33.0 mmDepth:42.0 mmValve Hole Diameter:SV / Presta (6.5 mm)Rim Material:CarbonTechnical Information – Front Hub:Type:240sOver Locknut Dimension:12 x 100 mm thru-axleBearings:precision bearings, sealedBody Material:aluminiumTechnical Information – Rear Hub:Type:240sOver Locknut Dimension:12 x 142 mm thru-axleBearings:precision bearings, sealedBody Material:aluminiumFreehub Body Material:steelFreehub Body:DT Swiss Ratchet System® (24 T)Technical Information – Lacing:Front Lacing Pattern:2-crossRear Lacing Pattern:2-crossSpoke Type:DT Hybrid® / straight pullSpoke Material:steelNipple Type:DT Pro Lock® Squorx / Pro HeadNipple Material:aluminiumApproved For:Weight Limit:140 kg system weight (rider + bike + gear)Air Pressure (max.):5.0 barsRecommended Tyre Width:1.25 – 1.95″Features:Adhesive: Waterslide24 mm jaw widthTechnology:SPLINE
The SPLINE line is characterised by straight pull hubs with famous DT Swiss technology, straight spokes as well as stable rims. The combination of reliable and ideally matched components makes every SPLINE wheel the perfect training and competition partner.

E-Bike:
This product has been specially developed to meet the higher loads of e-bikes.

Tubeless Ready
Tubeless Ready rims are designed for use with tubeless kits and tyres. They allow a correct fit of the tubeless rim tape (use the appropriate model!) and the tubeless tyre.

DT ProLock Squorx Pro Head
The DT Squorx Pro Head nipple combines ease of assembly and lightweight. With an additional Torx and square drive. The Torx drive provides more contact surface when building wheels, which means that the torque transmitted from the tool to the nipple is better distributed. The spherical contact area in the rim guarantees perfect alignment with the spoke.
Colour Index:UD carbon:
Rim: blackHubs: blackSpokes: blackNipples: blackModels:27.5″ set (front 12×100 + rear 12×142) Shimano:

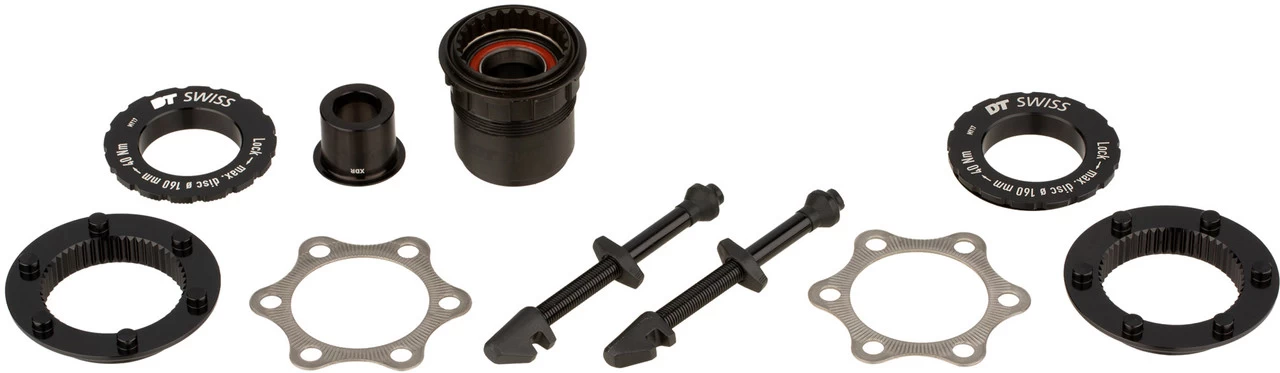

Freehub: ShimanoGearing: 8-/9-/10-/11-speedManufacturer Numbers: WHGC140AJDXCA11416 (front) + WHGC140NJDVCA11417 (rear)Conversion Options: To convert to SRAM XDR, an XDR freehub body is required.Contents:1 x DT Swiss HGC 1400 SPLINE 42 wheelset (front and rear wheel)2 x DT Swiss 27 mm tubeless tape2 x DT Swiss 63 mm tubeless valves2 x DT Swiss adapters to convert from Center Lock to 6-bolt2 x DT Swiss valve protectors1 x DT Swiss freehub body to convert to SRAM XDR
