Dt-swiss HU 1900 SPLINE 25 Centre Lock Disc 29″ Wheelset

The DT Swiss HU 1900 SPLINE 25 Center Lock Disc 29″ Wheelset – Touring wheels for your e-bike
The Hybrid Utility 1900 SPLINE 29″ wheelset by DT Swiss was developed for electronic touring bikes. Thanks to the 25 mm inner rim width, you have a lot of leeway when it comes to your choice of tyre width. The 370 hubs for centre-lock brake rotors are firmly connected to the rims via straight pull spokes and Pro-Lock nipples. This ensures stiff, durable and low-maintenance wheels. As icing on the cake, the rear hub has been outfitted with a Ratchet LN freehub, which can be serviced easily and without tools thanks to DT Swiss’ no-tool concept.
Guidelines for Replacing E-bike Components:Before you replace components on your e-bike, please read through the guidelines for component replacement for CE-marked e-bikes/pedelecs with pedal assistance.
Specifications:Application:City & TouringWheel Size:29″Tyre Type:clincher tyreNumber of Spokes:28Brake Type:Center Lock DiscTubeless System:Tubeless ReadyTechnical Information – Rim:Rim Flange:with hookDimensions (ETRTO):25-622Inner Width:25 mmValve Hole Diameter:SV/Presta (6.5 mm)Rim Material:aluminiumTechnical Information – Front Hub:Type:370 HYBRID straight pullOver Locknut Dimension:9 x 100 mm quick release (convertible to 15 x 100 mm thru-axle)Bearings:steel bearingsBody Material:aluminiumTechnical Information – Rear Hub:Type:370 HYBRID straight pullOver Locknut Dimension:10 x 135 mm quick release (convertible to 12 x 142 mm thru-axle)Bearings:steel bearingsBody Material:aluminiumFreehub Body Material:steelFreehub Body:Ratchet LN 18Technical Information – Lacing:Front Lacing Pattern:3-crossRear Lacing Pattern:3-crossSpoke Type:DT Hybrid 1, straight pullSpoke Material:steelNipple Type:DT Pro Lock Squorx Pro HeadNipple Material:aluminiumApproved For:Weight Limit:180 kg (system weight)Air Pressure (max.):see manufacturer’s specificationsRecommended Tyre Width:see manufacturer’s specificationsFeatures:wheels for e-touring bikes, even with a lot of luggagesuitable for long tours even in rougher terrainwith Ratchet LN freehubincreased stability due to straight pull spokes and Pro-Lock nipple threadTechnology:Intended use – Category 2
Suitable for use on predominantly paved and partially unpaved ground with a slight slope and a temporary loss of ground contact as well as drops of up to 15 cm.

HYBRID
To cope with the higher loads on e-bikes, the hubs, as the heart of the wheel, have a higher wall thickness and larger housings than usual hubs. The spoke holes have been additionally reinforced. The freehub rotor is made from steel and is equipped with 24-tooth ratchets, which are made from special hardened steel. Heavy-duty axles and oversized hubs allow the wheels to work while bearing high loads. The rims have thicker rim walls and offer plenty of traction. The connecting element between rim and hub, the spokes, have reinforced spoke heads and are made of special steel alloys in order to withstand stronger external forces.

Pro Lock
The nipple thread is coated with two-component adhesive to increase the durability of the wheels. It can still be re-trued several times without any problems, but the adhesive strength decreases slightly. The connection between the spoke and nipple cannot loosen by itself.

Ratchet LN
The Ratchet LN freehub is used to convert DT Swiss 370 hubs with pawls to a ratchet freehub. The advantage, compared to pawls, is the significantly larger contact surface with improved frictional connection. The seal attached to the freehub body, and not to the hub shell as usual, makes the freehub body easily replaceable. The modular design allows free selection of the engagement angle (18, 24, 36 or 54 teeth) and of the freehub body.

SPLINE
Straight pull hubs, straight spokes and strong rims result in a durable wheel. It can therefore be reliably used in training and competition.
Colour Info:black:
Rims: black with grey decalsHubs: blackSpokes: blackNipples: blackModels:29″ set (front 9 x 100 + rear 10 x 135) Shimano Micro Spline:
Freehub:Shimano Micro SplineGearing:12-speedManufacturer Numbers:WHU1900AEQXSA19164 (front) + WHU1900AEQXSA19164 (rear)
29″ set (front 9 x 100 + rear 10 x 135) Shimano:

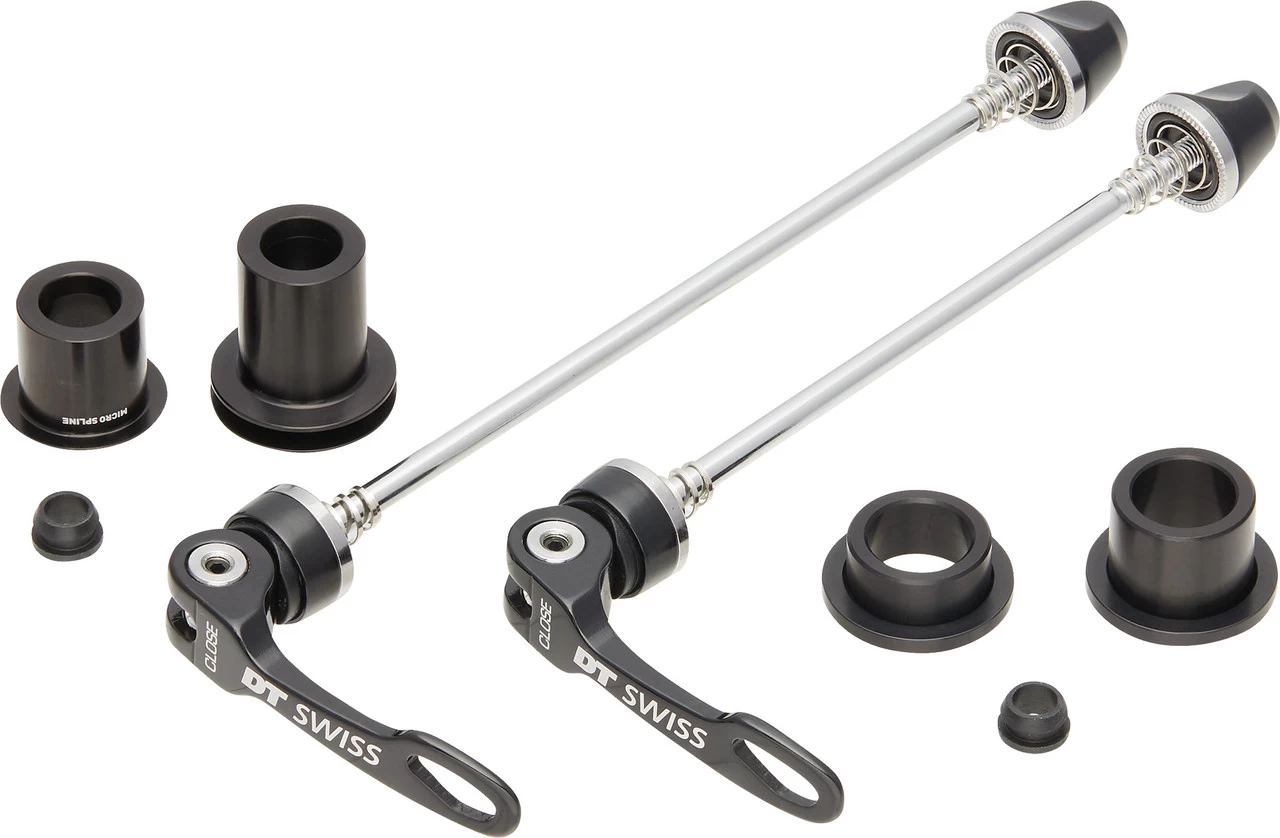

Freehub:Shimano MTBGearing:8-/9-/10-/11-speedManufacturer Numbers:WHU1900AEQXSA19164 (front) + WHU1900IEQSSA19170 (rear)Contents:1 x DT Swiss HU 1900 SPLINE 25 Center Lock Disc Wheelset (front and rear wheel)2 x DT Swiss 15 x 100 mm end cap2 x DT Swiss 12 x 142 mm end cap2 x DT Swiss tubeless valves2 x rolls DT Swiss tubeless rim tape
