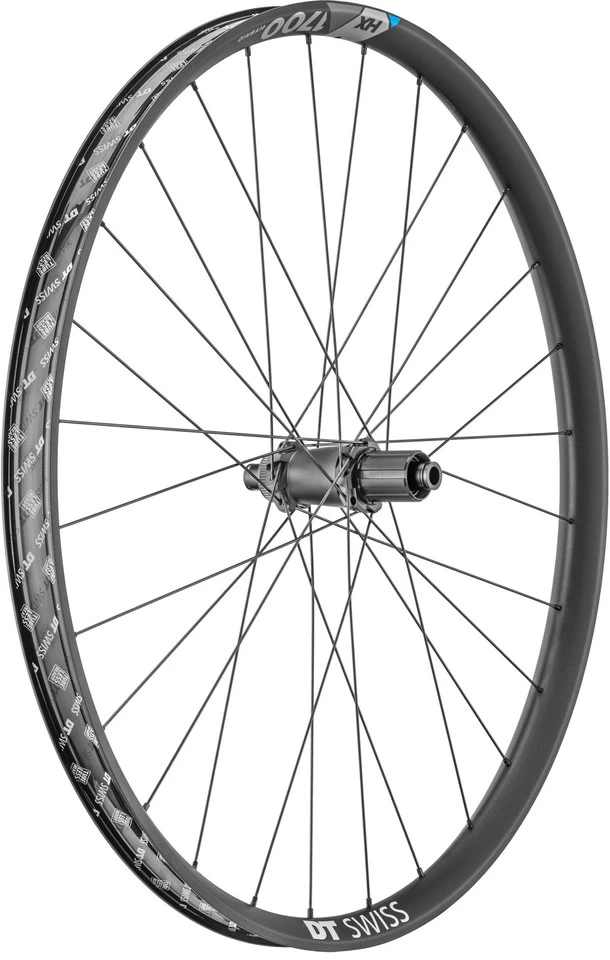

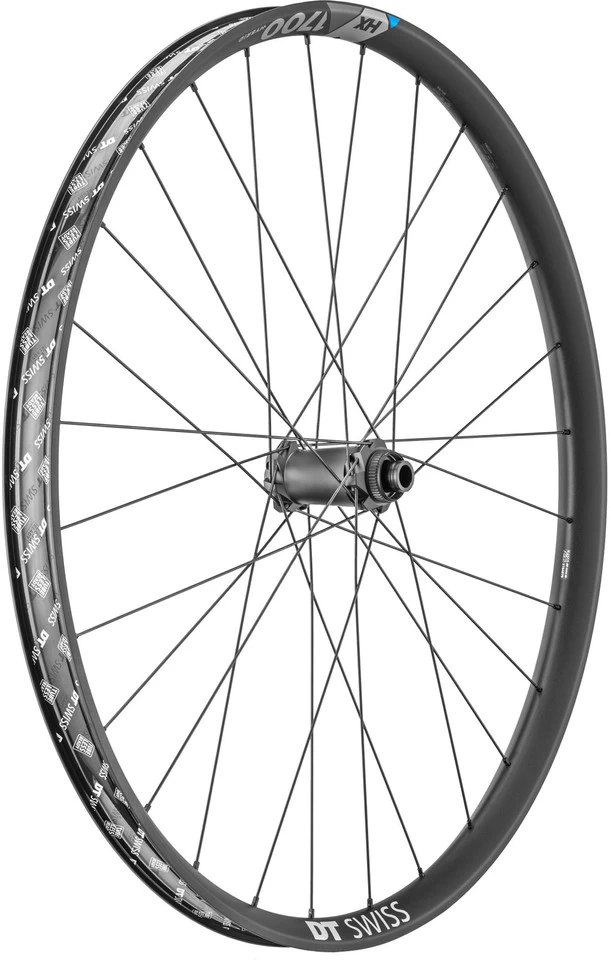

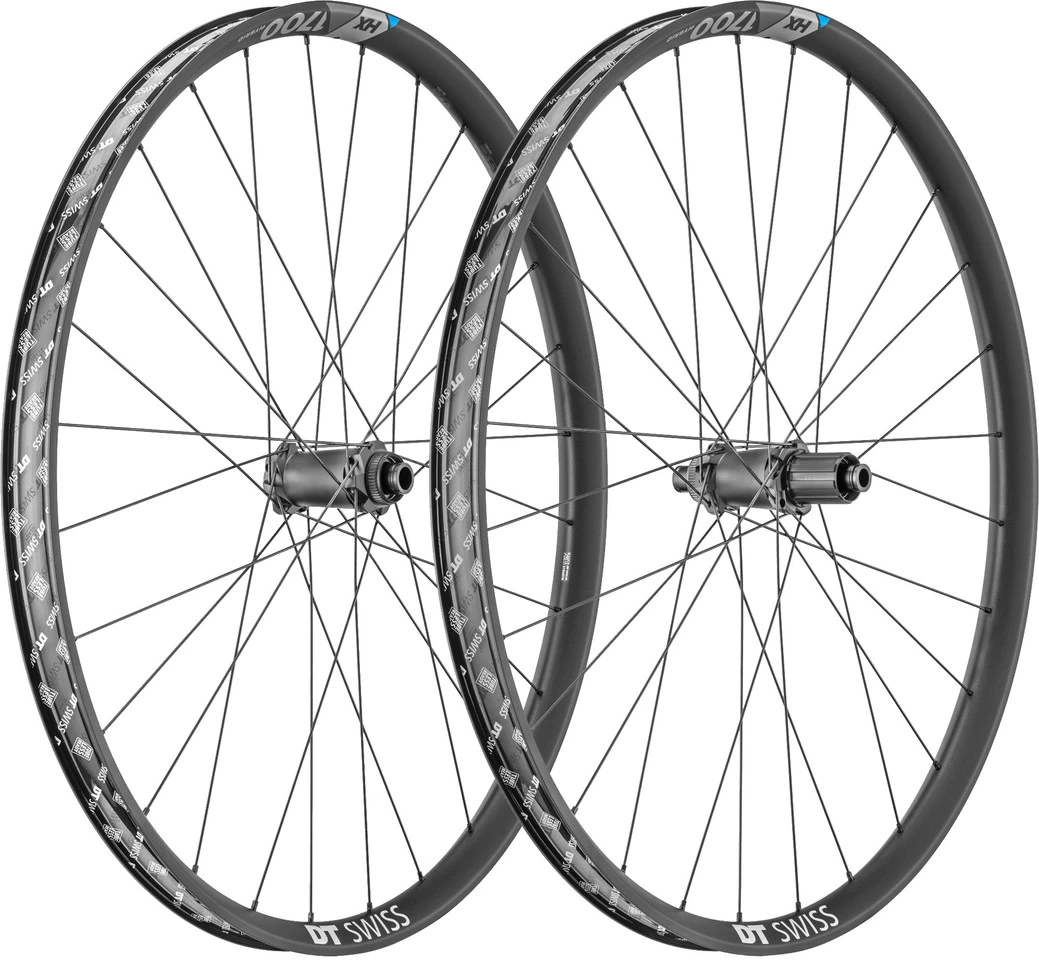

Dt-swiss HX 1700 SPLINE 27.5″ 35 Boost Center Lock Disc Hybrid Wheelset

The DT Swiss HX 1700 SPLINE 27.5″ 35 Boost Center Lock Disc Hybrid Wheelset – Lots of performance and wide tyres for E-MTBs
The HX 1700 SPLINE 27.5″ hybrid wheelset from DT Swiss was developed for mountain bikes with electronic support. Thanks to the 35 mm rim width, you can ride particularly wide tyres and low air pressures and enjoy full traction. The 350 Boost hubs for center lock brake rotors are firmly connected to the rims via straight pull spokes and Pro-Lock nipples. This ensures stiff, durable and low-maintenance wheels. Icing on the cake: the freehub with ratchet system is straightforward to maintain, as it was designed according to DT Swiss’ no-tool concept.
Guidelines for Replacing E-bike Components:Before you replace components on your e-bike, please read through the guidelines for component replacement for CE-marked e-bikes/pedelecs with pedal assistance.
Specifications:Application:All MountainWheel Size:27.5″ (650B)Tyre Type:clincher tyreNumber of Spokes:28Brake Type:Center Lock Disc (Boost)Wheel Standard:BoostTubeless System:Tubeless ReadyTechnical Information – Rim:Rim Flange:with hookDimensions (ETRTO):35-584Inner Width:35 mmValve Hole Diameter:SV/Presta (6.5 mm)Rim Material:aluminiumTechnical Information – Front Hub:Type:350 straight pullOver Locknut Dimension:15 x 110 mm thru-axleBearings:steel bearingsBody Material:aluminiumTechnical Information – Rear Hub:Type:350 straight pullOver Locknut Dimension:12 x 148 mm thru-axleBearings:steel bearingsBody Material:aluminiumFreehub Body Material:steelFreehub Body:24 tooth RatchetTechnical Information – Lacing:Front Lacing Pattern:3-crossRear Lacing Pattern:3-crossSpoke Type:Straight PullSpoke Type:DT Hybrid 1, straight pullSpoke Material:steelNipple Type:DT Pro Lock Squorx Pro HeadNipple Material:aluminiumApproved For:Weight Limit:150 kg (system weight)Air Pressure (max.):see manufacturer’s specificationsRecommended Tyre Width:see manufacturer’s specificationsFeatures:lightweight Boost wheels for E-MTBswith ratchet freehubincreased stability due to straight pull spokes and Pro-Lock nipple threadTechnology:Intended use – Category 4
Suitable for use in very rough terrain with jumps of up to approx. 120 cm in height and speeds of up to 40 km/h. Very good riding technique is required. The components must be checked for damage after each ride.

HYBRID
To cope with the higher loads on e-bikes, the hubs, as the heart of the wheel, have a higher wall thickness and larger housings than usual hubs. The spoke holes have been additionally reinforced. The freehub rotor is made from steel and is equipped with 24-tooth ratchets, which are made from special hardened steel. Heavy-duty axles and oversized hubs allow the wheels to work while bearing high loads. The rims have thicker rim walls and offer plenty of traction. The connecting element between rim and hub, the spokes, have reinforced spoke heads and are made of special steel alloys in order to withstand stronger external forces.

Pro Lock
The nipple thread is coated with two-component adhesive to increase the durability of the wheels. It can still be re-trued several times without any problems, but the adhesive strength decreases slightly. The connection between the spoke and nipple cannot loosen by itself.

Ratchet System
The robust and reliable star ratchets freehub system can be maintained easily and quickly. The no-tool concept contributes to this, because it allows disassembly without any tools. The freehub has two ratchets which engage simultaneously. This means that the contact surface is large and the point load is kept small, which relieves the material and allows the freehub to work particularly reliably and precisely.

SPLINE
Straight pull hubs, straight spokes and strong rims result in a durable wheel. It can therefore be reliably used in training and competition.
Colour Info:black:
Rims: black with grey decalsHubs: blackSpokes: blackNipples: blackModels:27.5″ set (front 15×110 Boost + rear 12×148 Boost) Shimano:
Freehub:Shimano MTBGearing:8-/9-/10-/11-speedManufacturer Numbers:WHX1700BGIXSA18410 (front) + WHX1700TGDSSA18412 (rear)
27.5″ set (front 15×110 Boost + rear 12×148 Boost) Shimano Micro Spline:
Freehub:Shimano Micro SplineGearing:12-speedManufacturer Numbers:WHX1700BGIXSA18410 (front) + WHX1700TGD3SA18411 (rear)
27.5″ set (front 15×110 Boost + rear 12×148 Boost) SRAM XD:
Freehub:SRAM XDGearing:11-/12-speedManufacturer Numbers:WHX1700BGIXSA18410 (front) + WHX1700TGDNSA18413 (rear)Contents:1 x DT Swiss HX 1700 SPLINE 27.5″ 35 Boost Center Lock Disc Hybrid Wheelset (front and rear wheel)2 x DT Swiss tubeless valves2 x rolls DT Swiss tubeless rim tape
