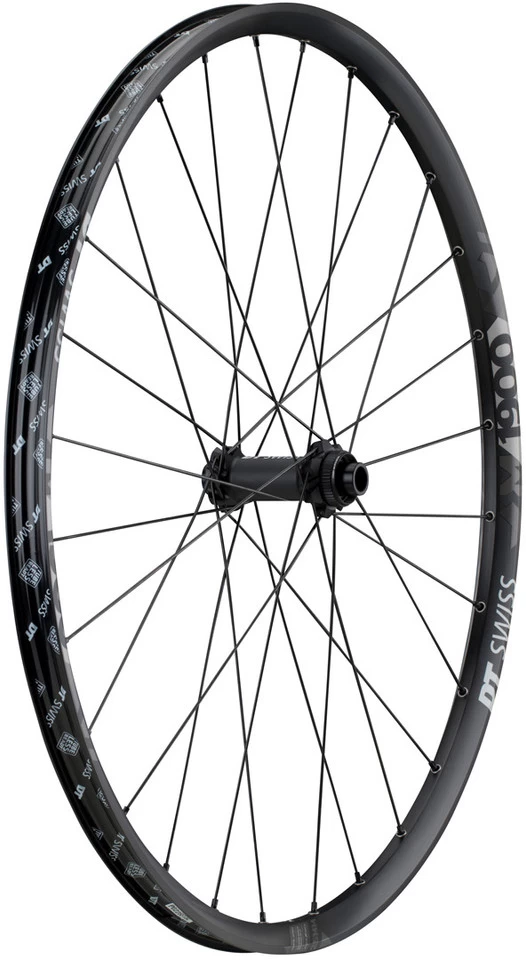

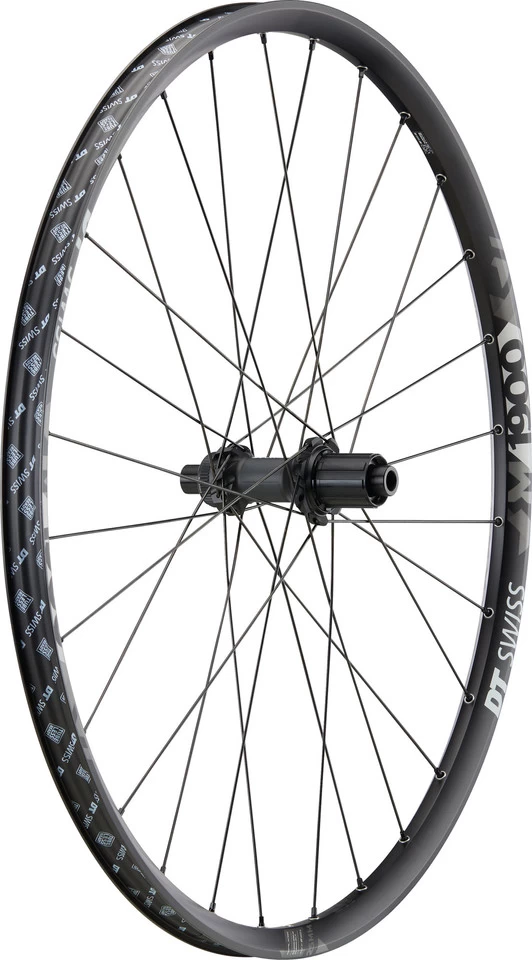

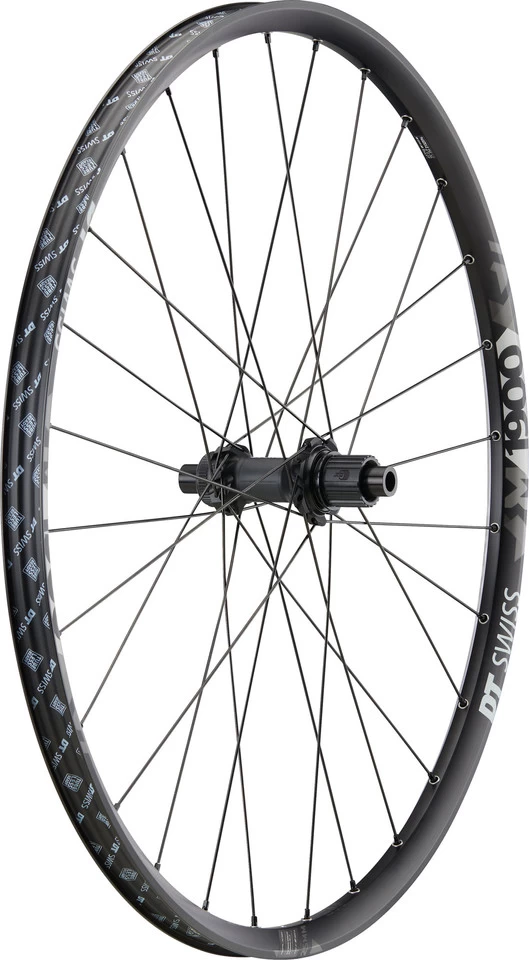

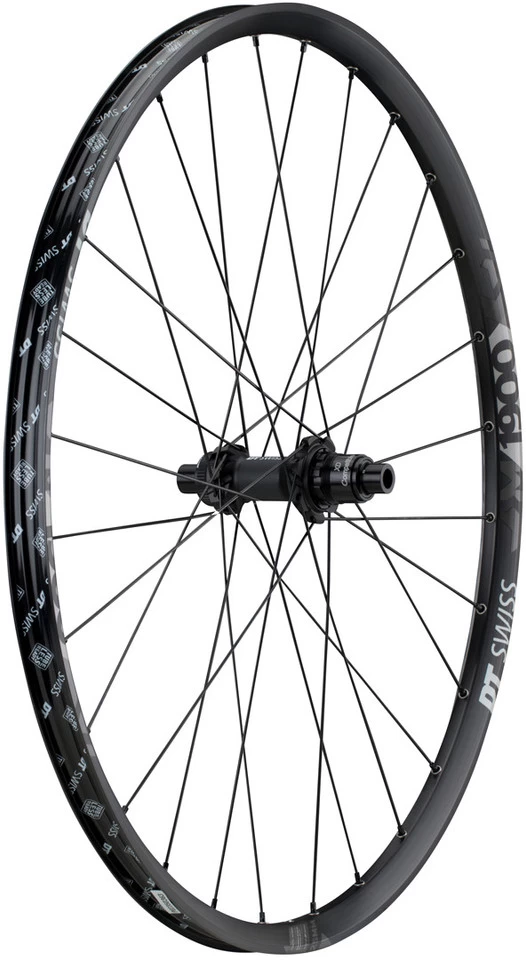

Dt-swiss M 1900 SPLINE 25 Boost Center Lock Disc 27.5″ Wheel

Specifications:Application:All MountainWheel Size:27.5″ (650B)Tyre Type:clincher tyreNumber of Spokes:28Brake Type:Center Lock DiscTubeless System:Tubeless ReadyFreehub:Shimano MTB, SRAM XD, Shimano Micro SplineGearing:9-/10-/11-speed, 11-/12-speed, 12-speedFreehub Compatibility:Note:Installing 8-/9-/10-speed cassettes on Shimano freehub bodies requires a 1.85 mm spacer.Technical Information – Rim:Dimensions (ETRTO):25-584Inner Width:25 mmOuter Width:30 mmDepth:19.5 mmRim Material:aluminiumTechnical Information – Front Hub:Type:370Over Locknut Dimension:15 x 110 mm thru-axleBearings:precision bearings, sealedBody Material:aluminiumTechnical Information – Rear Hub:Type:370Over Locknut Dimension:12 x 148 mm thru-axleBearings:precision bearings, sealedBody Material:aluminiumFreehub Body Material:aluminium / steelFreehub Body:DT Swiss Pawl System®Technical Information – Lacing:Front Lacing Pattern:3-crossRear Lacing Pattern:3-crossSpoke Type:DT Champion / straight pullSpoke Size:286 mm / 287 mm (front l/r), 287 mm / 284 mm (rear l/r)Spoke Material:steelNipple Type:DT ProLock / Squorx ProHeadNipple Material:aluminiumApproved For:Weight Limit:120 kg (system weight)Air Pressure (max.):5.5 barsRecommended Tyre Width:1.50 – 3.00″Features:glue type: vinyl hub/ Waterslide rim28 robust spokes25 mm inner widthlightweight straight pull hubTechnology:SPLINE®
The SPLINE line features new and lightweight straight pull hubs with well-known DT Swiss technology, straight spokes as well as stable rims. The combination of reliable and ideally matched components makes every SPLINE wheel the perfect training and competition partner.

DT ProLock Squorx Pro Head®
The DT Squorx Pro Head nipple combines ease of assembly and lightweight. With an additional Torx and square drive. The Torx drive provides more contact surface when building wheels, which means that the torque transmitted from the tool to the nipple is better distributed. The spherical contact area in the rim guarantees perfect alignment with the spoke.

Straight Pull
In order to achieve an ideal ratio of weight and stability, many DT Swiss wheels use different forms of straight pull spokes. Straight pull spokes do not need a spoke bend and thus eliminate a weak point. Nevertheless, they can be trued and replaced with standard tools.

Tubeless Ready
Tubeless Ready rims are designed for use with tubeless kits and tyres. They allow a correct fit of the tubeless rim tape (use the appropriate model!) and the tubeless tyre.

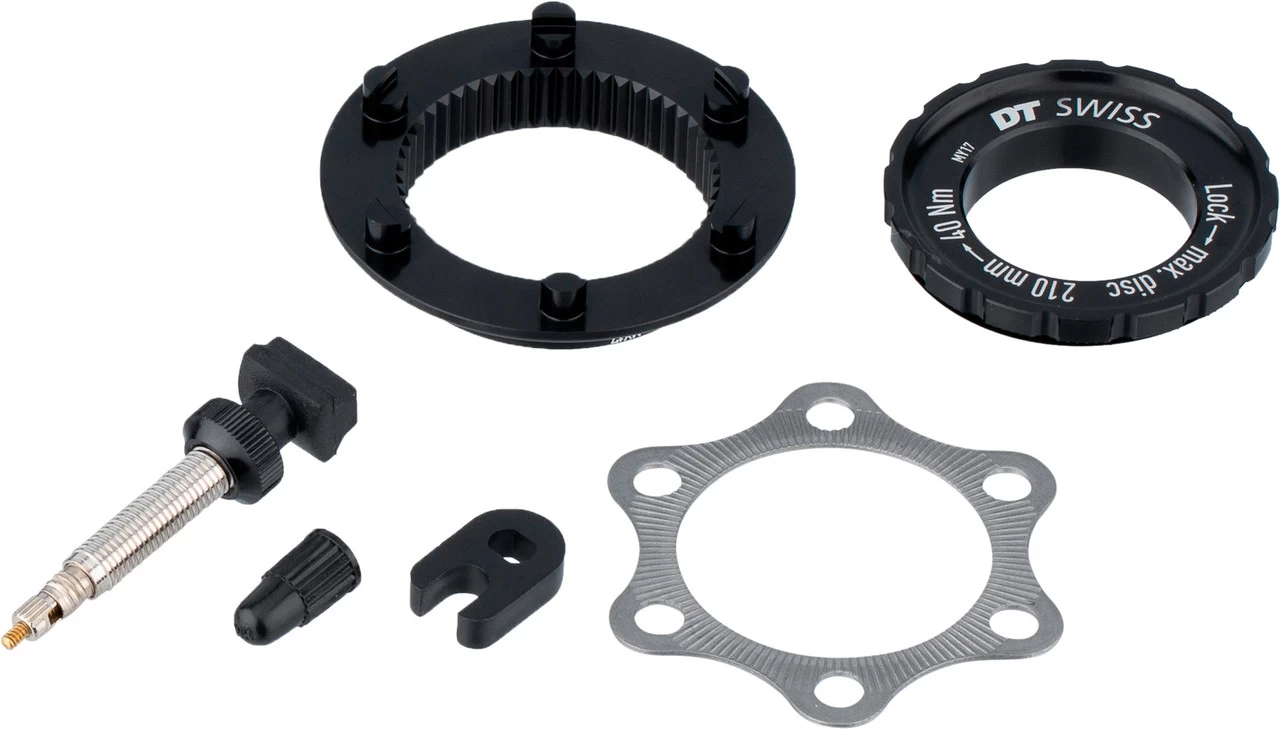

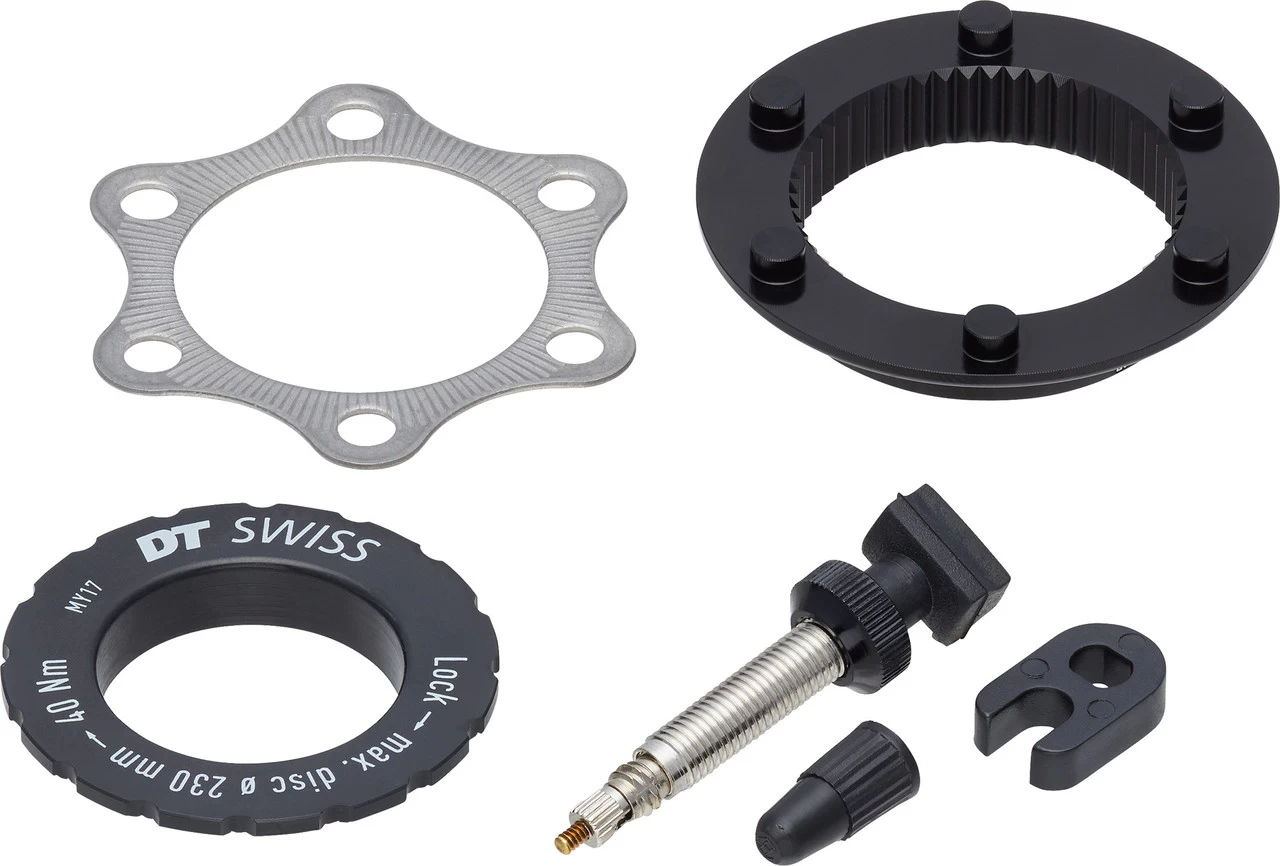

Manufacturer Numbers:27.5″ front 15×110 Boost:W0M1900BGIXSA0693427.5″ rear 12×148 Boost Shimano:W0M1900TGDTSA0693727.5″ rear 12×148 Boost SRAM XD:W0M1900TGDQSA0693827.5″ rear 12×148 Boost Shimano Micro Spline:W0M1900TGD3SA11084Contents:1 x DT Swiss M 1900 SPLINE 25 Boost Center Lock Disc MTB 27.5″ Wheel (front or rear wheel)1 x roll 27 mm rim tape1 x MTB 32 mm tubeless valves1 x DT Swiss adapters to convert from Center Lock to IS 6-bolt
