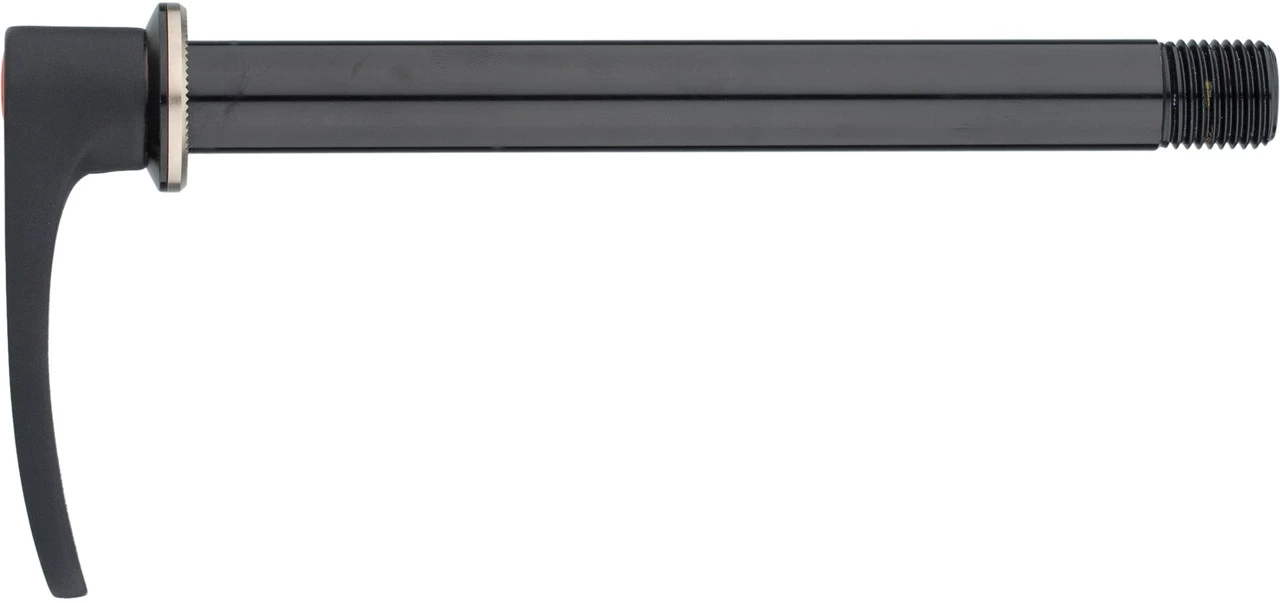

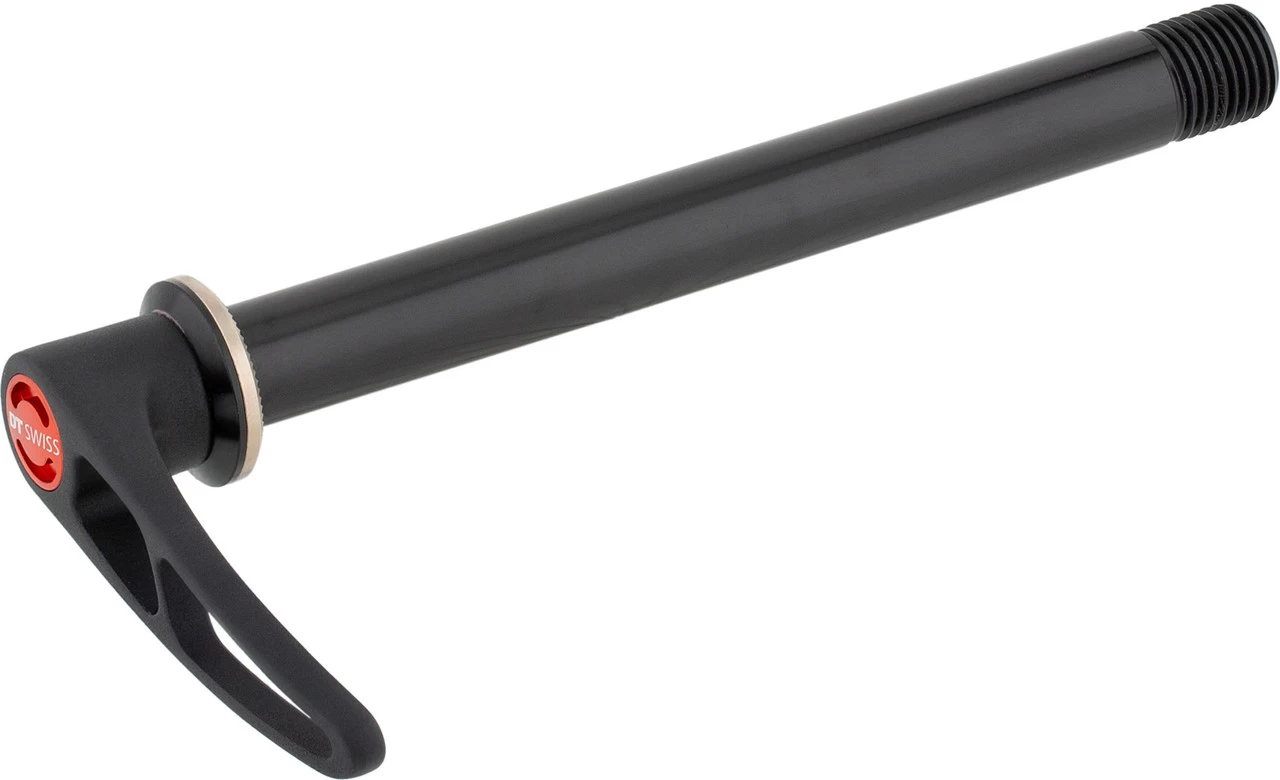

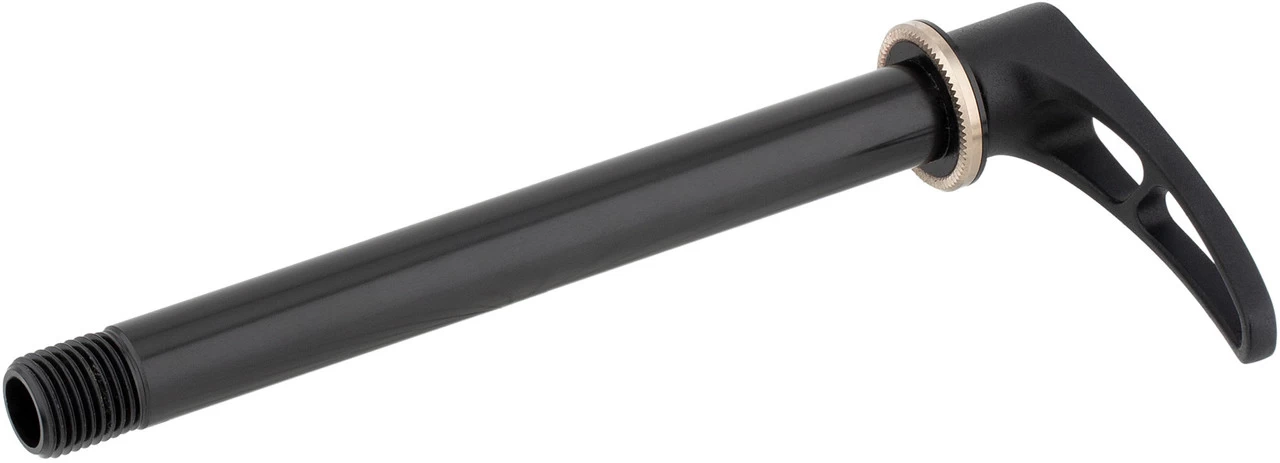

Dt-swiss RWS MTB Thru Axle With Quick-Release Lever

DT Swiss RWS thru axle with quick-release lever for mountain bikes
The RWS thru axle from DT Swiss allows you to easily attach wheels to your mountain bike via quick release levers. This makes tool-free assembly possible.
Specifications:Over Locknut Dimension:100 mm, 142 mm, 150 mmAxle Diameter:12 mm, 15 mmTechnical Information:Use:15 x 100 mm, 15 x 150 mm, 12 x 142 mmType:Thru axle with quick-release skewerAxle Material:aluminiumLever Material:aluminiumAxle Length:143.1 mm, 167.7 mm, 198 mmNominal Diameter:M12, M15Thread Pitch:1 mm, 1.5 mmThread Length:11 mm, 15 mmFeatures:tool-free installationmade of full metalTechnology:RWS:
The Ratchet Wheelmounting System is a system for tool-free wheel mounting for all disciplines of cycling. In the style of quick-release levers, wheels with RWS axles can be quickly attached. However, they can withstand stronger forces caused by higher speeds and increased track requirements. The axles are as stable as thru axles, And thanks to the lever, the axle can be released or clamped as easily as a quick-release axle. The lever is lifted for this reason, and is operated by turning it.
Models:15 x 100 mm:
Over Locknut Dimensions:15 x 100 mmAxle Length:143.1 mmNominal Diameter:M15Thread Pitch:1.5 mmThread Length:15 mmManufacturer Number:HWQASM00S2954S
15 x 150 mm:
Over Locknut Dimensions:15 x 150 mmAxle Length:198 mmNominal Diameter:M12Thread Pitch:1.5 mmThread Length:11 mmManufacturer Number:HWQASM00S6498S
12 x 142 mm:
Over Locknut Dimensions:12 x 142 mmAxle Length:167.7 mmNominal Diameter:M12Thread Pitch:1 mmThread Length:15 mmManufacturer Number:HWQASM00S2961SContents:1 x DT Swiss RWS MTB thru axle with quick-release lever
