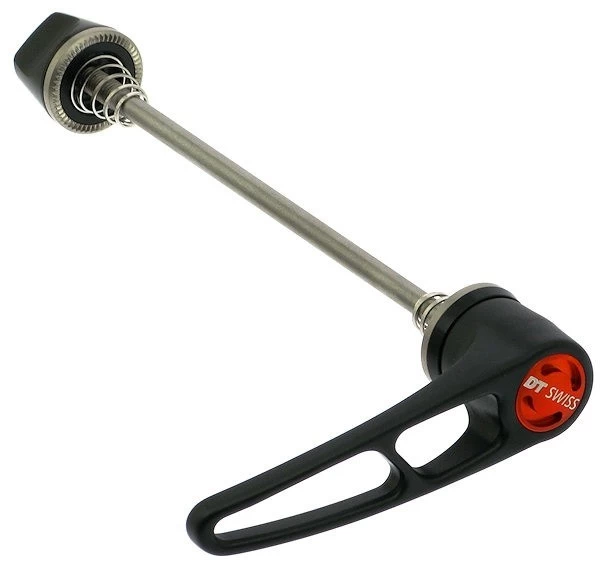

Dt-swiss RWS MTB Titanium Quick Release

Simple operation for maximum safety: the RWS Quick-Release Hub Skewer by DT Swiss
RWS stands for Ratchet Wheel Mounting System, the innovative wheel mounting system from DT Swiss! Instead of the eccentric clamping principle developed for road bikes over 80 years ago, the clamping force on the RWS is built up by tightening a screw connection with a lever. The lever can be set in any position by axial lifting and turning. Operation is very simple: tighten the scanner as tight as possible by hand by turning the lever clockwise (min. 15 Nm hand force). Depending on the frame or fork construction, this can also be done by flipping the lever several times. Then lift the lever and turn it to the desired position – the wheel is securely and firmly mounted. Because there are no plastic parts in the force flow of the RWS, the clamp force is temperature-independent and therefore the RWS is 100% disc brake-compatible! Due to the direct transmission of the leverage force to the thread, the RWS can achieve up to 50% higher clamp force than existing eccentric quick clamps. This is not only more secure, but also increases stiffness, which is particularly noticeable with disc brakes.
Specifications:Over Locknut Dimension:front: 100 mm, rear: 135 mmAxle Diameter:5 mmTechnical Information:Use:front: 9 x 100 mm, rear: 10 x 135 mmType:quick release, cam operatedAxle Material:titaniumLever Material:polyamideFeatures:safe and simple operation100% suitable for disc brakes, as temperature independentfree-adjusting lever which does not interfere with gripping forcecarbon fibre reinforced polyamide leverManufacturer Numbers:100 mm:HWQASM00S2953S135 mm:HWQASM00S2940SContents:1 x DT Swiss RWS MTB titanium quick release
