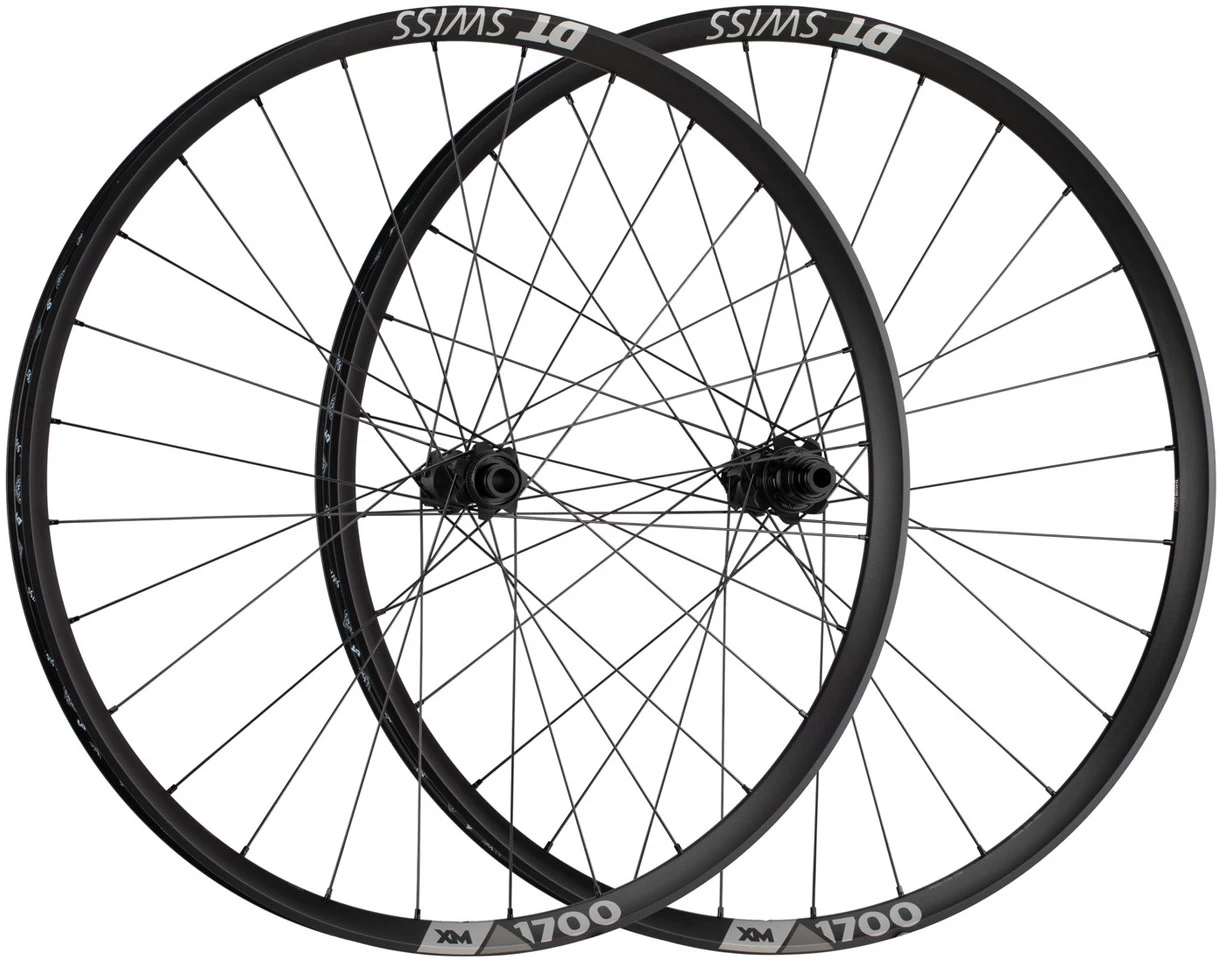

DT Swiss XM 1700 SPLINE 30 Boost centre lock disc 27.5″ wheelset – for pure All Mountain fun
The XM 1700 SPLINE wheelset from DT Swiss convinces All Mountain riders downhill and uphill with robustness and lightness. The sturdy SPLINE construction with reinforced 27.5″ rims, straight pull spokes and the proven 350 hub makes the foundations of your MTB particularly durable. Together with 30 mm wide rims, the Boost hub leaves enough room for wide tyres. The freehub is a ratchet freehub with 36 teeth. This way your pedalling power is converted into propulsion in the best possible way and unwanted idling is avoided. Due to the centre lock disc brake mount, you have control of your bike in every riding situation.
Specifications:Application:All MountainWheel Size:27.5″ (650B)Tyre Type:clincher tyreNumber of Spokes:28Brake Type:Center Lock DiscTubeless System:Tubeless ReadyTechnical Information – Rim:Rim Flange:with hookDimensions (ETRTO):30-584Inner Width:30 mmOuter Width:35 mmDepth:21 mmValve Hole Diameter:SV/Presta (6.5 mm)Rim Material:aluminiumTechnical Information – Front Hub:Type:350 straight pullOver Locknut Dimension:15 x 110 mm thru-axleBearings:steel bearingsBody Material:aluminiumTechnical Information – Rear Hub:Type:350 straight pullOver Locknut Dimension:12 x 148 mm thru-axleBearings:steel bearingsBody Material:aluminiumFreehub Body Material:aluminiumFreehub Body:Ratchet System 36 SLTechnical Information – Lacing:Front Lacing Pattern:3-crossRear Lacing Pattern:3-crossSpoke Type:DT Champion / straight pullSpoke Material:stainless steelNipple Type:DT Pro Lock Squorx Pro HeadNipple Size:15 mm (length) / 2 mm (diameter)Nipple Material:aluminiumApproved For:Weight Limit:120 kg (system weight)Air Pressure (max.):see manufacturer’s specificationsRecommended Tyre Width:see manufacturer’s specificationsTechnology:Intended use – Category 4:
Suitable for use in very rough terrain with jumps of up to approx. 120 cm in height and speeds of up to 40 km/h. Very good riding technique is required. The components must be checked for damage after each ride.
Ratchet System:
The robust and reliable star ratchets freehub system can be maintained easily and quickly. The no-tool concept contributes to this, because it allows disassembly without any tools. The freehub has two ratchets which engage simultaneously. This means that the contact surface is large and the point load is kept small, which relieves the material and allows the freehub to work particularly reliably and precisely.
SPLINE:
Straight pull hubs, straight spokes and strong rims result in a durable wheel. It can therefore be reliably used in training and competition.
Pro Lock:
The nipple thread is coated with two-component adhesive to increase the durability of the wheels. It can still be re-trued several times without any problems, but the adhesive strength decreases slightly. The connection between the spoke and nipple cannot loosen by itself.
Colour Index:black:
Rims: black with grey decalsHubs: black with grey decalsSpokes: blackNipples: blackModels:27.5″ set (front 15×110 Boost + rear 12×148 Boost) Shimano:
Freehub:Shimano MTBGearing:8-/9-/10-/11-speedManufacturer Numbers:WXM1700BGIXSA11565 + WXM1700TGD2SA11566
27.5″ set (front 15×110 Boost + rear 12×148 Boost) Shimano Micro Spline:
Freehub:Shimano Micro SplineGearing:12-speedManufacturer Numbers:WXM1700BGIXSA11565 + WXM1700TGD2SA11566
27.5″ set (front 15×110 Boost + rear 12×148 Boost) SRAM XD:

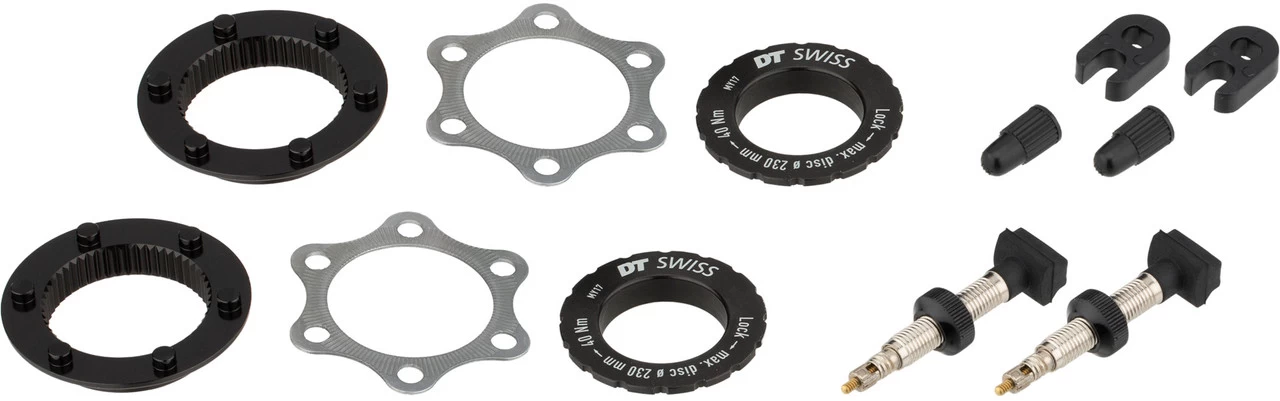

Freehub:SRAM XDGearing:11-/12-speedManufacturer Numbers:WXM1700BGIXSA11565 + WXM1700TGDRSA11570Contents:1 x DT Swiss XM 1700 SPLINE wheelset (front and rear wheel)2 x DT Swiss adapters to convert from Center Lock to 6-bolt2 x DT Swiss tubeless valves2 x rolls DT Swiss tubeless rim tape
