Dt-swiss XMC 1200 SPLINE 30 Boost Center Lock Disc 27.5″ Wheelset 2020

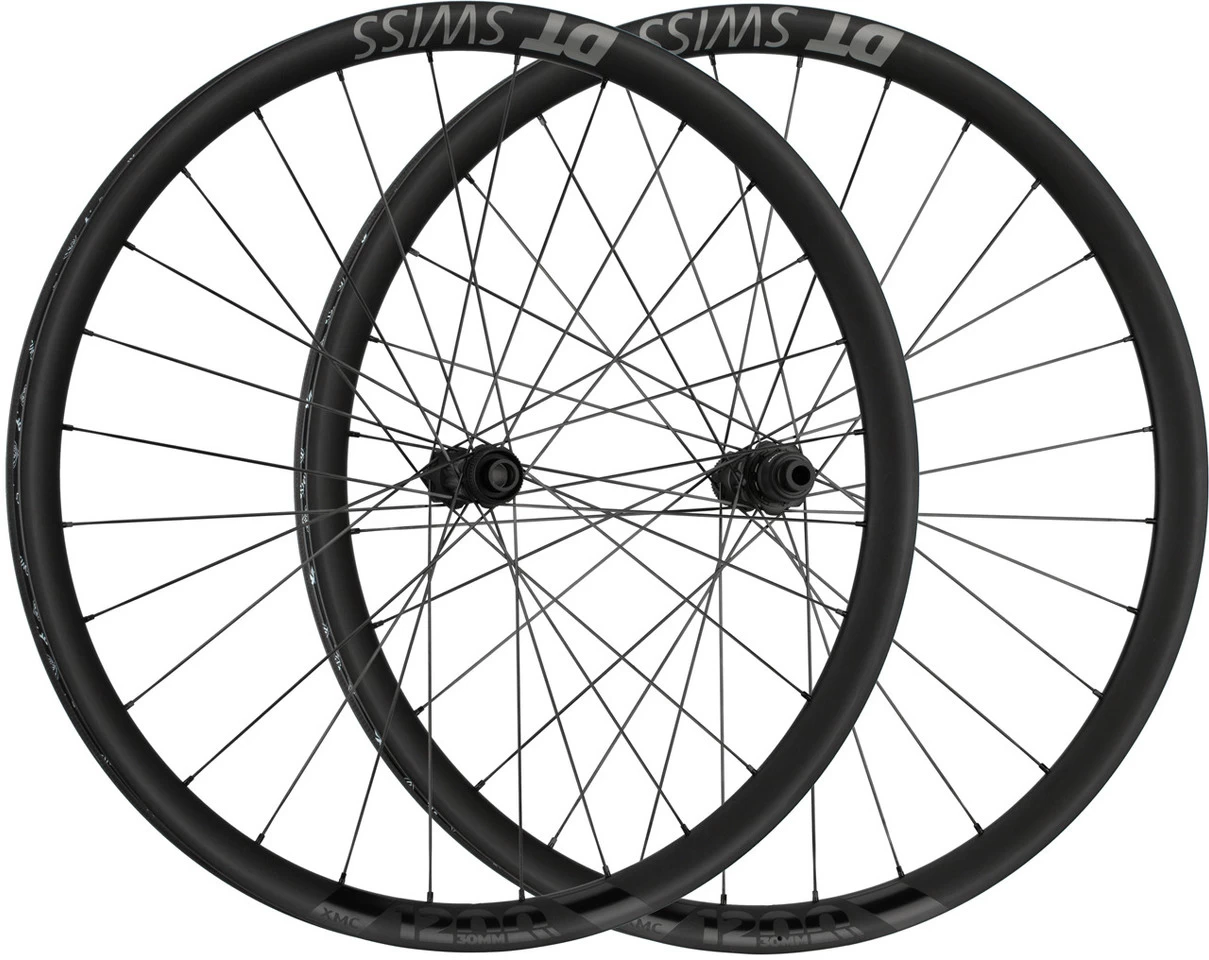

DT Swiss XMC 1200 SPLINE 30 Boost Center Lock Disc 27.5″ wheelset- versatile all-mountain wheels

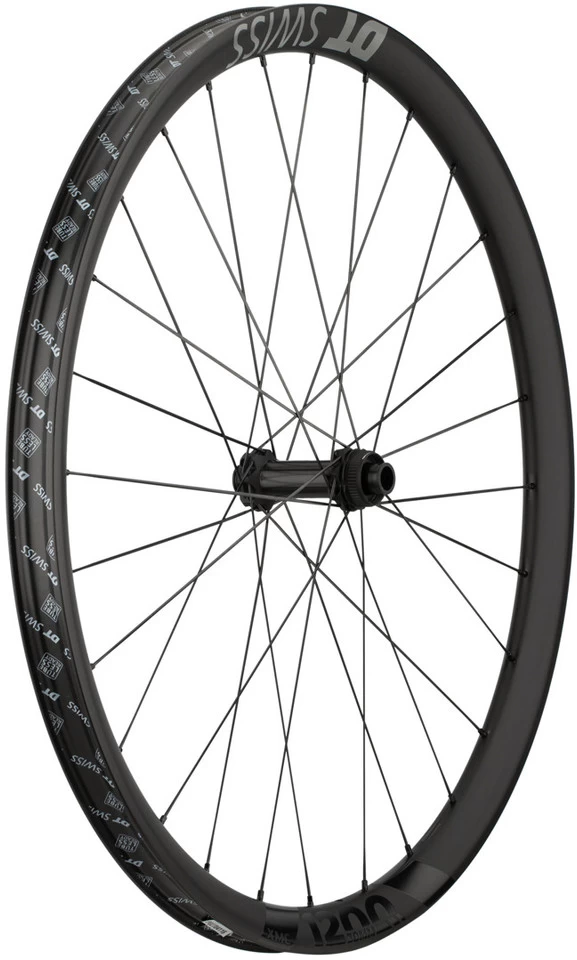

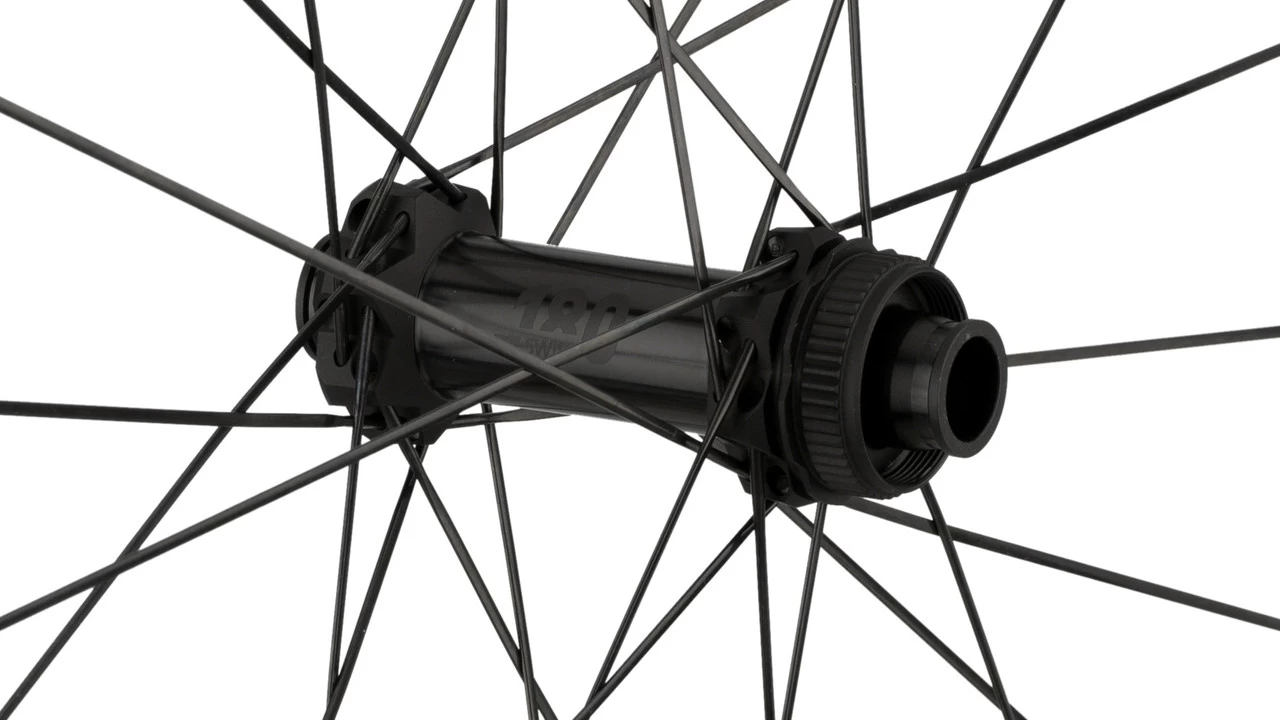

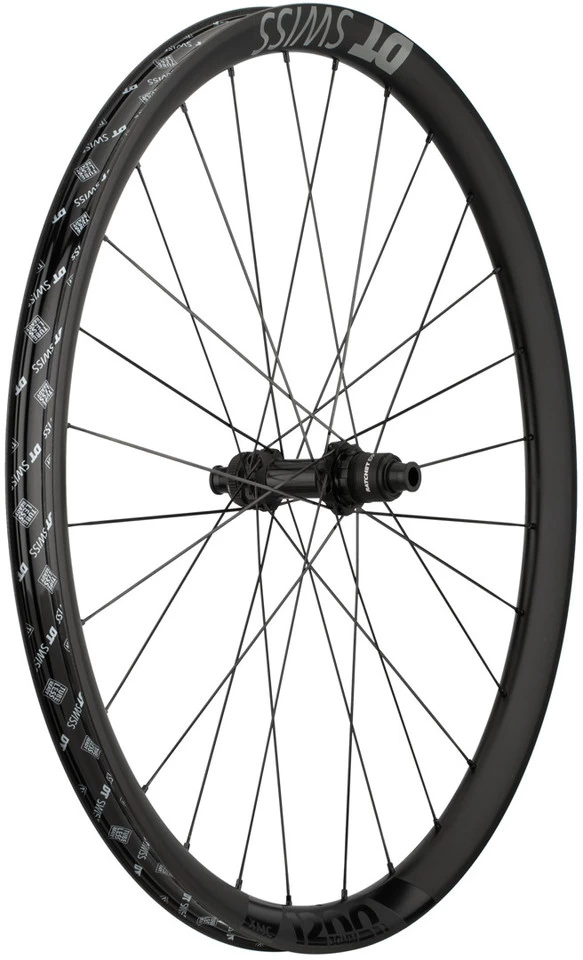

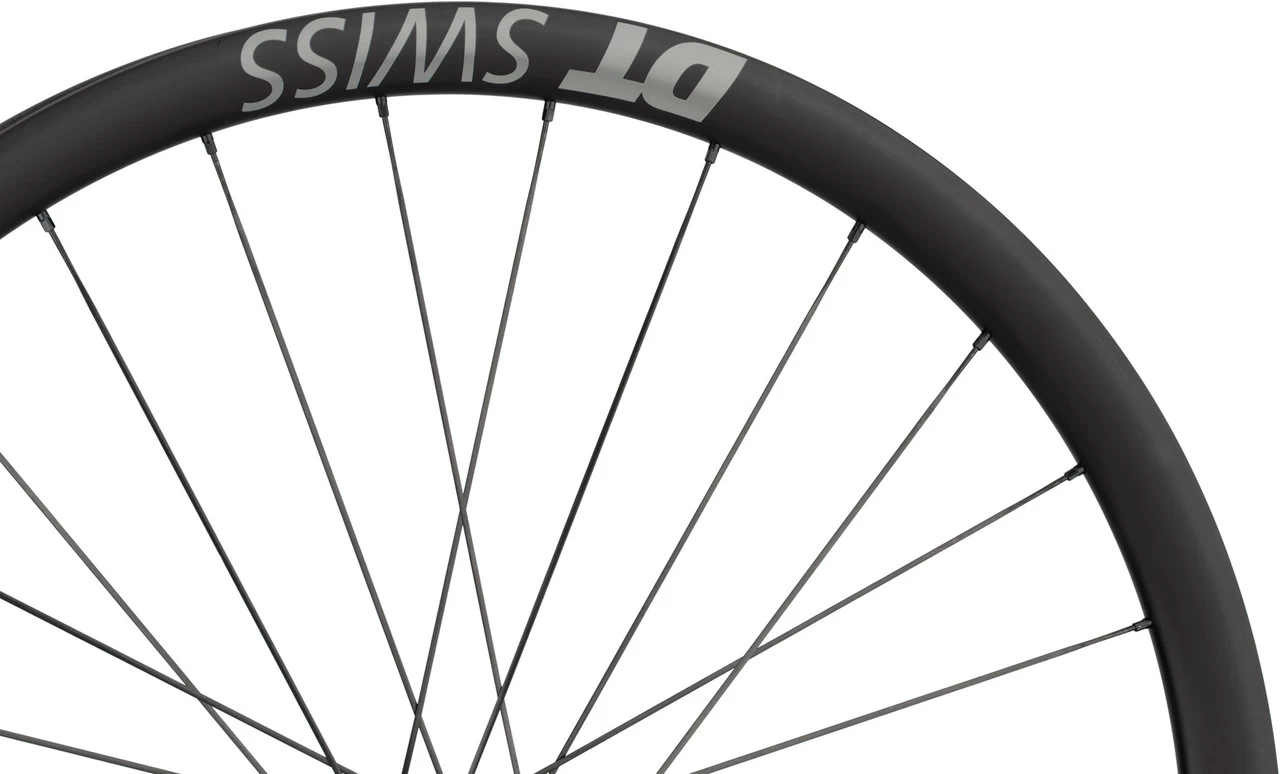

The XMC 1200 SPLINE wheelset by DT Swiss allows you to equip your MTB with lightweight carbon rims. For the necessary stability, the carbon fibre fabric together with the boost hub and glued straight pull spokes provide a durable SPLINE construction. The Ratchet EXP freehub is low-maintenance, lightweight and prevents unwanted idling thanks to its 36 teeth. In addition, it can be serviced without tools in case a repair is necessary or the freehub needs to be replaced.
Specifications:Application:All MountainWheel Size:27.5″Tyre Type:clincher tyreNumber of Spokes:28Brake Type:Center Lock DiscWheel Standard:BoostTubeless System:Tubeless ReadyTechnical Information – Rim:Rim Flange:hooklessDimensions (ETRTO):30-584Inner Width:30 mmOuter Width:36 mmDepth:30 mmValve Hole Diameter:SV/Presta (6.5 mm)Rim Material:CarbonTechnical Information – Front Hub:Type:180 straight pullOver Locknut Dimension:15 x 110 mm thru-axleBody Material:aluminiumTechnical Information – Rear Hub:Type:180 straight pullOver Locknut Dimension:12 x 148 mm thru-axleBody Material:aluminiumFreehub Body Material:aluminiumFreehub Body:Ratchet EXP 36Technical Information – Lacing:Front Lacing Pattern:3-crossRear Lacing Pattern:3-crossSpoke Type:DT Aerolite® / DT Aero Comp® / straight pullSpoke Material:stainless steel (18/10)Nipple Type:DT Pro Lock / Squorx Pro HeadNipple Size:15 mm (length) / 2 mm (diameter)Nipple Material:aluminiumApproved For:Weight Limit:120 kg (system weight)Air Pressure (max.):see manufacturer’s specificationsRecommended Tyre Width:see manufacturer’s specificationsTechnology:Intended use – Category 4:
Suitable for use in very rough terrain with jumps of up to approx. 120 cm in height and speeds of up to 40 km/h. Very good riding technique is required. The components must be checked for damage after each ride.

SPLINE:
Straight pull hubs, straight spokes and strong rims result in a durable wheel. It can therefore be reliably used in training and competition.

Pro Lock:
The nipple thread is coated with two-component adhesive to increase the durability of the wheels. It can still be re-trued several times without any problems, but the adhesive strength decreases slightly. The connection between the spoke and nipple cannot loosen by itself.

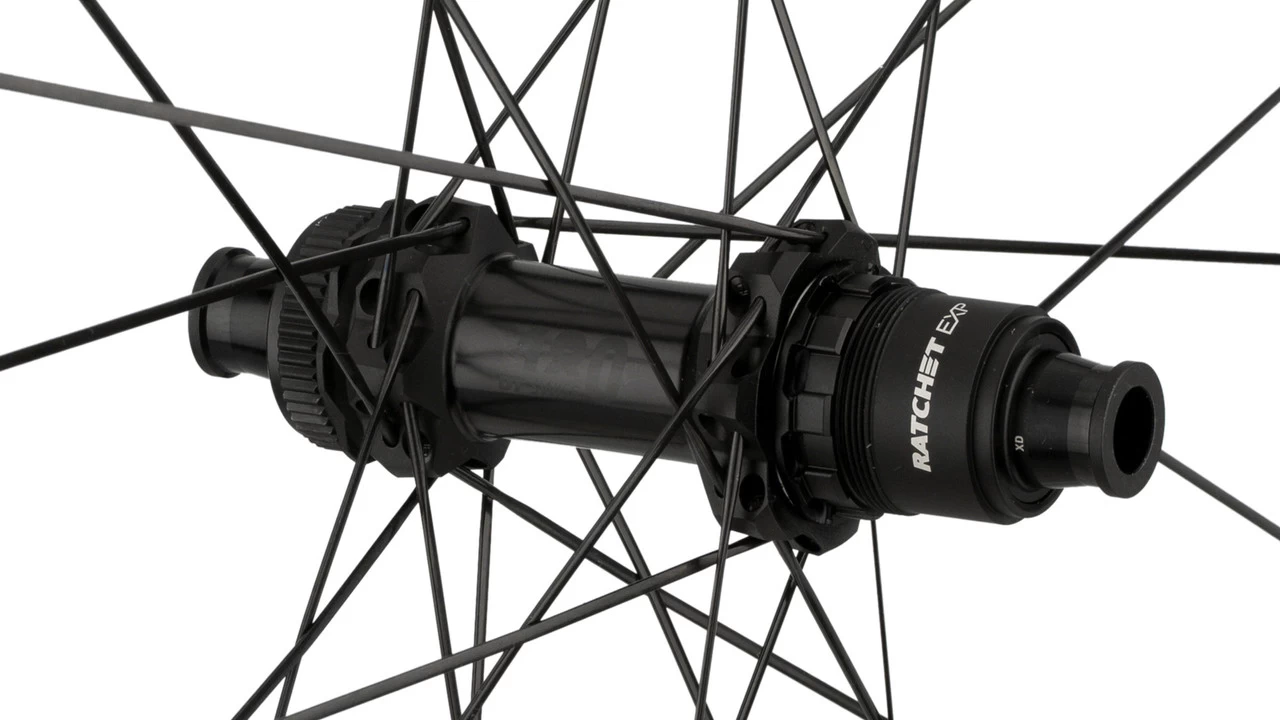

Ratchet EXP:
A ratchet and a threaded ring are integrated into the hub. This reduces the number of components required, resulting in less wear and tear and a lower weight. In addition, the heavy-duty and reliable ratchet system can be easily and quickly maintained. The no-tool concept plays a decisive role, as it allows the freehub to be replaced without tools. The freehub has two ratchets which engage simultaneously. This means that the contact surface is large and the point load is kept small, which relieves the material and allows the freehub to work particularly reliably and precisely.
Colour Index:black:
Rims: black with grey decalsHubs: blackSpokes: blackNipples: blackModels:29″ set (front 15×110 Boost + rear 12×148 Boost) SRAM XD:

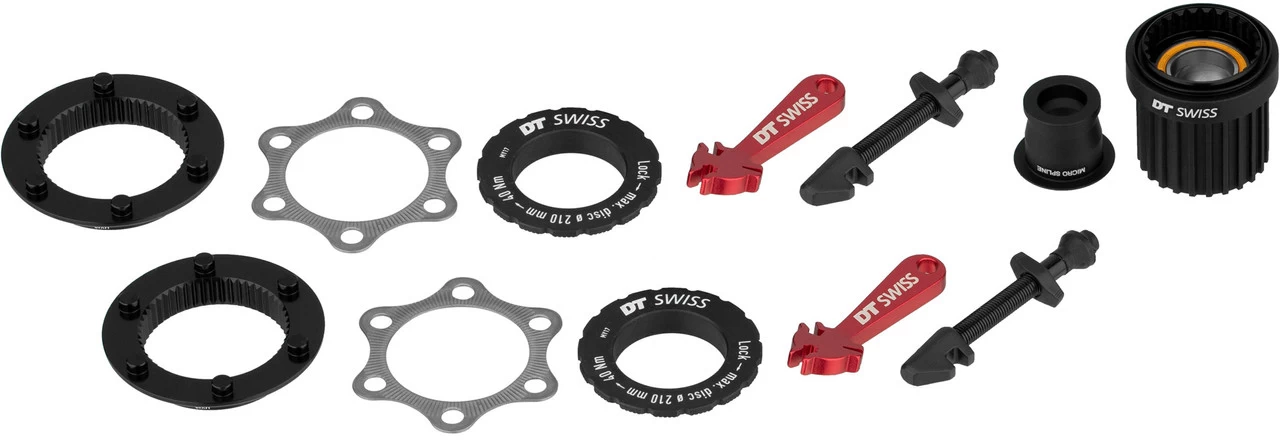

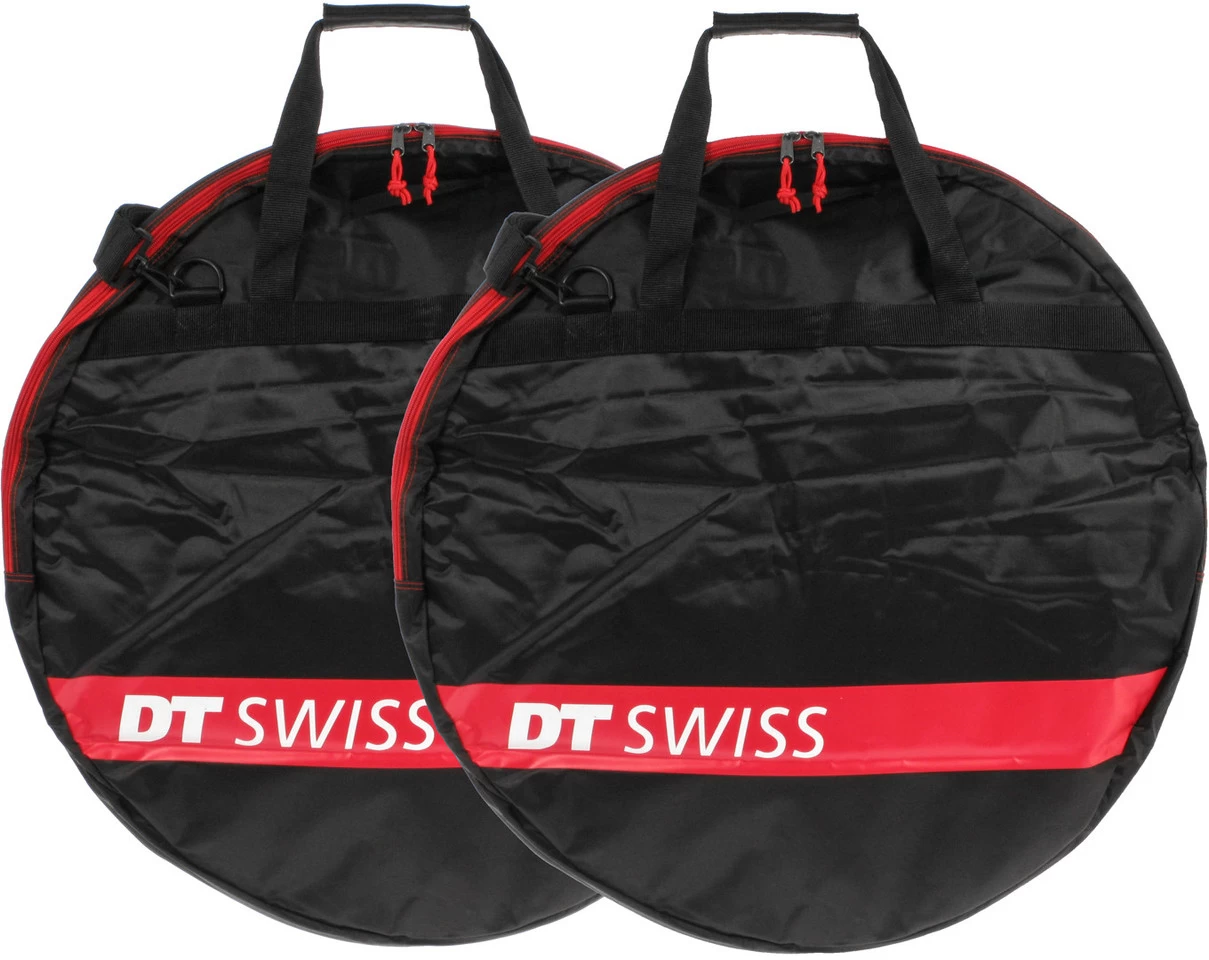

Freehub:SRAM XDGearing:11-/12-speedManufacturer Numbers:WXMC120BGIXCA10932 + WXMC120TGDRCA10934Conversion Options:To convert to Shimano Micro Spline, a Micro Spline freehub body is required.Contents:1 x DT Swiss XMC 1200 SPLINE 30 wheelset (front and rear wheel)2 x DT Swiss 32 mm tubeless tape2 x DT Swiss 26 – 35 mm tubeless valves (aluminium, black)2 x DT Swiss adapters to convert from Center Lock to 6-bolt1 x DT Swiss freehub body to convert to Shimano Micro Spline2 x DT Swiss wheel bags2 x DT Swiss tool
