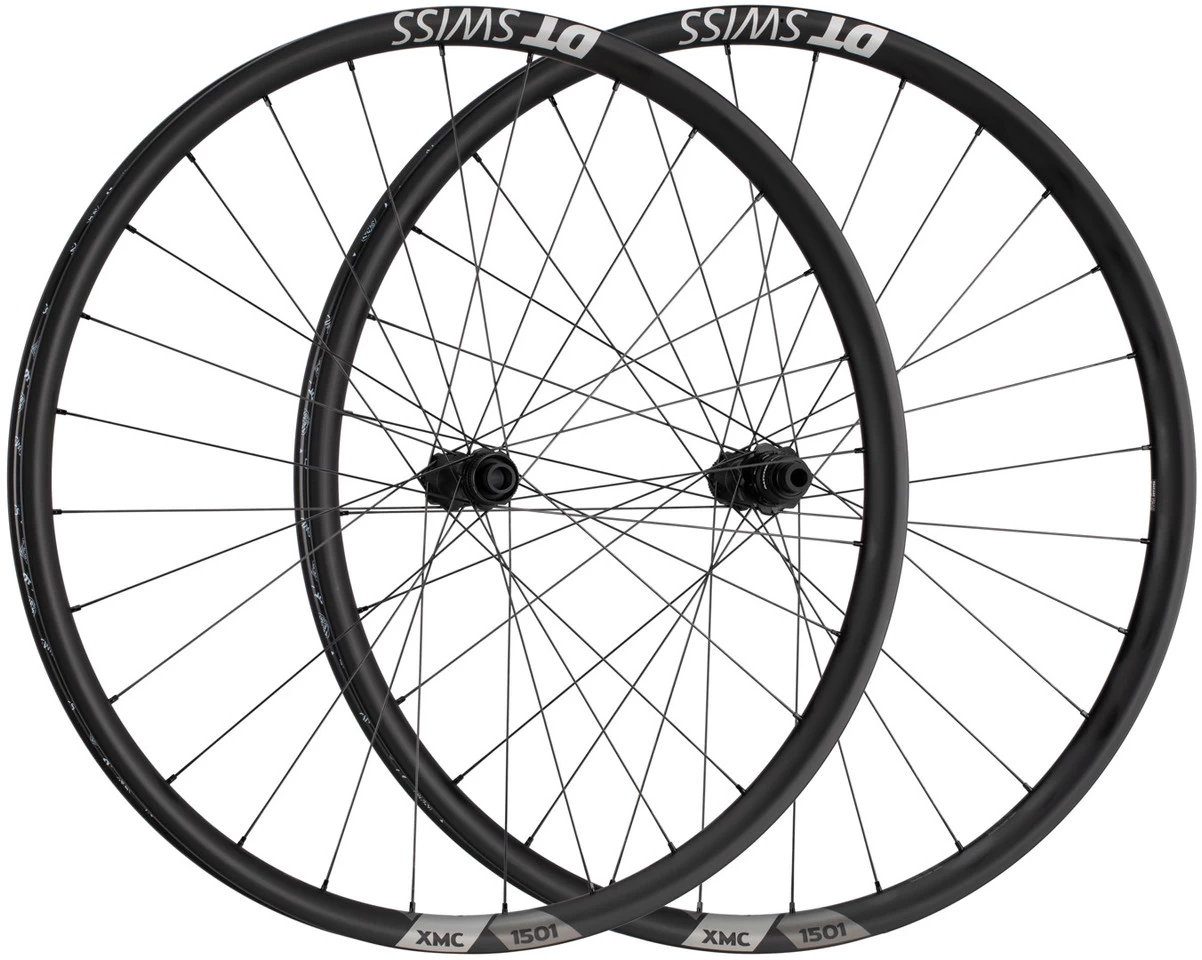

Dt-swiss XMC 1501 SPLINE 30 Carbon Boost Centre Lock Disc 29″ Wheelset

DT Swiss XMC 1501 SPLINE 30 Carbon Boost centre lock disc 29″ wheelset – light wheels for your MTB
The XMC 1501 SPLINE wheelset from DT Swiss is designed for All Mountain riders who value having the least possible weight. The sturdy 29″ carbon rims are light, but are reinforced in exactly the right places to withstand the forces of MTB usage. SPLINE construction together with the proven 350 hub makes the wheels a robust components of your bike. Together with 30 mm wide rims, the Boost hub leaves enough room for wide tyres. It also uses the latest DT Swiss freehub technology, the Ratchet EXP. This has 36 teeth, which allow for optimal power transmission. This avoids unwanted idling and your leg power can be effectively converted into propulsion immediately. The disc brake mount for centre lock brake rotors completes the modern standard of these wheels.
Specifications:Application:All MountainWheel Size:29″Tyre Type:clincher tyreNumber of Spokes:28Brake Type:Center Lock DiscWheel Standard:BoostTubeless System:Tubeless ReadyTechnical Information – Rim:Rim Flange:hooklessDimensions (ETRTO):30-622Inner Width:30 mmOuter Width:36 mmDepth:25 mmValve Hole Diameter:SV/Presta (6.5 mm)Rim Material:CarbonTechnical Information – Front Hub:Type:240 straight pullOver Locknut Dimension:15 x 110 mm thru-axleBearings:steel bearingsBody Material:aluminiumTechnical Information – Rear Hub:Type:240 straight pullOver Locknut Dimension:12 x 148 mm thru-axleBearings:steel bearingsBody Material:aluminiumFreehub Body Material:aluminiumFreehub Body:Ratchet EXP 36Technical Information – Lacing:Front Lacing Pattern:3-crossRear Lacing Pattern:3-crossSpoke Type:DT Champion Race / straight pullSpoke Material:stainless steelNipple Type:DT Pro Lock Squorx Pro HeadNipple Size:15 mm (length) / 2 mm (diameter)Nipple Material:aluminiumApproved For:Weight Limit:120 kg (system weight)Air Pressure (max.):see manufacturer’s specificationsRecommended Tyre Width:see manufacturer’s specificationsTechnology:Intended use – Category 4:
Suitable for use in very rough terrain with jumps of up to approx. 120 cm in height and speeds of up to 40 km/h. Very good riding technique is required. The components must be checked for damage after each ride.

Ratchet EXP:
A ratchet and a threaded ring are integrated into the hub. This reduces the number of components required, resulting in less wear and tear and a lower weight. In addition, the heavy-duty and reliable ratchet system can be easily and quickly maintained. The no-tool concept plays a decisive role, as it allows the freehub to be replaced without any tools. The freehub has two ratchets which engage simultaneously. This means that the contact surface is large and the point load is kept small, which relieves the material and allows the freehub to work particularly reliably and precisely.

SPLINE:
Straight pull hubs, straight spokes and strong rims result in a durable wheel. It can therefore be reliably used in training and competition.

Pro Lock:
The nipple thread is coated with two-component adhesive to increase the durability of the wheels. It can still be re-trued several times without any problems, but the adhesive strength decreases slightly. The connection between the spoke and nipple cannot loosen by itself.
Colour Index:black:
Rims: black with grey decalsHubs: black with grey decalsSpokes: blackNipples: blackModels:29″ set (front 15×110 Boost + rear 12×148 Boost) SRAM XD:

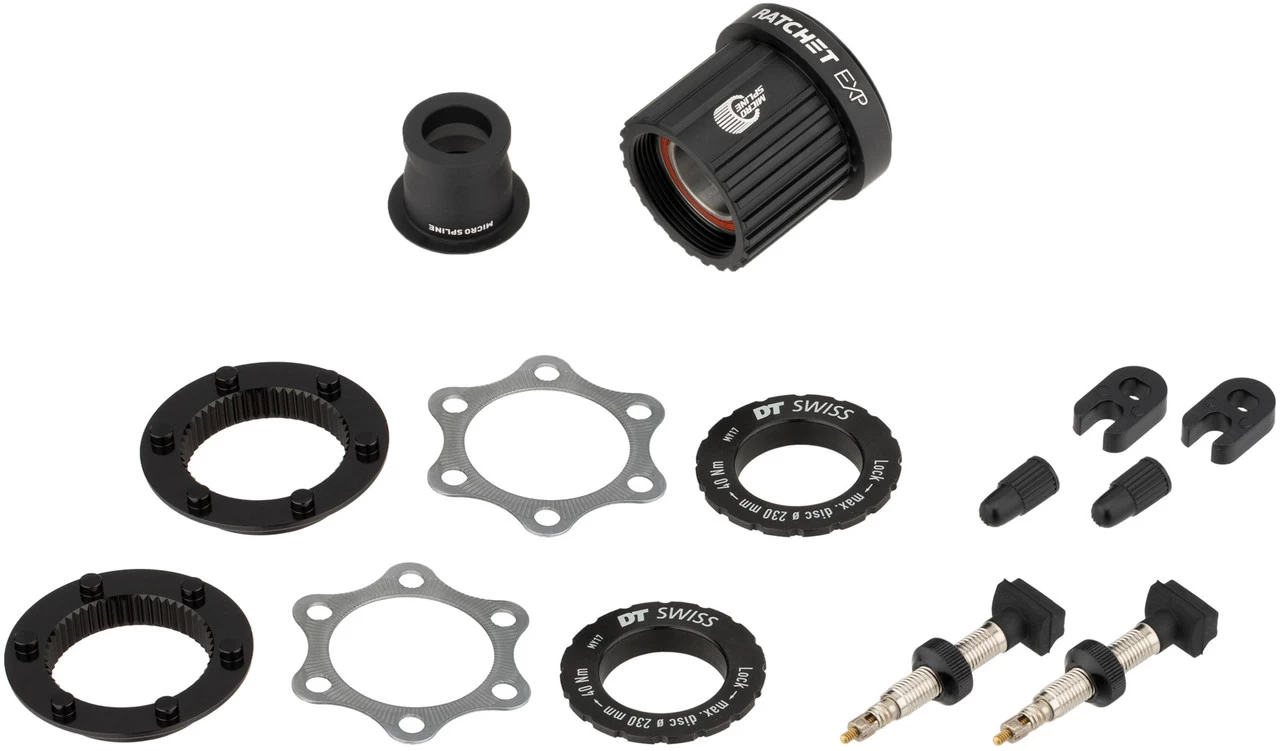

Freehub:SRAM XDGearing:11-/12-speedManufacturer Numbers:WXMC150BEIXCA11487 + WXMC150TEDRCA11483Contents:1 x DT Swiss XMC 1501 SPLINE wheelset (front and rear wheel)2 x DT Swiss adapters to convert from Center Lock to 6-bolt1 x DT Swiss freehub body to convert to Shimano Micro Spline2 x DT Swiss tubeless valves2 x rolls DT Swiss tubeless rim tape
