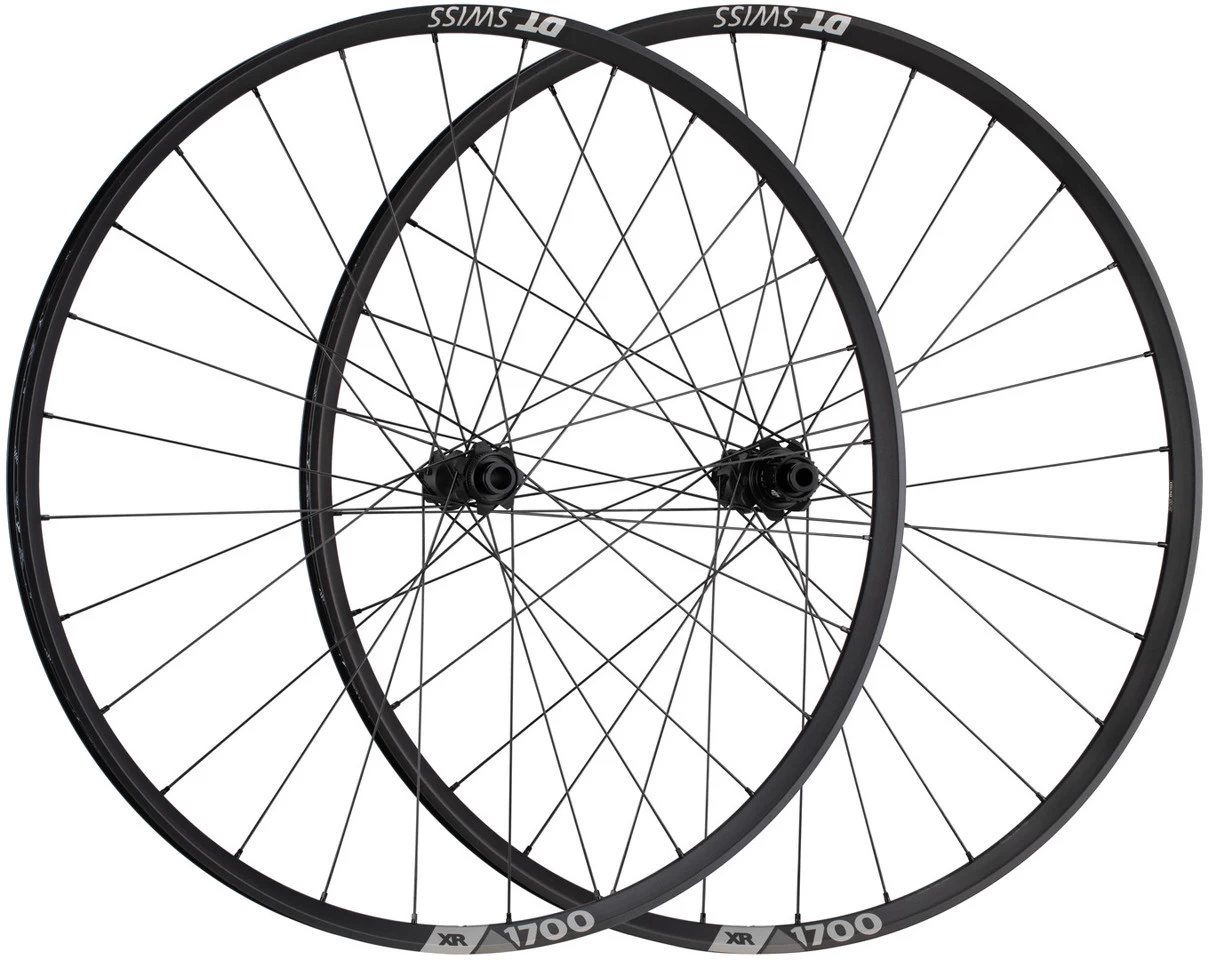

Dt-swiss XR 1700 SPLINE 25 Boost Centre Lock Disc 29″ Wheelset

DT Swiss XR 1700 SPLINE 25 Boost centre lock disc 29″ wheelset – durable Cross Country wheels
With the XR 1700 SPLINE wheelset from DT Swiss you equip your Cross Country bike with robust accessories. The 29″ aluminium rims are connected to the 350 hub via straight pull spokes. This hub follows the Boost standard, so your MTB can withstand stronger forces. It is also equipped with a Ratchet freehub. The two pulleys have 36 teeth, which give you good propulsion. The disc brake mount for centre lock brake rotors completes the modern standard of these wheels.
Specifications:Application:Cross CountryWheel Size:29″Tyre Type:clincher tyreNumber of Spokes:28Brake Type:Center Lock DiscWheel Standard:BoostTubeless System:Tubeless ReadyTechnical Information – Rim:Rim Flange:with hookDimensions (ETRTO):25-622Inner Width:25 mmOuter Width:29 mmDepth:18 mmValve Hole Diameter:SV/Presta (6.5 mm)Rim Material:aluminiumTechnical Information – Front Hub:Type:350 straight pullOver Locknut Dimension:15 x 110 mm thru-axleBearings:steel bearingsBody Material:aluminiumTechnical Information – Rear Hub:Type:350 straight pullOver Locknut Dimension:12 x 148 mm thru-axleBearings:steel bearingsBody Material:aluminiumFreehub Body Material:aluminiumFreehub Body:Ratchet 36Technical Information – Lacing:Front Lacing Pattern:3-crossRear Lacing Pattern:3-crossSpoke Type:DT Competition / straight pullSpoke Material:stainless steelNipple Type:DT Pro Lock Squorx Pro HeadNipple Size:15 mm (length) / 2 mm (diameter)Nipple Material:aluminiumApproved For:Weight Limit:110 kg (system weight)Air Pressure (max.):5.5 barsRecommended Tyre Width:1.7″ – 2.35″Technology:Intended use – Category 3:
Suitable for use on rough paved and unpaved ground, with a raised riding technique and occasional drops and jumps of approx. 60 cm.

Ratchet System:

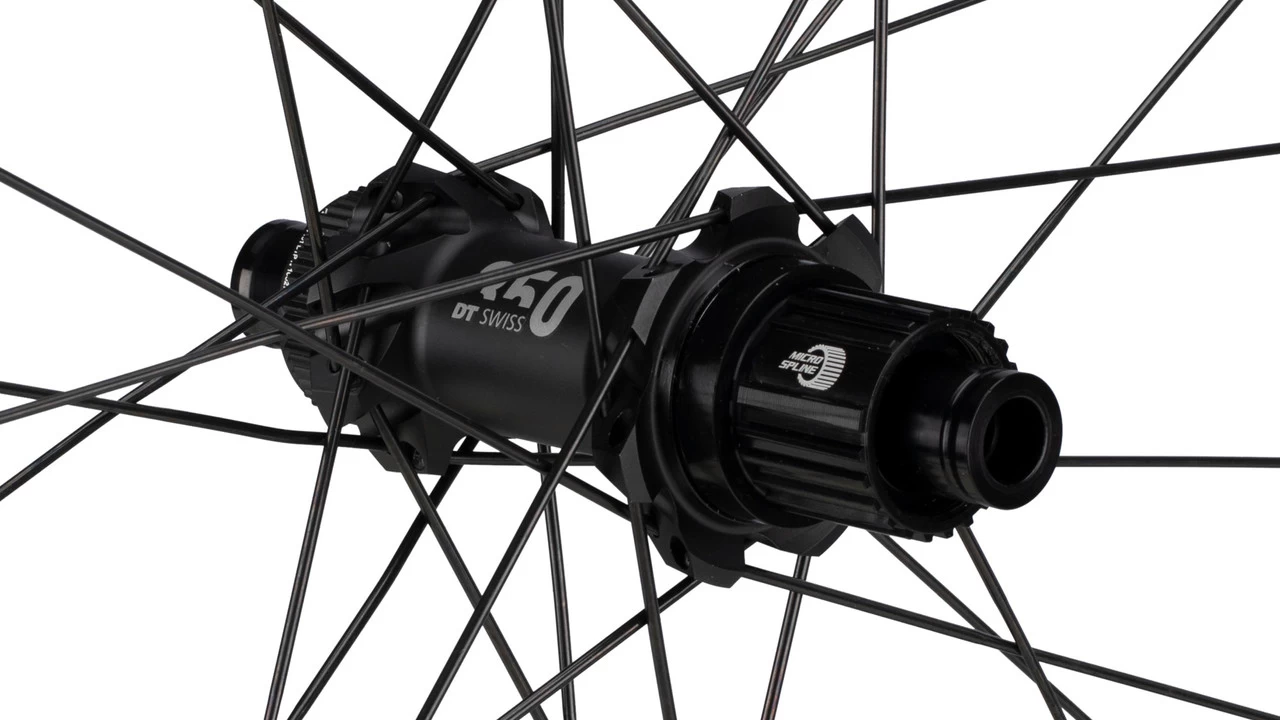

The robust and reliable star ratchets freehub system can be maintained easily and quickly. The no-tool concept contributes to this, because it allows disassembly without any tools. The freehub has two ratchets which engage simultaneously. This means that the contact surface is large and the point load is kept small, which relieves the material and allows the freehub to work particularly reliably and precisely.

SPLINE:
Straight pull hubs, straight spokes and strong rims result in a durable wheel. It can therefore be reliably used in training and competition.

Pro Lock:
The nipple thread is coated with two-component adhesive to increase the durability of the wheels. It can still be re-trued several times without any problems, but the adhesive strength decreases slightly. The connection between the spoke and nipple cannot loosen by itself.
Colour Index:black:
Rims: black with grey decalsHubs: black with grey decalsSpokes: blackNipples: blackModels:29″ set (front 15×110 Boost + rear 12×148 Boost) Shimano:
Freehub:Shimano MTBGearing:8-/9-/10-/11-speedManufacturer Numbers:WXR1700BEIXSA12046 + WXR1700TEDBSA13802
29″ set (front 15×110 Boost + rear 12×148 Boost) Shimano Micro Spline:
Freehub:Shimano Micro SplineGearing:12-speedManufacturer Numbers:WXR1700BEIXSA12046 + WXR1700TED2SA12047
29″ set (front 15×110 Boost + rear 12×148 Boost) SRAM XD:

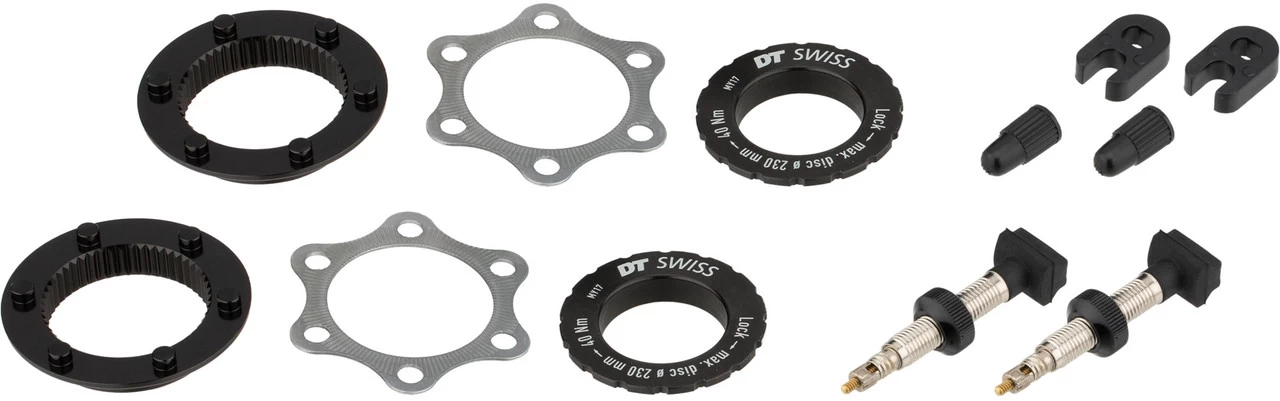

Freehub:SRAM XDGearing:11-/12-speedManufacturer Numbers:WXR1700BEIXSA12046 + WXR1700TEDRSA12048Contents:1 x DT Swiss XR 1700 SPLINE wheelset (front and rear wheel)2 x DT Swiss adapters to convert from Center Lock to 6-bolt2 x DT Swiss tubeless valves2 x rolls DT Swiss tubeless rim tape
