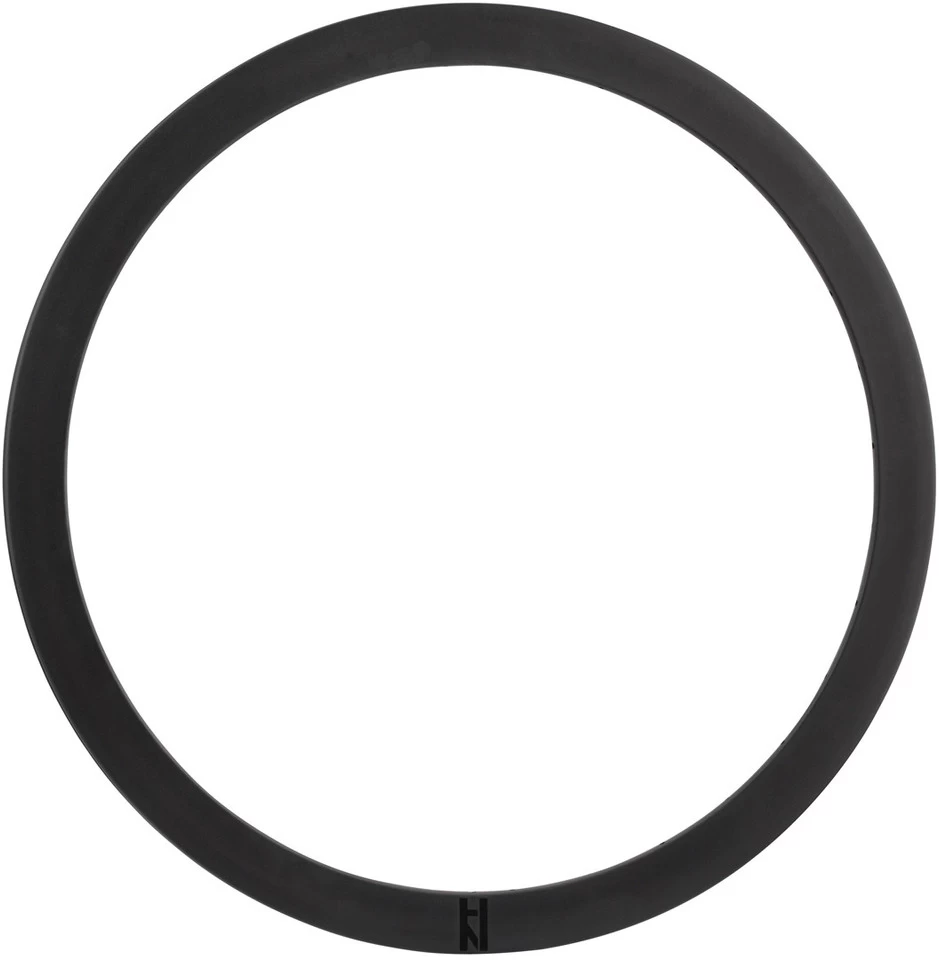

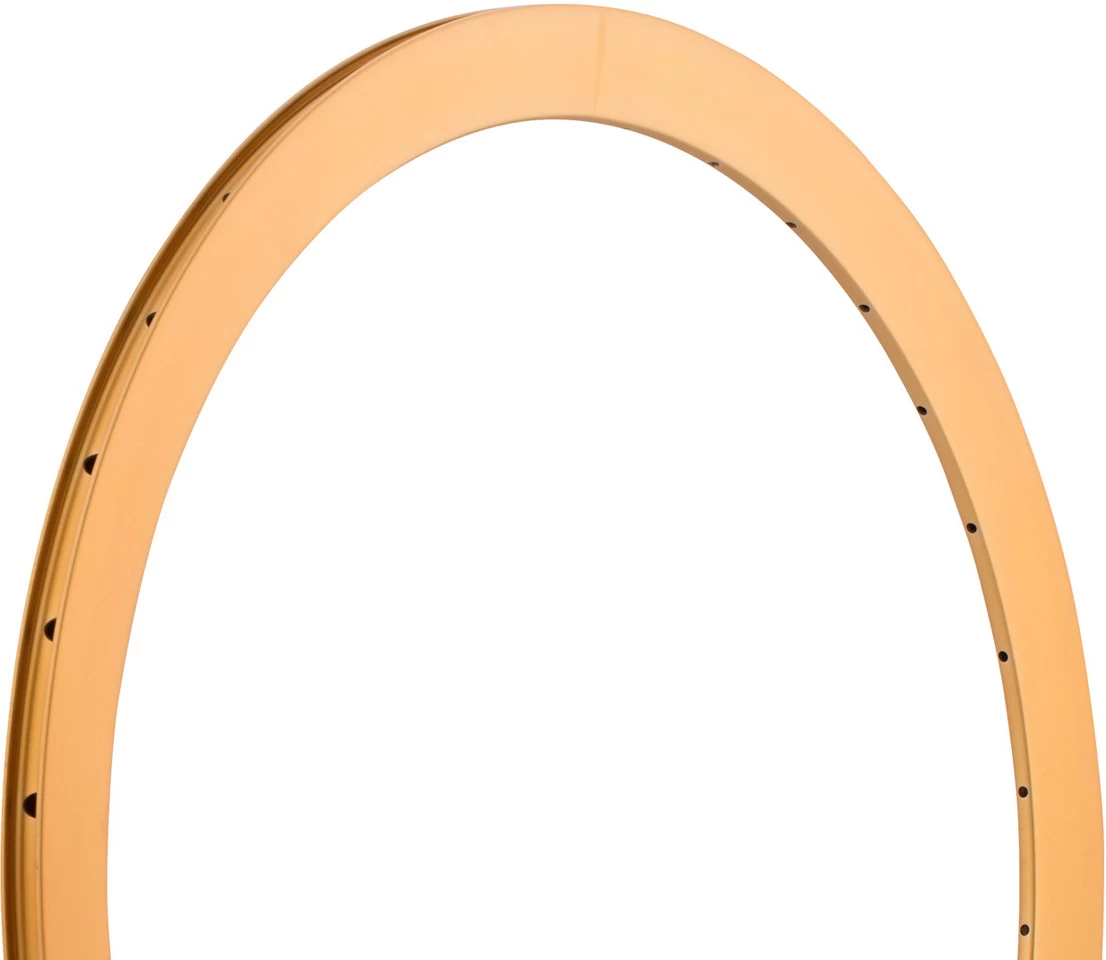

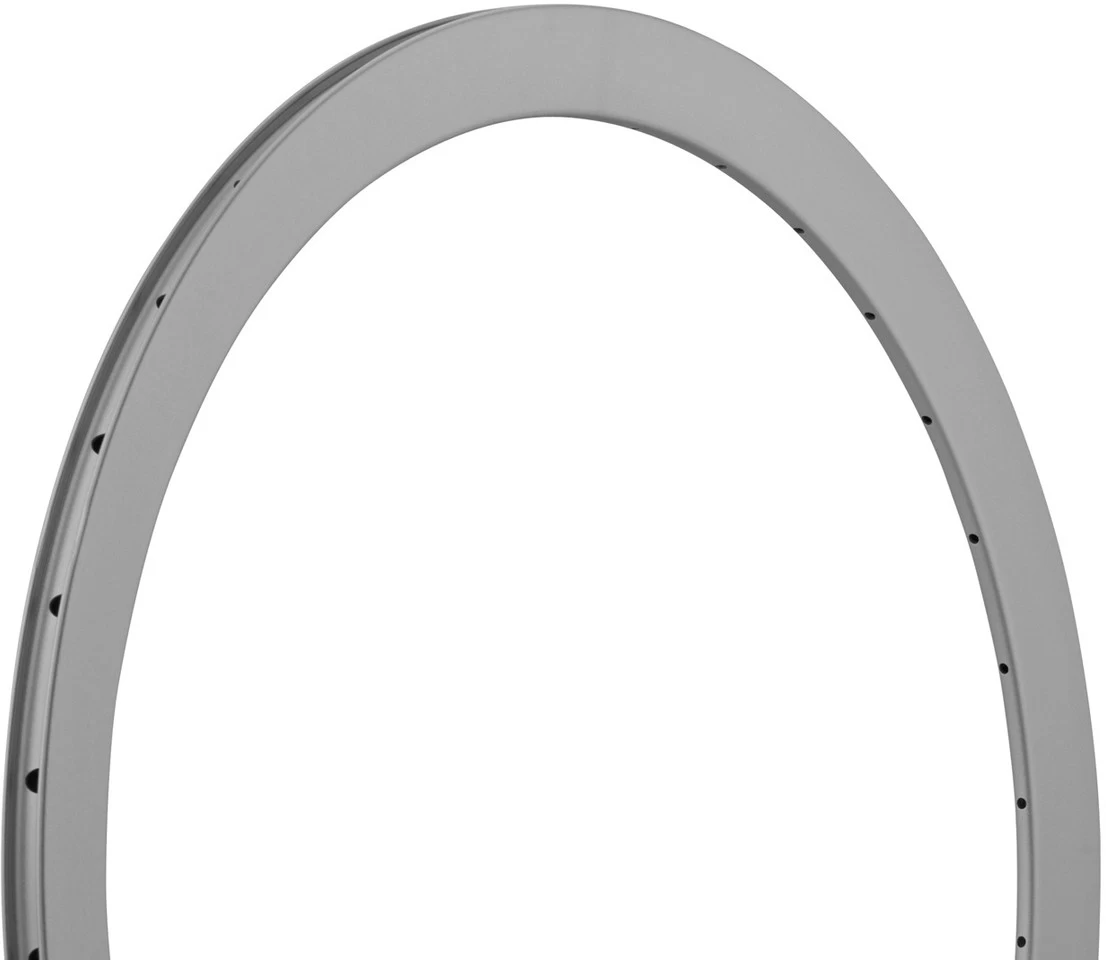

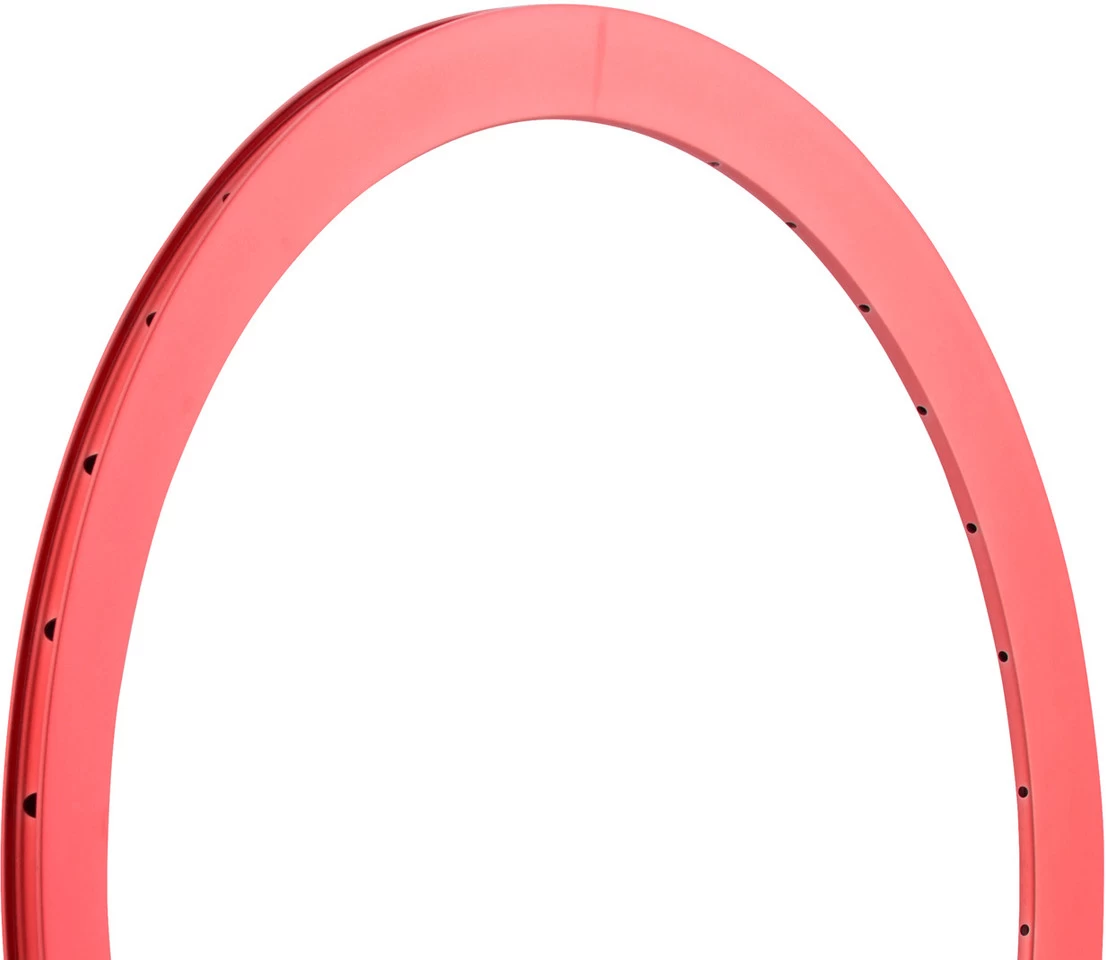

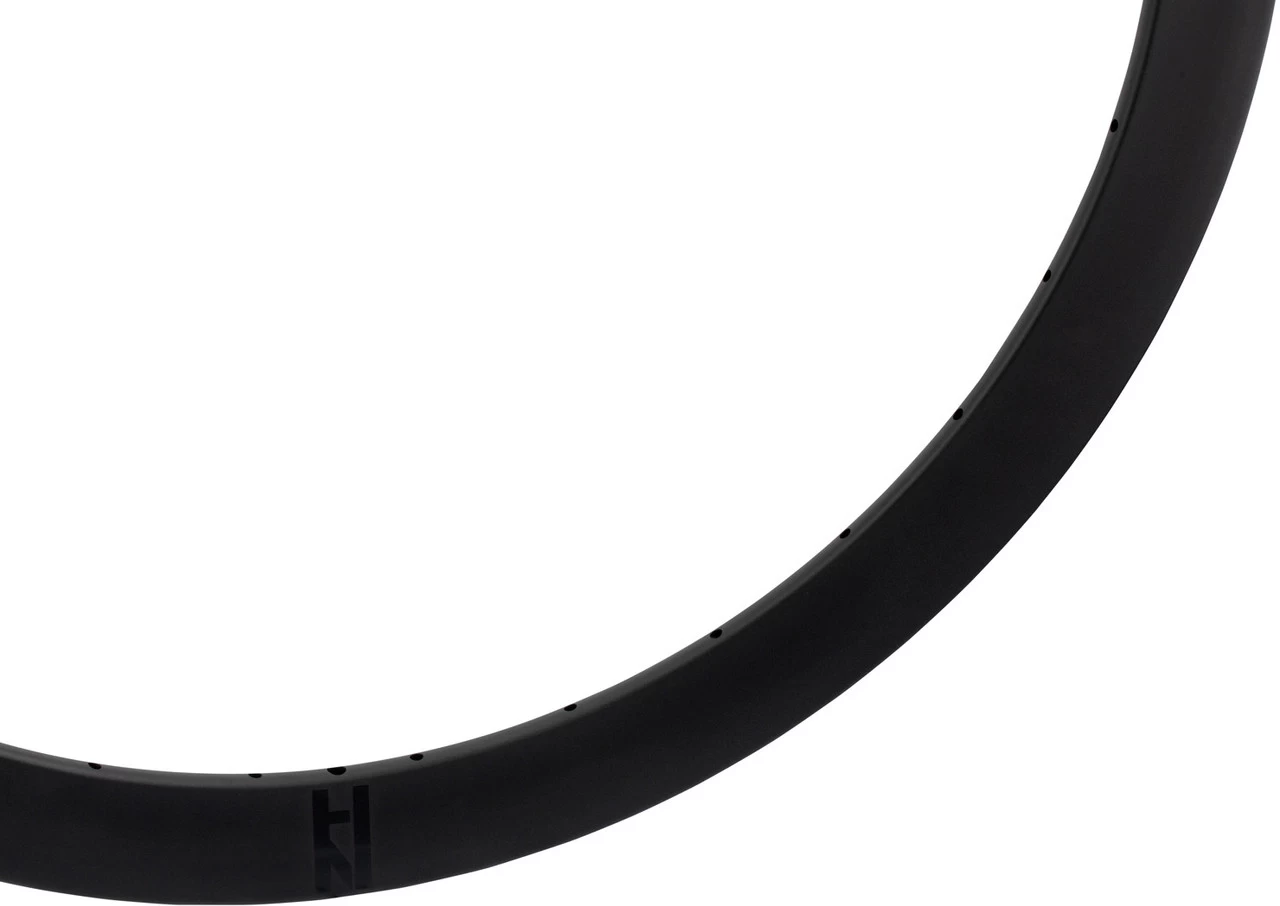

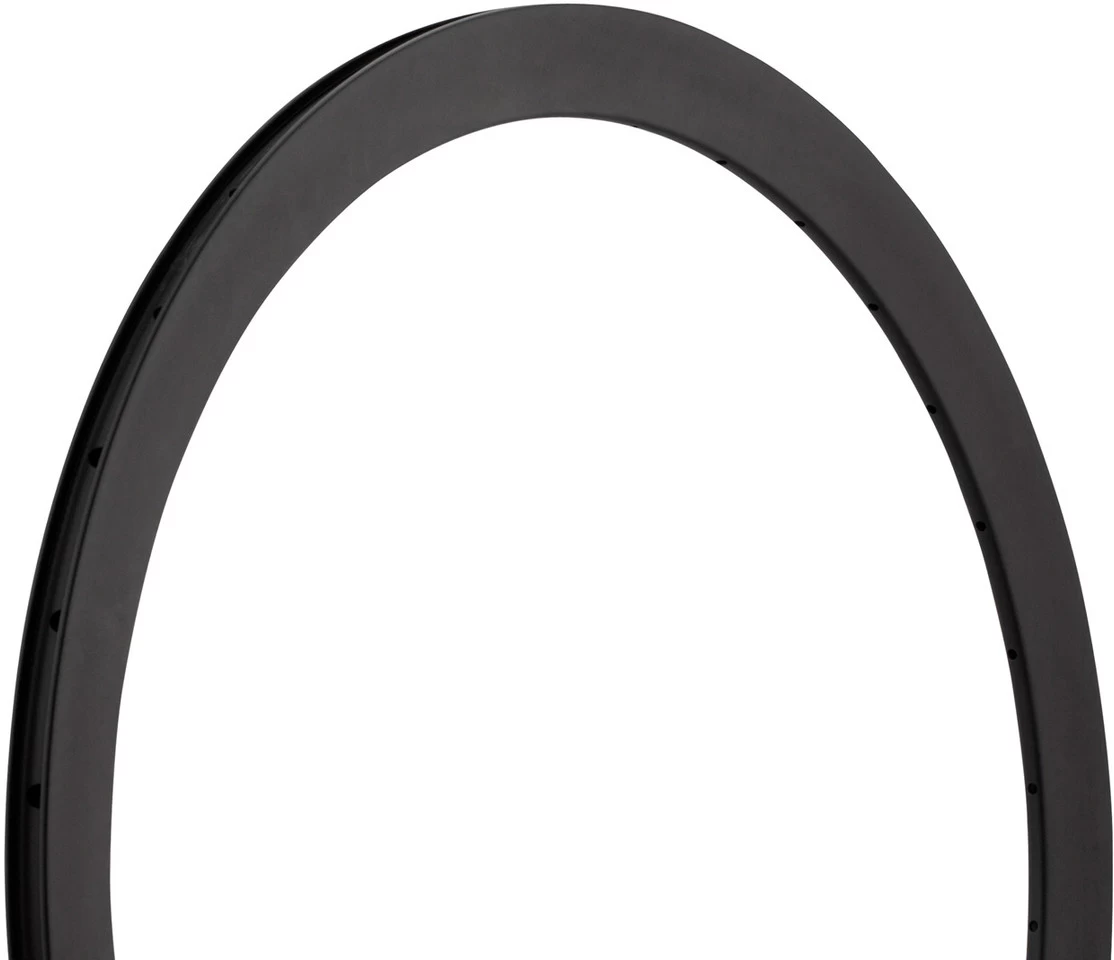

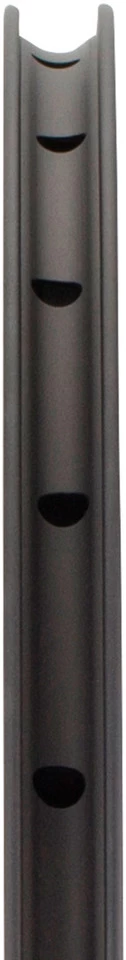

Formation Face 28″ Rim

The Formation Face 28″ rim by H+SON – A real deep-V rim
The Formation Face 28″ rim by H+SON has a unique, uniformly triangular and rigid design with no load points on the side. The simple profile reduces the distance between the bead hook and the rim bed and thus saves weight. Because of the thin side walls, H+SON had to overcome technical hurdles to create a welded joint. Like the SL42 rim, the Formation Face has a lightweight design and is suitable for disc brakes. The lateral stiffness is further increased by the non-machined brake track.
Specifications:Application:RoadWheel Size:28″Tyre Type:clincher tyreNumber of Spokes:24, 28, 32, 36Brake Type:discTubeless System:noneTechnical Information:Dimensions (ETRTO):14-622Inner Width:14 mmOuter Width:20 mmDepth:42 mmERD:557 mmValve Hole Diameter:SV / Presta (6.5 mm)Rim Material:aluminium (G609)Features:made of alloyed G609 aluminium, 30 % stronger than conventional 6061 aluminiumweldedfor disc brakesManufacturer Numbers:black / 24 hole:R4HFBN2351black / 28 hole:R8HFBN2353black / 32 hole:R2HFBN2355black / 36 hole:R6HFBN2357gold / 32 hole:R2HFGN2362gold / 36 hole:R6HFGN2363silver / 32 hole:R2HFSN2371silver / 36 hole:R6HFSN2373polished silver / 32 hole:R2HFSN2366polished silver / 36 hole:R6HFSN2368red / 32 hole:R2HFRN2369red / 36 hole:R6HFRN2370blue / 32 hole:R2HFUN2359blue / 36 hole:R6HFUN2360Contents:1 x H+SON Formation Face 28″ rim
