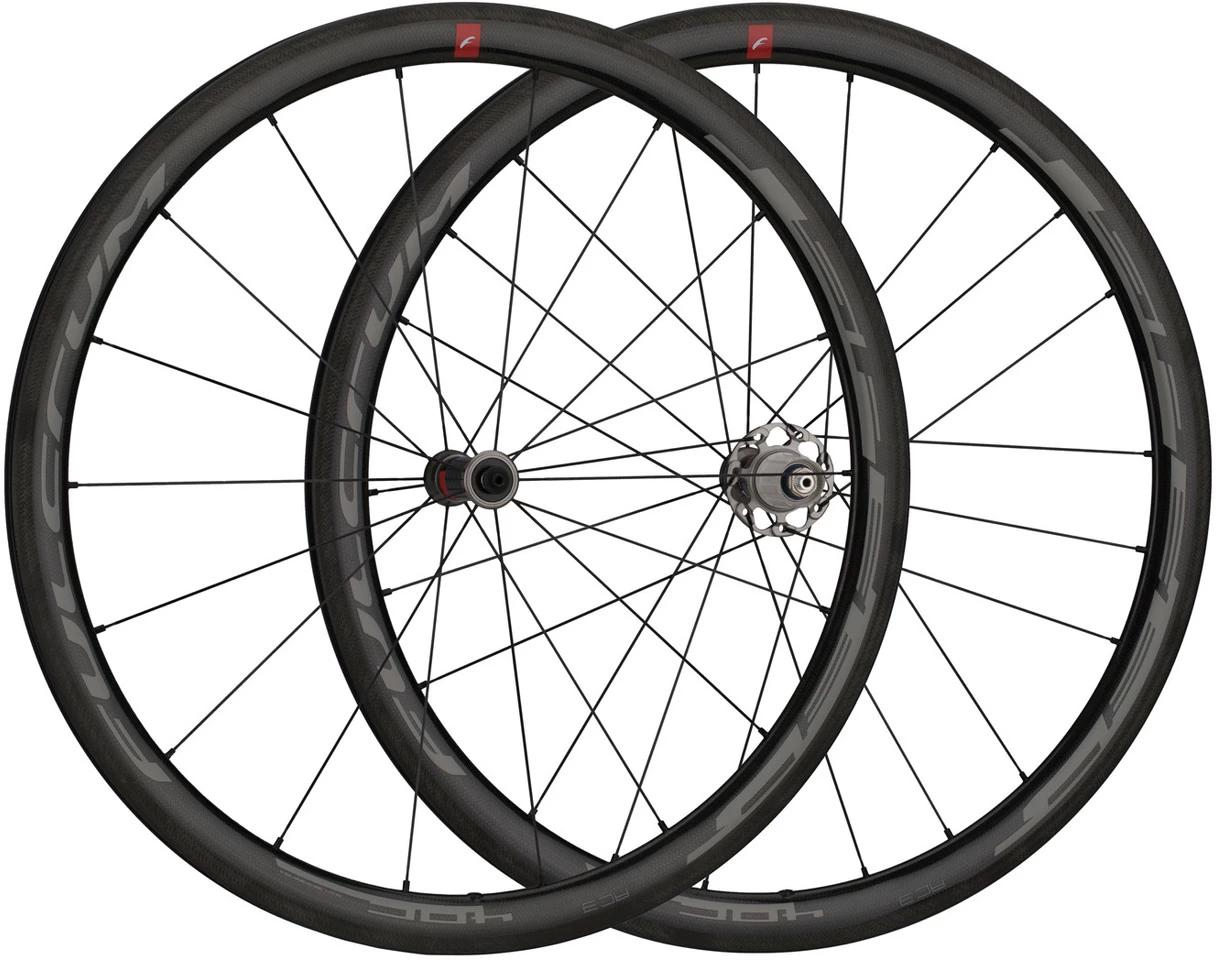

Fulcrum Speed 40C Carbon Wheelset

Specifications:Application:RoadWheel Size:28″Tyre Type:clincher tyreNumber of Spokes:18 (front), 21 (rear)Brake Type:rim brakeTubeless System:noneFreehub Compatibility:Shimano Freehub:8/9/10/11-speed Shimano/SRAM (Road)Campy Freehub:9-/10-/11-/12-speed CampagnoloNote:Installing 8-/9-/10-speed cassettes on Shimano freehub bodies requires a 1.85 mm spacer.Technical Information – Rim:Dimensions (ETRTO):17-622Inner Width:17 mmOuter Width:24.2 mmDepth:40 mmValve Hole Diameter:SV / Presta (6.5 mm)Rim Material:CarbonTechnical Information – Front Hub:Over Locknut Dimension:9 x 100 mm quick releaseBearings:ceramic (USB™)Body Material:CarbonTechnical Information – Rear Hub:Over Locknut Dimension:10 x 130 mm quick releaseBearings:ceramic (USB™)Body Material:aluminiumTechnical Information – Lacing:Front Lacing Pattern:radialRear Lacing Pattern:2:1 Two-to-One™Spoke Type:aero / straight pull / triple buttedSpoke Material:stainless steelNipple Material:aluminiumApproved For:Weight Limit:109 kg total weight*Recommended Tyre Width:25-50 mm
* When weighing more than 82 kg (180 lb) shorter inspection intervals are recommended.
Technology:USB™
Fulcrum has always been respected for the extreme smoothness and reliability of its hubs. These characteristics are due to the fact that all projects are developed in the R&D department and an almost manic attention is paid to every detail. The hubs with USB (Ultra Smooth Bearings) ceramic bearings further increase wheel smoothness and reduce weight and maintenance. Comparative tests have shown that USB bearings are 50% smoother running than standard bearings. Improving your performance, whether in a competition or a ride with your friends, is now easier.

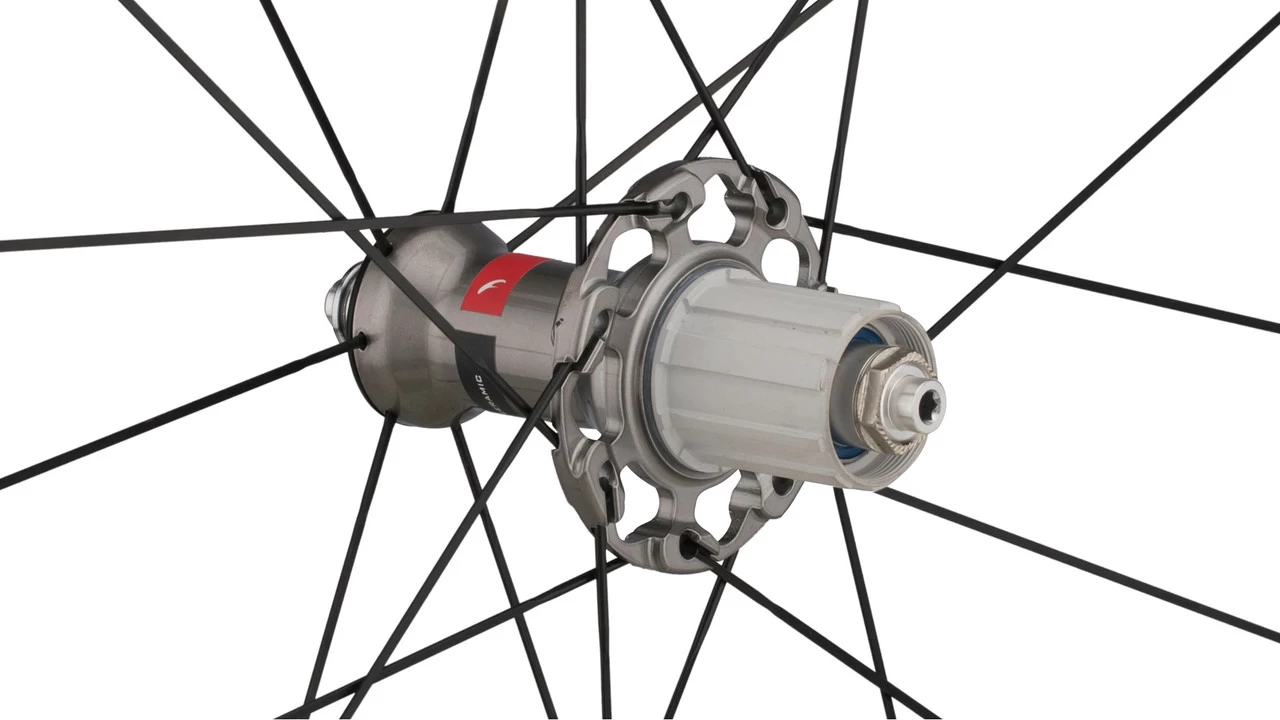

2:1 Two-to-One™
At the moment when the rider pedals at full power, the rotation of the cassette causes the spokes on the freehub side to give way, resulting in a loss of rim tension. This causes excessive bending of the whole and this inevitably means a loss of energy. Fulcrum has solved this classic problem in cycling with its 2:1 Two-to-One Spoke Ratio patent, that is, with twice the number of spokes in critical areas. In this way, two spokes take over the task of one, the yielding and twisting of the wheel remains low and the transmission of the athlete’s energy becomes much more efficient. Thanks to this patent, the spoke tensions are more balanced and the fatigue strength of rim, hub and spokes is much higher.

AC3™ All Conditions Carbon Control
For years, braking with carbon rims was the subject of studies and technical updates that followed advances in materials research and end-phase machining processes. AC3 is a further step forward in this direction, and makes remarkable braking possible especially in difficult conditions, moments in which such improvements transform cycling.
Fulcrum has decided to alter its approach to machining the braking surface, moving from a mechanical process to a process that uses laser micro-incisions on the surface to remove resins and smooth roughness. This means that the the brake shoe makes direct contact with the fibre during braking, which improves grip and removes water and moisture from the surface, immediately providing ideal riding conditions.

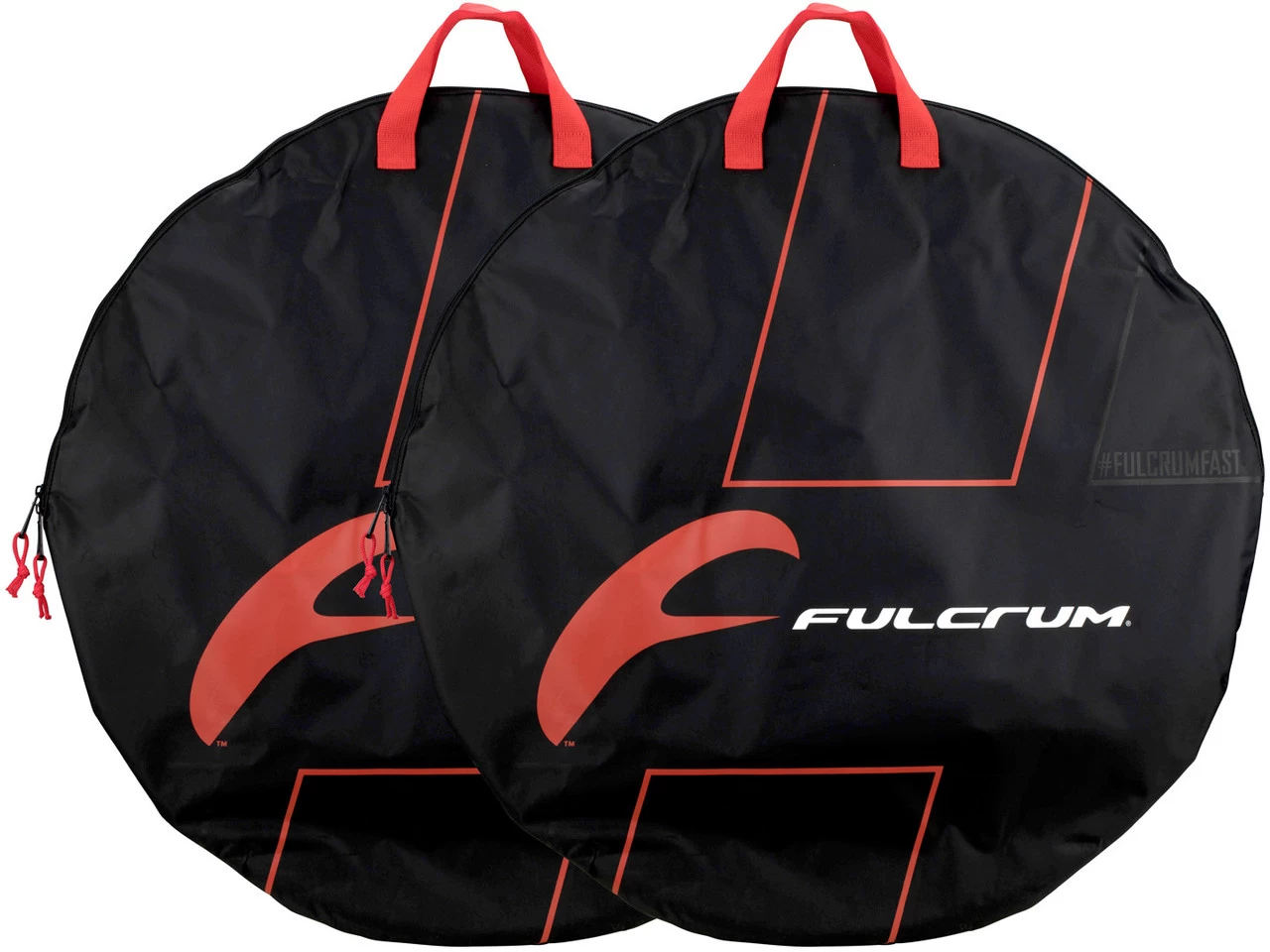

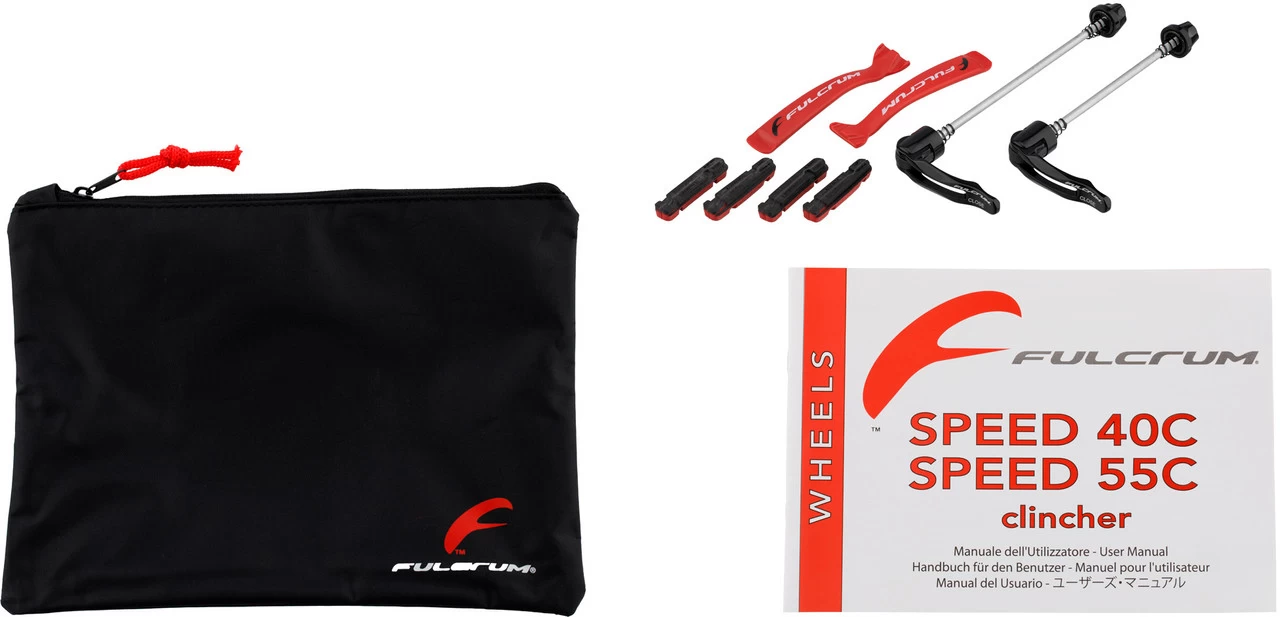

Manufacturer Numbers:28″ set (front 9×100 + rear 10×130) Campy:RS-18CFRC28″ set (front 9×100 + rear 10×130) Shimano:RS-18CFRSContents:1 x Fulcrum Speed 40C Carbon wheelset (front & rear)
