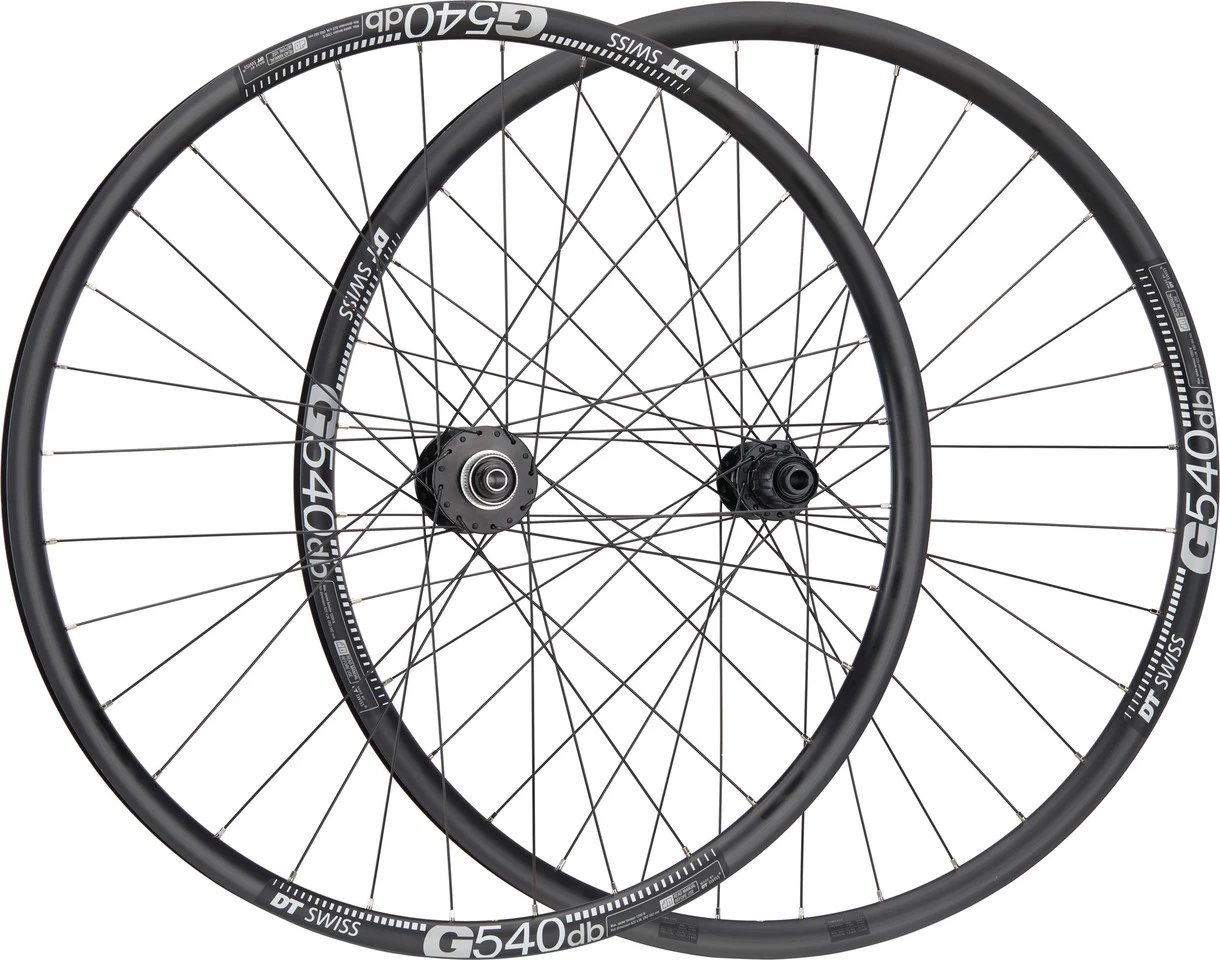

Gravel GRX Center Lock Disc DT Swiss G 540 28″ Wheelset

The Gravel Wheelset by bc basic with DT G 540 28″ ddisc Rims and Shimano GRX Hubs

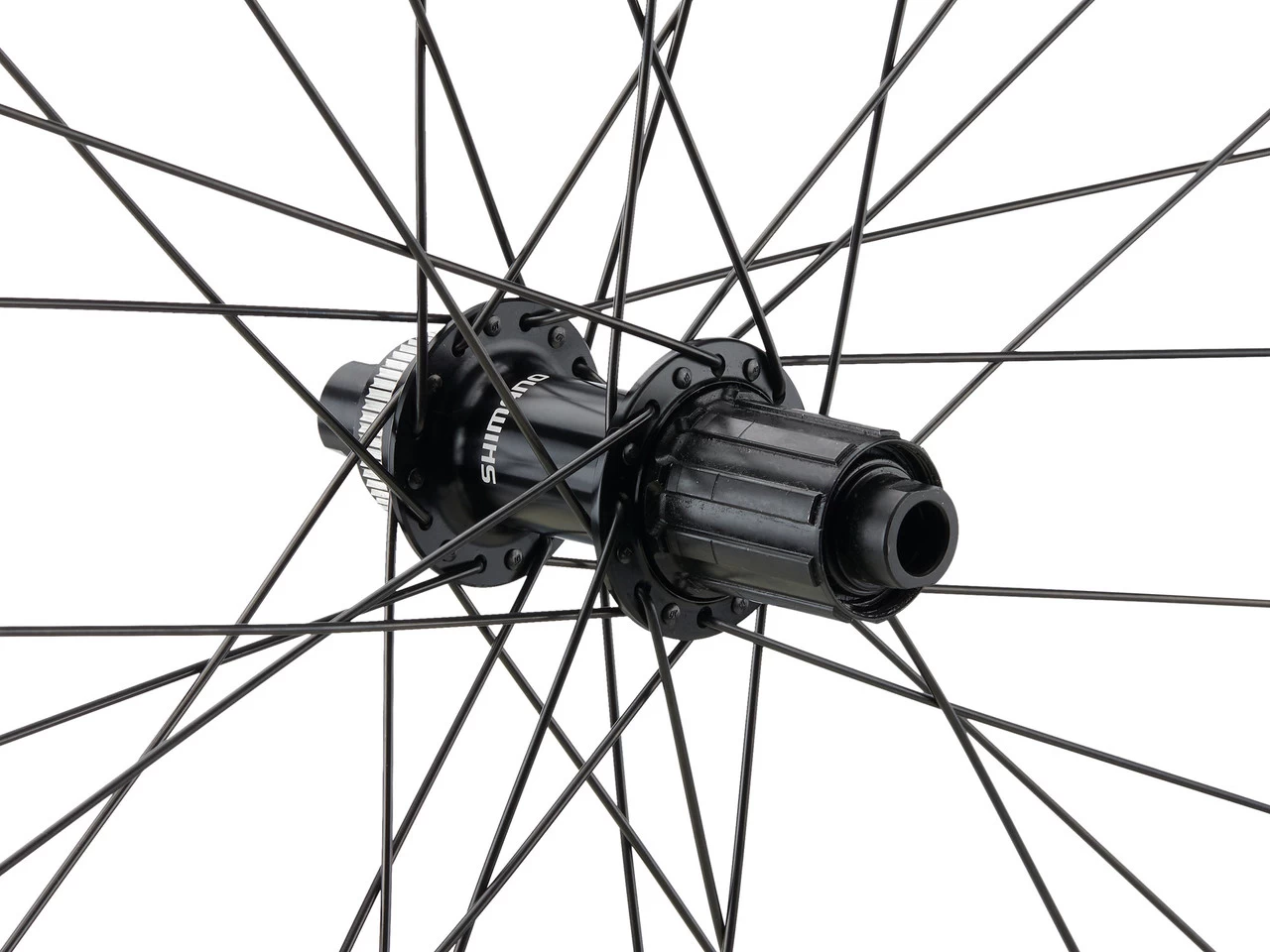

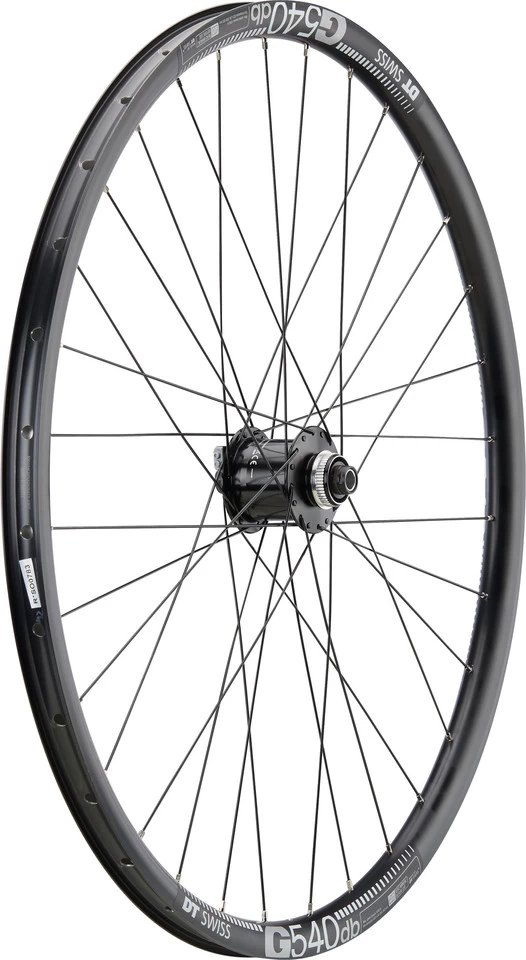

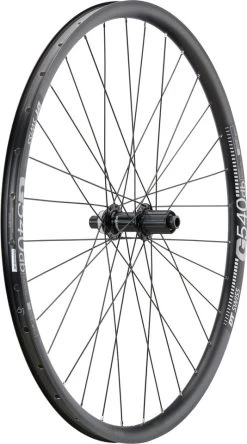

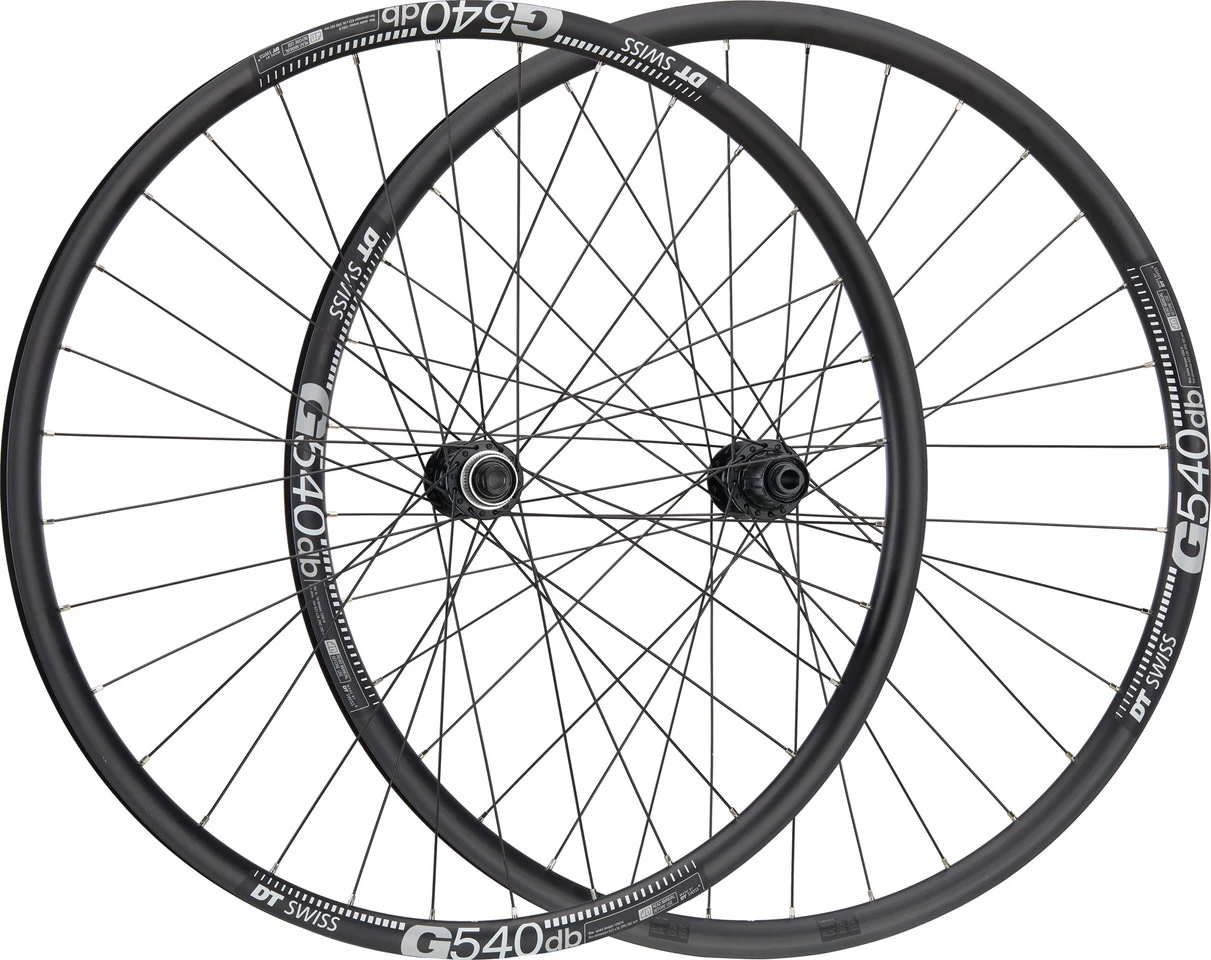

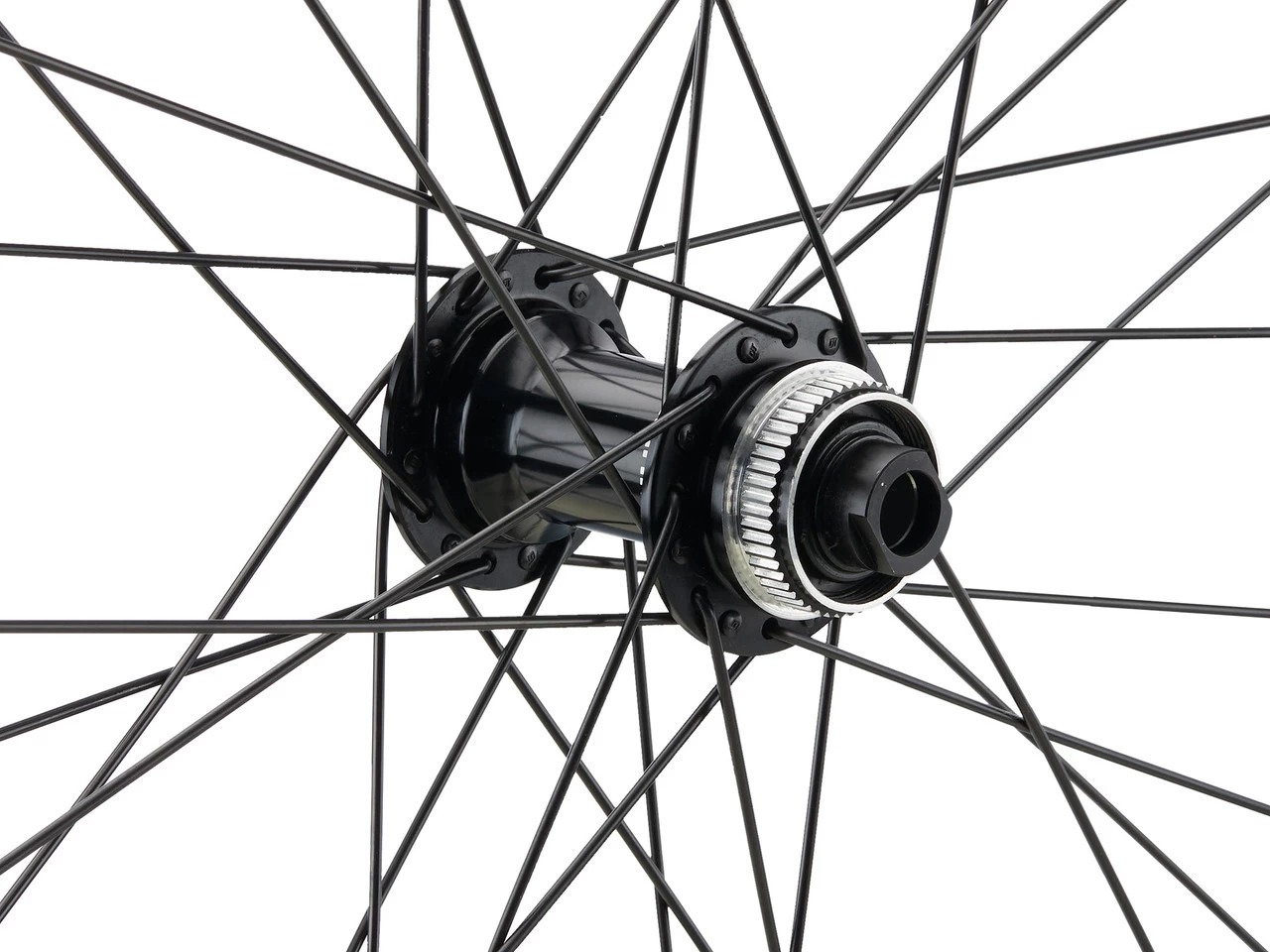

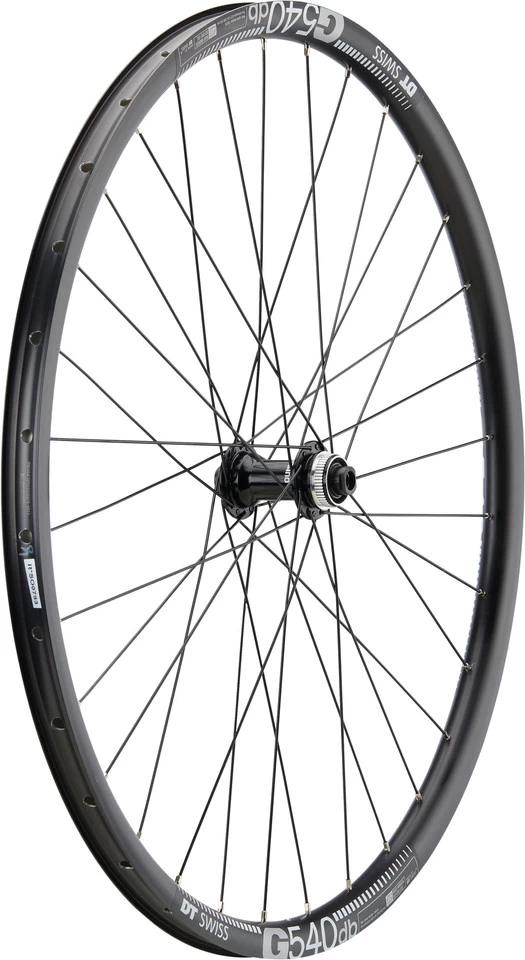

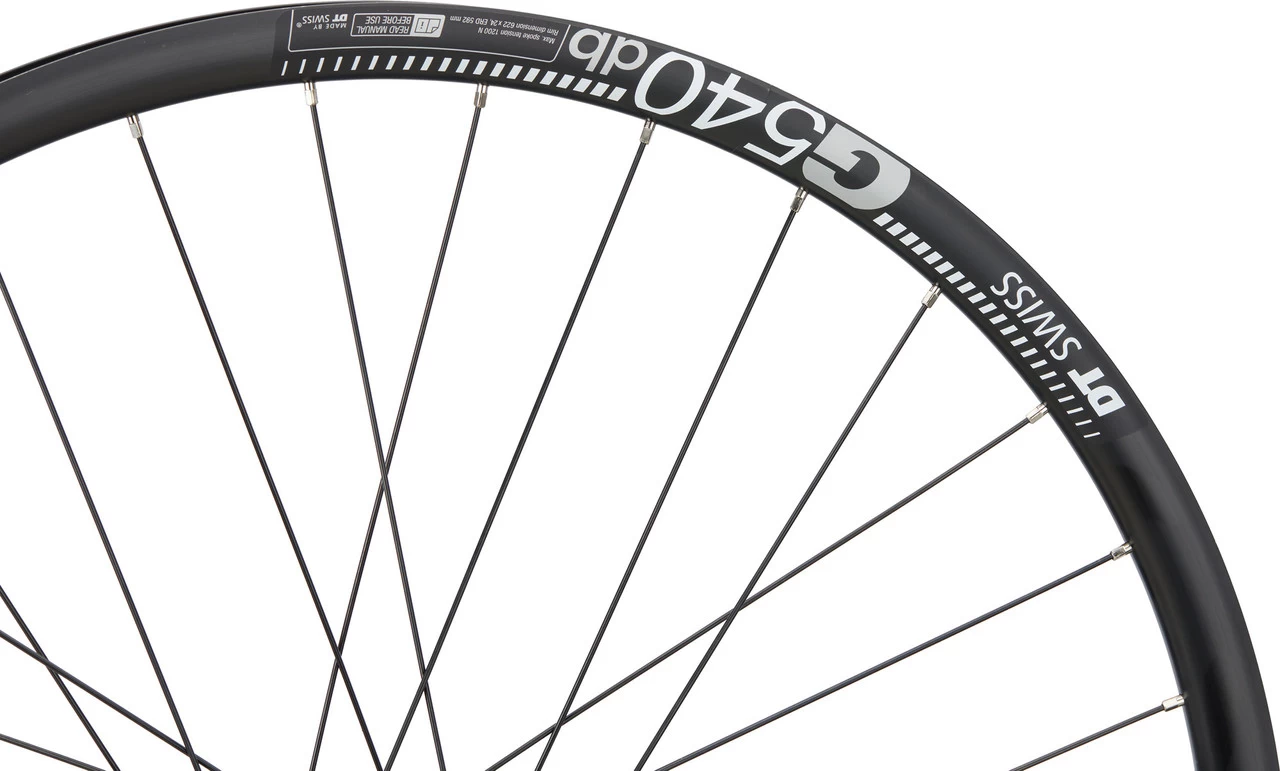

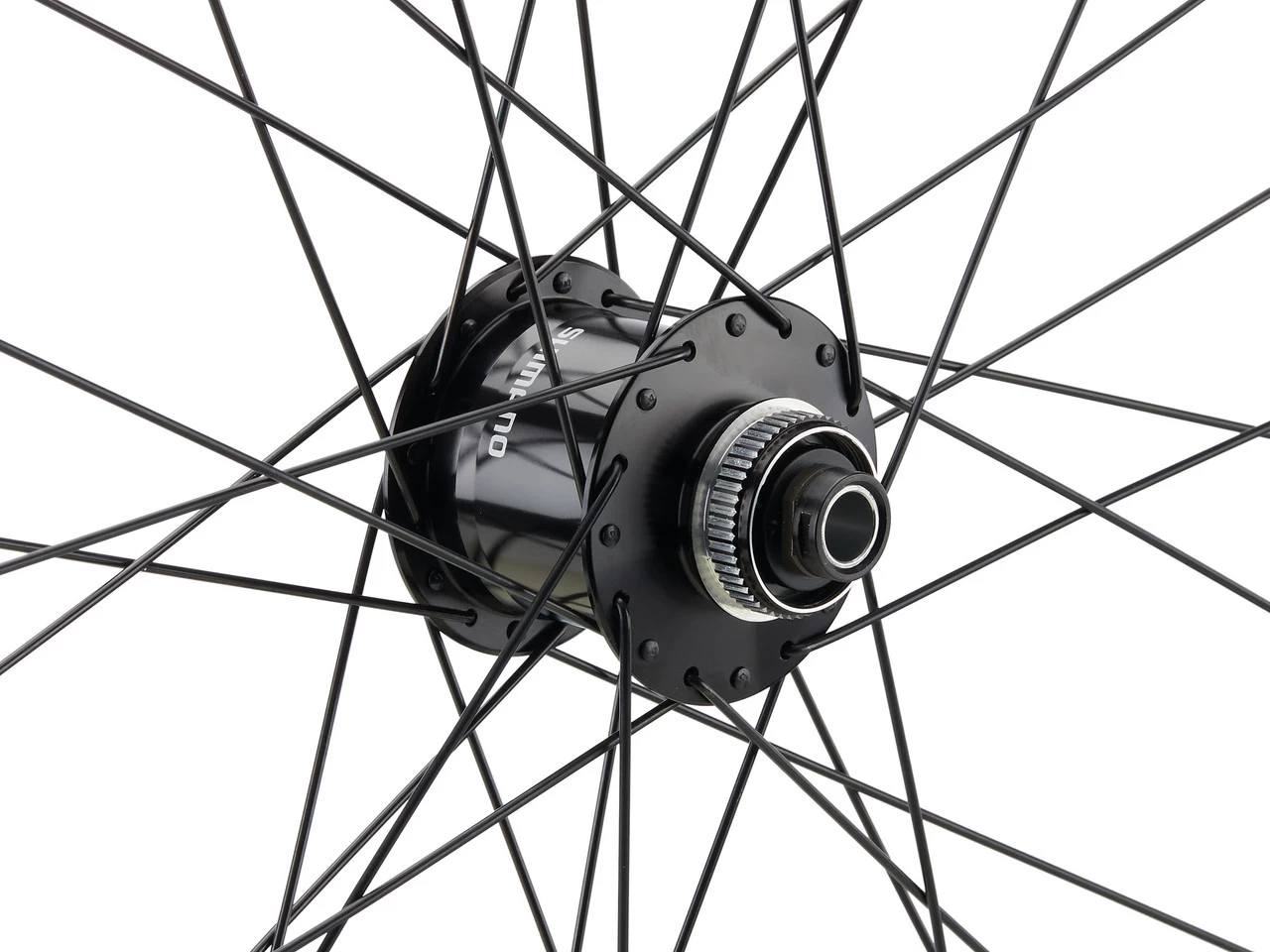

The Gravel wheelset from bc basic is based on the G 540 28″ aluminium rims from DT Swiss. These have a jaw width of 24 mm, so that tyres with a width of 53 mm, for example, are no problem. On unpaved forest trails and other rough surfaces, you benefit from more comfort. Tubeless mounting is also possible. At the centre of the wheels are the HB-RS470 and FH-RS470 centre lock disc thru-axle hubs from Shimano, which impress with GRX-level performance and durability. The front wheel is also available with the Shimano DH-UR705 hub dynamo, which provides energy for road-compliant light. The wheels were laced with round DT Factory spokes.
Information regarding the return of batteries and electrical equipment:Information on the return and disposal of used batteries and electrical equipment can be found here.
Specifications:Application:GravelWheel Size:28″Tyre Type:clincher tyreNumber of Spokes:32Brake Type:Center Lock DiscTubeless System:Tubeless ReadyTechnical Information – Rim:Type:DT Swiss G 540Rim Flange:with hookDimensions (ETRTO):24-622Inner Width:24 mmOuter Width:28 mmDepth:25 mmERD:592 mm (nipple slot)Valve Hole Diameter:SV/Presta (6.5 mm)Rim Material:aluminiumTechnical Information – Front Hub:Type:Shimano HB-RS470Over Locknut Dimension:12 x 100 mm thru-axleBearings:cup & coneBody Material:aluminiumTechnical Information – Front Dynamo Hub:Type:Shimano DH-UR705-3DOver Locknut Dimension:12 x 100 mm thru-axleOutput:6V/3W (according to StVZO)Efficiency:min. 30%Body Material:aluminiumSeals:contactWire Connector:E2-TYP (= meets current European standards for two lights)Street Use in Germany:yesCheck Number:K~~1519Technical Information – Rear Hub:Type:Shimano FH-RS470Over Locknut Dimension:12 x 142 mm thru-axleBearings:cup & coneBody Material:aluminiumFreehub Body Material:steelTechnical Information – Lacing:Front Lacing Pattern:3-crossRear Lacing Pattern:3-crossSpoke Type:DT Swiss Factory / round (2.0 mm)Spoke Size:288 mm/290 mm (front l/r), 284 mm/286 mm (front hub dynamo l/r), 290 mm/288 mm (rear l/r)Spoke Material:stainless steelNipple Size:12 mm (length)Nipple Material:brassApproved For:Weight Limit (Rim):130 kg system weight (rider + bike + gear)Recommended Tyre Width:30 – 69 mm (please note any restrictions from the tyre manufacturer)Features:perfect for forest floor, gravel, roots and small obstaclessleeved rim jointrim holes unpunchedanodised hub shellfront axle made of aluminium, rear axle made of steelColour Info:black:
Rim: blackHubs: blackSpokes: blackNipples: silverModels:28″ set (front 12×100 + rear 12×142) Shimano:
Freehub:Shimano RoadGearing:8-/9-/10-/11-/12-speedNote:The assembly of 8-/9-/10-speed cassettes on a Shimano Road Rotor requires a 1.85 mm spacer ring.Manufacturer Number:83671-2-10438
28″ set (front 12×100 dynamo + rear 12×142) Shimano:

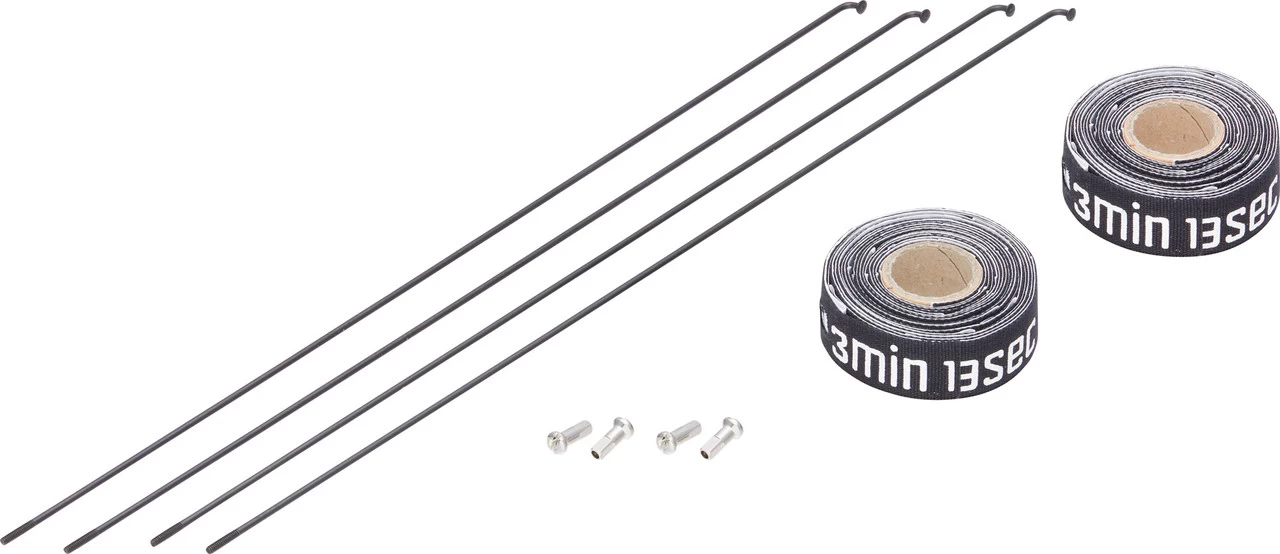

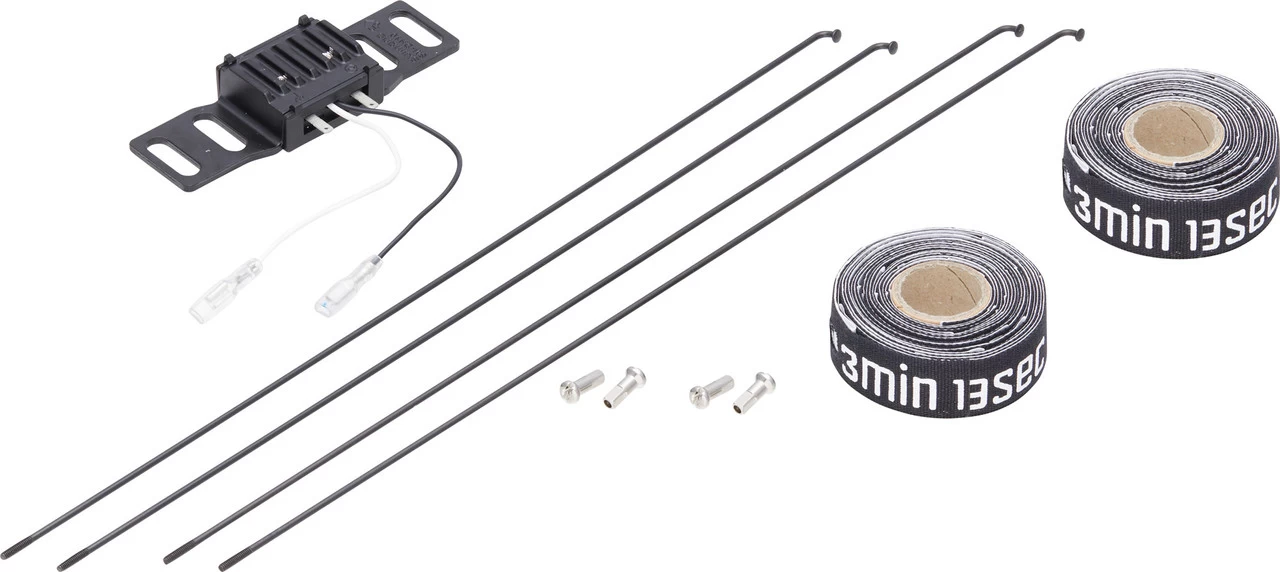

Freehub:Shimano RoadGearing:8-/9-/10-/11-/12-speedNote:The assembly of 8-/9-/10-speed cassettes on a Shimano Road Rotor requires a 1.85 mm spacer ring.Manufacturer Number:83671-2-11218Contents:1 x bc basic Gravel GRX Center Lock Disc DT Swiss G 540 wheelset (front wheel or front dynamo hub and rear, laced and trued)2 x rolls of rim tape4 x spare spokes with nipples1 x connector (front dynamo hub only)1 x overvoltage protector (front dynamo hub only)
