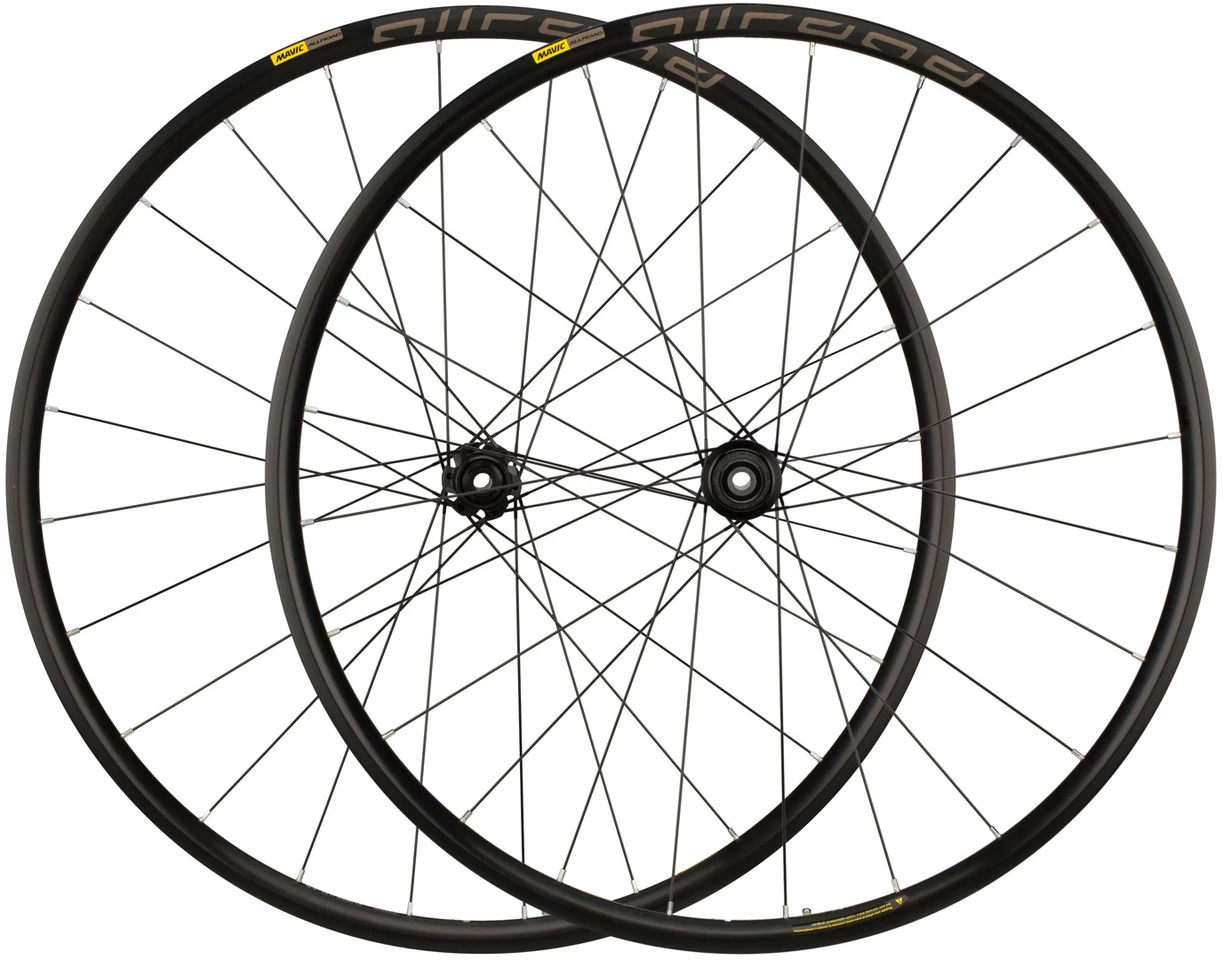

Mavic Allroad Center Lock Disc Wheelset

Reliability, confidence and smooth control: the Mavic Allroad Disc wheelset
With 22 mm inner rim width optimised for large volume tyres, this UST Road Tubeless wheel is made for your next adventure on 2 wheels. On bumpy roads and gravel tracks, it offers you the smooth performance typical of tubeless systems and is also particularly user-friendly and easy to handle. The low rolling resistance and the reduced risk of punctures contribute to increased riding pleasure, especially on poorer road conditions. The wheel is designed for the special requirements of disc brakes, with 24 straight spokes each it is more stable than with curved ones. No matter where you turn and how bumpy it is there, with this wheel you won’t know how to stop.
Specifications:Application:GravelWheel Size:28″Tyre Type:clincher tyreNumber of Spokes:24Brake Type:Center Lock DiscTubeless System:Road USTTechnical Information – Rim:Dimensions (ETRTO):23-622Inner Width:23 mmOuter Width:27 mmDepth:22 mmValve Hole Diameter:SV/Presta (6.5 mm)Rim Material:aluminium (S6000)Technical Information – Front Hub:Over Locknut Dimension:12 x 100 mm thru-axle, convertible to 9 x 100 mm quick releaseBearings:cartridge bearings (sealed)Body Material:aluminiumTechnical Information – Rear Hub:Over Locknut Dimension:12 x 142 mm thru-axle, convertible to 10 x 135 mm quick releaseBearings:cartridge bearings (sealed)Body Material:aluminiumFreehub Body Material:steelFreehub Body:Instant Drive 360Technical Information – Lacing:Front Lacing Pattern:2-crossRear Lacing Pattern:2-crossSpoke Type:straight / roundSpoke Size:296 mm (front), 296 mm/293 mm (rear l/r)Spoke Material:steelNipple Type:self-lockingNipple Material:steelApproved For:Weight Limit:120 kg total weight* (rider, gear & bike)Air Pressure (max.):5.8 bars (30 mm), 5.1 bars (35 mm), 4.5 bars (40 mm)Recommended Tyre Width:28 – 64 mm
* recommended for increased durability
Features:specially designed for bumpy roads and gravel tracksproven performance and reliability at an entry-level pricehigh rolling efficiency and agilityself-aligning sealed cartridge bearingsespecially for disc brake Road bikes: rim profile optimised for disc brakessleeved rim jointaluminium axlesfront can be converted to quick release (with supplied adapters), conversion to 15 x 100 mm thru-axle possible by exchanging the complete axlerear can be converted to quick release (with included adapters) or to 12 x 135 mm thru-axle (with separate adapter)ASTM category 2: for use on roads, maintained dirt roads and gravel roads (on Touring and Cross Country bikes) with jumps up to a height of 15 cmTechnology:QRM Auto
Qualité de Roulements Mavic Auto. The latest bearing innovation by Mavic. These cartridge bearings (bearing clearance: C3) are of course double sealed. Their bearing clearance is automatically adjusted to guarantee smooth running without any play at all times.

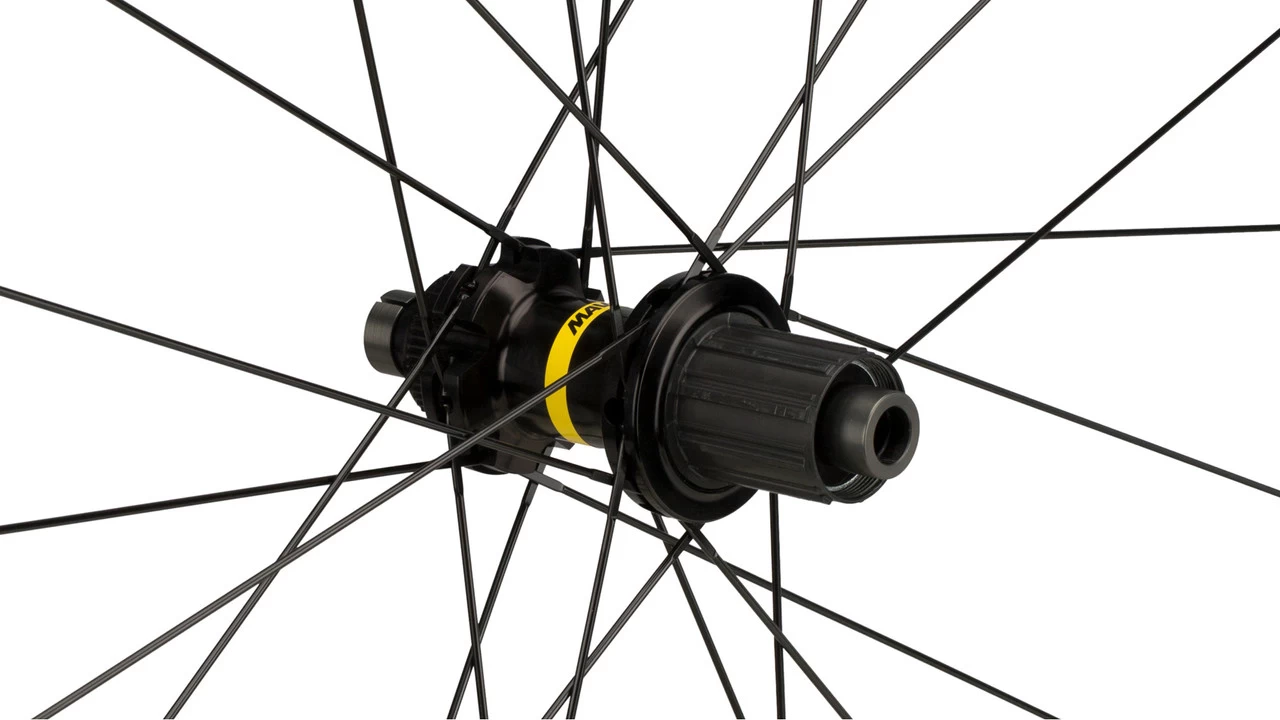

Instant Drive 360
The Instant Drive 360 freehub system is super light and ensures a fast power connection with an engagement angle of only 9° (road) or 15° (MTB). A large, non-contact rubber seal reduces friction.

Road UST
UST means Universal Standard for Tubeless and is compatible with UST Tubeless Ready tyres. The UST technology improves traction, control and riding comfort with reduced inertia and reduced risk of punctures.
Models:28″ set (front 12×100 + rear 12×142) Shimano:
Freehub:Shimano RoadGearing:8-/9-/10-/11-/12-speedNote:Installing 8-/9-/10-speed cassettes on Shimano freehub bodies requires a 1.85 mm spacer.Manufacturer Number:P8699155Conversion Options:To convert to Campagnolo, a Campagnolo freehub body is required. To convert to SRAM XDR, an XDR freehub body is required.Contents:1 x Mavic Allroad Center Lock disc wheelset (front and rear)1 x cassette spacer (rear)2 x axle end caps for front quick release2 x 9.5 mm reducers for rear quick release2 x tubeless rim tape2 x UST valves with accessories
