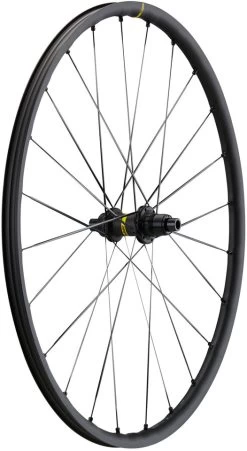

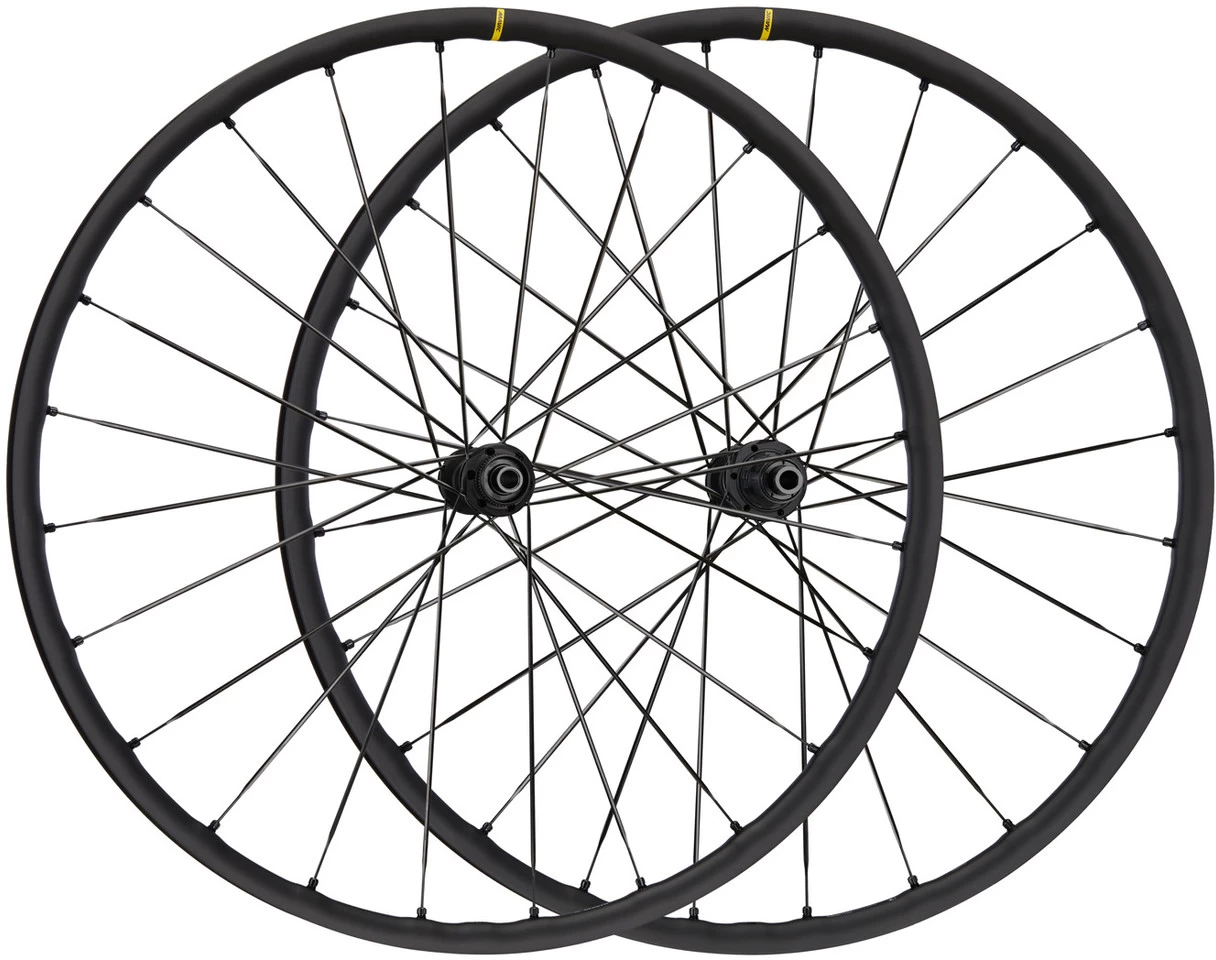

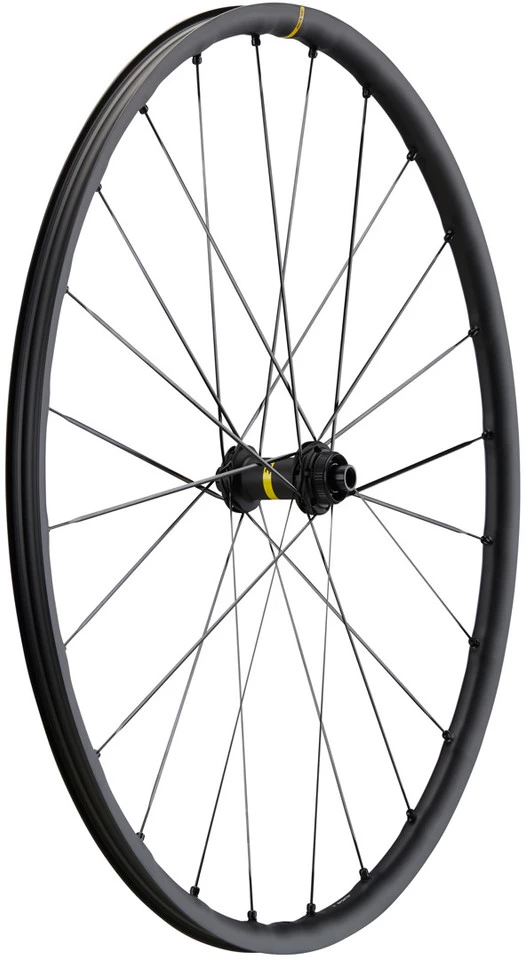

Mavic Allroad SL Center Lock Disc Wheelset

The Mavic Allroad SL Wheelset – Lightweight partner for demanding missions

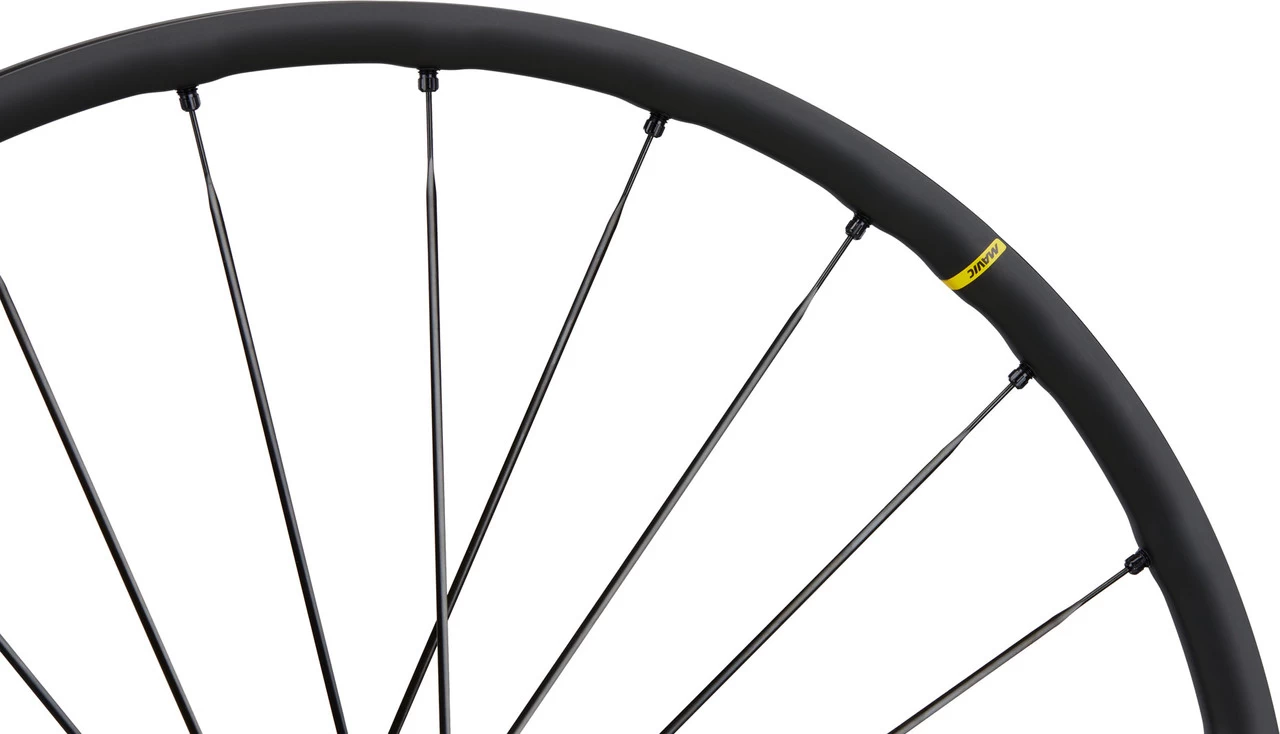

The Mavic Allroad SL Center Lock Disc is a 28″ aluminium wheelset for gravel riders, bikepackers and commuters. During its development, a lot of emphasis was placed on saving weight; it also scores with reliability and user-friendliness. The wheelset is based on tubeless compatible, 22 mm wide rims as well as thru-axle hubs with self-adjusting bearings and optimised spoke holes. 24 double butted straight pull spokes are used at the front and rear. Thanks to a special rim bed technology, tubeless rim tape is not necessary.
Specifications:Application:Gravel, City & Touring, RoadWheel Size:28″Tyre Type:clincher tyreNumber of Spokes:24Brake Type:Center Lock DiscTubeless System:UST Road TubelessTechnical Information – Rim:Rim Flange:hooklessDimensions (ETRTO):22-622Inner Width:22 mmOuter Width:24.9 mmDepth:20 mmValve Hole Diameter:SV/Presta (6.5 mm)Rim Material:aluminium (Maxtal)Technical Information – Front Hub:Type:Mavic InfinityOver Locknut Dimension:12 x 100 mm thru-axleBearings:self-aligning sealed cartridge bearingsBody Material:aluminiumTechnical Information – Rear Hub:Type:Mavic InfinityOver Locknut Dimension:12 x 142 mm thru-axleBearings:self-aligning sealed cartridge bearingsBody Material:aluminiumFreehub Body Material:aluminiumFreehub Body:Instant Drive 360Technical Information – Lacing:Front Lacing Pattern:2-crossRear Lacing Pattern:2-crossSpoke Type:straight pull / double-buttedSpoke Size:298 mmSpoke Material:steelNipple Type:Fore, integratedNipple Material:aluminiumApproved For:Weight Limit:120 kg total weight* (rider, gear & bike)Air Pressure (max.):see specifications on wheel and tyre (if different take the lower value)Recommended Tyre Width:28 – 64 mm (1.1 – 2.5″ )Tyre Type:Due to its hookless rims, the Allroad Road is only approved for use with UST tubeless tyres and tubular wired tyres. Follow the tyre manufacturer’s instructions for use.
* recommended for increased durability
Features:smooth, fast ride on rough roads, gravel and dirtsuper light and durablelaterally stiff and vertically compliant for dynamic ride qualityrevised rim bed shape for easier tyre fitting and quicker tyre changingspecial milling process for weight reductionrim profile optimised for disc brakesrim joint welded (SUP)Infinity hub design for optimal lacingaluminium axlesfront can optionally be converted to quick release with separately available adapters, conversion to 15 x 100 mm thru-axle possible by replacing the complete axlerear can optionally be converted to quick release by replacing the axle with V2373401 plus separately available adaptersrear can optionally be converted to 12 x 135 mm thru-axle by replacing the axle with V2373401 plus a separate adapterextra-light Shimano freehub body optionally availableno rim tape required thanks to Fore technologyASTM category 2: for use on roads, maintained dirt roads and gravel roads (on Touring and Cross Country bikes) with jumps up to a height of 15 cmTechnology:Maxtal
Made exclusively for Mavic, this lightweight and strong aluminium alloy offers a higher strength-to-weight ratio than standard 6106 aluminium. Maxtal rims are 30% stiffer and weigh less than other aluminium rims.

SUP
SUP means Soudé Usiné Process and creates a much more stable and smoother rim joint. The rim joint is welded and then milled over to achieve an even braking surface. SUP prevents any brake judder and facilitates spoking and centring of the wheel.

ISM 4D
The ISM 4D (Inter Spoke Milling 4 Dimensions) milling process noticeably reduces weight and inertia without sacrificing durability. Mavic’s exclusive patent also provides better aerodynamics with its new rim profile. ISM 4D rims are up to 50 g lighter and therefore offer more climbing performance. Their minimal inertia leads to maximum acceleration. Their extra aerodynamic rim profile results in significantly lower air resistance.

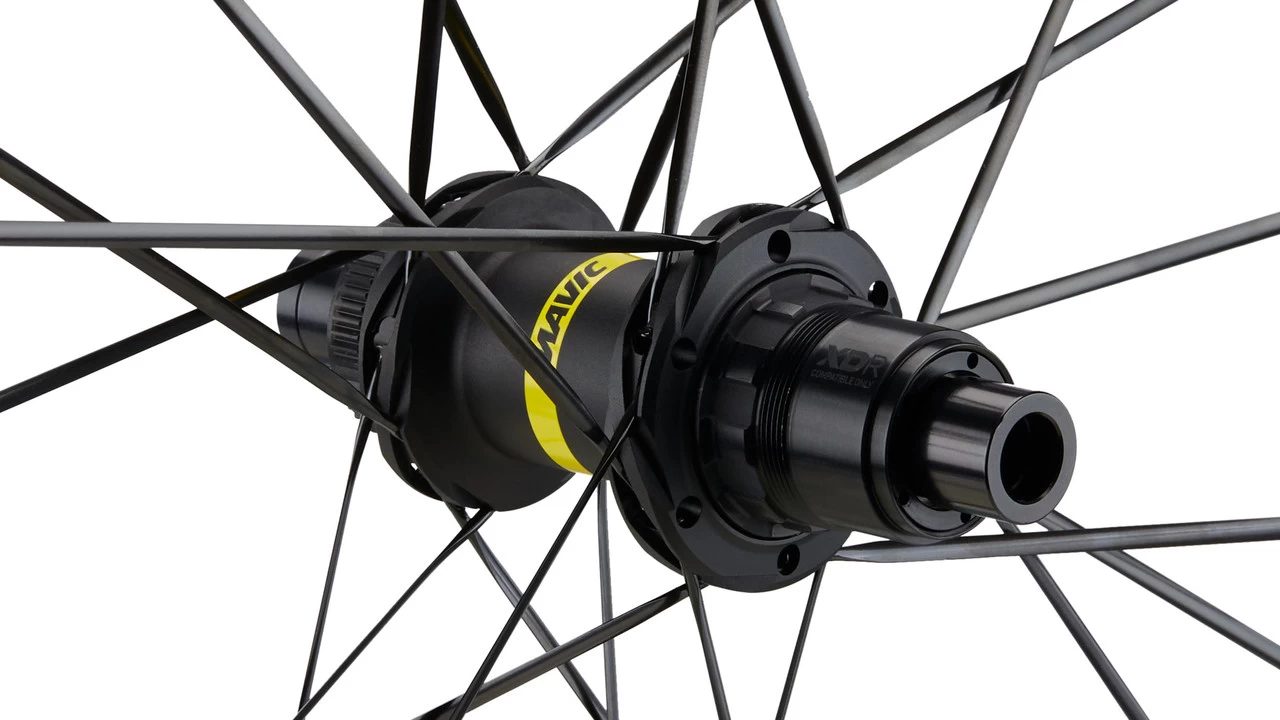

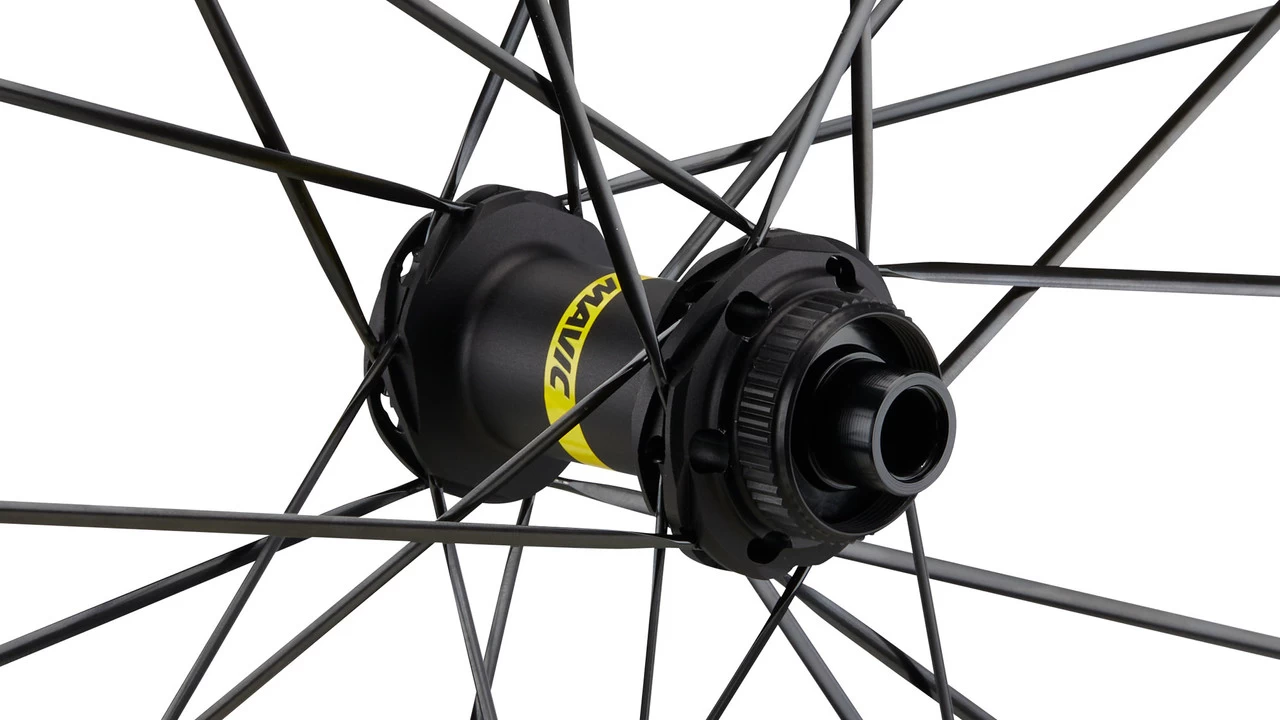

Infinity Hub Design
Infinity hubs from Mavic allow contactless lacing, which prevents noise development under load. At the same time, this design is lighter, stiffer and easier to maintain. Often you only need one spoke length per wheel set, so that an optimal spare parts supply is given.

QRM Auto
QRM Auto stands for Qualité de Roulements Mavic Auto, and is the latest bearing innovation from Mavic. These cartridge bearings with C3 internal clearance are double sealed. Their bearing clearance is automatically adjusted to guarantee smooth running without any play at all times.

Instant Drive 360
The Instant Drive 360 freehub system is super light and ensures a fast power connection with an engagement angle of only 9° (road) or 15° (MTB). A large, non-contact rubber seal reduces friction.

Fore Tapeless Tubeless
Instead of drilling a conventional rim hole, the inner rim base is pressed inwards in one operation and provided with a thread into which the nipples are screwed directly. The outer rim base remains intact. This results in a stiffer an
