Mavic Cosmic SLR 45 Center Lock Disc Carbon Wheelset

The Mavic Cosmic SLR 45 Disc Wheelset – Fast, stiff all-rounder
The Cosmic SLR 45 Center Lock Disc Road wheelset from Mavic is based on 19 mm wide and 45 mm high carbon rims made of UD² laminate. This gives it a different look and makes it a few grams lighter than the previous model. The wheels present themselves as fast and stiff all-rounders for all riding and racing situations. Tubeless compatibility opens up further advantages such as more puncture resistance, less rolling resistance and weight savings. Thru-axle hubs with self-aligning bearings and optimised spoke holes are used, with 24 double butted straight pull spokes at the front and rear. Due to a special rim bed technology, tubeless rim tape is not necessary.
Specifications:Application:RoadWheel Size:28″Tyre Type:clincher tyreNumber of Spokes:24Brake Type:Center Lock DiscTubeless System:UST Road TubelessTechnical Information – Rim:Rim Flange:with hookDimensions (ETRTO):19-622Inner Width:19 mmOuter Width:28 mmDepth:45 mmValve Hole Diameter:SV/Presta (6.5 mm)Rim Material:Carbon (UD²)Technical Information – Front Hub:Type:Mavic InfinityOver Locknut Dimension:12 x 100 mm thru-axleBearings:self-aligning sealed cartridge bearingsBody Material:aluminiumTechnical Information – Rear Hub:Type:Mavic InfinityOver Locknut Dimension:12 x 142 mm thru-axleBearings:self-aligning sealed cartridge bearingsBody Material:aluminiumFreehub Body Material:aluminiumFreehub Body:Instant Drive 360Technical Information – Lacing:Front Lacing Pattern:2-crossRear Lacing Pattern:2-crossSpoke Type:Straight pull / Aero / Double buttedSpoke Size:278 mmSpoke Material:steelNipple Type:Fore, integratedNipple Material:aluminiumApproved For:Weight Limit:120 kg total weight* (rider, gear & bike)Air Pressure (max.):see specifications on wheel and tyre (if different take the lower value)Recommended Tyre Width:25 – 32 mm
* Compliance recommended by the manufacturer to extend the life of the wheels
Features:all-rounder wheelset with characteristic, weight-optimised UD² finishefficient climbing characteristics, fast acceleration, constant speedstiffness for improved power transmissionuser-friendly UST-Road system for more speed, control and comfortrim profile optimised for disc brakesInfinity hub design for optimal spoke lacing with contactless crossingsaluminium axlesfront can optionally be converted to quick release with separately available adaptersrear can optionally be converted to quick release by replacing the axle with V2373401 plus separately available adaptersrear can optionally be converted to 12 x 135 mm thru-axle by replacing the axle with V2373401 plus a separate adapterextra-light Shimano freehub body optionally availableno rim tape required thanks to Fore technologyASTM category 2: for use on roads, maintained dirt roads and gravel roads (on Touring and Cross Country bikes) with jumps up to a height of 15 cmTechnology:Infinity Hub Design
Infinity hubs from Mavic allow contactless lacing, which prevents noise development under load. At the same time, this design is lighter, stiffer and easier to maintain. Often you only need one spoke length per wheel set, so that an optimal spare parts supply is given.

QRM Auto
QRM Auto stands for Qualité de Roulements Mavic Auto, and is the latest bearing innovation from Mavic. These cartridge bearings with C3 internal clearance are double sealed. Their bearing clearance is automatically adjusted to guarantee smooth running without any play at all times.

Instant Drive 360
The Instant Drive 360 freehub system is super light and ensures a fast power connection with an engagement angle of only 9° (road) or 15° (MTB). A large, non-contact rubber seal reduces friction.

Fore Carbon Tapeless Tubeless
Instead of a rim hole, a metal threaded insert is wrapped in the carbon layers of the lower rim base, into which the spoke nipple can be screwed directly. The outer rim base remains intact, so no rim tape is required for sealing.
Models:28″ set (front 12×100 + rear 12×142) Shimano:
Freehub:Shimano RoadGearing:8-/9-/10-/11-/12-speedNote:The assembly of 8-/9-/10-speed cassettes on a Shimano Road Rotor requires a 1.85 mm spacer.Manufacturer Number:P1652155Conversion Options:To convert to Campagnolo, a separate Campagnolo freehub body is required.
28″ set (front 12×100 + rear 12×142) SRAM XDR:

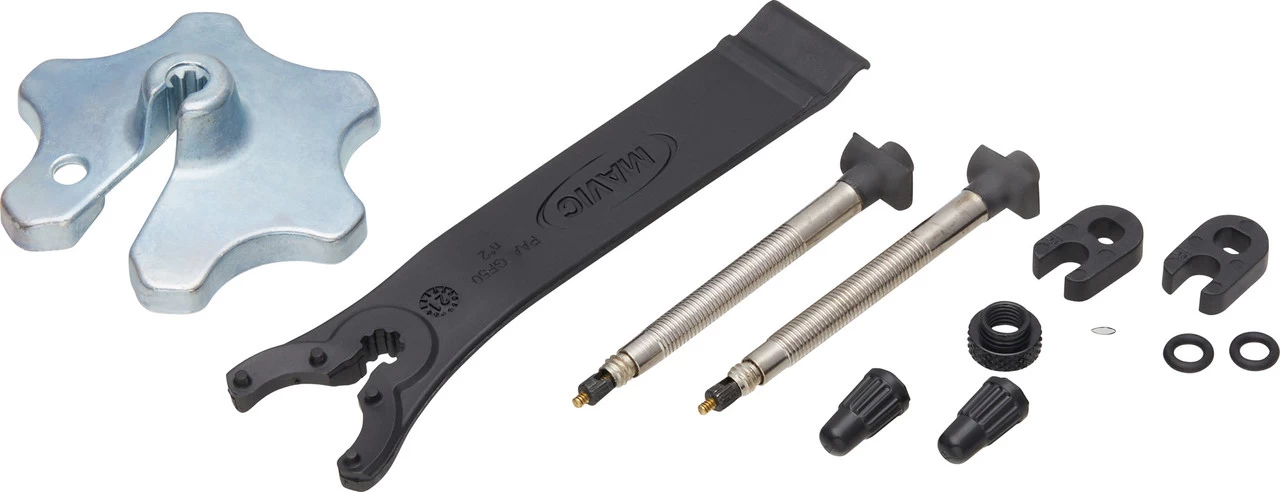

Freehub:SRAM XDRGearing:11-/12-speedNote:A 1.8 mm spacer is required to mount XD cassettes on an XDR freehub body.Manufacturer Number:P1661160Conversion Options:To convert to Campagnolo, a separate Campagnolo freehub body is required.Contents:1 x Mavic Cosmic SLR 45 Disc Carbon Wheelset (front and rear)2 x UST valve with accessories2 x tool
