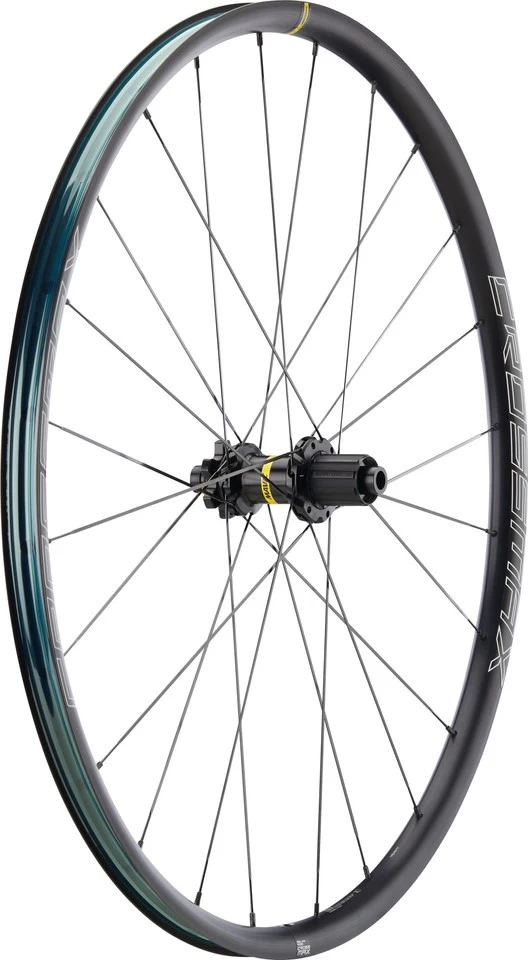

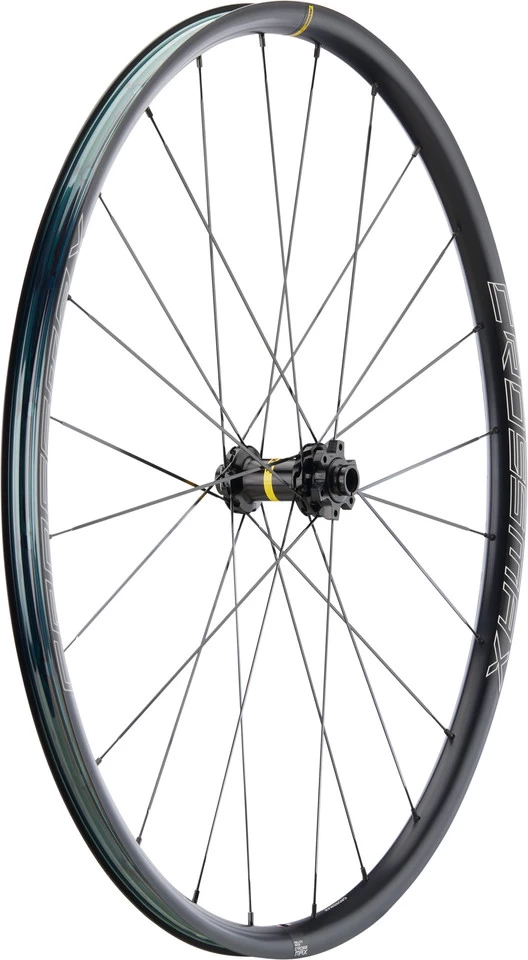

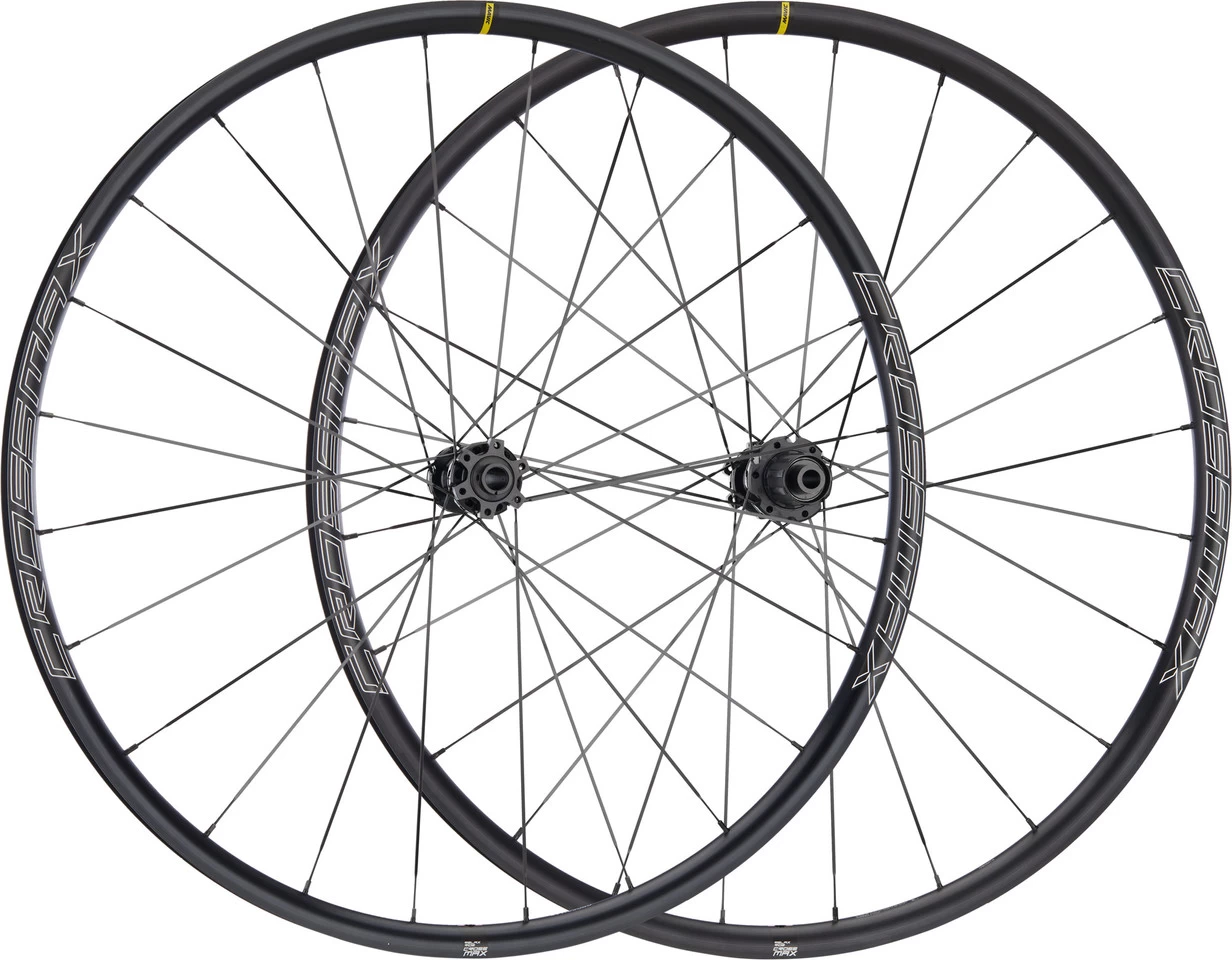

Mavic Crossmax 6-bolt Disc 29″ Wheelset

The Mavic Crossmax in 29″ is an entry-level wheelset for cross-country bikes with 6-bolt disc brakes. It is based on 25 mm wide, tubeless-compatible aluminium rims and has hubs with self-adjusting bearings. The wheels were laced with 24 contactless crossed steel spokes at the front and rear.
Specifications:Application:Cross CountryWheel Size:29″Tyre Type:clincher tyreNumber of Spokes:24Brake Type:6-bolt discTubeless System:UST Tubeless ReadyTechnical Information – Rim:Rim Flange:without hookDimensions (ETRTO):25-622Inner Width:25 mmOuter Width:28 mmDepth:21 mmValve Hole Diameter:SV/Presta (6.5 mm)Rim Material:aluminium (Maxtal)Technical Information – Front Hub:Type:Mavic InfinityOver Locknut Dimension:15 x 100 mm thru-axleBearings:self-aligning sealed cartridge bearingsBody Material:AluminiumTechnical Information – Rear Hub:Type:Mavic InfinityOver Locknut Dimension:12 x 142 mm thru-axleBearings:self-aligning sealed cartridge bearingsBody Material:AluminiumFreehub Body Material:AluminiumFreehub Body:Instant Drive 360Technical Information – Lacing:Front Lacing Pattern:2-crossRear Lacing Pattern:2-crossSpoke Type:Straight pull / Aero / Double buttedSpoke Size:296 mmSpoke Material:steelNipple Type:self-lockingNipple Material:steelApproved For:Weight Limit:150 kg total weight* (rider, gear & bike)Recommended Tyre Width:1.7 – 2.5″
* Compliance recommended by the manufacturer to extend the life of the wheels
Features:affordable XC wheels, stable and reliableperfectly airtight tubeless-ready rimswelded rim joint (SUP) for a light rim profiledynamic and agile thanks to Instant Drive 360 freehub with two sprocketsasymmetric rim design, conventional rim boresInfinity hub design for optimal spoke lacing with contactless crossingsASTM category 3: for off-road use with jumps up to 61 cm in heightTechnology:Maxtal

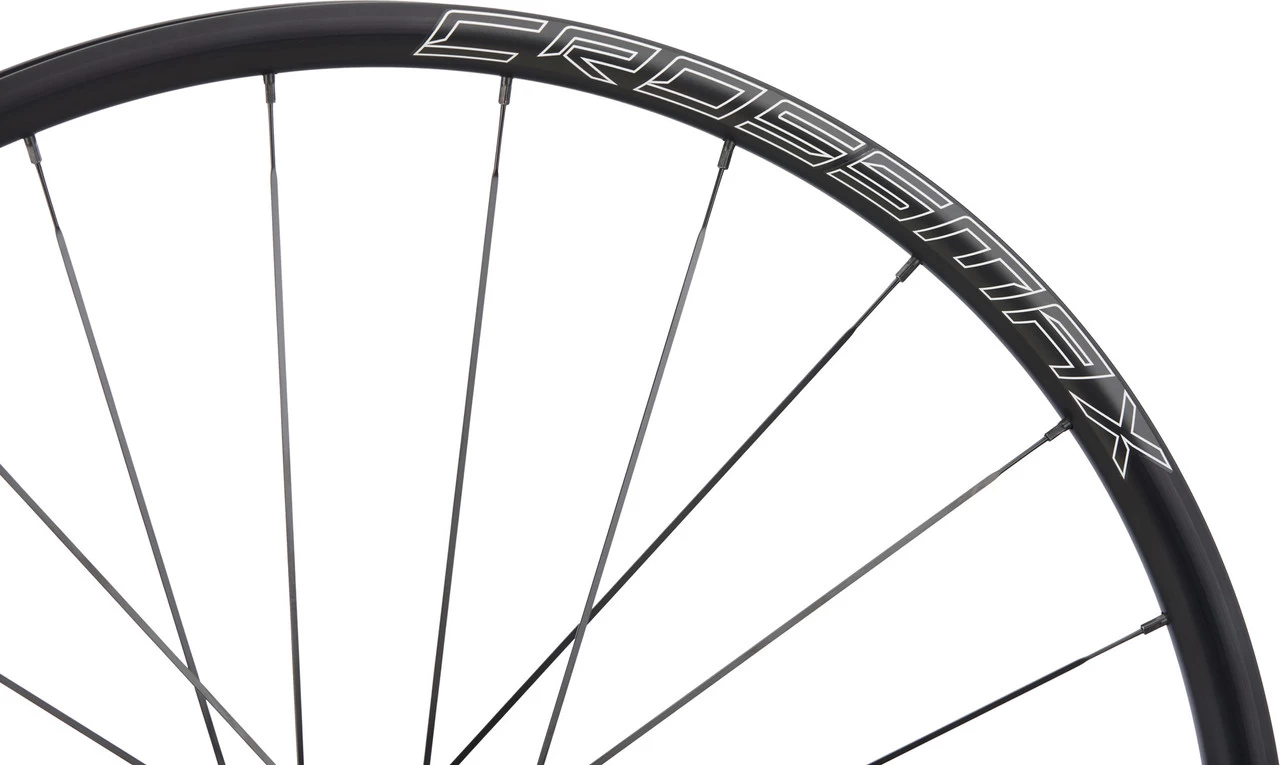

Made exclusively for Mavic, this lightweight and strong aluminium alloy offers a higher strength-to-weight ratio than standard 6106 aluminium. Maxtal rims are 30% stiffer and weigh less than other aluminium rims.

SUP
SUP means Soudé Usiné Process and creates a much more stable and smoother rim joint. The rim joint is welded and then milled over to achieve an even braking surface. SUP prevents any brake judder and facilitates spoking and centring of the wheel.

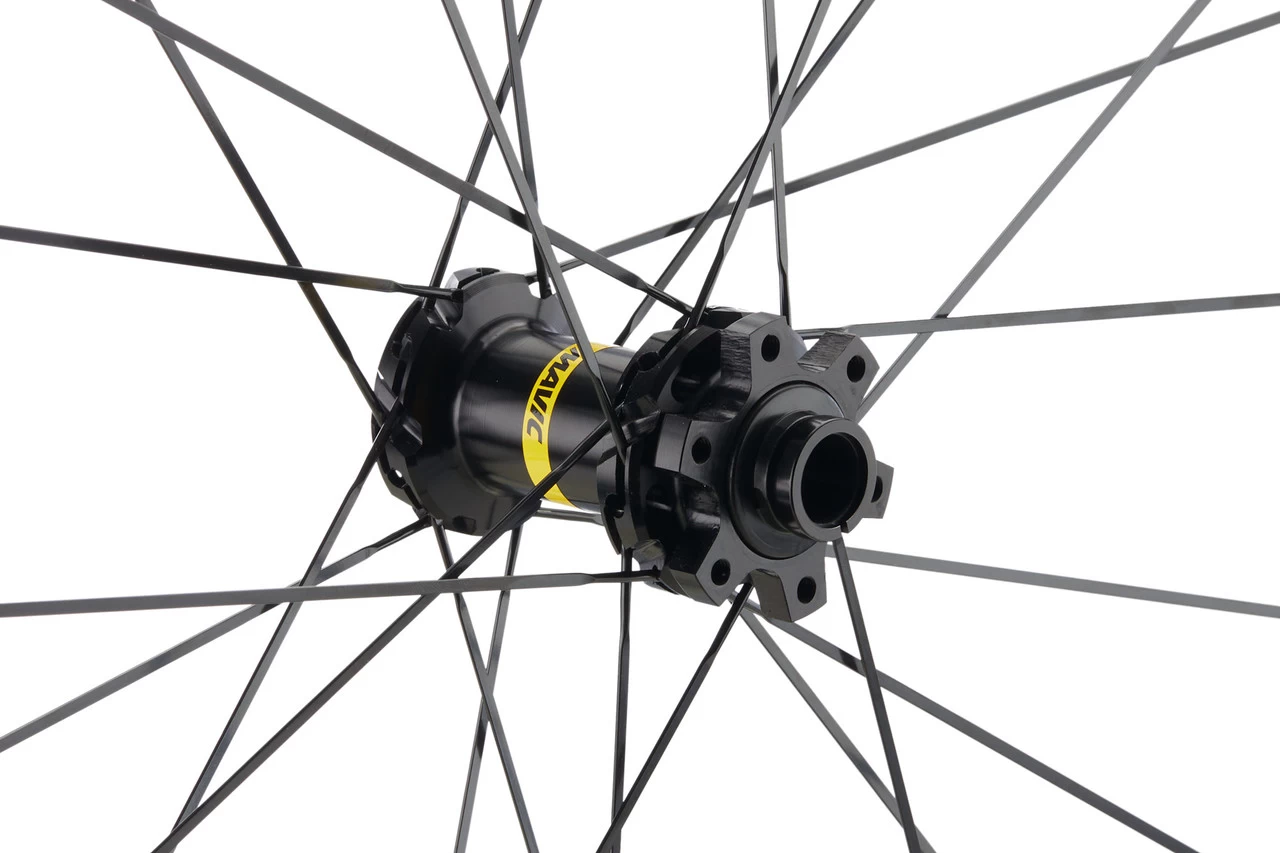

Infinity Hub Design
Infinity hubs from Mavic allow contactless lacing, which prevents noise development under load. At the same time, this design is lighter, stiffer and easier to maintain. Often you only need one spoke length per wheel set, so that an optimal spare parts supply is given.

QRM Auto
QRM Auto stands for Qualité de Roulements Mavic Auto, and is the latest bearing innovation from Mavic. These cartridge bearings with C3 internal clearance are double sealed. Their bearing clearance is automatically adjusted to guarantee smooth running without any play at all times.

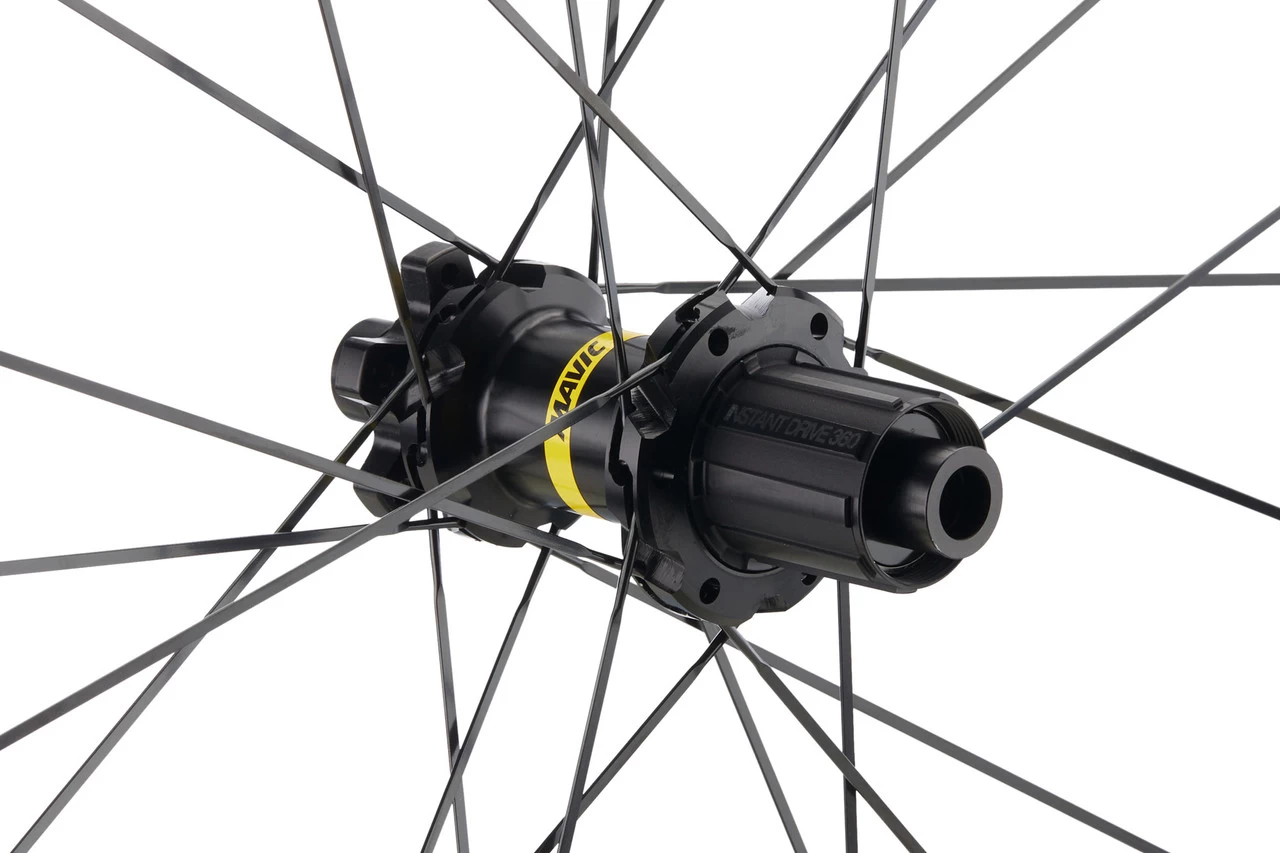

Instant Drive 360
The Instant Drive 360 freehub system is super light and ensures fast power transfer with an engagement angle of only 9° (road) or 15° (MTB). A large, non-contact rubber seal reduces friction.
Models:29″ set (front 15×100 + rear 12×142) Shimano:

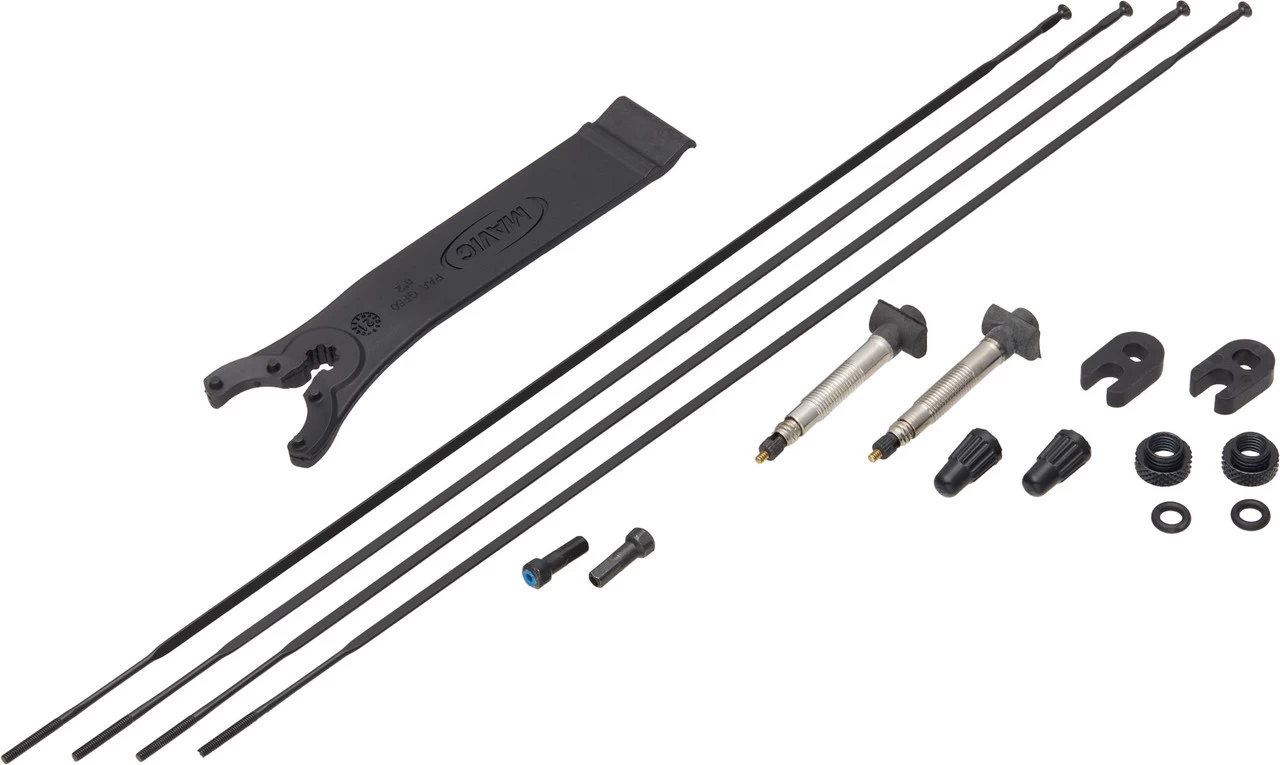

Freehub:Shimano MTBGearing:8-/9-/10-/11-speedManufacturer Number:P1668115Conversion Options:To convert to SRAM XD, a XD freehub body is required. To convert to Shimano Micro Spline a separate Micro Spline freehub is required.Contents:1 x Mavic Crossmax 6-bolt Disc 29″ wheelset (front and rear wheel)2 x UST valve with accessories4 x spare spokes2 x spare nipples1 x tool2 x tubeless rim tape (mounted)
