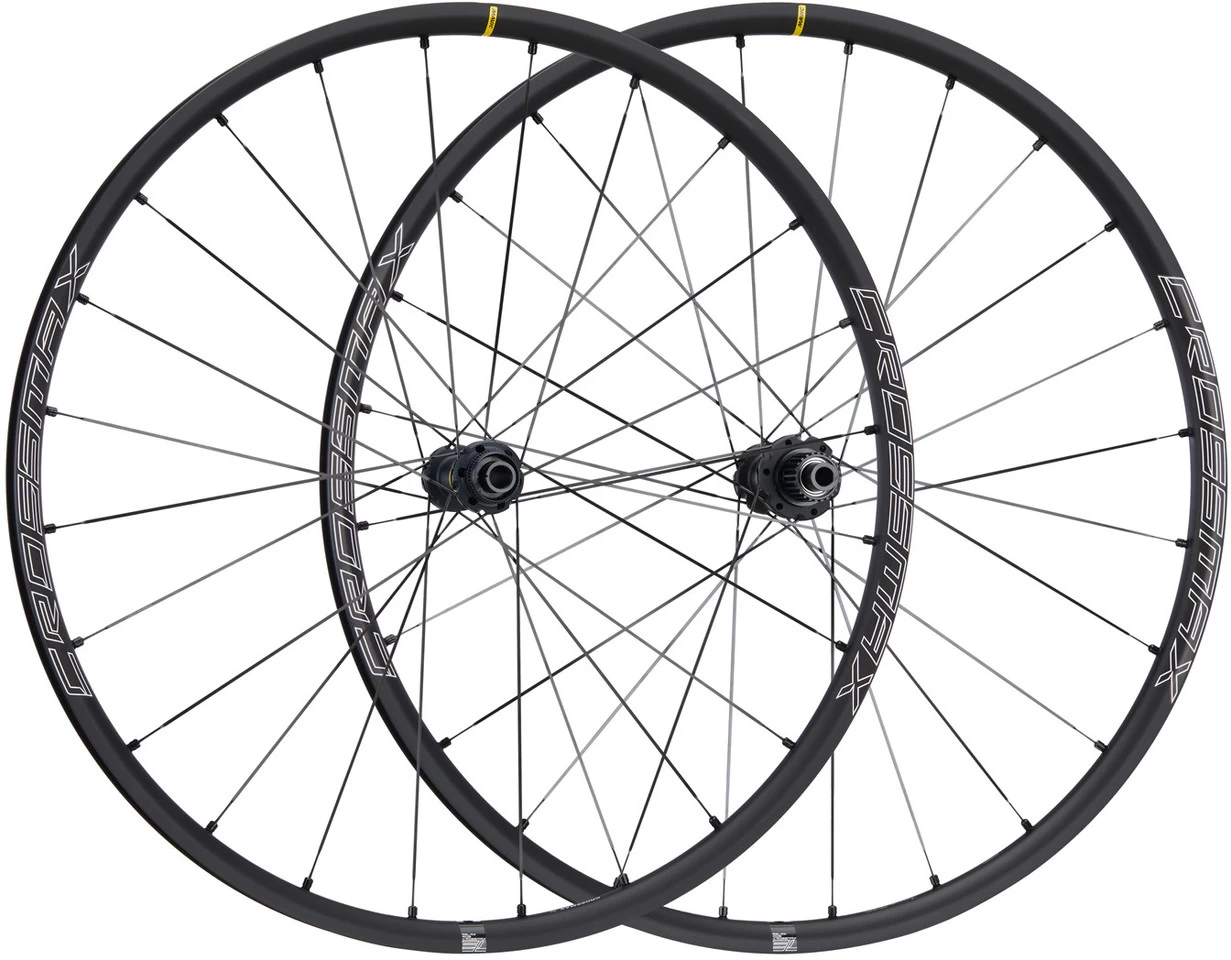

Mavic Crossmax SL Center Lock Disc 29″ Boost Wheelset

The Mavic Crossmax SL Center Lock Disc Wheelset – Fast, robust and very lightweight
The Mavic Crossmax SL is a 29″ cross-country wheelset for Center Lock disc brakes, based on 25 mm wide aluminium rims. It can be ridden without tubeless rim tape and features fast acceleration, durability and lightweight. Boost hubs with self-aligning bearings and optimised spoke holes rotate in the centre, and double butted straight pull spokes are used.
Specifications:Application:Cross CountryWheel Size:29″Tyre Type:clincher tyreNumber of Spokes:24Brake Type:Center Lock DiscWheel Standard:BoostTubeless System:UST Tubeless ReadyTechnical Information – Rim:Rim Flange:without hookDimensions (ETRTO):25-622Inner Width:25 mmOuter Width:28.2 mmDepth:20.7 mmValve Hole Diameter:SV/Presta (6.5 mm)Rim Material:Aluminium (S6000, Maxtal)Technical Information – Front Hub:Type:Mavic InfinityOver Locknut Dimension:15 x 110 mm thru-axleBearings:self-aligning sealed cartridge bearingsBody Material:AluminiumTechnical Information – Rear Hub:Type:Mavic InfinityOver Locknut Dimension:12 x 148 mm thru-axleBearings:self-aligning sealed cartridge bearingsBody Material:AluminiumFreehub Body Material:AluminiumFreehub Body:Instant Drive 360Technical Information – Lacing:Front Lacing Pattern:2-crossRear Lacing Pattern:2-crossSpoke Type:straight pull / double-buttedSpoke Size:298 mmSpoke Material:steelNipple Type:Fore, integratedNipple Material:AluminiumApproved For:Weight Limit:120 kg total weight* (rider, gear & bike)Recommended Tyre Width:2.0 – 3.0″ (50 – 76 mm)
* recommended for increased durability
Features:fast acceleration and excellent climbing characteristicsmore durability thanks to special surface treatmentuser-friendly tubeless system, no rim tape requiredasymmetric rim designrim joint welded (SUP)Infinity hub design for optimal lacingTorque Caps optionally availableASTM category 3: for off-road use with jumps up to 61 cm in heightTechnology:Maxtal
Made exclusively for Mavic, this lightweight and strong aluminium alloy offers a higher strength-to-weight ratio than standard 6106 aluminium. Maxtal rims are 30% stiffer and weigh less than other aluminium rims.

Black Shield Treatment
This innovative surface treatment of MTB rims makes them twice more resistant to stone impacts and scratches.

SUP
SUP means Soudé Usiné Process and creates a much more stable and smoother rim joint. The rim joint is welded and then milled over to achieve an even braking surface. SUP prevents any brake judder and facilitates spoking and centring of the wheel.

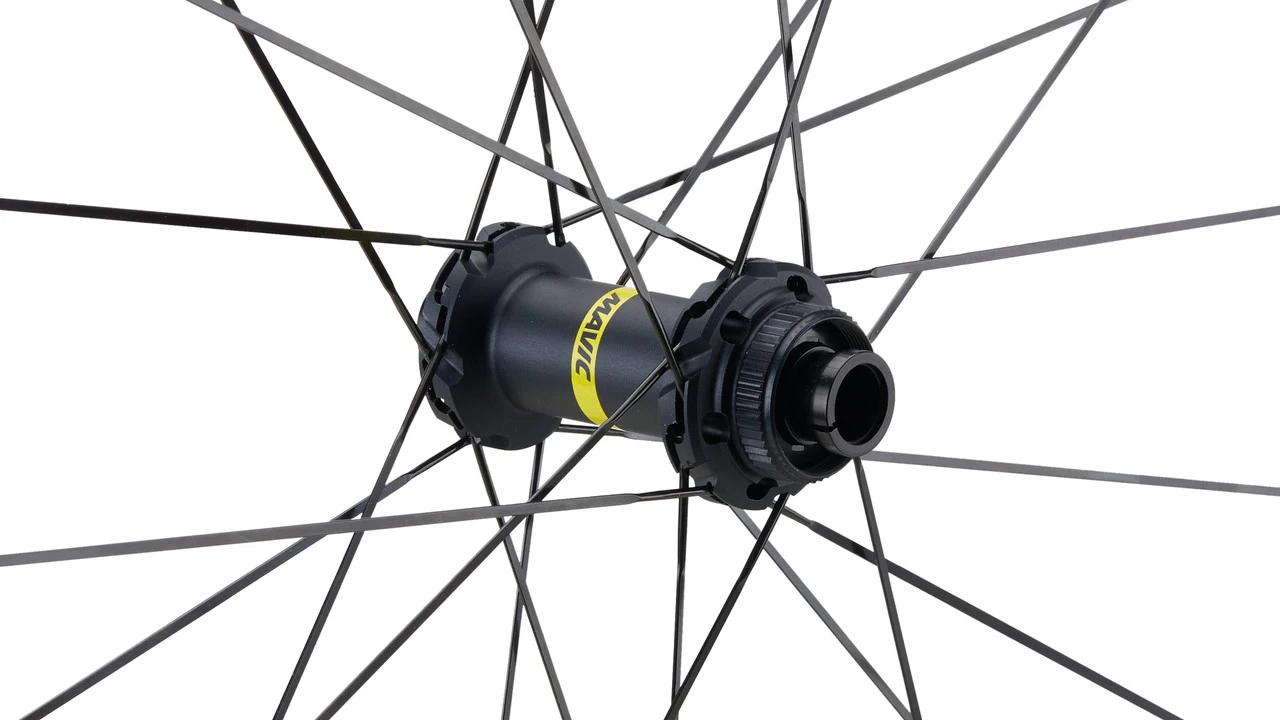

Infinity Hub Design
Infinity hubs from Mavic allow contactless lacing, which prevents noise development under load. At the same time, this design is lighter, stiffer and easier to maintain. Often you only need one spoke length per wheel set, so that an optimal spare parts supply is given.

QRM Auto
QRM Auto stands for Qualité de Roulements Mavic Auto, and is the latest bearing innovation from Mavic. These cartridge bearings with C3 internal clearance are double sealed. Their bearing clearance is automatically adjusted to guarantee smooth running without any play at all times.

Instant Drive 360
The Instant Drive 360 freehub system is super light and ensures a fast power connection with an engagement angle of only 9° (road) or 15° (MTB). A large, non-contact rubber seal reduces friction.

Fore Tapeless Tubeless
Instead of drilling a conventional rim hole, the inner rim base is pressed inwards in one operation and provided with a thread into which the nipples are screwed directly. The outer rim base remains intact. This results in a stiffer and stronger wheel that means rim tape can be omitted, which also translates to weight savings.
Models:29″ set (front 15×110 Boost + rear 12×148 Boost) Micro Spline:

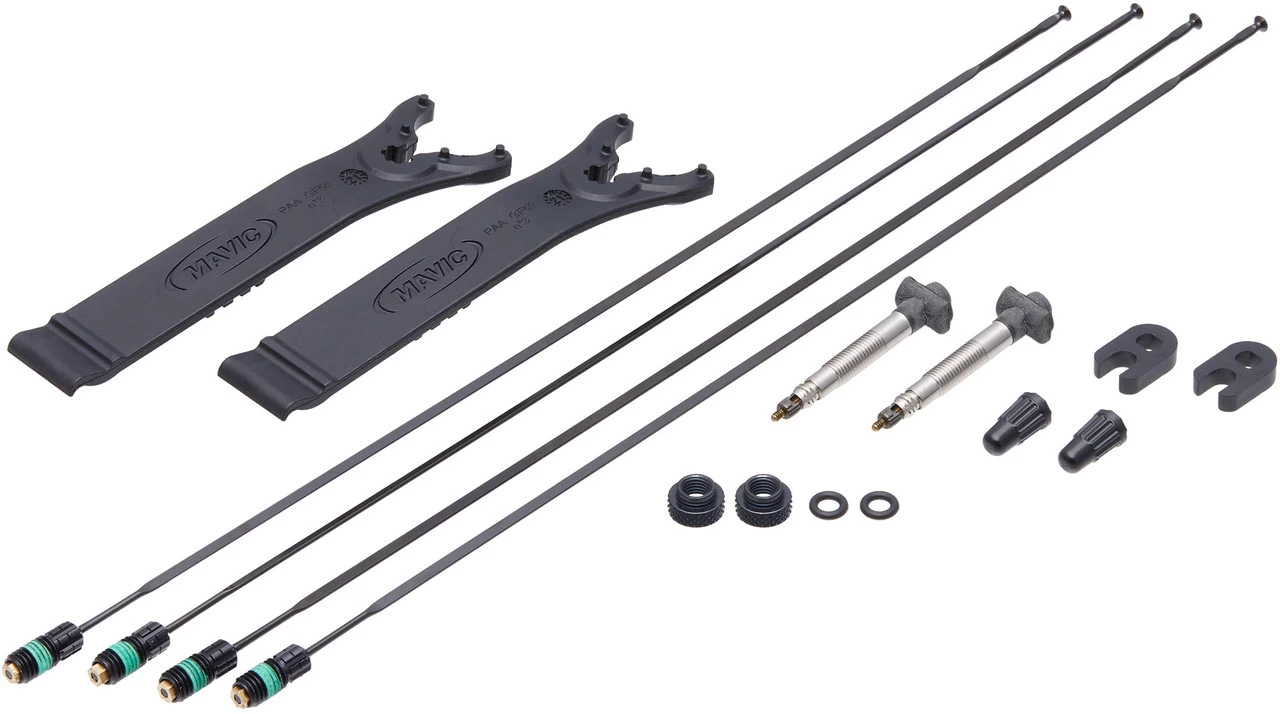

Freehub:Shimano Micro SplineGearing:12-speedManufacturer Number:P1604115Conversion Options:To convert to Shimano MTB, a Shimano freehub body is required. To convert to SRAM XD, a XD freehub body is required.Contents:1 x Mavic Crossmax SL Disc Center Lock 29″ Boost wheelset (front wheel and rear wheel)2 x UST valves with accessories2 x tool4 x spare spokes
