Mavic Crossride UB 26″ Wheelset

The introduction to MTB performance by Mavic – for rim brakes: the Crossride UB wheel
You just don’t want to send your rim brake bike into retirement? No problem, because Mavic has reintroduced the Crossride UB to its model range.

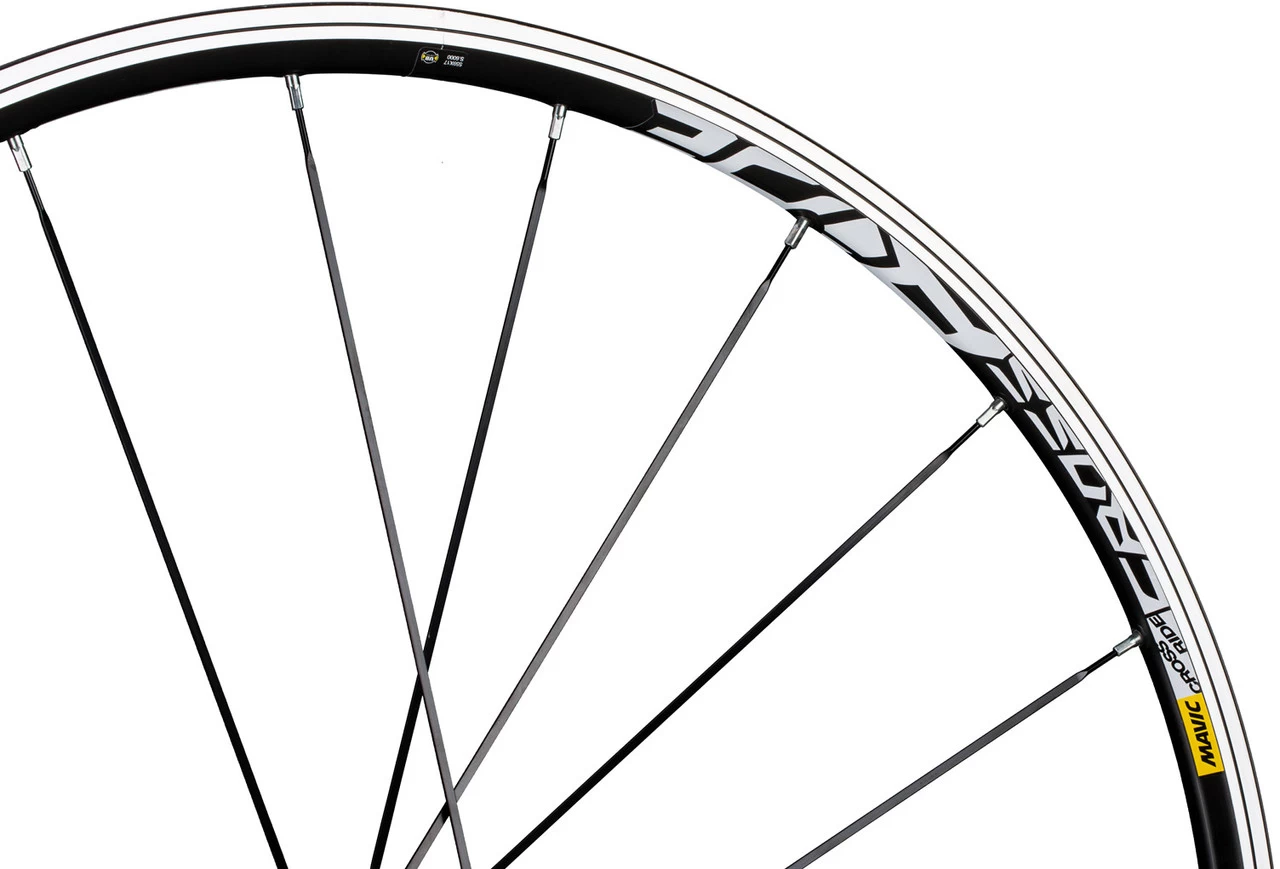

Its tried-and-tested construction with FTS-X freewheel, 20 aero spokes at the front and the rear and an optimized lacing system makes the Crossride UB as stiff as it is light. Its rim, specially designed for rim brakes, has rim holes with H2 reinforcement for maximum strength and durability. And at 1700 grams, there is no performance restriction – but instead a lightweight rim that delivers fast acceleration and high braking efficiency.
The Crossride UB is only suitable for rim brakes, and for frames and forks with quick release dropouts.
Specifications:Application:All MountainWheel Size:26″Tyre Type:clincher tyreNumber of Spokes:20Brake Type:rim brakeTubeless System:noneTechnical Information – Rim:Dimensions (ETRTO):17-559Inner Width:17 mmOuter Width:22 mmDepth:19 mmValve Hole Diameter:AV (Auto/Schrader) 8.5 mmRim Material:aluminium (S6000)Technical Information – Front Hub:Over Locknut Dimension:9 x 100 mm quick releaseBearings:cartridge bearings (sealed)Body Material:aluminiumTechnical Information – Rear Hub:Over Locknut Dimension:10 x 135 mm quick releaseBearings:cartridge bearings (sealed)Body Material:aluminiumFreehub Body Material:steelFreehub Body:FTS-X (FTS-L with MTB pawls)Technical Information – Lacing:Front Lacing Pattern:radialRear Lacing Pattern:2-cross (right), radial (left)Spoke Type:straight / aeroSpoke Size:253 mm (front), 253 mm/276 mm (rear l/r)Spoke Material:steelNipple Type:self-lockingNipple Material:steelApproved For:Weight Limit:120 kg total weight* (rider, gear & bike)Recommended Tyre Width:1″ – 2.05″
* recommended for increased durability
Features:the entry into Mavic quality and Mavic efficiencybig eye-catching decorconventional rim drillingsleeved rim jointaluminium axlesUB Control brake flanksASTM category 3: for off-road use with jumps up to 61 cm in heightTechnology:UB Control
Usiné Brut Control. Brake tracks that are stripped afterwards ensure better braking efficiency and prevent unpleasant brake jerking.

H2
Hammer Hardening: special cold hardening in the critical spoke hole area where the strain is highest. Extends the life of the rim. Reduces the formation of micro-cracks.

QRM
Qualité de Roulements Mavic. Cartridge bearings of this quality are only available in Mavic hubs. Thanks to double seals (type 2RS or LLU) they are extremely durable. Minimum bearing clearance and extreme dimensional accuracy ensure maximum efficiency.

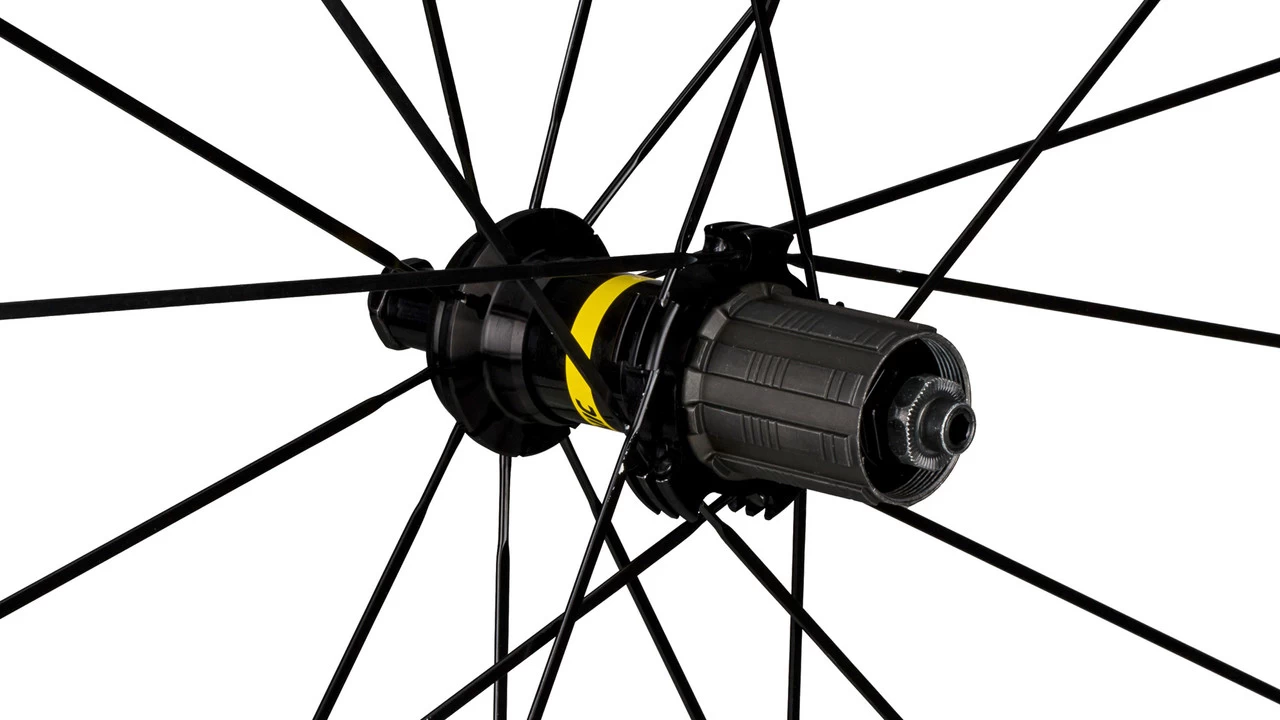

FTS-X
Force Transfer System X. Further improved freehub system, especially for the toughest MTB applications, when a more robust freehub is required. Reinforced pawls, self-locking kingpin mount, new type of lip seal with half the friction.
Models:26″ set (front 9×100 + rear 10×135) Shimano:
Freehub:Shimano RoadGearing:8-/9-/10-/11-/12-speedNote:A spacer ring is required for an MTB cassette (incl.).Manufacturer Number:F5690101 (front) + R8370101 (rear)Contents:1 x Mavic Crossride UB wheelset (front and rear)2 x Mavic BR101 quick release2 x rolls of rim tape1 x cassette spacer (rear)
