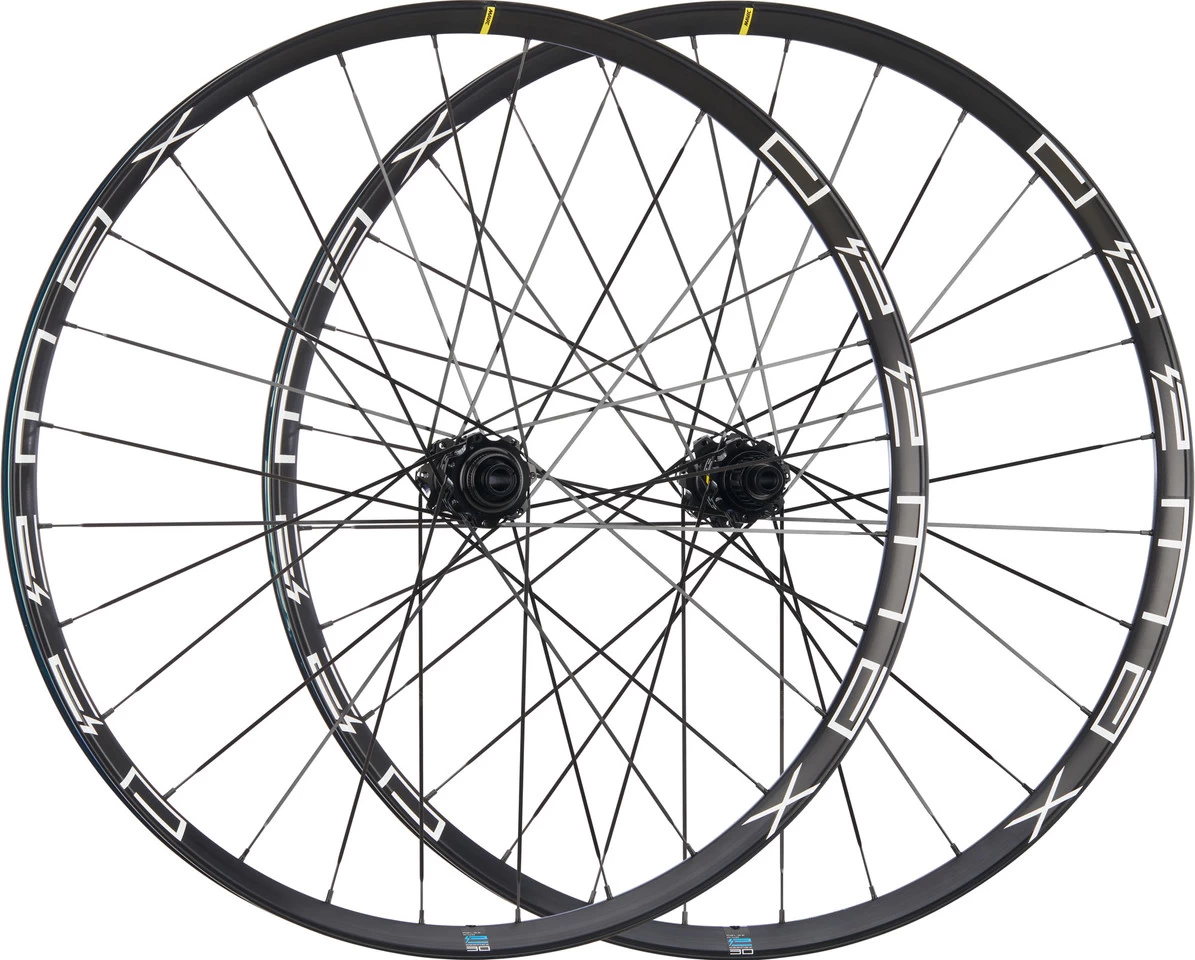

Mavic E-Deemax 30 Center Lock Disc 29″ Boost Wheelset

The Mavic E-Deemax 30 wheelset for motorised 29″ enduro bikes with centre-lock disc brake has 30 mm wide aluminium rims. These are tubeless, highly durable and contribute to a puncture-free ride thanks to their special rim flange design. The wheels rotate around boost hubs with self-adjusting bearings and were each spoked with 28 straight pull spokes.
Guidelines for Replacing E-bike Components:Before you replace components on your e-bike, please read through the guidelines for component replacement for CE-marked e-bikes/pedelecs with pedal assistance.
Specifications:Application:EnduroWheel Size:29″Tyre Type:clincher tyreNumber of Spokes:28Brake Type:Center Lock Disc (Boost)Wheel Standard:BoostTubeless System:UST Tubeless ReadyTechnical Information – Rim:Rim Flange:with hookDimensions (ETRTO):30-622Inner Width:30 mmOuter Width:36 mmDepth:21 mmValve Hole Diameter:SV/Presta (6.5 mm)Rim Material:aluminium (Maxtal)Technical Information – Front Hub:Over Locknut Dimension:15 x 110 mm thru-axleBearings:self-aligning sealed cartridge bearingsBody Material:AluminiumTechnical Information – Rear Hub:Over Locknut Dimension:12 x 148 mm thru-axleBearings:self-aligning sealed cartridge bearingsBody Material:AluminiumFreehub Body Material:AluminiumFreehub Body:Instant Drive 360Technical Information – Lacing:Front Lacing Pattern:3-crossRear Lacing Pattern:3-crossSpoke Type:straight pull / aeroSpoke Size:303 mm (front), 305 mm/303 mm (rear l/r)Spoke Material:steelApproved For:Weight Limit:180 kg total weight* (rider, gear & bike)Recommended Tyre Width:2.35 – 3.0″
* Compliance recommended by the manufacturer to extend the life of the wheels
Features:specifically developed for off-road E-Bikeshigh stability and durabilityreduced risk of punctures thanks to special rim flangesuser-friendly tubeless systemasymmetric treadconventional rim bores, welded rim joint (SUP)front convertible to 20 x 110 mm thru-axle (Boost) by replacing the complete axleTorque Caps optionally availableASTM category 5: for extreme terrainTechnology:Maxtal
Made exclusively for Mavic, this lightweight and strong aluminium alloy offers a higher strength-to-weight ratio than standard 6106 aluminium. Maxtal rims are 30% stiffer and weigh less than other aluminium rims.

SUP
SUP means Soudé Usiné Process and creates a much more stable and smoother rim joint. The rim joint is welded and then milled over to achieve an even braking surface. SUP prevents any brake judder and facilitates spoking and centring of the wheel.

Pinch Flat Protection
Rims with PFP technology have a larger contact area at the top of the sidewall, which reduces the risk of tyre punctures and blowouts by about 20%. It is an innovation used exclusively on e-bike wheels.

QRM Auto
QRM Auto stands for Qualité de Roulements Mavic Auto, and is the latest bearing innovation from Mavic. These cartridge bearings with C3 internal clearance are double sealed. Their bearing clearance is automatically adjusted to guarantee smooth running without any play at all times.

Instant Drive 360
The Instant Drive 360 freehub system is super light and ensures fast power transfer with an engagement angle of only 9° (road) or 15° (MTB). A large, non-contact rubber seal reduces friction.
Models:29″ set (front 15×110 Boost + rear 12×148 Boost) Shimano Micro Spline:

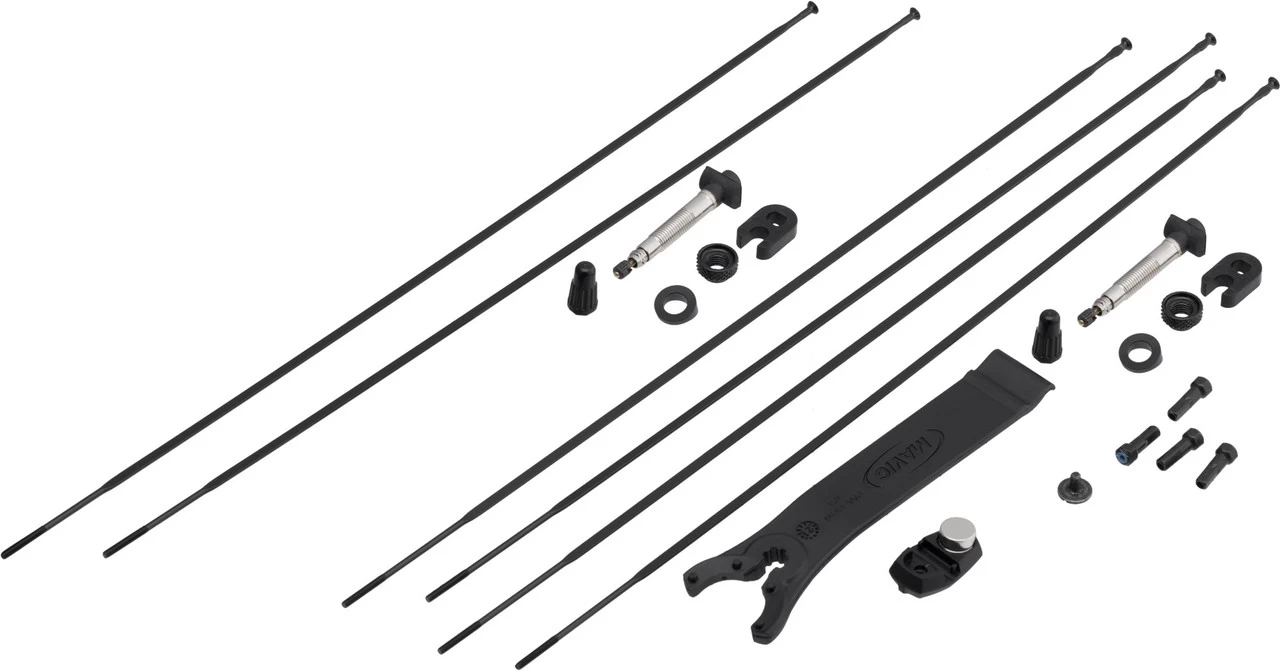

Freehub:Shimano Micro SplineGearing:12-speedManufacturer Number:P1577115Conversion Options:To convert to Shimano MTB, a Shimano freehub body is required. To convert to SRAM XD, a XD freehub body is required.Contents:1 x Mavic E-Deemax 30 Center Lock Disc 29″ Boost wheelset (front and rear wheel)2 x UST valve with accessories6 x spare spokes6 x spare nipples1 x tool1 x E-Bike spoke magnet2 x tubeless rim tape (mounted)
