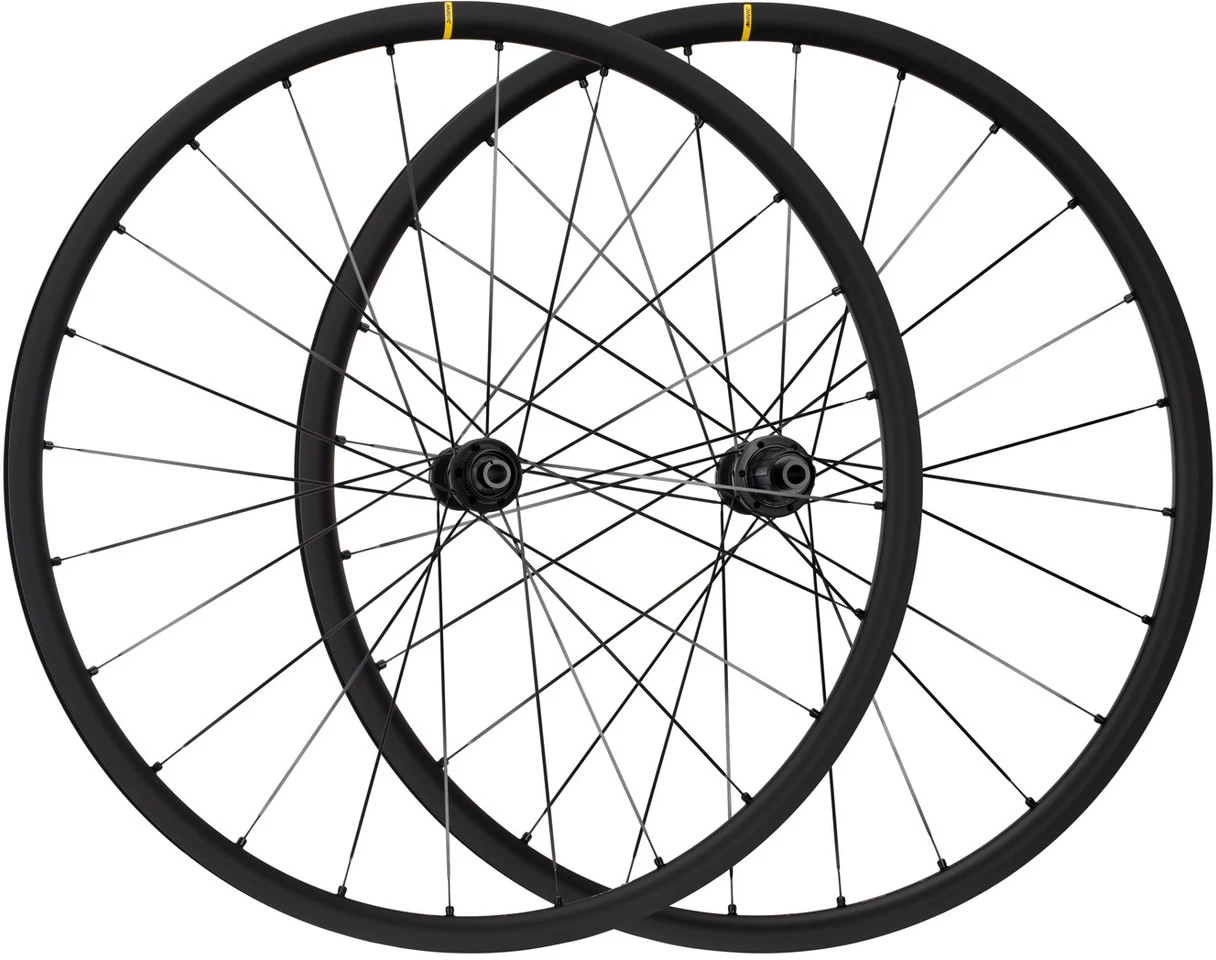

Mavic Ksyrium S Center Lock Disc Wheelset

The Mavic Ksyrium S Wheelset – Attractive entry-level model
The Mavic Ksyrium S Center Lock Disc is a disc brake compatible wheelset for road bike beginners that convinces with a good stiffness-to-weight ratio, durability and an attractive finish. It is based on 19 mm wide rims that can be ridden without a tube. This results in advantages such as greater puncture resistance, less rolling resistance and weight savings. At the centre of the wheels are hubs with self-aligning bearings and optimised spoke holes, each fitted with 24 double butted straight pull front and rear spokes. Special rim bed technology eliminates the need for tubeless rim tape.
Specifications:Application:RoadWheel Size:28″Tyre Type:clincher tyreNumber of Spokes:24Brake Type:Center Lock DiscTubeless System:UST Road TubelessTechnical Information – Rim:Rim Flange:with hookDimensions (ETRTO):19-622Inner Width:19 mmOuter Width:22.5 mmDepth:25 mmValve Hole Diameter:SV/Presta (6.5 mm)Rim Material:aluminium (Maxtal)Technical Information – Front Hub:Type:Mavic InfinityOver Locknut Dimension:12 x 100 mm thru-axle, convertible to 9 x 100 mm quick releaseBearings:self-aligning sealed cartridge bearingsBody Material:aluminiumTechnical Information – Rear Hub:Type:Mavic InfinityOver Locknut Dimension:12 x 142 mm thru-axle, convertible to 10 x 135 mm quick releaseBearings:self-aligning sealed cartridge bearingsBody Material:aluminiumFreehub Body Material:aluminiumFreehub Body:Instant Drive 360Technical Information – Lacing:Front Lacing Pattern:2-crossRear Lacing Pattern:2-crossSpoke Type:straight pull / double-buttedSpoke Size:294 mmSpoke Material:steelNipple Type:Fore, integratedNipple Material:aluminiumApproved For:Weight Limit:120 kg total weight* (rider, gear & bike)Air Pressure (max.):see specifications on wheel and tyre (if different take the lower value)Recommended Tyre Width:25 – 32 mm
* recommended for increased durability
Features:lightweight and durable for everyday and training performancelaterally stiff and vertically compliant for a more dynamic rideuser-friendly tubeless system for more comfort and controlrim profile optimised for disc brakesrim joint welded (SUP)Infinity hub design for optimal lacingaluminium axles – front can be converted to quick release (with supplied adapters), not compatible with 15 mm thru-axles
rear can be converted to quick release (with included adapters) or to 12 x 135 mm thru-axle (with separate adapter)extra-light Shimano freehub body optionally availableno rim tape required thanks to Fore technologyASTM category 2: for use on roads, maintained dirt roads and gravel roads (on Touring and Cross Country bikes) with jumps up to a height of 15 cmTechnology:Maxtal
Made exclusively for Mavic, this lightweight and strong aluminium alloy offers a higher strength-to-weight ratio than standard 6106 aluminium. Maxtal rims are 30% stiffer and weigh less than other aluminium rims.

SUP
SUP means Soudé Usiné Process and creates a much more stable and smoother rim joint. The rim joint is welded and then milled over to achieve an even braking surface. SUP prevents any brake judder and facilitates spoking and centring of the wheel.

Infinity Hub Design
Infinity hubs from Mavic allow contactless lacing, which prevents noise development under load. At the same time, this design is lighter, stiffer and easier to maintain. Often you only need one spoke length per wheel set, so that an optimal spare parts supply is given.

QRM Auto
QRM Auto stands for Qualité de Roulements Mavic Auto, and is the latest bearing innovation from Mavic. These cartridge bearings with C3 internal clearance are double sealed. Their bearing clearance is automatically adjusted to guarantee smooth running without any play at all times.

Instant Drive 360
The Instant Drive 360 freehub system is super light and ensures a fast power connection with an engagement angle of only 9° (road) or 15° (MTB). A large, non-contact rubber seal reduces friction.

Fore Tapeless Tubeless
Instead of drilling a conventional rim hole, the inner rim base is pressed inwards in one operation and provided with a thread into which the nipples are screwed directly. The outer rim base remains intact. This results in a stiffer and stronger wheel that means rim tape can be omitted, which also translates to weight savings.
Models:28″ set (front 12×100 + rear 12×142) Shimano:
Freehub:Shimano RoadGearing:8-/9-/10-/11-/12-speedNote:Installing 8-/9-/10-speed cassettes on Shimano freehubs requires a 1.85 mm spacer.Manufacturer Number:P1326155Conversion Options:To convert to Campagnolo, a separate Campagnolo freehub body is required.
28″ set (front 12×100 + rear 12×142) SRAM XDR:

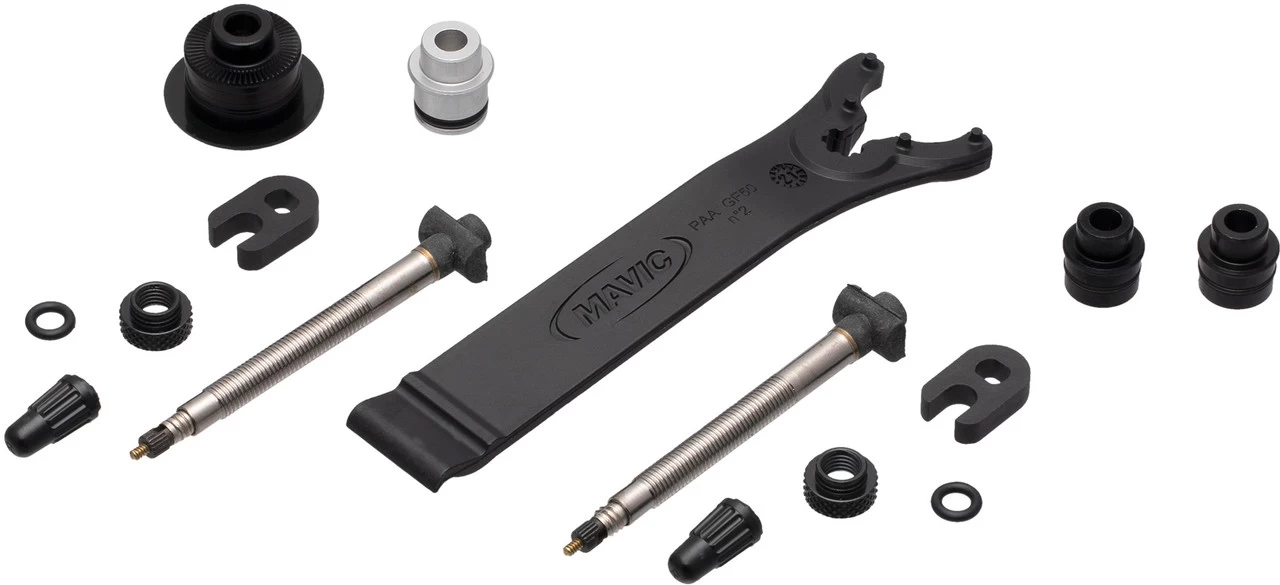

Freehub:SRAM XDRGearing:11-/12-speedNote:A 1.8 mm spacer is required to mount XD cassettes on an XDR freehub body.Manufacturer Number:P1462160Conversion Options:To convert to Campagnolo, a separate Campagnolo freehub body is required.Contents:1 x Mavic Ksyrium S Disc Wheelset (front and rear)1 x pair end caps for qui
