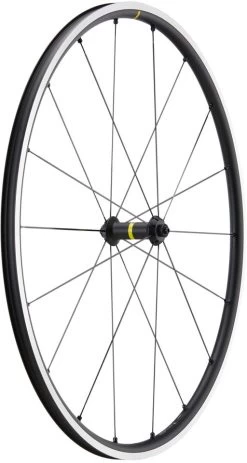

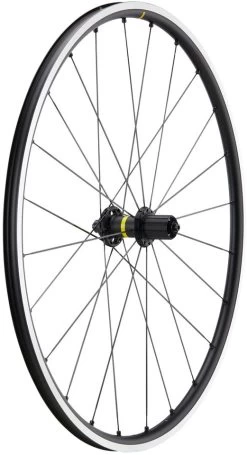

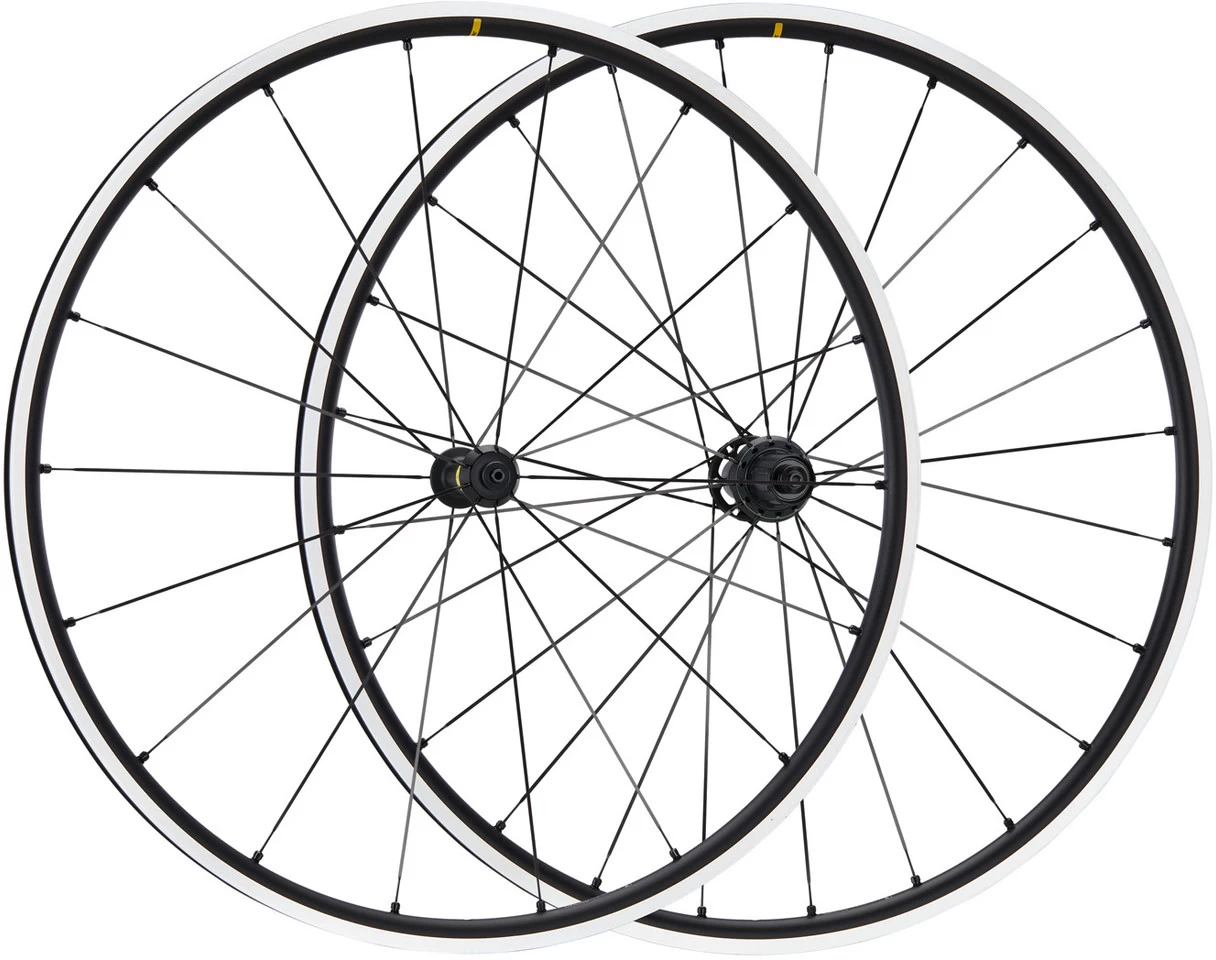

Mavic Ksyrium S Wheelset

The Mavic Ksyrium S Wheelset – Attractive entry-level model

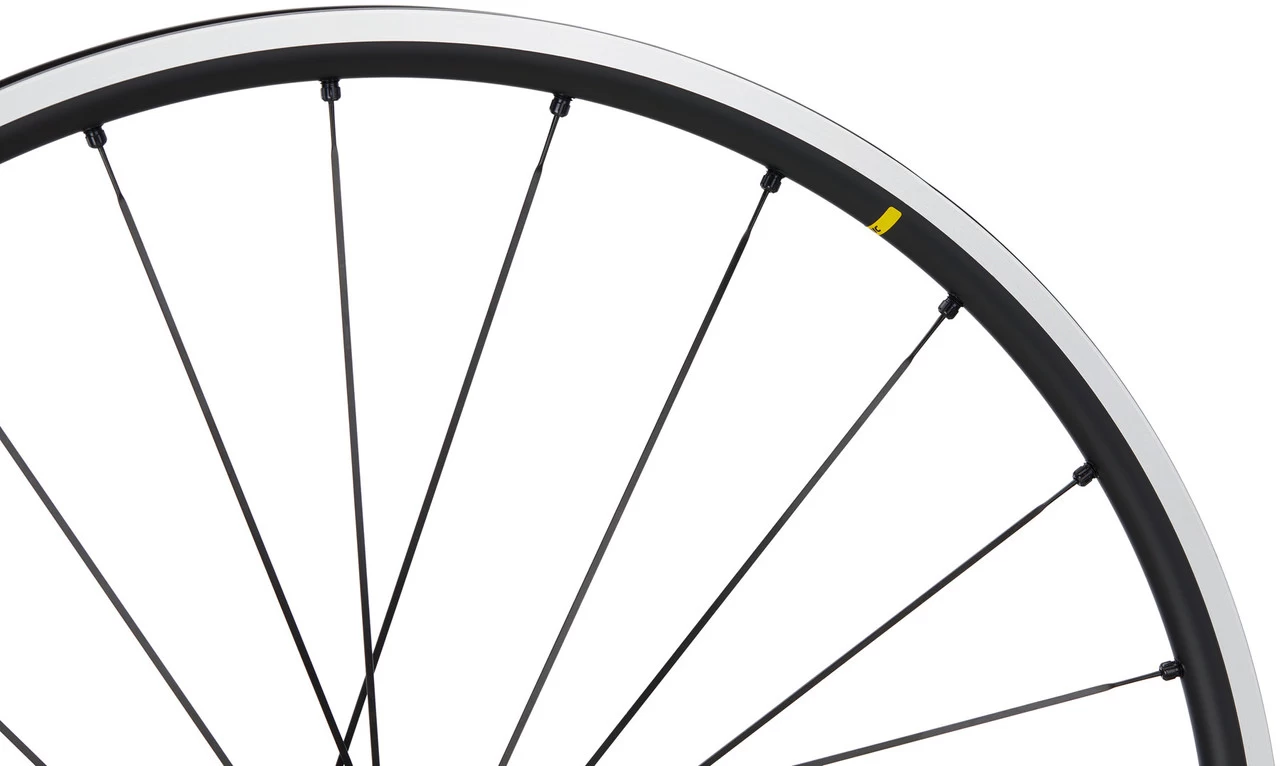

The Mavic Ksyrium S is a rim brake-compatible wheelset for road bike beginners, which impresses with a good stiffness-to-weight ratio, durability and an attractive finish. It is based on 19 mm wide aluminium rims that can be ridden without a tube. This results in advantages such as greater puncture resistance, less rolling resistance and weight savings. At the centre of the wheels are hubs with self-aligning bearings and optimised spoke holes, fitted with 18 and 24 double butted straight pull spokes at the front and rear respectively. Special rim bed technology eliminates the need for tubeless rim tape.
Specifications:Application:RoadWheel Size:28″Tyre Type:clincher tyreNumber of Spokes:18 (front), 24 (rear)Brake Type:rim brakeTubeless System:UST Road TubelessTechnical Information – Rim:Rim Flange:with hookDimensions (ETRTO):19-622Inner Width:19 mmOuter Width:22 mmDepth:22 mmValve Hole Diameter:SV/Presta (6.5 mm)Rim Material:aluminium (Maxtal)Technical Information – Front Hub:Type:Mavic InfinityOver Locknut Dimension:9 x 100 mm quick releaseBearings:self-aligning sealed cartridge bearingsBody Material:aluminiumTechnical Information – Rear Hub:Type:Mavic InfinityOver Locknut Dimension:10 x 130 mm quick releaseBearings:self-aligning sealed cartridge bearingsBody Material:aluminiumFreehub Body Material:aluminiumFreehub Body:Instant Drive 360Technical Information – Lacing:Front Lacing Pattern:radialRear Lacing Pattern:IsopulseSpoke Type:straight pull / double-buttedSpoke Size:289 mm (front), 297 mm/278 mm (rear l/r)Spoke Material:steelNipple Type:Fore, integratedNipple Material:aluminiumApproved For:Weight Limit:120 kg total weight* (rider, gear & bike)Air Pressure (max.):see specifications on wheel and tyre (if different take the lower value)Recommended Tyre Width:25 – 32 mm
* recommended for increased durability
Features:lightweight and durable for everyday and training performancelaterally stiff and vertically compliant for a more dynamic rideuser-friendly tubeless system for more comfort and controlrim joint welded (SUP)UB-Control brake flankInfinity hub design for optimal lacingaluminium axlesextra-light Shimano freehub body optionally availableno rim tape required thanks to Fore technologyASTM category 2: for use on roads, maintained dirt roads and gravel roads (on Touring and Cross Country bikes) with jumps up to a height of 15 cmTechnology:Maxtal
Made exclusively for Mavic, this lightweight and strong aluminium alloy offers a higher strength-to-weight ratio than standard 6106 aluminium. Maxtal rims are 30% stiffer and weigh less than other aluminium rims.

UB Control
UB Control stands for Usiné Brut Control. Brake tracks that are stripped afterwards ensure better braking efficiency and prevent unpleasant brake jerking.

SUP
SUP means Soudé Usiné Process and creates a much more stable and smoother rim joint. The rim joint is welded and then milled over to achieve an even braking surface. SUP prevents any brake judder and facilitates spoking and centring of the wheel.

Infinity Hub Design

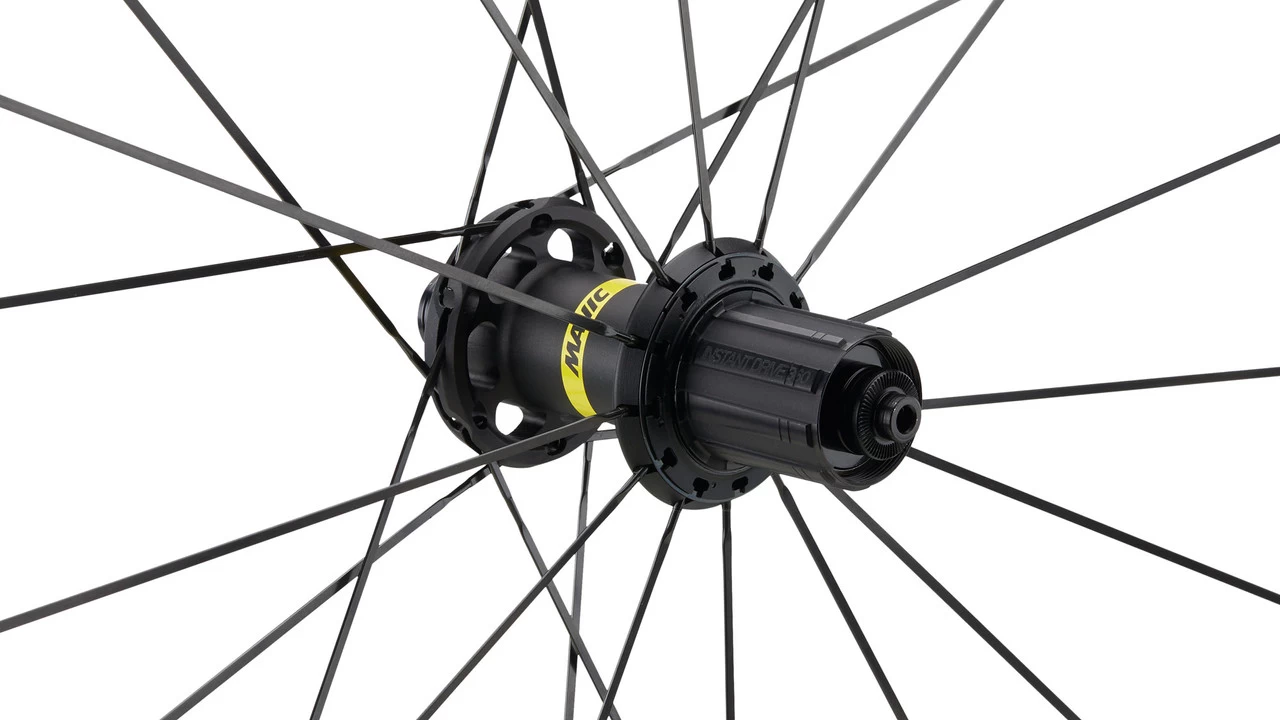

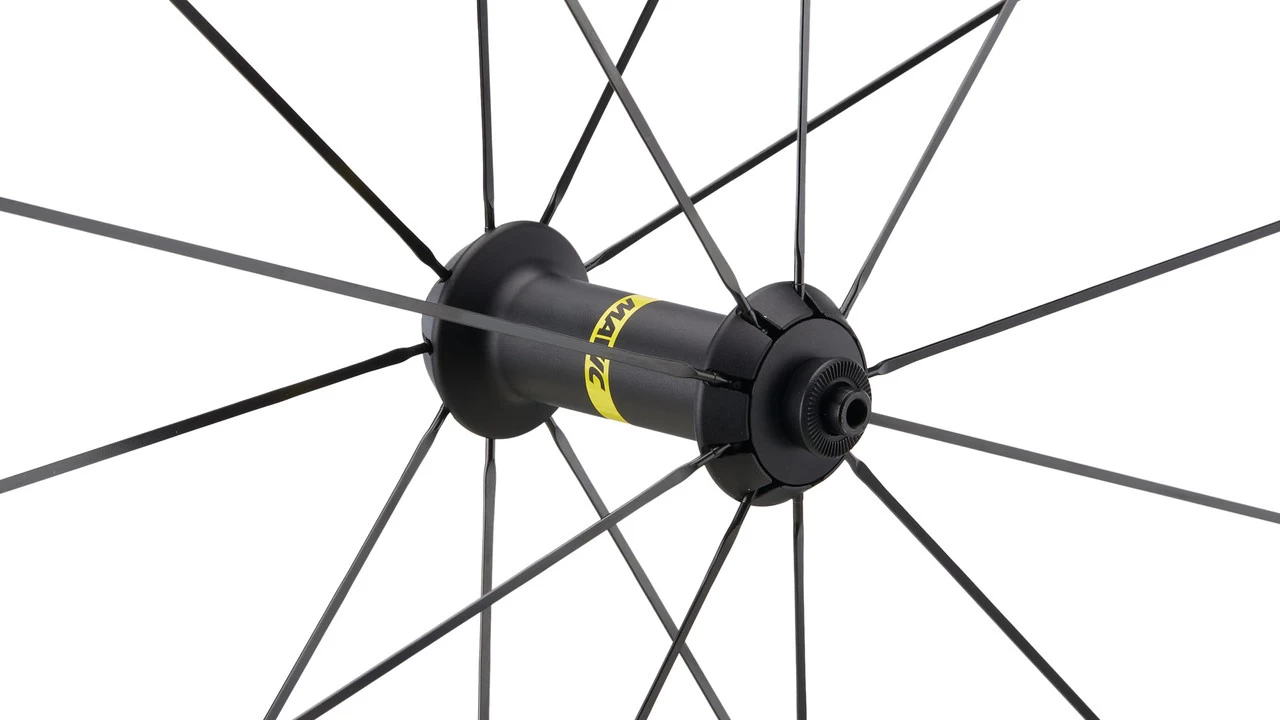

Infinity hubs from Mavic allow contactless lacing, which prevents noise development under load. At the same time, this design is lighter, stiffer and easier to maintain. Often you only need one spoke length per wheel set, so that an optimal spare parts supply is given.

QRM Auto
QRM Auto stands for Qualité de Roulements Mavic Auto, and is the latest bearing innovation from Mavic. These cartridge bearings with C3 internal clearance are double sealed. Their bearing clearance is automatically adjusted to guarantee smooth running without any play at all times.

Instant Drive 360
The Instant Drive 360 freehub system is super light and ensures a fast power connection with an engagement angle of only 9° (road) or 15° (MTB). A large, non-contact rubber seal reduces friction.

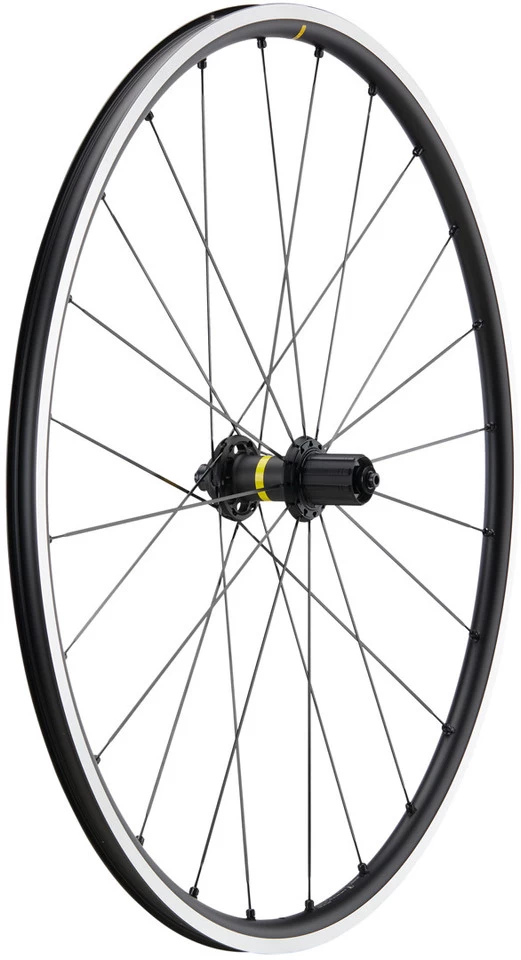

Isopulse (Rear)
This special lacing (right radial, left double-crossed) increases the stability of the wheels and ensures optimal power transmission – thanks to more even spoke tension on the left and right hub flange. Isopulse means higher stiffness under heavy load, resulting in immediate power transmission. Also, sturdier wheels have lower maintenance requirements.

Fore Tapeless Tubeless
Instead of drilling a conventional rim hole, the inner rim base is pressed inwards in one operation and provided with a thread into which the nipples are screwed directly. The outer rim base remains intact. This results in a stiffer and stronger wheel that means rim tape can be omitted, which also translates to weight savings.
Models:28″ set (front 9×100 + rear 10×130) Shimano:

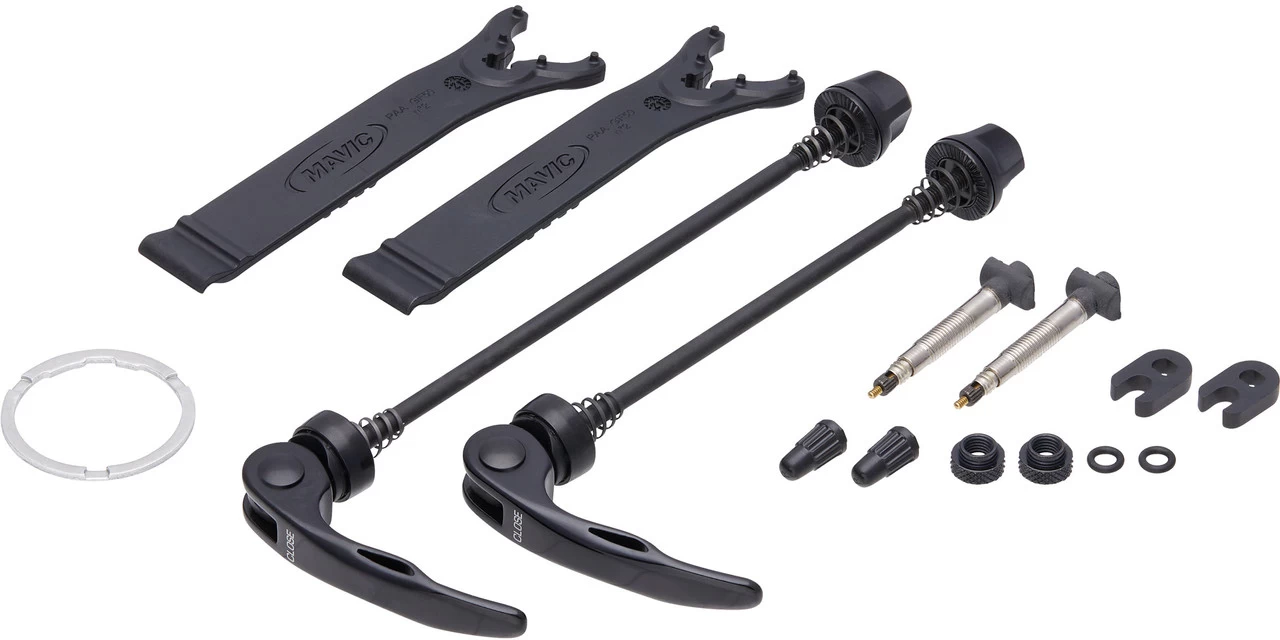

Freehub:Shimano RoadGearing:8-/9-/10-/11-/12-speedNote:Installing 8-/9-/10-speed cassettes on Shimano freehubs requires a 1.85 mm spacer.Manufacturer Number:P1325155Conversion Options:To convert to Campagnolo, a separate Campagnolo freehub body is required. To convert to SRAM XDR, an XDR freehub body is required.Contents:1 x Mavic Ksyri
