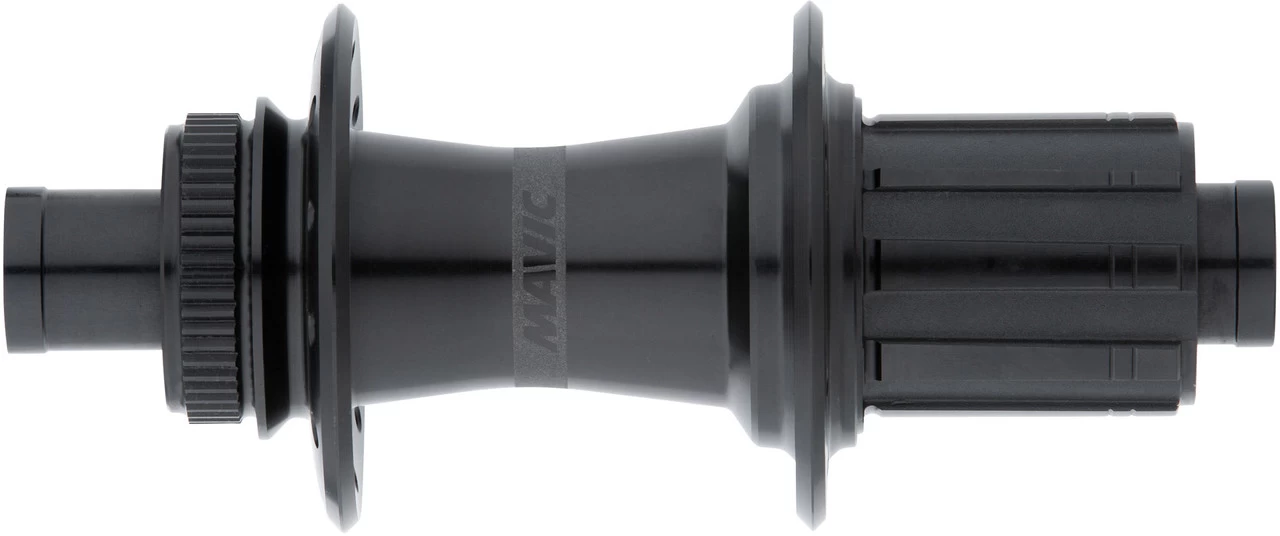

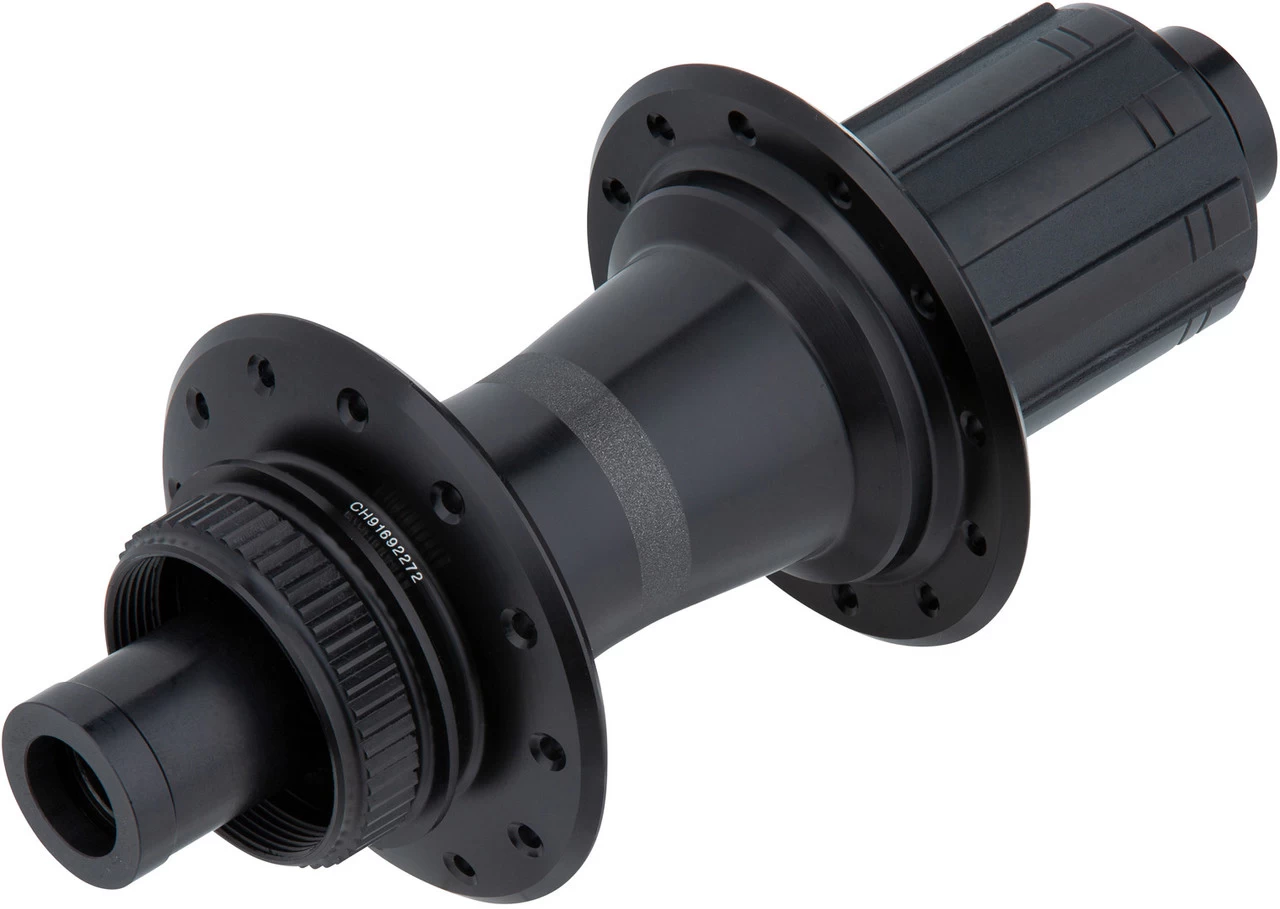

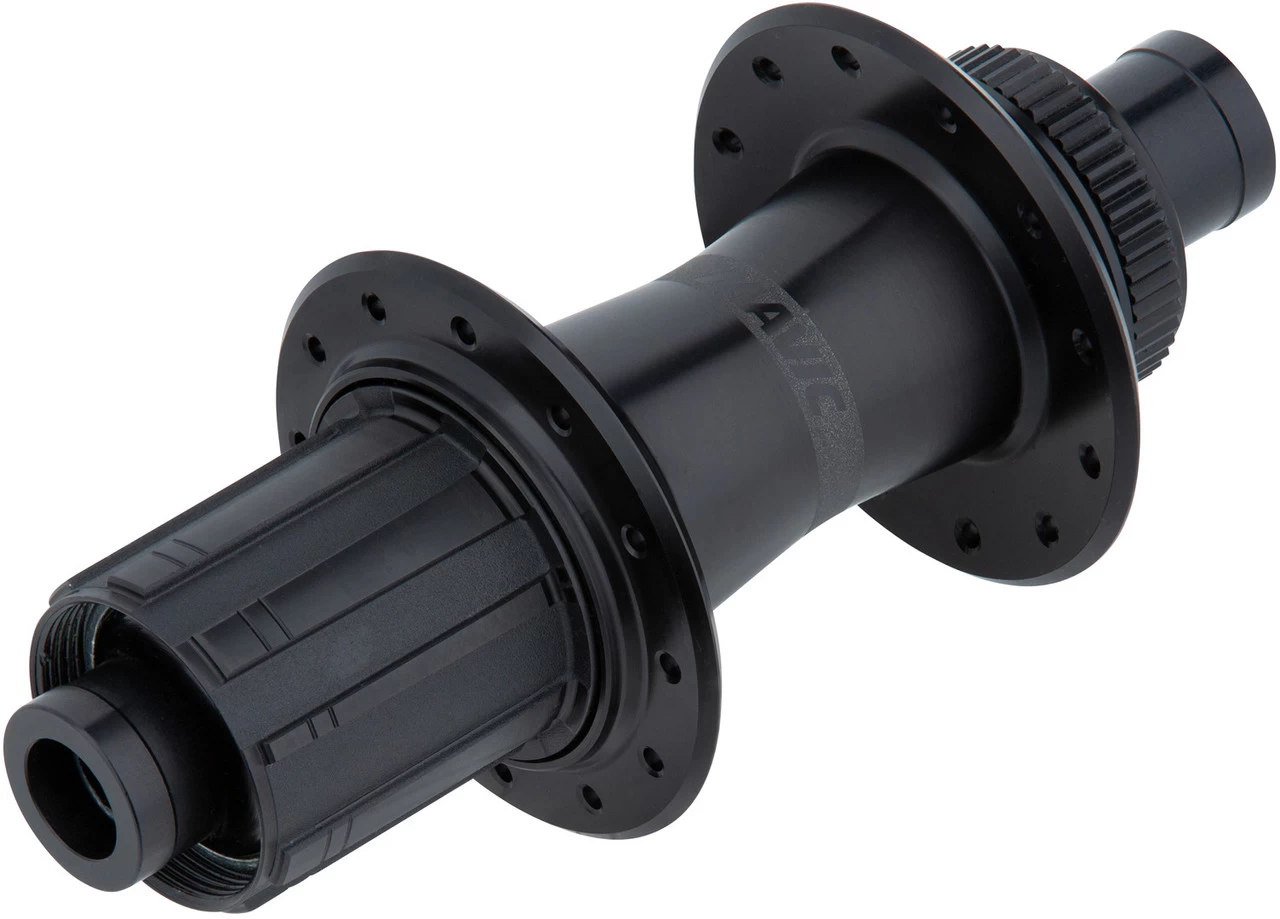

Mavic Road Center Lock Disc Rear Hub

The Road Disc rear hub by Mavic – with 360 Instant Drive freehub
The Mavic Road Disc Center Lock rear hub with its CNC precision machined aluminium body will delight wheel builders. It can easily be fitted with spokes to serve as the centre of a stiff, perfectly trued disc brake wheel. And so the success of earlier Mavic hubs like the famous 571 lives on. The Road Disc rear hub has four large, sealed cartridge bearings that ensure durable and smooth operation. The QRM Auto preload system ensures smooth running and optimum bearing clearance without any external intervention. Also characteristic is the Instant Drive 360 Ratchet freehub with an engagement angle of only 9° and perfect torque transmission, which also delivers a pleasant sound.
Specifications:Series:Road HubApplication:Road, Triathlon & Time Trial, Gravel, CyclocrossBrake Type:Center Lock DiscFreehub Body Type:aluminium, Instant Drive 360 (ratchet, 9°)Technical Information:Body Material:aluminiumBearings:cartridge bearings (sealed)Features:CNC precision machined bodyfour large, sealed cartridge bearings with C3 internal clearancecompatible with curved spokes (J-bend)ID360 freehub with low air resistancecan be converted to 10 x 135 mm quick releasedesigned and tested in France, manufactured in EuropeTechnology:QRM Auto
Qualité de Roulements Mavic Auto. The latest bearing innovation by Mavic. These cartridge bearings (bearing clearance: C3) are of course double sealed. Their bearing clearance is automatically adjusted to guarantee smooth running without any play at all times.
Models:12 x 142 mm / 24 hole / Shimano:
Over Locknut Dimension:12 x 142 mm thru-axleSpoke Hole Count:24 holeFreehub:Shimano RoadGearing:8-/9-/10-/11-/12-speedNote:Assembly of 8-/9-/10-speed cassettes on Shimano Road freehub bodies requires a 1.85 mm spacer.Flange Distance (L/R):53.7 mm (34.3 mm/19.4 mm)Partial Bolt Circle Diameter (L/R):50 mm/50 mmManufacturer Number:H3890152
12 x 142 mm / 28 hole / Shimano:
Over Locknut Dimension:12 x 142 mm thru-axleSpoke Hole Count:28 holeFreehub:Shimano RoadGearing:8-/9-/10-/11-/12-speedNote:Assembly of 8-/9-/10-speed cassettes on Shimano Road freehub bodies requires a 1.85 mm spacer.Flange Distance (L/R):53.7 mm (34.3 mm/19.4 mm)Partial Bolt Circle Diameter (L/R):50 mm/50 mmManufacturer Number:V3890128Contents:1 x Mavic Road Disc rear hub
