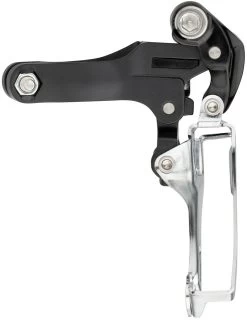

Shimano 105 FD-5700 2-/10-speed Front Derailleur

The 105 FD-5700 Front Derailleur by Shimano – Smooth shifting even under load
Shimano 105 FD-5700 is a 2x front derailleur for 10-speed Road bike drivetrains, which convinces with a precise index shifting function for smooth gear changes. Even under load, smooth shifting is possible in any rear derailleur position. In addition, the FD-5700’s Wide Link design has increased stability and reduced susceptibility to twisting.
Specifications:Series:105 5700Application:RoadGearing:2x (in combination with 10-speed)Chainstay Angle:61-66°Chainline:43.5 mmChainring Size (max.):50-56 teethCapacity:16-toothCable Routing:down pullMovement:down-swingMount:braze-on, clampClamp Diameter:31.8 mm w/adapter 28.6 mm, 34.9 mmCompatibility:HG 10-speed chainsTechnical Information:Outer Body Material:AluminiumInner Body Material:AluminiumCage Material:steelCompatibility:2×10-speed:
Shifter:ST-6700, ST-5700, ST-4600, ST-R460, SL-R780, SL-4600, SL-R460Crank:FC-6700, FC-6700G, FC-6750, FC-6750G, FC-5700, FC-5750, FC-4600, FC-4650, FC-R565Chain:CN-7901, CN-6701, CN-5701, CN-4601Features:smoother gear changesDUAL SIS with front index shiftinginner parallelogram body with wide profileoptimised shaping of the cage platessoft shifting under high load in any rear derailleur positionpainted parallelogramchrome-plated cage platesModels:silver braze-on: sold-out
Mount:braze-onColour:silver (manufacturer designation ” sterling silver” )Type:FD-5700-S-FManufacturer Number:I-FD5700FS
silver 31.8 mm: sold-out
Mount:Clamp (diameter 31.8 mm; 28.6 mm with adapter)Colour:silver (manufacturer designation ” sterling silver” )Type:FD-5700-S-BManufacturer Number:I-FD5700BSMS
silver 34.9 mm: sold-out
Mount:Clamp (diameter 34.9 mm)Colour:silver (manufacturer designation ” sterling silver” )Type:FD-5700-S-BManufacturer Number:I-FD5700BLS
black braze-on:
Mount:braze-onColour:black (manufacturer designation ” lodestar black” )Type:FD-5700-L-FManufacturer Number:I-FD5700FL
black 31.8 mm:
Mount:Clamp (diameter 31.8 mm; 28.6 mm with adapter)Colour:black (manufacturer designation ” lodestar black” )Type:FD-5700-L-BManufacturer Number:I-FD5700BSML
black 34.9 mm:
Mount:Clamp (diameter 34.9 mm)Colour:black (manufacturer designation ” lodestar black” )Type:FD-5700-L-BManufacturer Number:I-FD5700BLLContents:1 x Shimano 105 FD-5700-S front derailleur or FD-5700-L1 x- clamp adapter (31.8 mm version only)
