Shimano Alivio FD-M3100 3-/9-speed Front Derailleur

The Alivio Front Derailleur FD-M3100 by Shimano – Side-Swing for 3×9-speed

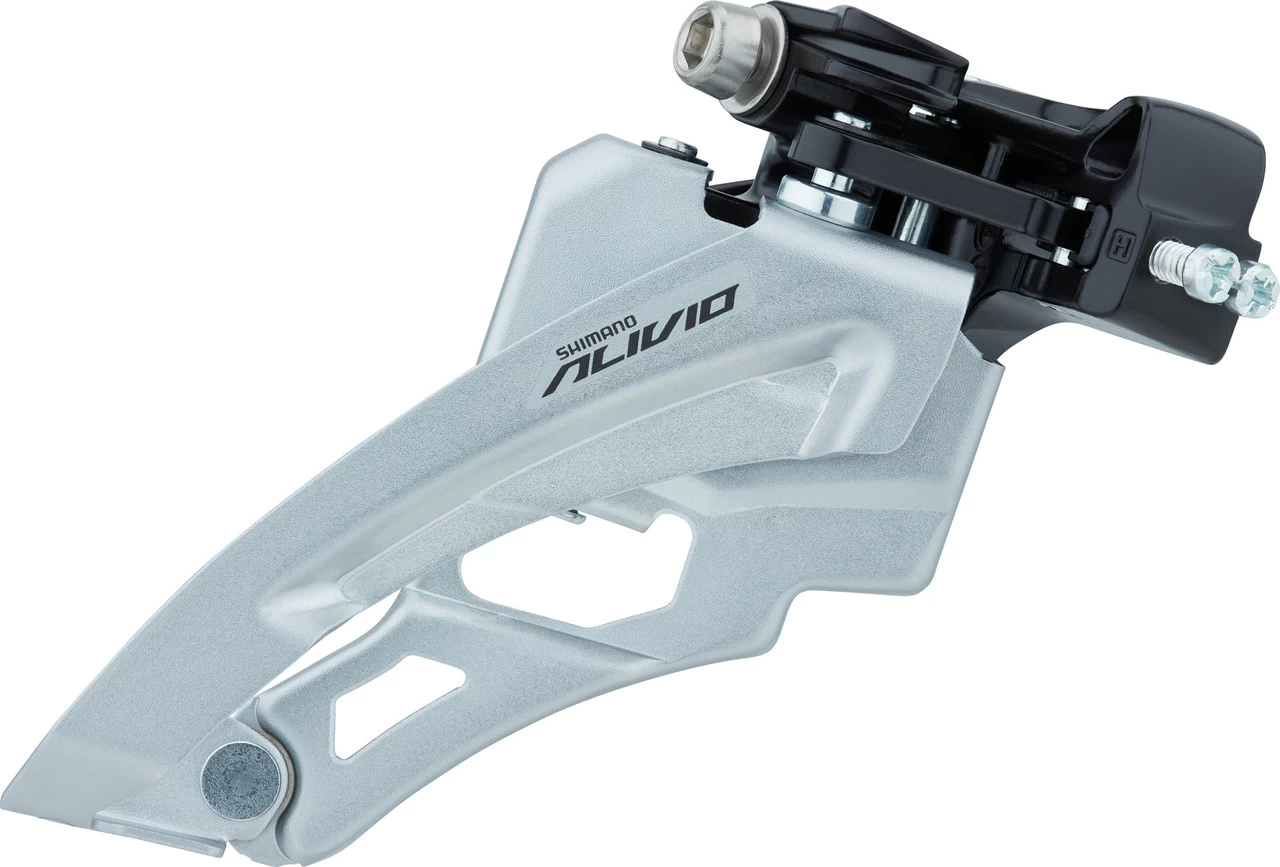

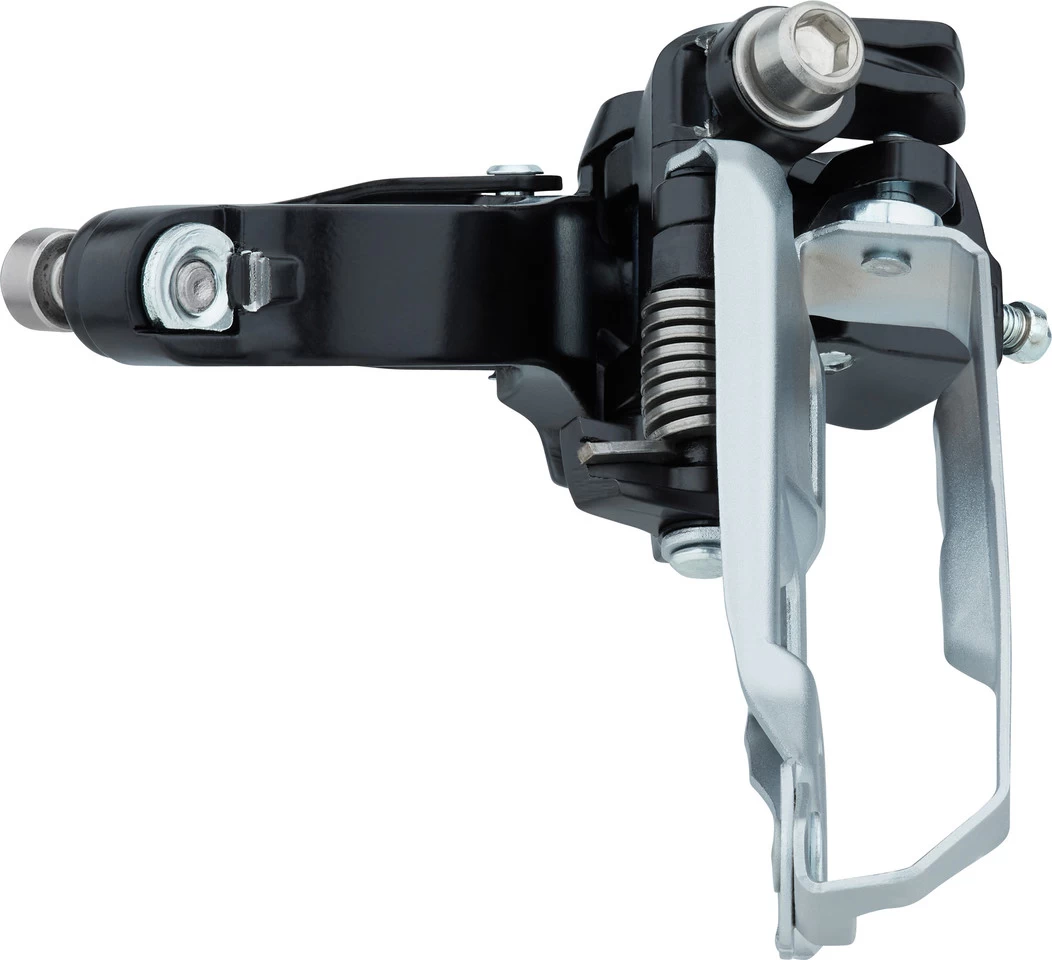

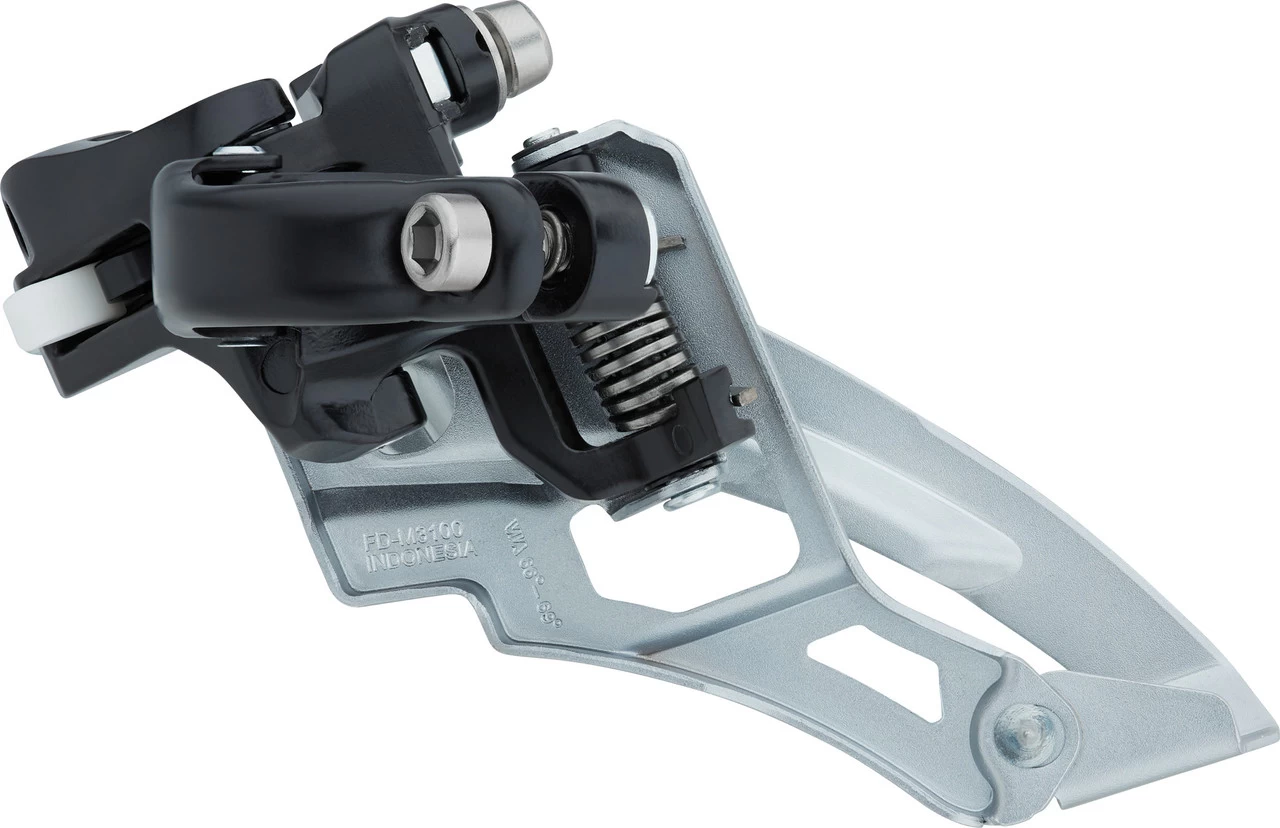

Shimano FD-M3100 is a front derailleur from the Alivio series for mountain bikes with 3×9-speed drivetrain. It has been equipped with the Side-Swing construction, which provides improved cable routing and smooth shifting performance with lower operating forces. In addition, there is the increased capacity of 18 teeth, which allows large chainrings with 40 teeth, and the increased clearance, which makes this front derailleur suitable for modern bikes with wide tyres, full suspension and short chainstays. FD-M3100 is made of steel and weight-saving aluminium and is attached to the frame via a medium-height clamp.
Specifications:Series:Alivio M3100Application:All Mountain, Cross CountryGearing:3x (combined w/ 9-speed)Chainstay Angle:66 – 69°Chainline:50 mmChainring Size (max.):40-toothCapacity:18-toothDifference Between Large & Middle Chainring:10-toothCable Routing:front pullMovement:Side-SwingMount:Mid ClampClamp Diameter:34.9 mm w/ adapter 31.8 mm / 28.6 mmCompatibility:9-speed chains (e.g. CN-HG53)Technical Information:Outer Body Material:steelInner Body Material:AluminiumCage Material:steelCompatibility:MTB 3×9-speed:
Shifter:SL-M590-L, SL-M4000-L, SL-M3100-L, SL-M3000-L, SL-M2010-L, SL-M2000-L, SL-M370-L, ST-M4050-L, ST-M3050-L, ST-M4000-L, ST-T4000-L, ST-T3000-L, ST-M370-L, ST-EF65-L2, ST-EF65-L4, ST-EF510-L2A, ST-EF500-L2A, ST-EF500-L4A, ST-EF505-LCrank:FC-M4050, FC-MT300, FC-MT210-3, FC-MT101, FC-M4000, FC-M3000-8, FC-M3000, FC-M2000, FC-MT100 (22-30-40 t)Chain:CN-HG93, CN-HG53Tyre Width:up to 2.3″Features:improved cable routing, smooth running and problem-free operation thanks to Side-Swingextra large capacity for 3-speed cranksets with 22-30-40 tsmooth, quiet, powerful shiftinggreater clearance reduces chain dragging on full-suspension bikescompatible with wide rims and tyres4 joint bushingsvarnished parallelogram, lightly chrome-platedManufacturer Number:E-FDM3100MX6

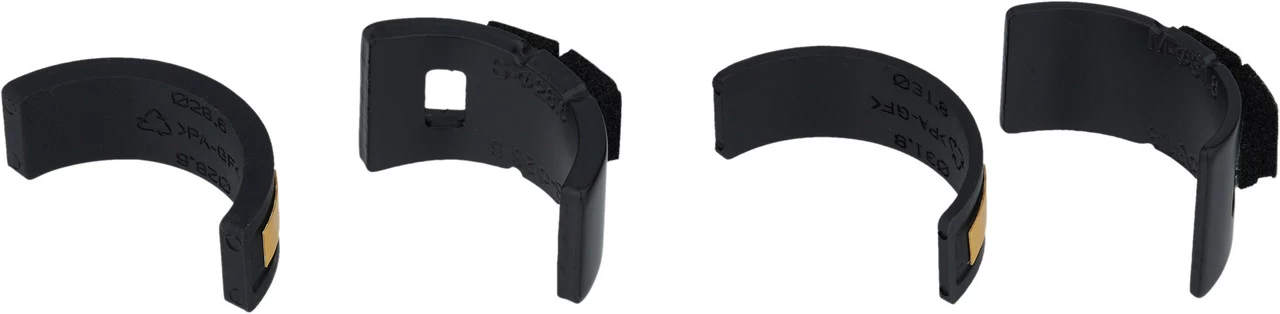

Contents:1 x Shimano Alivio FD-M3100 front derailleur1 x 28.6 mm adapter1 x 31.8 mm adapter
