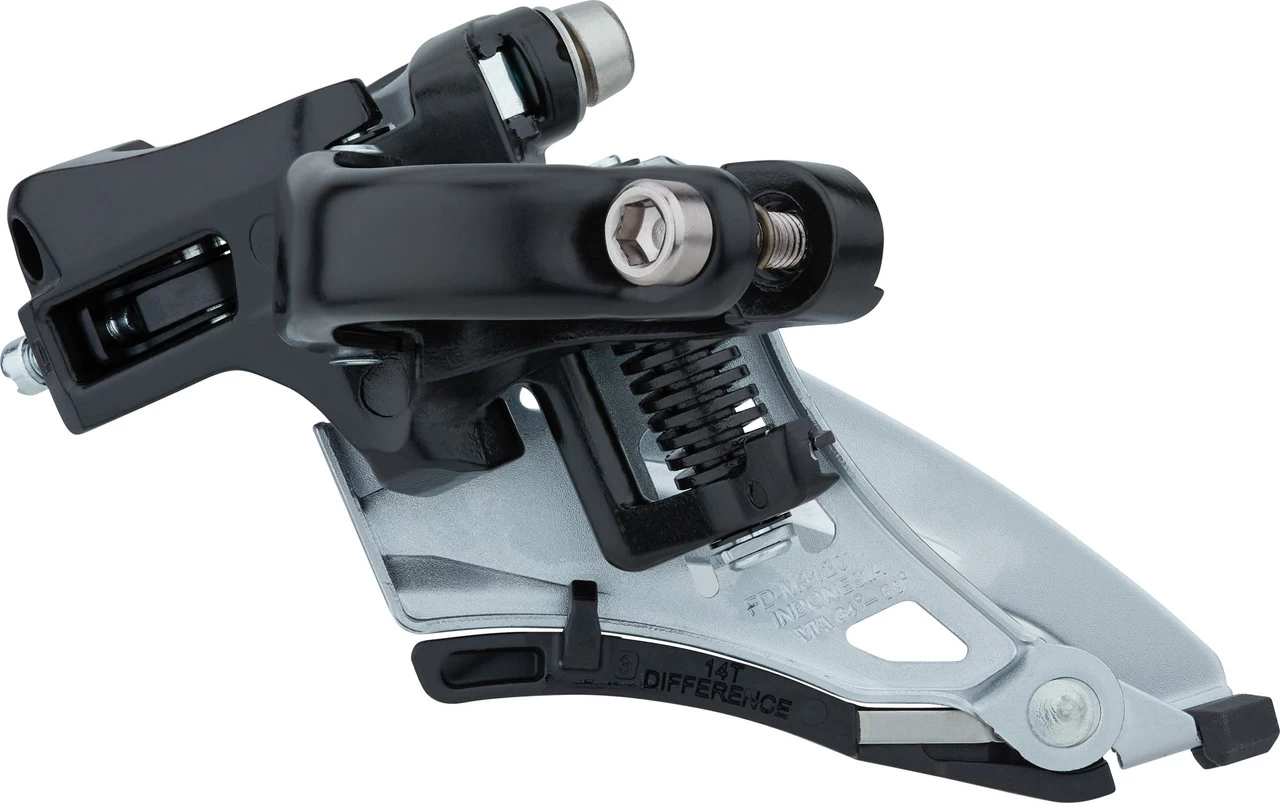

Shimano Alivio FD-M3120 2-/9-speed Front Derailleur

The Alivio Front Derailleur FD-M3120 by Shimano – Side-Swing for 2×9-speed
Shimano FD-M3120 is a front derailleur from the Alivio series for mountain bikes with 2×9-speed drivetrain. The version for medium-height clamp mounting is only compatible with a conventional chainline of 48.8 mm, while the Direct Mount and E-Type versions are also suitable for a chainline of 51.8 mm, which is 3 mm further out. The front derailleur has been equipped with the Side-Swing construction, which provides improved cable routing and smooth shifting performance with lower operating forces. In addition, there is the increased capacity of 14 teeth, which allows large chainrings with 36 teeth, and the increased clearance, which makes this front derailleur suitable for modern bikes with wide tyres, full suspension and short chainstays. FD-M3120 is made of steel and weight-saving aluminium.
Specifications:Series:Alivio M3100Application:All Mountain, Cross CountryGearing:2x (combined w/ 9-speed)Chainstay Angle:64 – 69°Chainline:48.8 mm / 51.8 mm (not for Mid Clamp)Chainring Size (max.):36-toothCapacity:14-toothCable Routing:front pullMovement:Side-SwingMount:mid clamp, E-Type* (bottom bracket mount, low-direct), direct mount (high-direct)Clamp Diameter:34.9 mm w/ adapter 31.8 mm / 28.6 mmCompatibility:9-speed chains (e.g. CN-HG53)
* The frame must be aligned for E-Type, a conversion with an E-Type bracket is not possible.
Technical Information:Outer Body Material:steelInner Body Material:AluminiumCage Material:steelCompatibility:MTB 2×9-speed:
Shifter:SL-M4010-L, SL-M3100-2L, SL-M3010-L, SL-M2010-2LCrank:
Mid Clamp: FC-MT210-2 (22-36 T)Direct Mount / E-Type: FC-M4050-B2, FC-MT210-B2, FC-M3000-B2Chain:CN-HG93, CN-HG53Tyre Width:up to 2.3″Features:improved cable routing, smooth running and problem-free operation thanks to Side-Swingextra large capacity for 2-speed cranksets with 22-36 Tsmooth, quiet, powerful shiftinggreater clearance reduces chain dragging on full-suspension bikescompatible with wide rims and tyres4 joint bushingsvarnished parallelogram, lightly chrome-platedMid-Clamp version for wider chainline available separatelyManufacturer Numbers:mid clamp / side-swing / front-pull:E-FDM3120MX4direct mount / side-swing / front-pull:E-FDM3120D4E-type / side-swing / front-pull:E-FDM3120E4Contents:1 x Shimano Alivio FD-M3120 front derailleur1 x 28.6 mm adapter (only clamp model)1 x 31.8 mm adapter (only clamp model)
