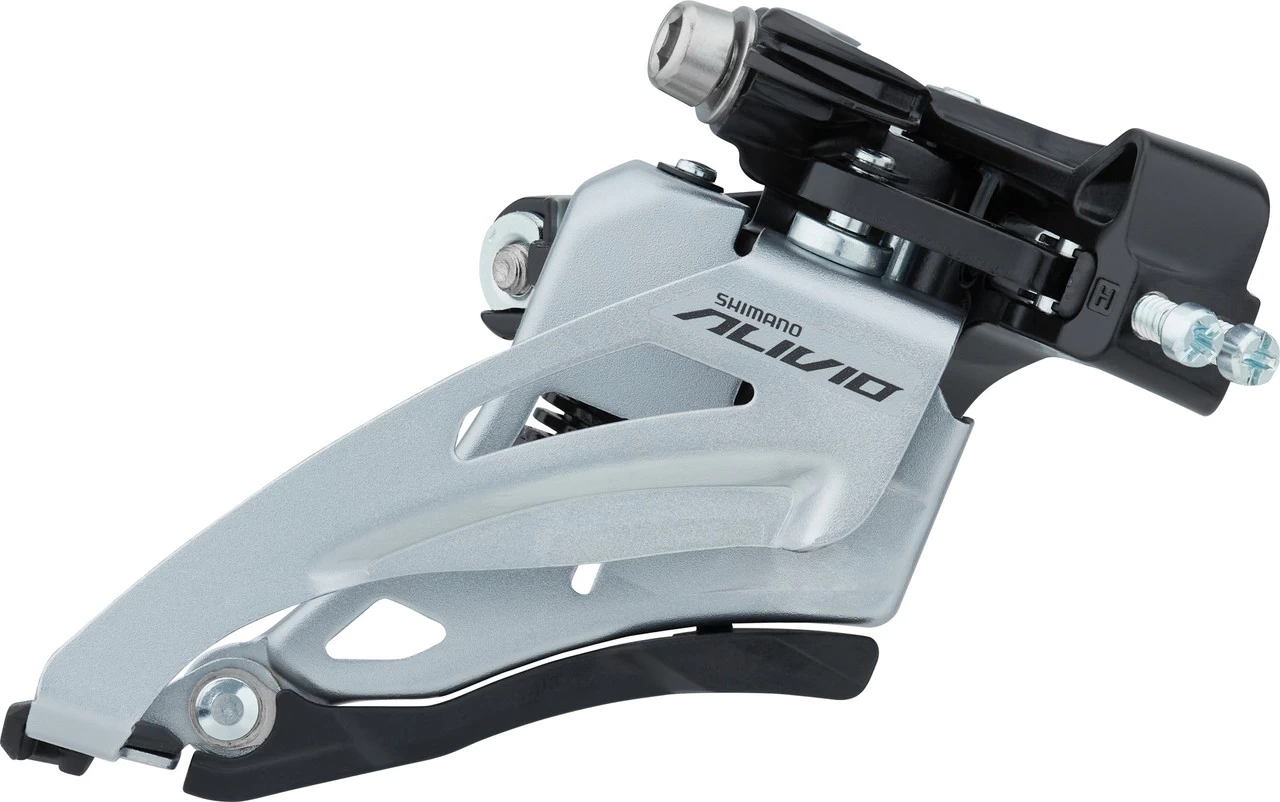

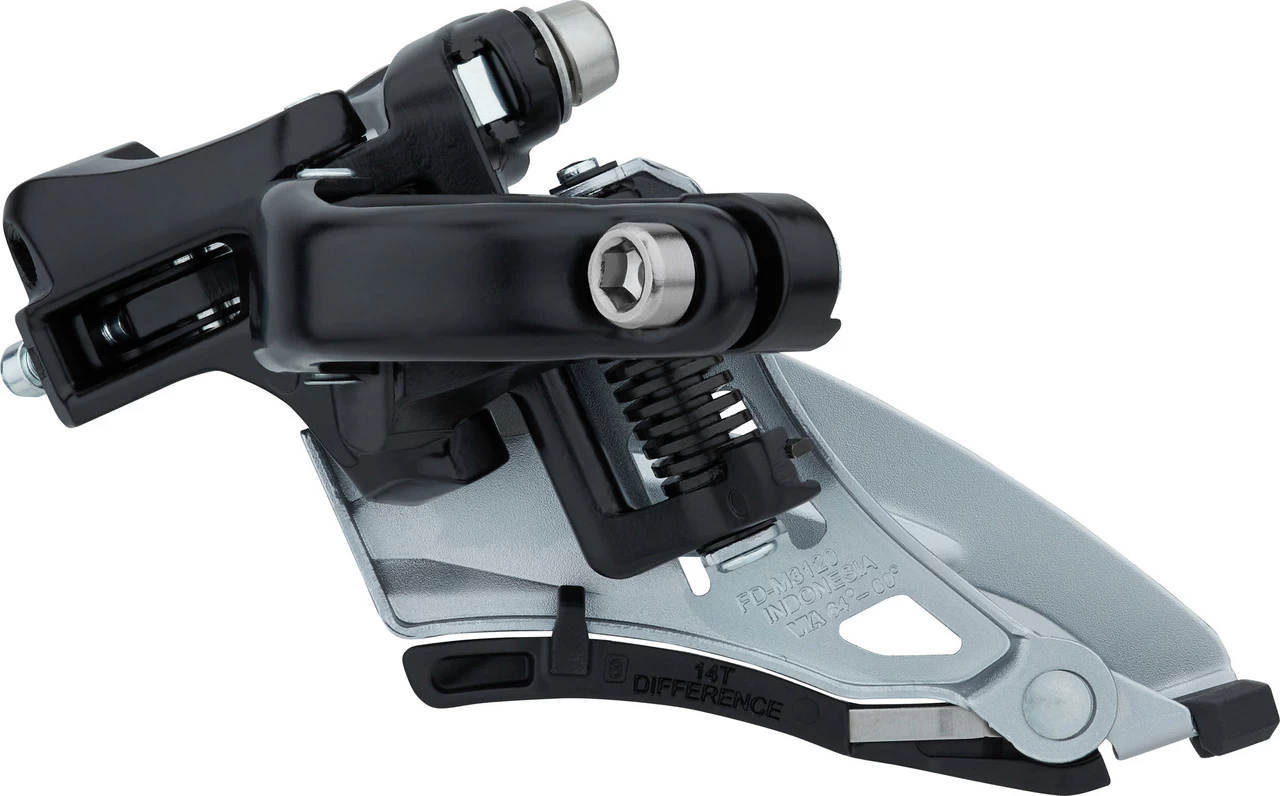

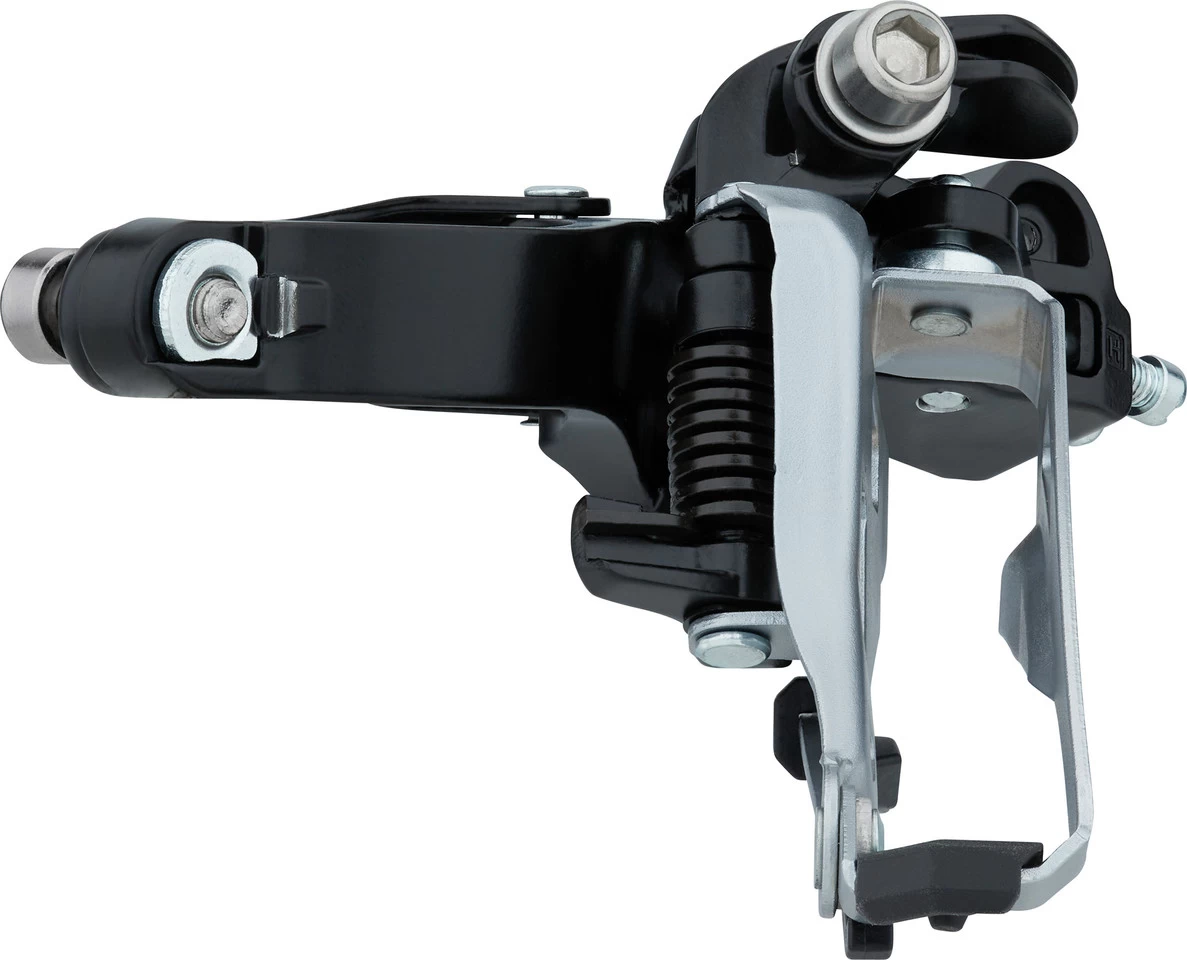

Shimano Alivio FD-M3120-B 2-/9-speed Front Derailleur

The Alivio Front Derailleur FD-M3120-B by Shimano – Clamp version for wider chainline
The Shimano FD-M3120-B from the Alivio series is a front derailleur for medium-high clamp mounting, which is suitable for mountain bikes with 2×9-speed drivetrains and a chainline of 51.8 mm, which is 3 mm further out. It has been equipped with the Side-Swing construction, which provides improved cable routing and smooth shifting performance with lower operating forces. In addition, there is the increased capacity of 14 teeth, which allows large chainrings with 36 teeth, and the increased clearance, which makes this front derailleur suitable for modern bikes with wide tyres, full suspension and short chainstays. FD-M3120-B is made of steel and weight-saving aluminium.
Specifications:Series:Alivio M3100Application:All Mountain, Cross CountryGearing:2x (combined w/ 9-speed)Chainstay Angle:64 – 69°Chainline:51.8 mmChainring Size (max.):36-toothCapacity:14-toothCable Routing:front pullMovement:Side-SwingMount:Mid ClampClamp Diameter:34.9 mm w/ adapter 31.8 mm / 28.6 mmCompatibility:9-speed chains (e.g. CN-HG53)Technical Information:Outer Body Material:steelInner Body Material:AluminiumCage Material:steelCompatibility:MTB 2×9-speed:
Shifter:SL-M4010-L, SL-M3100-2L, SL-M3010-L, SL-M2010-2LCrank:FC-M4050-B2, FC-MT210-B2, FC-M3000-B2Chain:CN-HG93, CN-HG53Tyre Width:up to 2.3″Features:Mid-Clamp version of the FD-M3120 for wider chainlineimproved cable routing, smooth running and problem-free operation thanks to Side-Swingextra large capacity for 2-speed cranksets with 22-36 Tsmooth, quiet, powerful shiftinggreater clearance reduces chain dragging on full-suspension bikescompatible with wide rims and tyres4 joint bushingsvarnished parallelogram, lightly chrome-platedManufacturer Number:E-FDM3120MBX4

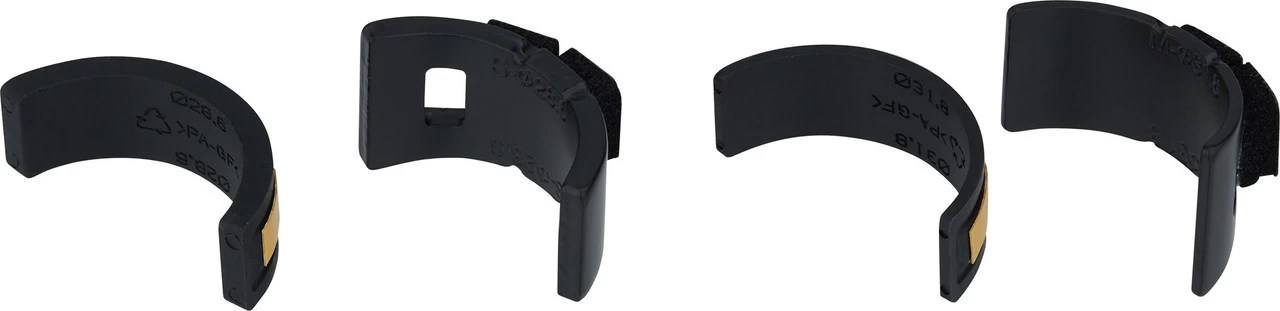

Contents:1 x Shimano Alivio FD-M3120-B front derailleur1 x 28.6 mm adapter1 x 31.8 mm adapter
