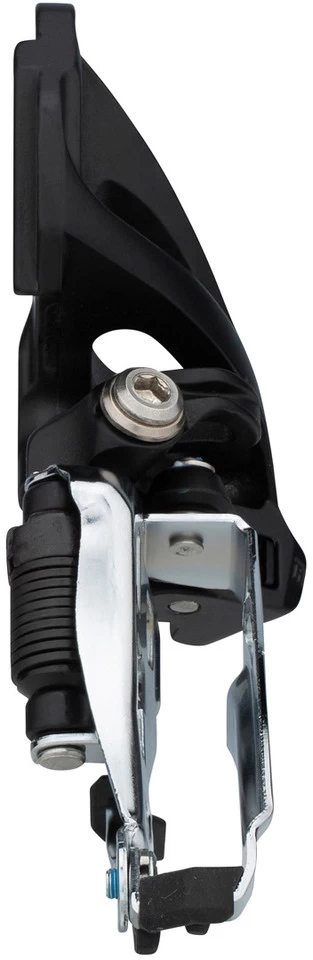

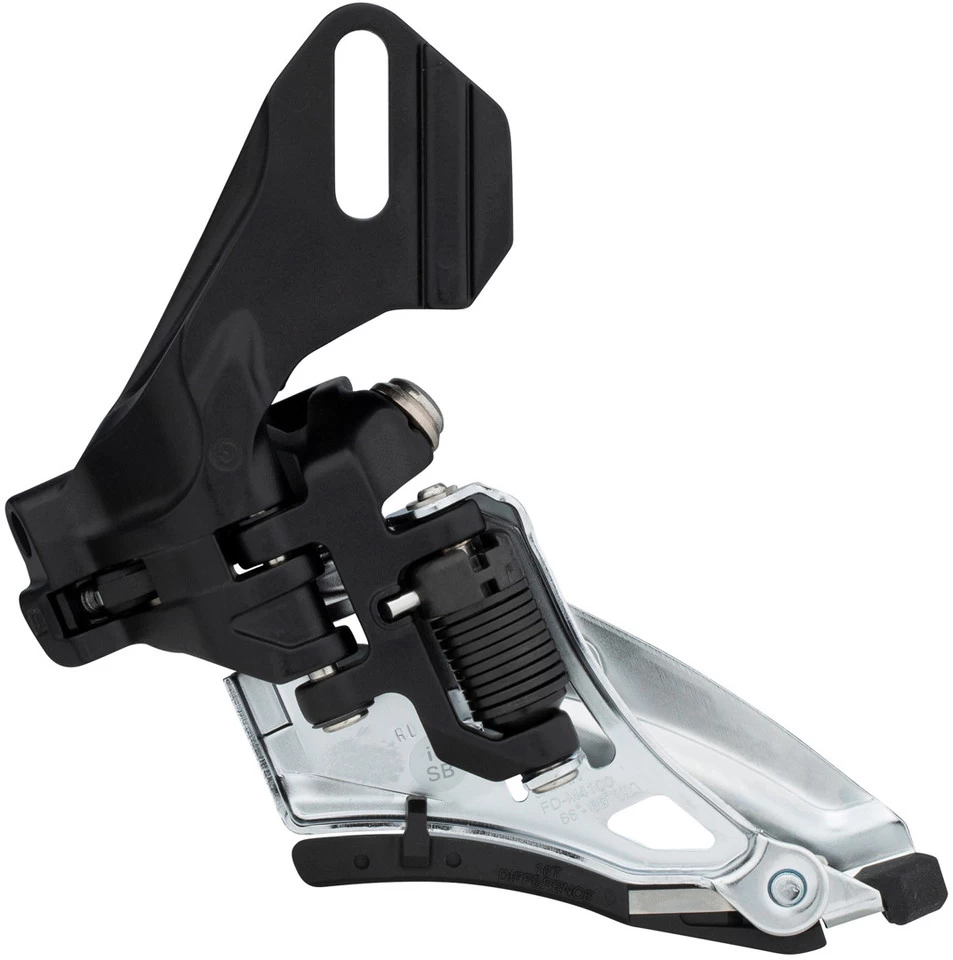

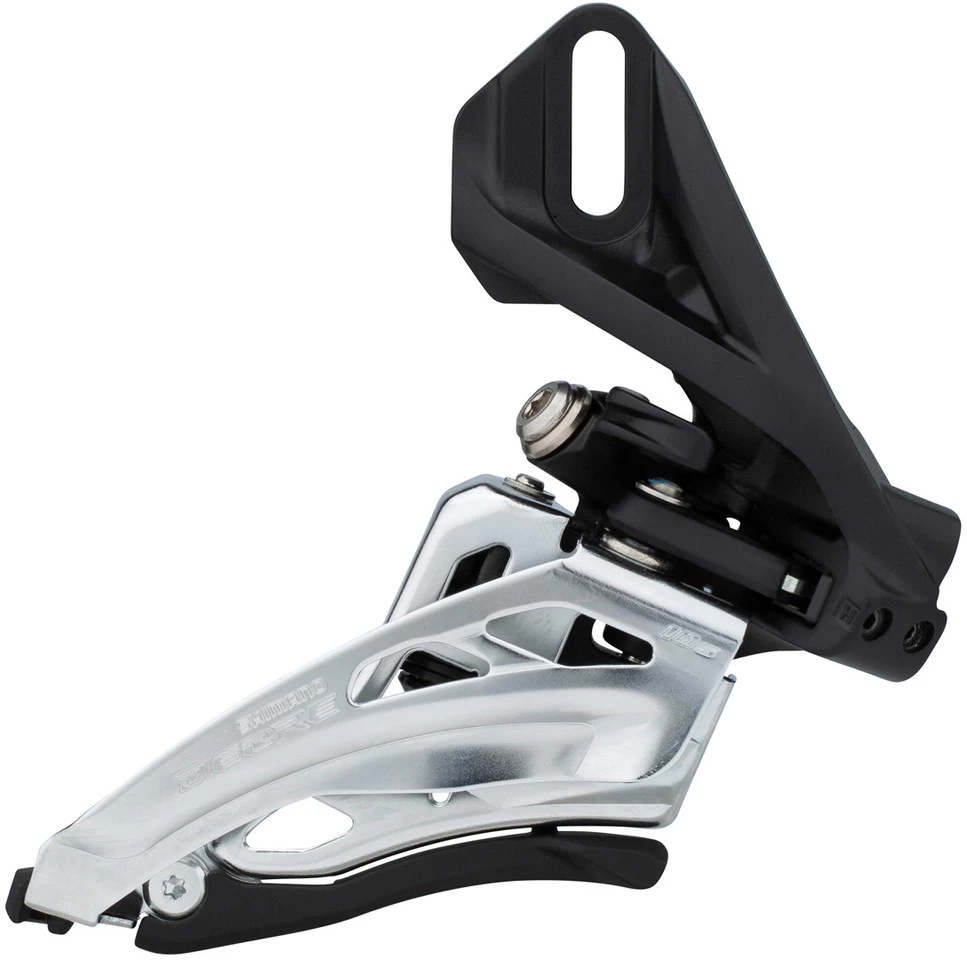

Shimano Deore FD-M4100 2-/10-speed Front Derailleur

Shimano Deore front derailleur FD-M4100 – side-swing construction for 2×10-speed
The Shimano Deore FD-M4100 front derailleur has proven itself in 2×10-speed drivetrains in MTB or City & Touring applications through its impeccable function. This is due to the side-swing design, which provides greater clearance and more shifting performance with less operating force. The front derailleur is designed for a large chainring with a maximum of 36 teeth, and the difference between the chainrings can be up to 10 teeth. It covers both a conventional chainline of 48.8 mm as well as a chainline 3 mm further out. There is a choice of bottom bracket mounting (E-Type), direct frame mounting (direct mount) or clamp mounting with a mid-height clamp (mid clamp).
Specifications:Series:Deore M4100Application:All Mountain, City & TouringGearing:2x (combined w/ 10-speed)Chainstay Angle:66-69°Chainline:48.8 mm / 51.8 mmChainring Size (max.):36-toothCapacity:10-toothCable Routing:front pullMovement:Side-SwingMount:mid clamp, E-Type* (bottom bracket mount, low-direct), direct mount (high-direct)Clamp Diameter:34.9 mm w/ adapter 31.8 mm / 28.6 mmCompatibility:HG-X 10-speed chains
Frames must be made for E-type mounts, retrofitting an E-type retaining plate is not possible.
Technical Information:Outer Body Material:composite material (GFRP), steelInner Body Material:AluminiumCage Material:steelCompatibility:MTB 2×10-speed:
Shifter:SL-M7000, SL-M6000, SL-M5100, SL-M610Crank:FC-M6000-2, FC-M6000-B2, FC-M4100-2, FC-M4100-B2, FC-MT500-2, FC-MT500-B2Chain:CN-HG95, CN-HG54Tyre Width:up to 2.3″Features:smooth shifting due to the side-swing mechanismreduced chain grinding on full suspension bikescompatible with B-cranks with 3 mm outer chainlinemore tyre clearance4 joint bushingspainted inner parallelogram, plated cage platesManufacturer Numbers:mid clamp / side-swing / front-pull:I-FDM4100MX4direct mount / side-swing / front-pull:I-FDM4100D4E-type / side-swing / front-pull:I-FDM4100E4Contents:1 x Shimano Deore FD-M4100 front derailleur1 x 28.6 mm adapter (only clamp model)1 x 31.8 mm adapter (only clamp model)
