Shimano Deore FD-M6000 3-/10-speed Front Derailleur

The Deore FD-M6000 front derailleur by Shimano – side swing with mid-clamp option

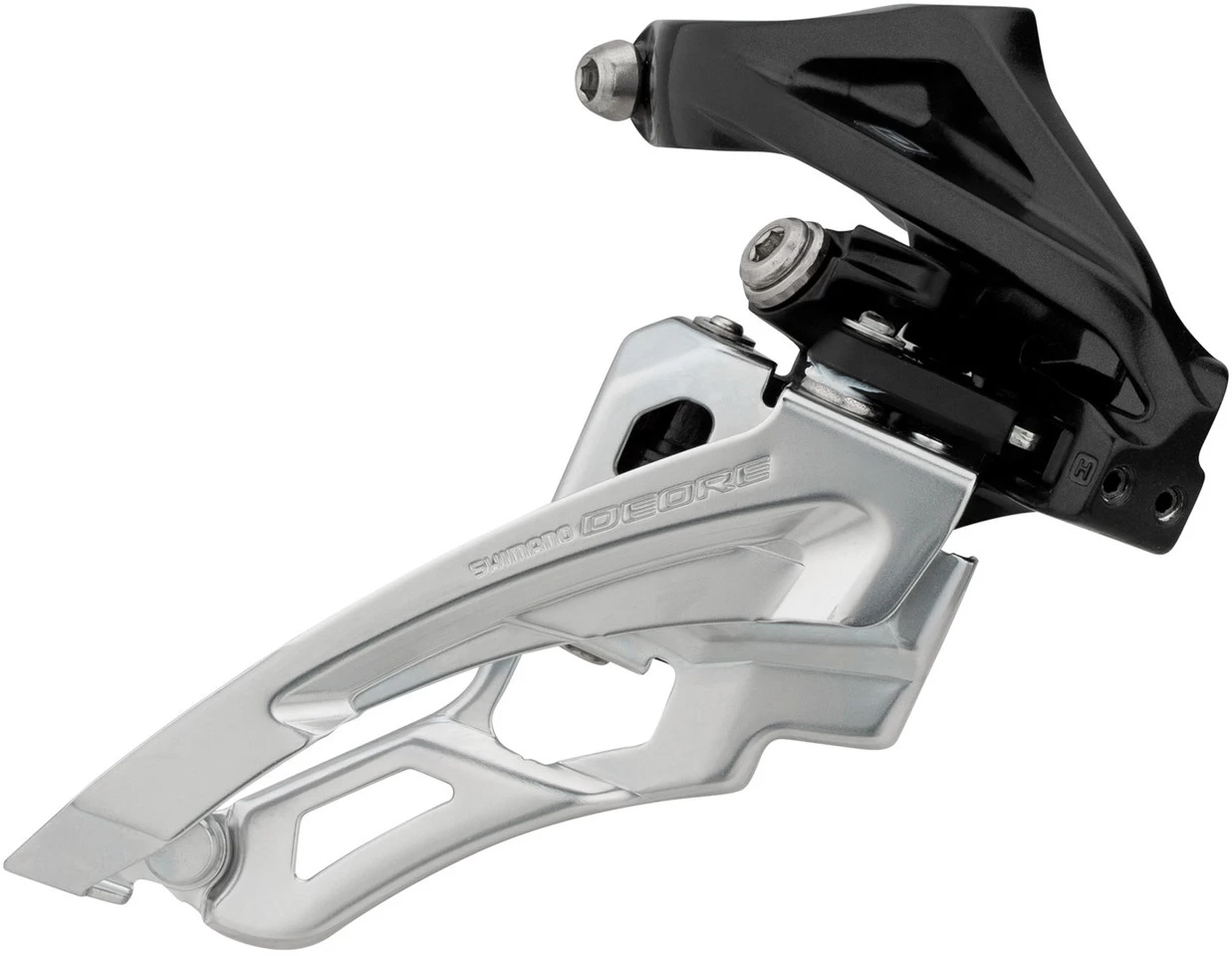

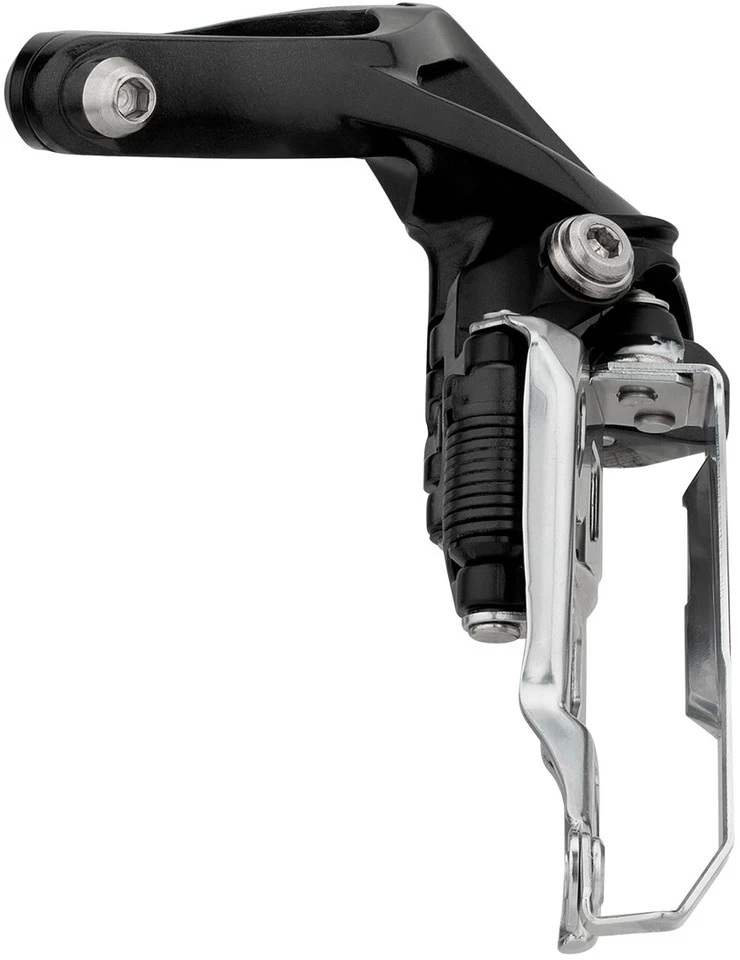

The Shimano Deore FD-M6000 3x front derailleur for 10-speed MTB drivetrains features smooth chainring changes and an innovative side-swing construction for more tyre clearance. The associated front-pull cable routing provides more shifting efficiency, higher performance and lower operating forces. The mounting options are not only high clamp, low clamp, E-type and direct mount, for the first time also the mid-clamp option is used. This optimises the weight-function ratio and improves the optics.
Specifications:Series:Deore M6000Application:All Mountain, Cross CountryGearing:3x (combined w/ 10-speed)Chainstay Angle:66-69°Chainline:50 mmChainring Size (max.):40-42 teethCapacity:18-toothDifference Between Large & Middle Chainring:10-toothCable Routing:front pullMovement:Side-SwingMount:high clamp, low clamp, mid clamp, E-type* (bottom bracket mount, low-direct), direct mount (high-direct)Clamp Diameter:34.9 mm w/ adapter 31.8 mm / 28.6 mmCompatibility:HG-X 10-speed chains
Frames must be made for E-type mounts, retrofitting an E-type retaining plate is not possible.
Technical Information:Outer Body Material:composite material (GFRP), steelInner Body Material:AluminiumCage Material:steelCompatibility:MTB 3×10-speed:
Shifter:SL-M7000, SL-M6000, SL-M610Crank:
24-32-42 t: FC-M55222-30-40 t: FC-M7000-10, FC-M622, FC-M523, FC-MT500-3, FC-M6000-3Chain:CN-HG95, CN-HG54Features:smooth shiftingefficient cable routingstable function on full suspension bikespainted parallelogram, plated cage plates4 joint bushingsTechnology:Side-Swing
The Shimano Side-Swing front derailleurs are controlled from the front (Front-Pull), which allows for much more efficient cable routing. This significantly improves shifting performance, especially when shifting to the large chainring – with lower operating forces. Other advantages include increased tyre clearance thanks to the slimmed-down design and noise reduction thanks to the optimised chainstay angle. In addition, Side-Swing technology favours the construction of frames with shorter chainstays, which simplify the control of the bike.

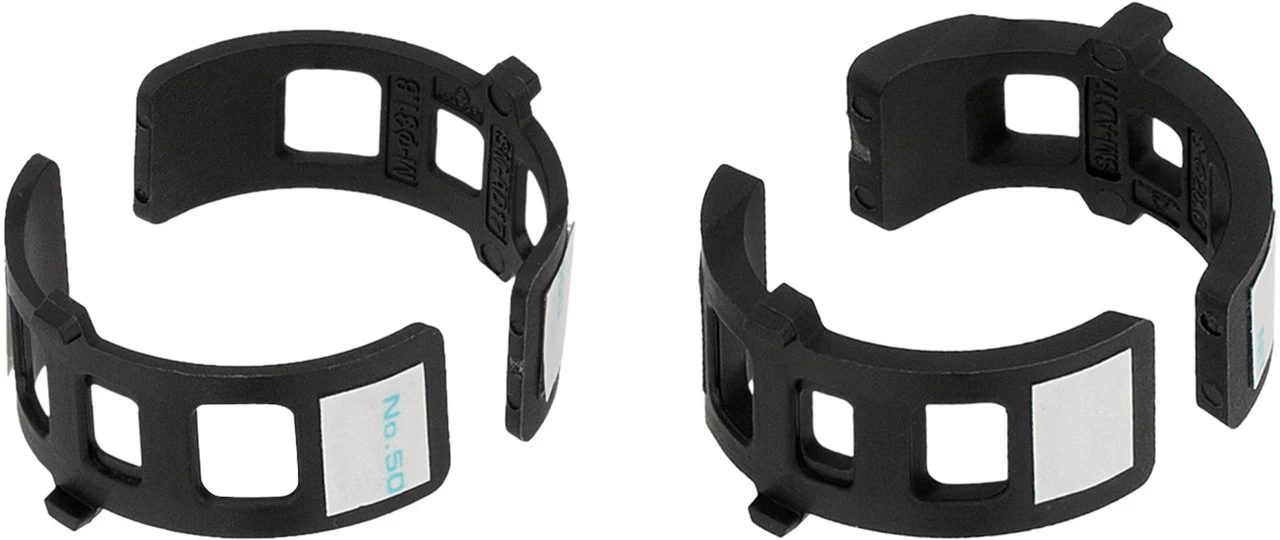

Manufacturer Numbers:high clamp / side-swing / front-pull:I-FDM6000HX6low clamp / side-swing / front-pull:I-FDM6000LX6mid clamp / side-swing / front-pull:I-FDM6000MX6direct mount / side-swing / front-pull:I-FDM6000D6E-type / side-swing / front-pull:I-FDM6000E6Contents:1 x Shimano Deore FD-M6000 front derailleur1 x 28.6 mm adapter (only clamp model)1 x 31.8 mm adapter (only clamp model)
