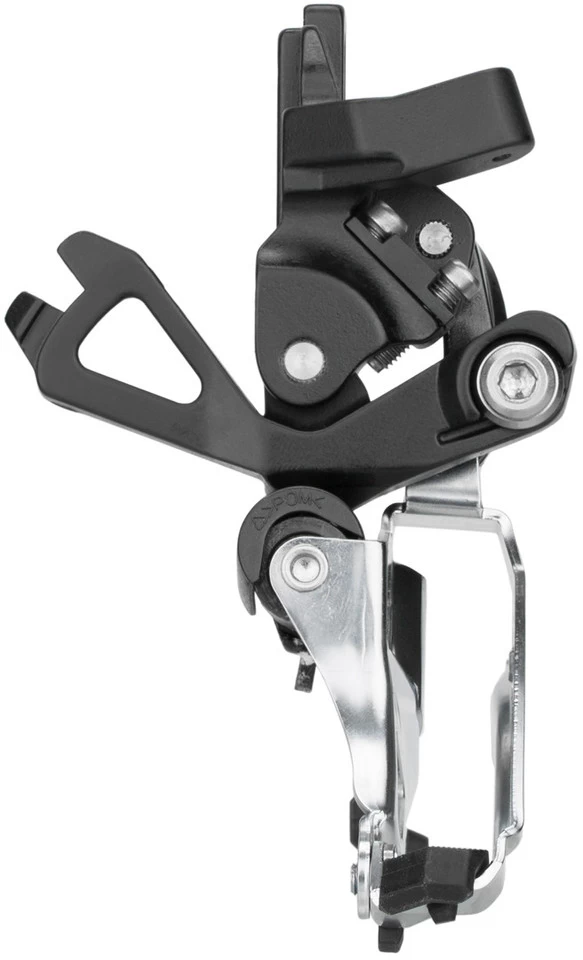

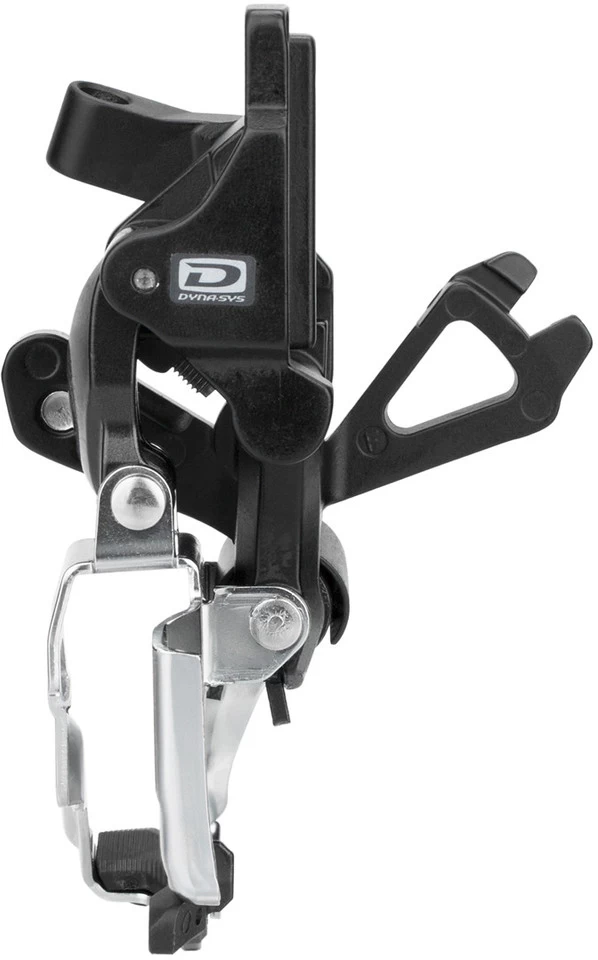

Shimano Deore FD-M6020 / FD-M6025 2-/10-speed Front Derailleur

The Shimano Deore front derailleurs FD-M6020 and FD-M6025 offer a wide range of choices
The Shimano Deore front derailleurs FD-M6020 and FD-M6025 ensure smooth chainring changes in 2×10-speed MTB drivetrains. The FD-M6025 is available with conventional down swing and top swing construction as well as cable routing from below or from both directions. In contrast, the FD-M6020 is a side-swing model with a novel design for even more tyre clearance. The front-pull cable routing ensures maximum efficiency with minimum operating forces. The mounting options are not only high clamp , low clamp, E-type and direct mount, the FD-M6020 for the first time also uses the mid-clamp option. This optimises the weight-function ratio and improves the optics.
Specifications:Series:Deore M6000Application:All Mountain, Cross CountryGearing:2x (combined w/ 10-speed)Chainstay Angle:66-69°Chainline:48.8 mm (clamp), 48.8 mm/51.8 mm (E-type, direct mount)*Chainring Size (max.):34-38 teethCapacity:10-toothCable Routing:front-pull, down-pull, dual-pullMovement:side-swing, down-swing, top-swingMount:high clamp, low clamp, mid clamp, E-type** (bottom bracket mount, low-direct), direct mount (high-direct)Clamp Diameter:34.9 mm w/ adapter 31.8 mm / 28.6 mmCompatibility:HG-X 10-speed chains
* E-type and direct mount versions are compatible with B-cranks with 3 mm outer chainlines.
** FD-M6020: Frames must be made for E-type mounts, retrofitting an E-type retaining plate is not possible.
Technical Information:Outer Body Material:composite material (GFRP)/steel (for side swing), aluminium (for down swing), steel (for top swing)Inner Body Material:AluminiumCage Material:steelCompatibility:MTB 2×10-speed:
Shifter:SL-M7000, SL-M6000, SL-M5100, SL-M610Crank:FC-M6000-2, FC-M6000-B2*, FC-M4100-2, FC-M4100-B2*, FC-MT500-2, FC-MT500-B2*Chain:CN-HG95, CN-HG54
* e-Type and Direct Mount only
Features:smooth shiftingefficient cable routingstable function on full suspension bikespainted parallelogram, plated cage plates2 joint bushings (FD-M6025-E/L) or 4 joint bushings (FD-M6020) or 8 joint bushings (FD-M6025-E/H)Technology:Side-Swing
The Shimano Side-Swing front derailleurs are controlled from the front (Front-Pull), which allows for much more efficient cable routing. This significantly improves shifting performance, especially when shifting to the large chainring – with lower operating forces. Other advantages include increased tyre clearance thanks to the slimmed-down design and noise reduction thanks to the optimised chainstay angle. In addition, Side-Swing technology favours the construction of frames with shorter chainstays, which simplify the control of the bike.
Manufacturer Numbers:high clamp / down-swing / dual-pull:I-FDM6025HX6low clamp / top-swing / down-pull:I-FDM6025LX6high clamp / side-swing / front-pull:I-FDM6020HX6low clamp / side-swing / front-pull:I-FDM6020LX6mid clamp / side-swing / front-pull:I-FDM6020MX6direct mount / down-swing / dual-pull:I-FDM6025D6direct mount / side-swing / front-pull:I-FDM6020D6E-type / top-swing / down-pull:I-FDM6025E6E-type / side-swing / front-pull:I-FDM6020E6Contents:1 x Shimano Deore FD-M6020 front derailleur or FD-M60251 x 28.6 mm adapter (only clamp model)1 x 31.8 mm adapter (only clamp model)
