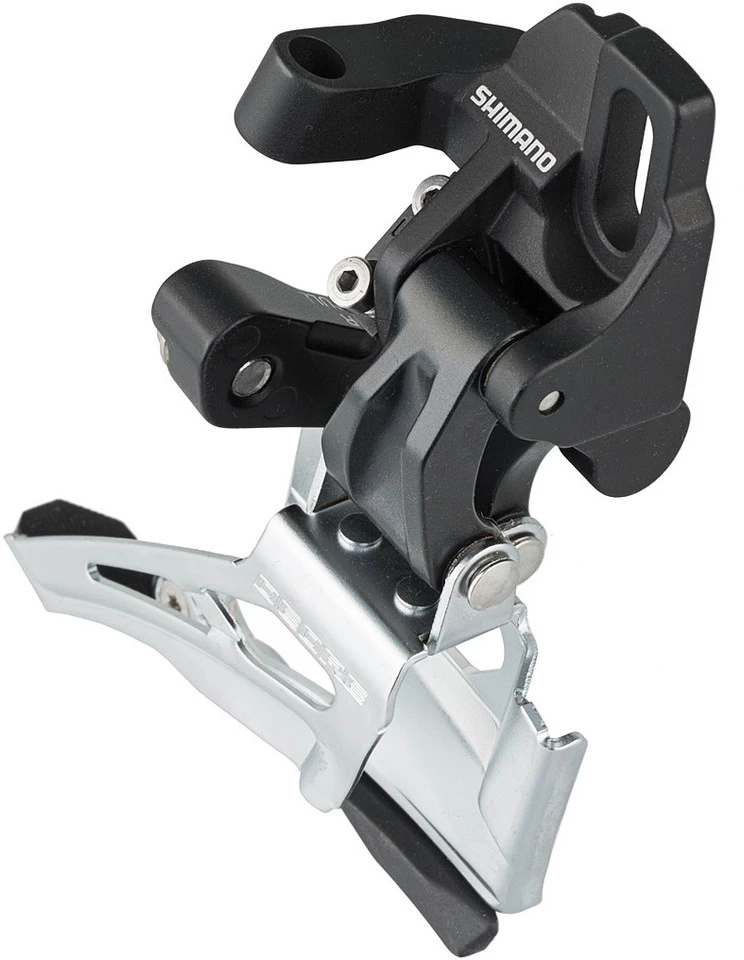

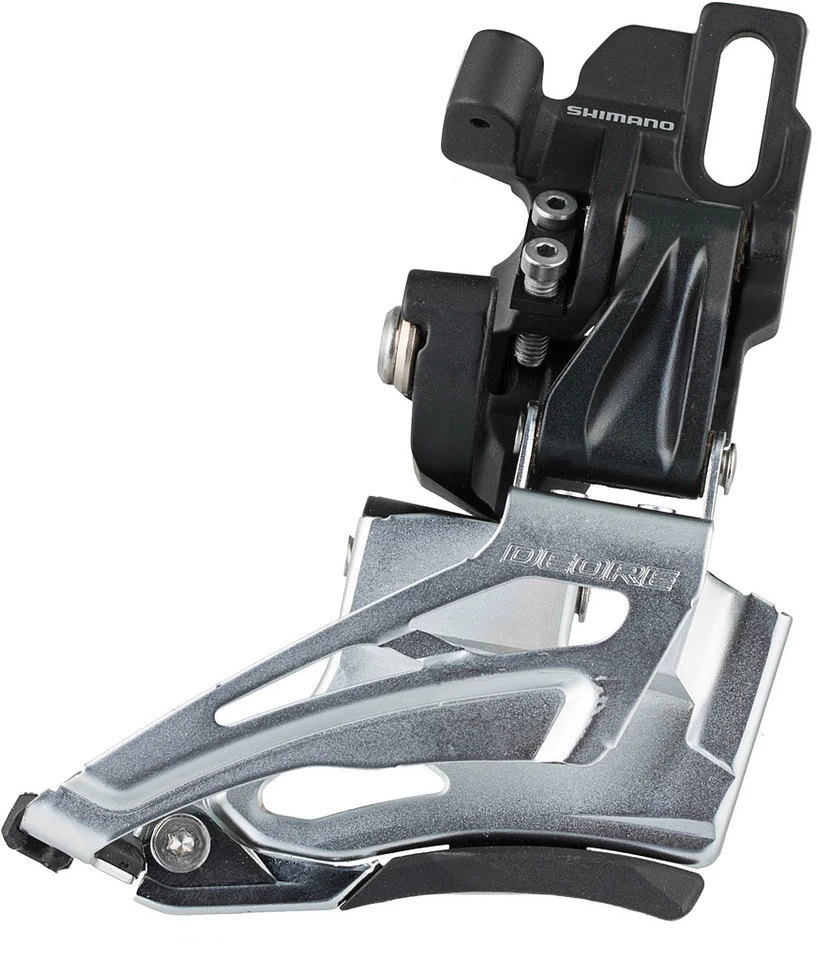

Shimano Deore FD-M618 2-/10-speed Front Derailleur

The Deore front derailleur FD-M618 by Shimano – 14 tooth capacity
Shimano has launched the FD-M618 Deore front derailleur specifically for use with 2×10-speed FC-M617 and FC-M677 cranks, which have a 22-36 T gradation. It is a model with traditional design (top-swing or down-swing) and classic pull from above (top-pull), from below (down-pull) or from both directions (dual-pull). All mounting options from clamp to direct mount to bottom bracket are available. Dyna-Sys technology ensures seamless shifting and efficient progress.
Specifications:Series:Deore M610Application:All Mountain, Cross CountryGearing:2x (combined w/ 10-speed)Chainstay Angle:66-69°Chainline:48.8 mmChainring Size (max.):36-38 teethCapacity:14-toothCable Routing:top-pull, down-pull, dual-pullMovement:top-swing, down-swingMount:high clamp, low clamp, E-type* (bottom bracket mount, low-direct), direct mount (high-direct)Clamp Diameter:34.9 mm w/ adapter 31.8 mm / 28.6 mmCompatibility:HG-X 10-speed chains
Frames must be made for E-type mounts, retrofitting an E-type retaining plate is not possible.
Technical Information:Outer Body Material:aluminium (FD-M618-H, FD-M618-D), steel (FD-M618-L, FD-M618-E)Inner Body Material:AluminiumCage Material:steelCompatibility:MTB 2×10-speed:
Shifter:SL-M7000, SL-M6000, SL-M5100, SL-M610Crank:
24-38 T: FC-M627, FC-M61722-36 T: FC-M627, FC-M627-B*, FC-M617, FC-M617-B2*Chain:CN-HG95, CN-HG54
* e-Type and Direct Mount only
Features:conventional front derailleurimproved shifting stabilityreliable shifting at the front in different terrainsmore traction for bikes with long travel without chafing the chain” Rider Tuned” : wider and more robust ratio gradationflat front derailleur plate suitable for wide gear stepsquiet operation without chain rubbing noisescompatible with traditional mounting options2 or 8 joint bushings depending on versionpainted parallelogram, bead blasted cage platesE-type and direct mount versions compatible with B cranks with 3 mm outer chainlineTechnology:Dyna-Sys
Dyna-Sys is the name of the 10-speed shifting system for MTBs from Shimano. It works with closer gear ratios that enable smooth and efficient shifting. Optimised gear combinations maximise propulsion and extend the life of the cassette, chain and chainring.
Manufacturer Numbers:high clamp / down-swing / dual-pull:I-FDM618HX6low clamp / top-swing / down-pull:I-FDM618LX6direct mount / down-swing / dual-pull:I-FDM618D6E-type / top-swing / down-pull:I-FDM618E6Xhigh clamp / down-swing / top-pull:I-FDM618HTX6direct mount / down-swing / top-pull:I-FDM618DT6Contents:1 x Shimano Deore FD-M618 front derailleur1 x 28.6 mm adapter (only clamp model)1 x 31.8 mm adapter (only clamp model)
