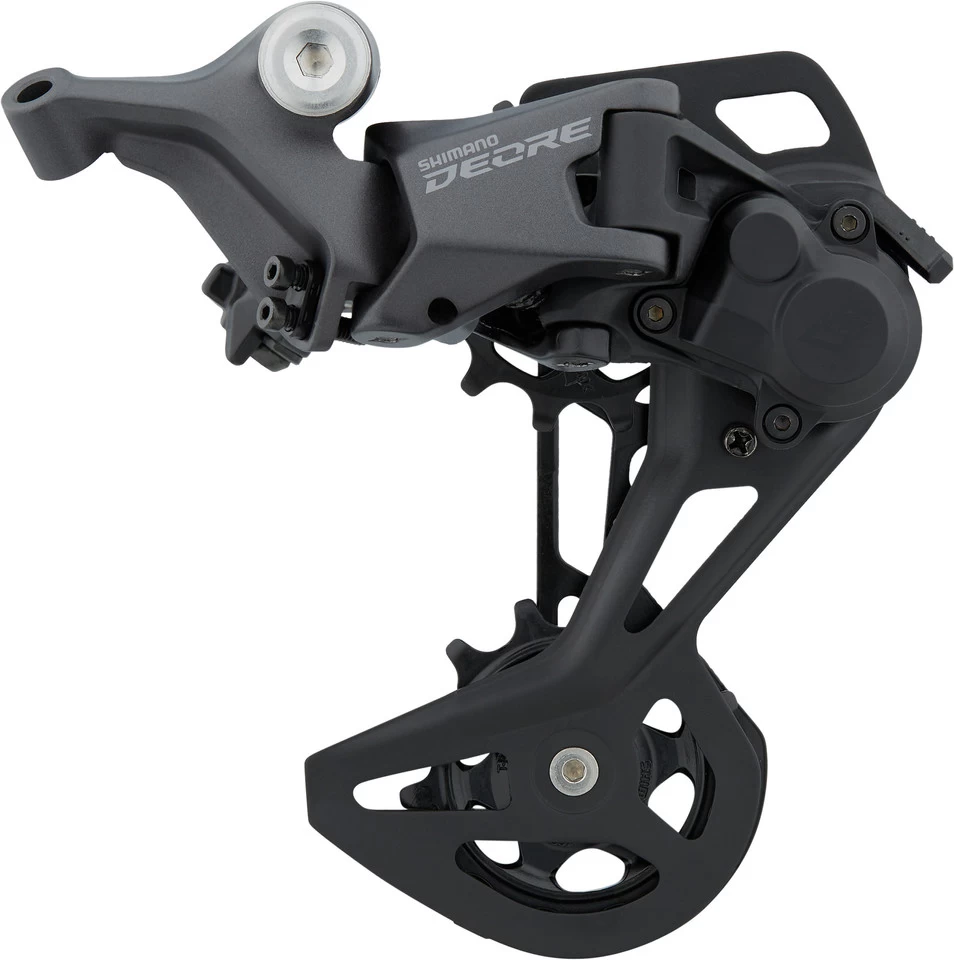

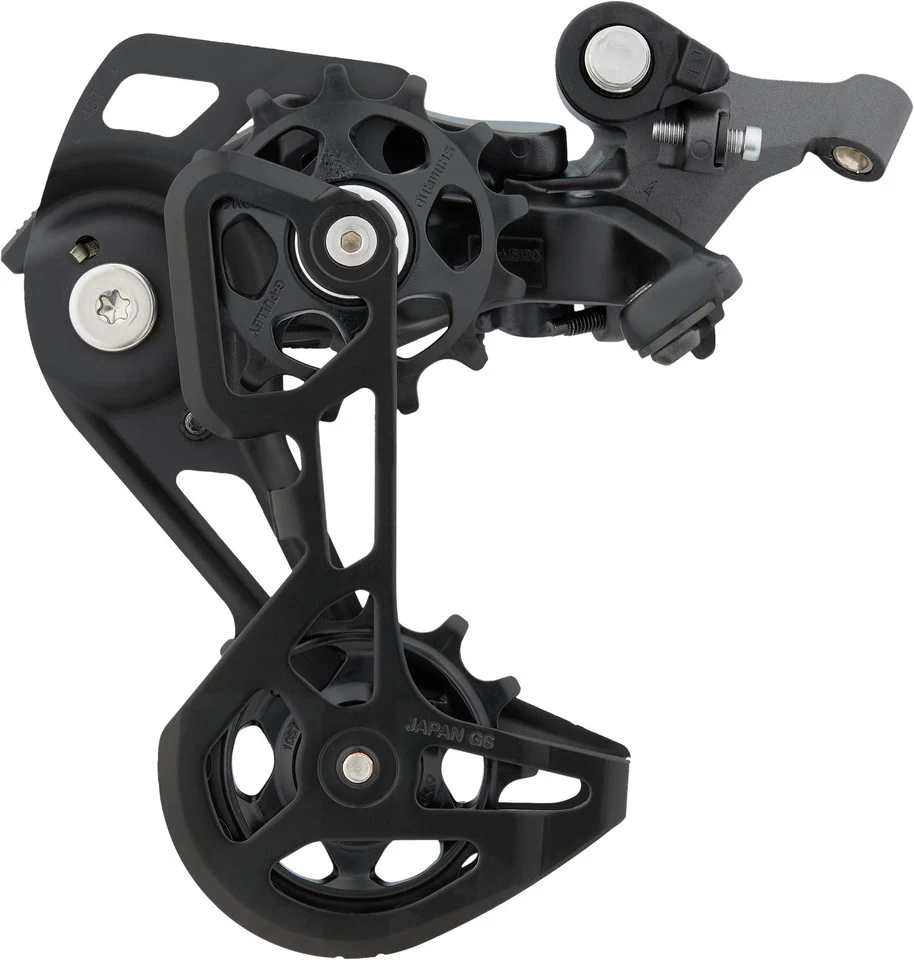

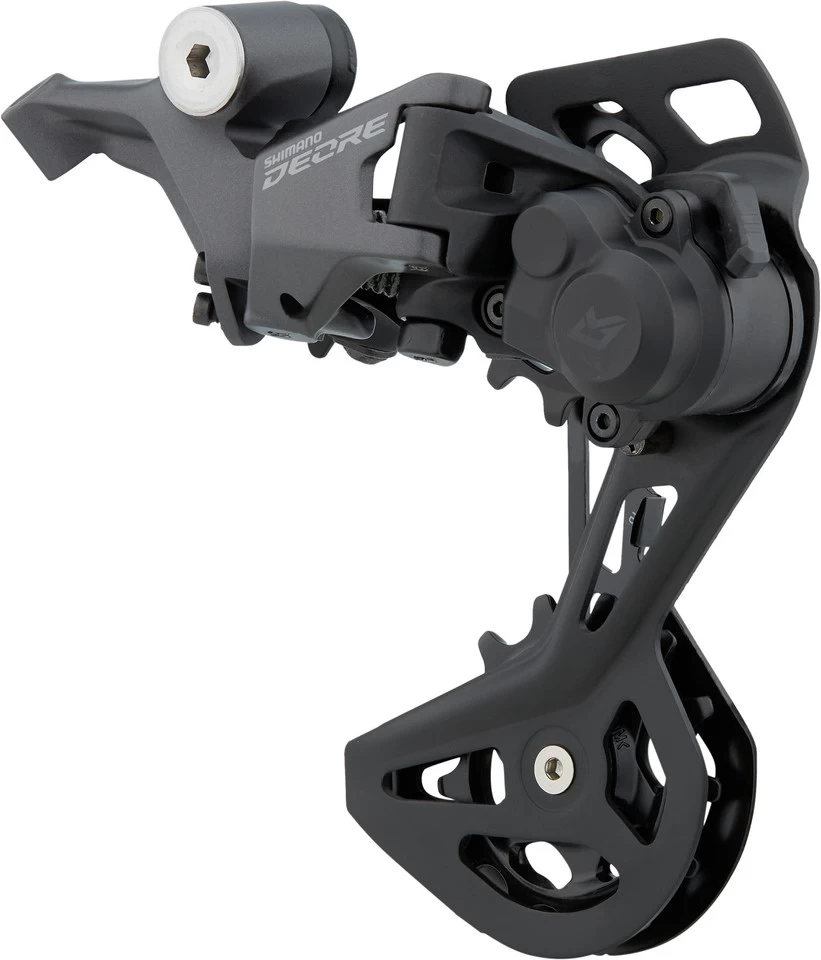

Shimano Deore Linkglide RD-M5130 10-speed Shadow Plus Rear Derailleur

The RD-M5130 Deore Rear Derailleur by Shimano for Linkglide 10-speed Drivetrains
Shimano Deore RD-M5130 is a 10-speed rear derailleur that, in combination with other Linkglide components, provides very smooth, but also very defined gear changes. The Linkglide drivetrain has been specially developed for e-bikes and punishing applications in the touring and MTB sector. The rear derailleur features the tried-and-tested Shadow Plus design, which opens up plenty of scope for off-road riding, and not just because of its low profile. It also prevents chain slap and counteracts chain drop thanks to the built-in stabilizer. The RD-M5130 has a shorter cage and a total capacity of 32 teeth. You can use it to shift a Linkglide cassette with a maximum of 43 teeth. Please note that there is no compatibility with non-Linkglide shifters due to the different cable ratio.
Guidelines for Replacing E-bike Components:Before you replace components on your e-bike, please read through the guidelines for component replacement for CE-marked e-bikes/pedelecs with pedal assistance.
Specifications:Series:Deore M5100 (Linkglide)Application:Touring, City, All MountainGearing:10-speedMount:standardCapacity:32-toothCompatibility:Shimano MTB / Trekking 10-speed (Linkglide)Compatibility – Chains:HG-X 11-speed, CN-LG500Technical Information:Derailleur Pulleys:13-toothOuter Cage Material:steelInner Cage Material:steelOther Materials:aluminium, stainless steel, steel, composite material (GFRP)Compatibility:Linkglide 10-speed:
Shifter:SL-M5130-R10, SL-U6000-10RCassette:CS-LG600-10, CS-LG400-10Chain:CN-LG500, CN-HG601-11, CN-HG701-11, CN-HG901-11, CN-E8000-11E-bike Drivetrain:EP8 EP800 for MTB / TouringFeatures:smooth, defined shifting in the Linkglide systemlow profilechain stabilizer (Shadow+) against chain drops, chain slaps and noiseguide and tension pulley with plain bearingpainted cage plates7 pivot bushings, fluorine-coatedTechnology:Shadow RD+
Shadow Plus rear derailleurs are just as low-profile as Shimano’s Shadow rear derailleurs. In addition, a stabilizer with on/off switch is used to reduce chain slap and thus counteract chain drop. At the same time, this results in a quieter drive. Weight is also saved compared to other chain restraint devices.
Models:short:
Cage Length:GSMax. Largest Sprocket Teeth:43-toothMin. Largest Sprocket Teeth:43-toothMax. Smallest Sprocket Teeth:11-toothMin. Smallest Sprocket Teeth:11-toothMax. Chainring Difference:0-toothTotal Capacity:32-toothManufacturer Number:I-RDM5130GSContents:1 x Shimano Deore RD-M5130 Shadow+ rear derailleur
