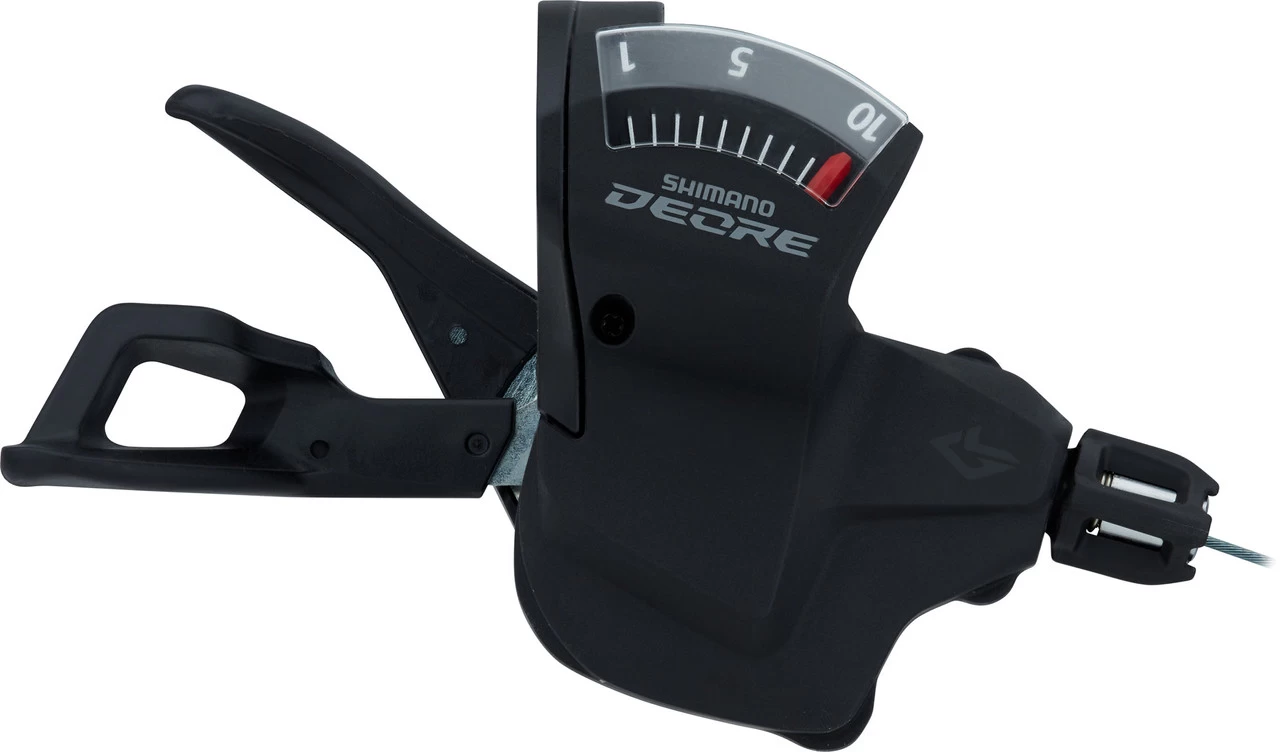

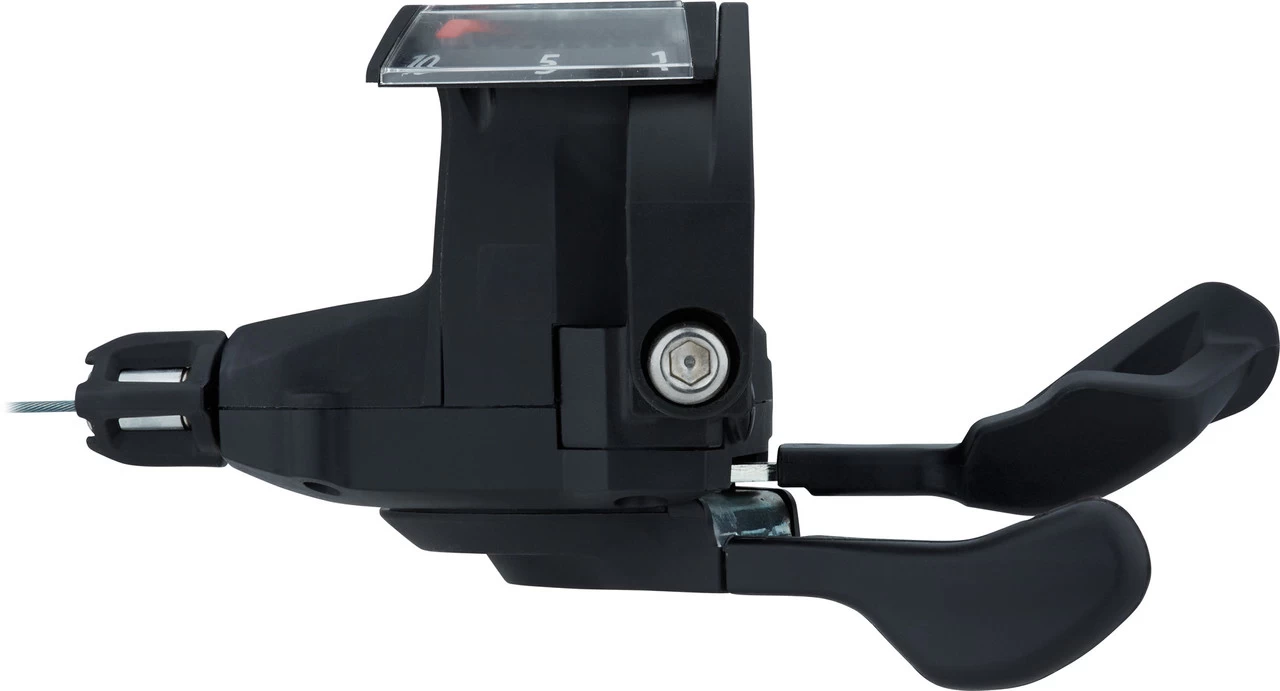

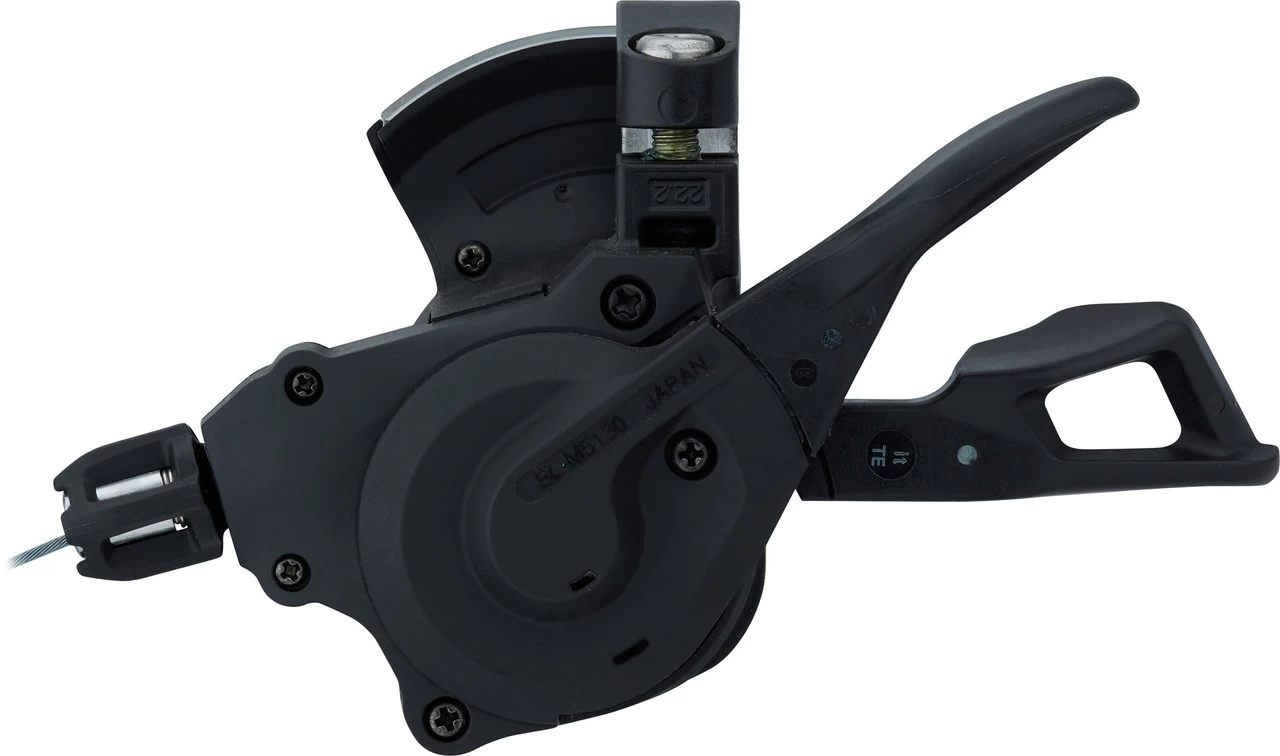

Shimano Deore Linkglide Shifter SL-M5130 Clamp Gear Indicator 10-speed

The Shimano Deore 10-speed Linkglide Shifter SL-M5130 with Gear Indicator
The Deore SL-M5130 shifter by Shimano is also available in a version with a visual gear indicator, which informs you about the current gear level in an straightforward way. This is the right shifter for the Linkglide 10-speed drivetrain, which was specifically developed for e-bikes and punishing applications in the touring and MTB sector. SL-M5130 can be mounted on the right side of the handlebars using a clamp. The levers are easily accessible and easy to operate, and as with all Rapidfire Plus models, thanks to 2-Way Release technology, the shift cable can be released both by pulling with the index finger and by thumb pressure. You can always rely on the fast and defined gear changes expected from Shimano. An Optislick inner cable, which supports the function thanks to its coating, is included. Note that there is no compatibility with non-linkglide rear derailleurs due to the different cable ratio.
Guidelines for Replacing E-bike Components:Before you replace components on your e-bike, please read through the guidelines for component replacement for CE-marked e-bikes/pedelecs with pedal assistance.
Specifications:Series:Deore M5100 (Linkglide)Application:Touring, City, All MountainGearing:10-speedMount:clamp (closed)Technical Information:Type:Rapidfire PlusBody Material:aluminiumLever Material:composite material (GFRP), steelCable:stainless steel (Optislick)Housing:OT-SP41Gear Indicator:yesAdjustment Options:cable adjustCompatibility:Linkglide 10-speed:
Rear Derailleur:RD-M5130-GS, RD-U6000, RD-U6020-10Cassette:CS-LG600-10, CS-LG400-10, CS-LG300-10Chain:CN-LG500, CN-HG601-11, CN-HG701-11, CN-HG901-11, CN-E8000-11E-bike Drivetrain:EP8 EP800 for MTB / Touring with mechanical 10-speed rear derailleurHandlebar Grip Outer Diameter:max. 36 mmClamp Diameter:22.2 mmFeatures:quick lever access and easy operationfast and defined gear changesoptical gear indicator for more safety when shifting gearsmax. number of gears per shift: 2 (main lever, rear)Optislick inner cable with a minimal galvanic coating for more efficient cable routing and corrosion resistancepainted housingstainless steel clamp boltsTechnology:Rapidfire Plus
Rapidfire Plus is a type of Shimano shift lever construction that has been common in the mountain bike sector since 1985. Two levers, the main lever and the release lever, are used instead of a twist shifter. Rapidfire Plus shift levers, as the name suggests, ensure fast shifting. In addition, depending on the model, it is possible to downshift up to three gears with one shift stroke.

2-Way-Release
With 2-Way-Release, the shifter can be pressed and pulled to shift to the smaller sprocket or chainring. This allows you to adjust the shifting process to your personal preferences. Most Rapidfire Plus shifters are equipped with 2-Way Release.
Models:10-speed:

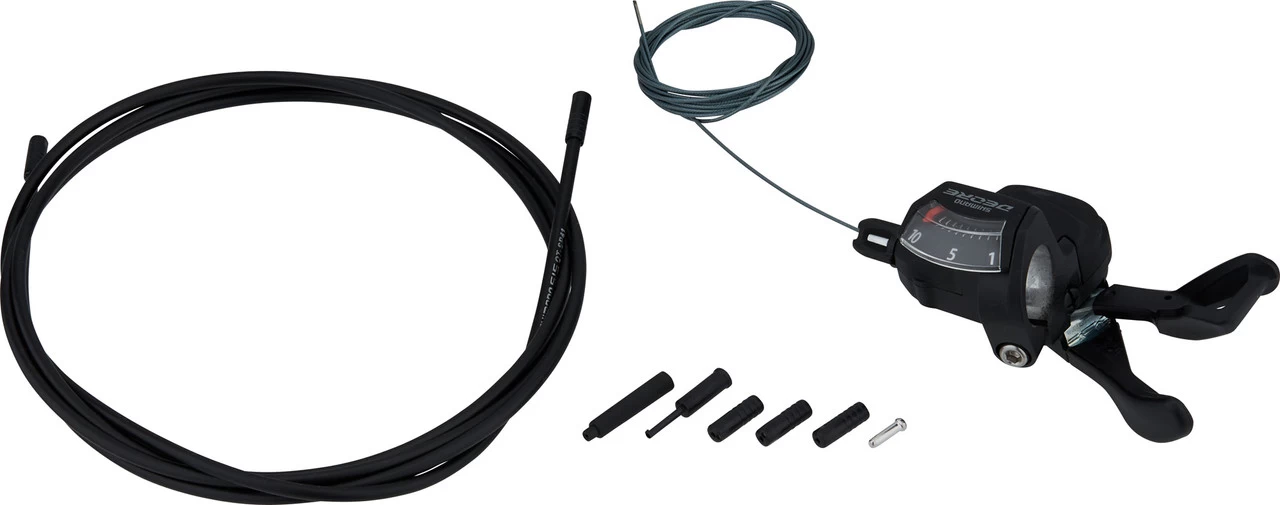

Mount:rightManufacturer Number:I-SLM5130RAPContents:1 x Shimano Deore SL-M5130 shifter, incl. gear indicator1 x Shimano cable (2050 mm)1 x Shimano cable housing (1880 mm)3 x 6 mm sealed end caps1 x long nose end cap
