Shimano SC-MT800 Information Display For Di2

The SC-MT800 Di2 information display by Shimano keeps you up to date

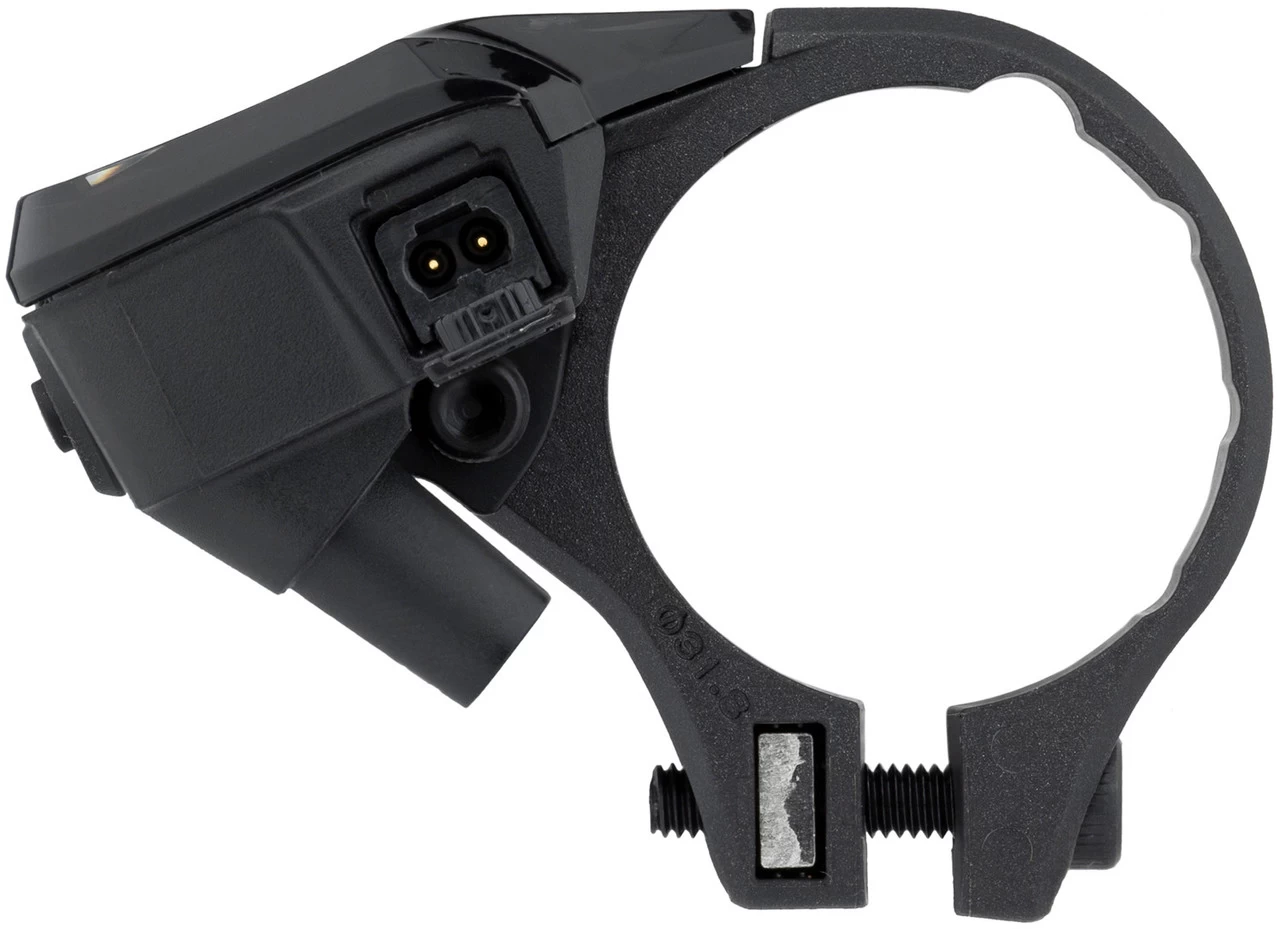

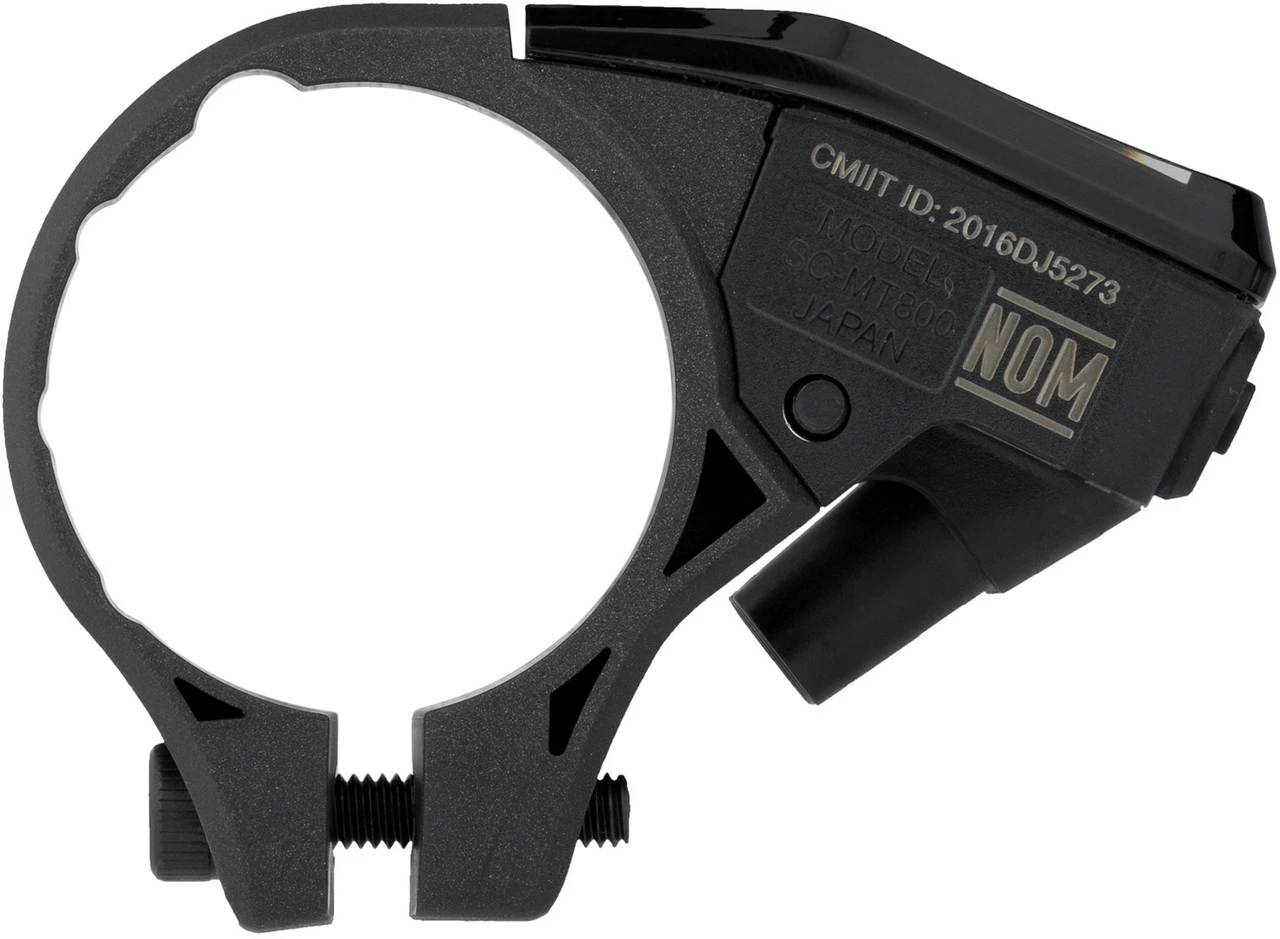

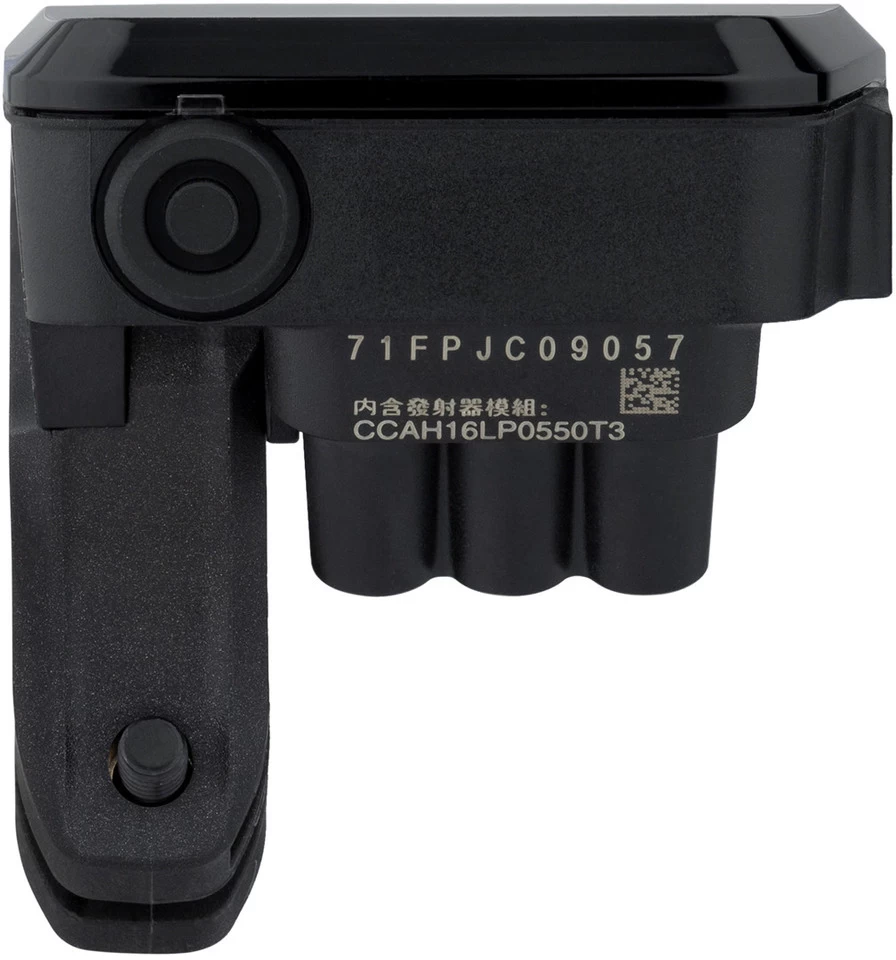

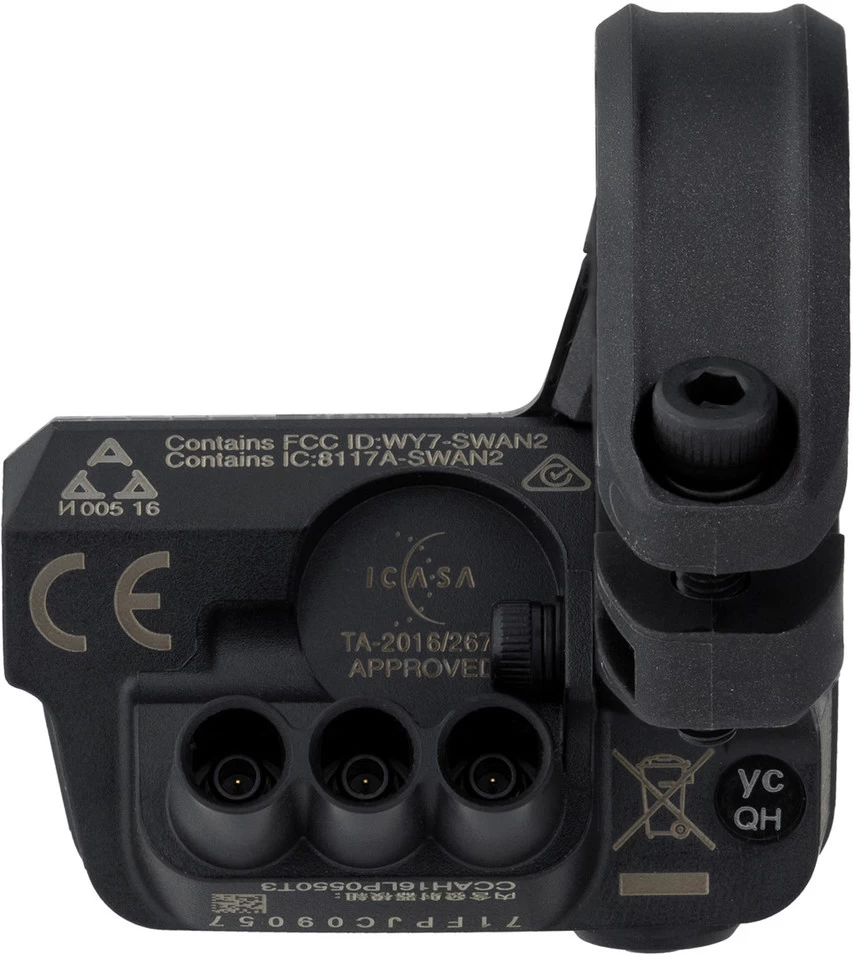

The Shimano SC-MT800 Di2 display keeps you constantly informed about the current gear and the battery charge level. It is also used to display and adjust E-Tube controlled pressure settings and the operating mode-whether manual or Synchro Shift. SC-MT800 performs the function of the junction A interface with three E-Tube connectors and one charging connector. It syncs wirelessly over an encrypted connection with your bike’s computer via ANT+, and connects via Bluetooth with the battery or battery mount. One handlebar clamp for 31.8 mm and one for 35 mm clamp diameters are included in the delivery.
Information regarding the return of batteries and electrical equipment:Information on the return and disposal of batteries and electrical equipment can be found here.
Technical Information:Data Transfer:ANT private, Bluetooth LE (wireless)Mount:Handlebar (clamp 31.8 mm or 35 mm)Rear Gear Indicator:11Front Gear Indicator:1/2/3Display Functions:gear indication, shifter mode (manual, Synchro), suspension mode (FOX iRD), drivetrain adjust mode, battery lifeAdjustment Functions:gearingSystem Functions:drivetrain adjust indicator, system diagnostics, charging port for built-in battery, Synchro Shift mode changeCompatibility:Power Cable:EW-SD50 (3 x connection)Battery/Battery Holder:BT-DN110, BM-DN100Charger:SM-BCR2Shifters & Derailleurs:Specially designed for XT Di2 M8050 and Alfine/Nexus Di2, but can also be used for all other Di2 shifters and derailleurs from Ultegra 6770 and before Dura-Ace R9250 / Ultegra R8150Features:system status readable at a glanceShimano Synchronized Shift: 3 modes selectable (S1/S2/Manual), acoustic signalprecise adjustment of rear derailleur and front derailleurjunction A function: battery charging station, 3 E-Tube portswireless data transmittingANT private = compatible with ANT+, but not publicly availabledisplay not removablesetting buttonE-Tube project ensures firmware updatesTechnology:D-Fly
Shimano D-Fly is a Near Field Communication (NFC) network that allows Shimano E-Tube electronic components (Di2, STEPS) and smartphones or compatible bike computers to communicate with each other. For example, it is possible to view information about the components on the display or to track power meter data. Shimano provides the E-Tube Ride app just for this purpose. D-Fly is compatible with ANT+, ANT as well as Bluetooth. Network partners include Garmin, Wahoo, Sigma and Cateye for Di2 components and Garmin and Sigma for STEPS components.
Manufacturer Number:I-SCMT800C

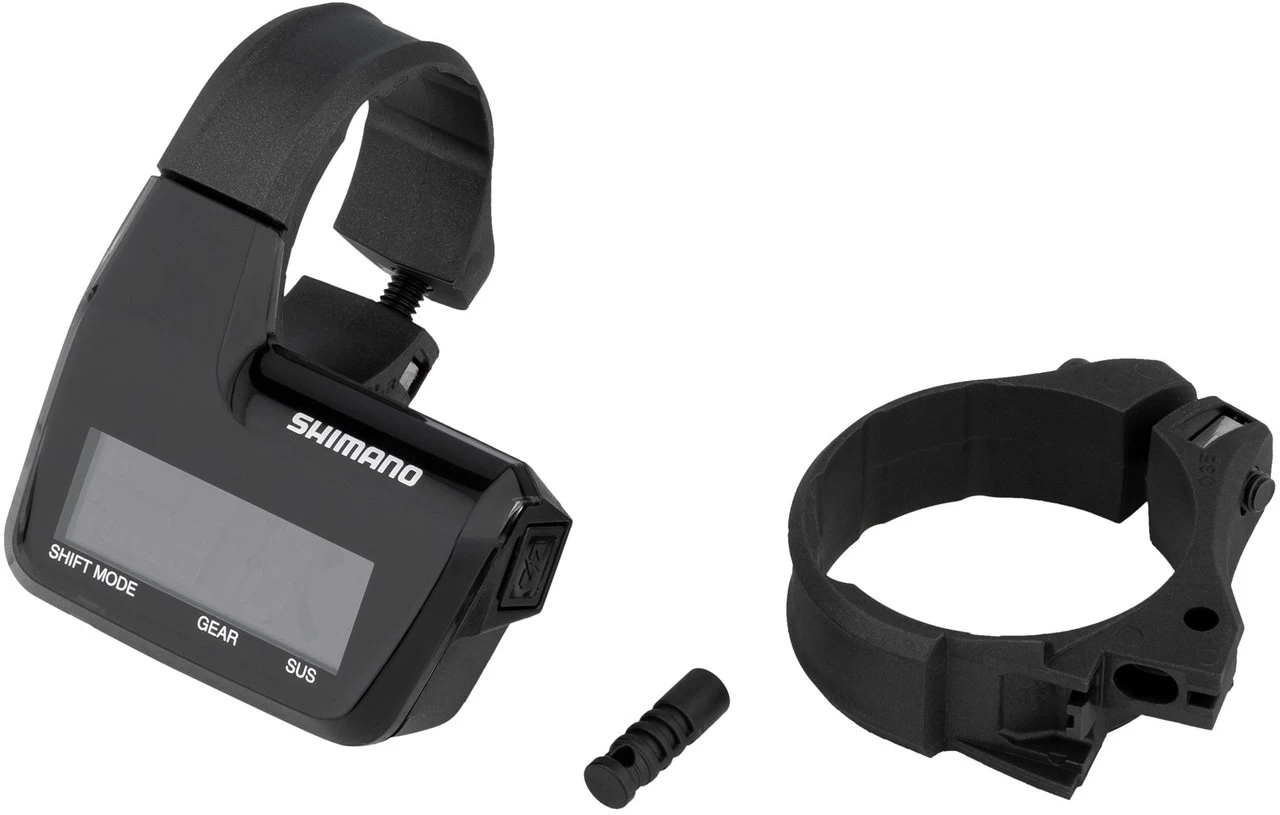

Contents:1 x Shimano Di2 SC-MT800 system information display1 x Shimano 31.8 mm handlebar clamp1 x Shimano 35.0 mm handlebar clamp
