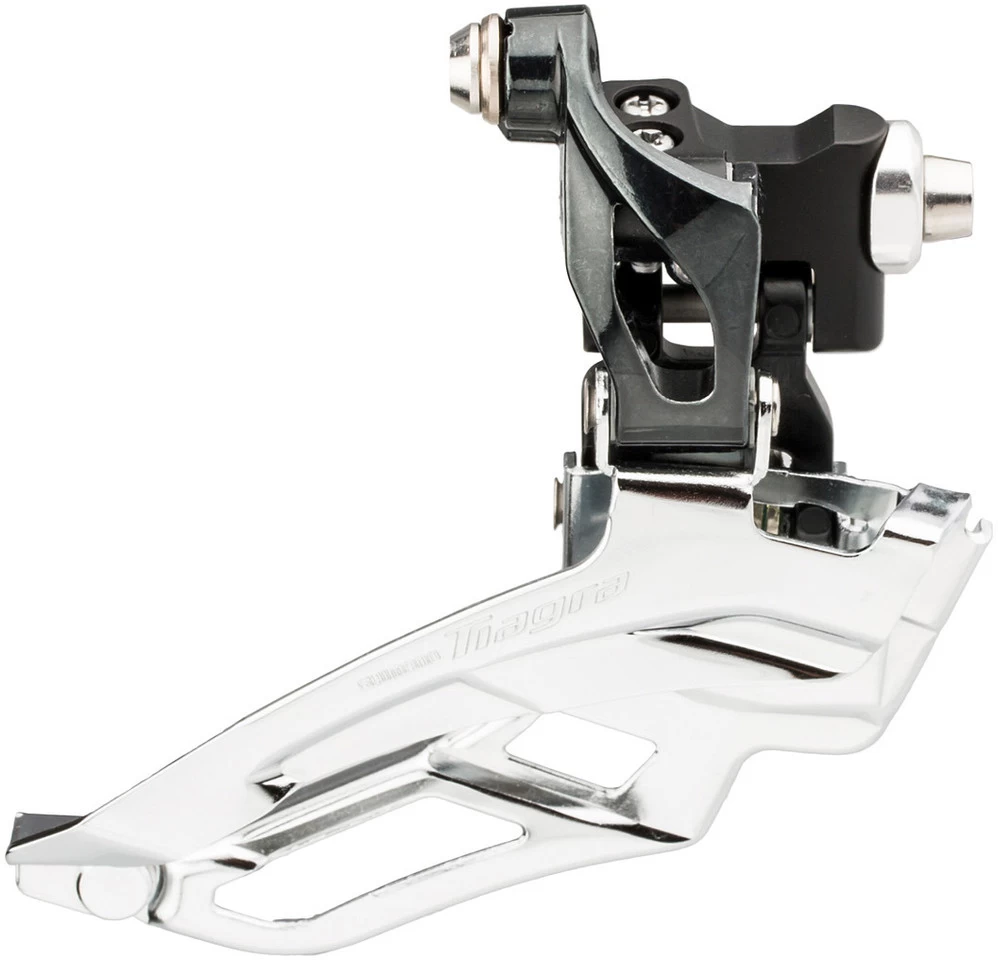

Shimano Tiagra FD-4703 3-/10-speed Front Derailleur

The Tiagra front derailleur FD-4703 by Shimano – for smooth front shifting
The Shimano Tiagra front derailleur FD-4703 can be used for three chainrings, the largest of which may have 50 teeth. In combination with a 10-speed rear derailleur, this results in a smooth and reliable shifting function on a road or city bike. The front derailleur is compatible with modern HG-X Mountain bike chains, which are guided very safely thanks to the fine tuning. The parallelogram is made of light aluminium, the cage plates are made of steel. The FD-4703 is available for clamp and braze-on mounting.
Specifications:Series:Tiagra 4700Application:Road, CityGearing:3x (combined w/ 10-speed)Chainstay Angle:63-66°Chainline:45 mmChainring Size (max.):50-toothCapacity:20-toothDifference Between Large & Middle Chainring:11-toothCable Routing:down pullMovement:down-swingMount:braze-on, clampClamp Diameter:31.8 mm w/adapter 28.6 mm, 34.9 mmCompatibility:HG-X chains, CN-HG500 chainTechnical Information:Outer Body Material:AluminiumInner Body Material:AluminiumCage Material:steelCompatibility:Shift/Brake Lever:ST-4703Shifter:SL-4703Crank:FC-4703Chain:CN-M981, CN-M980, CN-HG95, CN-HG94, CN-HG75, CN-HG74, CN-HG54Features:smooth and stable front gear shiftingsmooth-runningmore ergonomic operationless risk of the chain droppingfiner L-trim and low-positionspecial chain guide and chainring shape with HG-X chainsupport screw increases stability (braze-on version)painted parallelogram, chrome-plated cage platesModels:braze-on:
Mount:braze-onType:FD-4703-FManufacturer Number:I-FD4703F
31.8 mm:
Mount:Clamp (diameter 31.8 mm; 28.6 mm with adapter)Type:FD-4703-BManufacturer Number:I-FD4703BSM
34.9 mm:

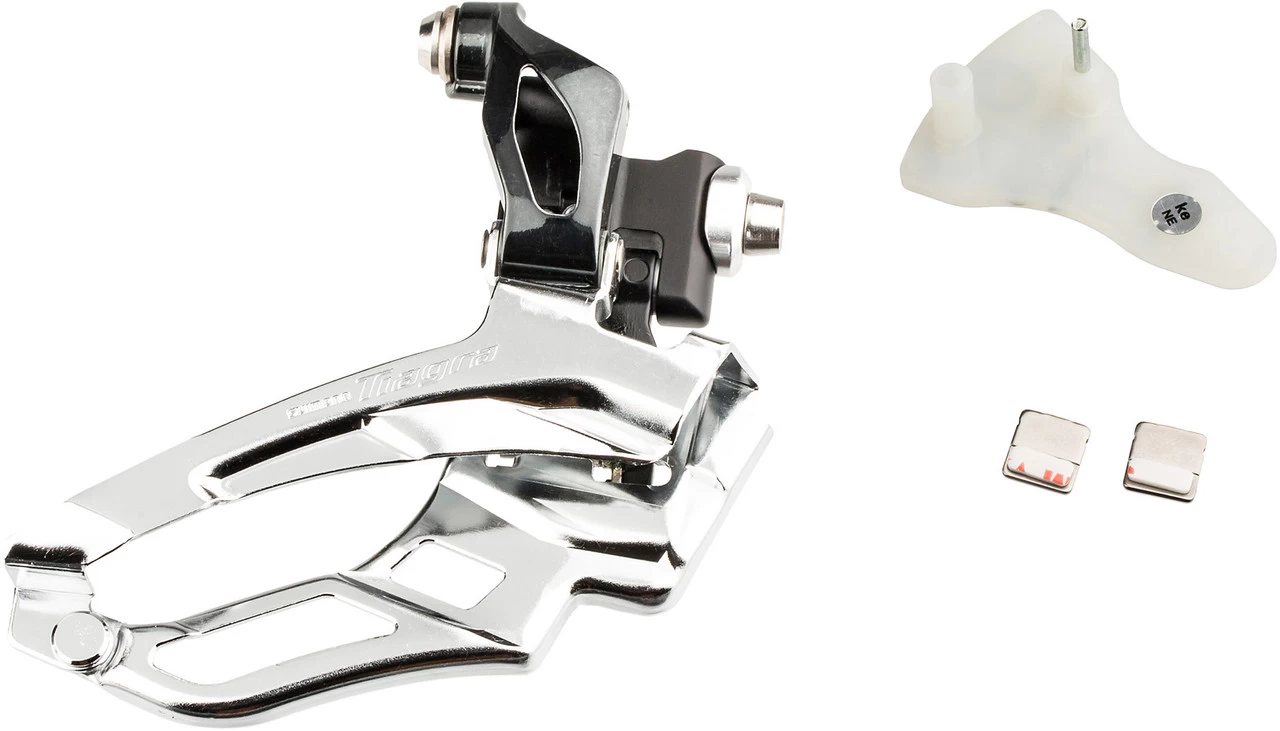

Mount:Clamp (diameter 34.9 mm)Type:FD-4703-BManufacturer Number:I-FD4703BLContents:1 x Shimano Tiagra FD-4703 front derailleur1 x clamp adapter (31.8 mm version only)1 x Shimano TL-FD68 cable setting tool
