Shimano Ultegra Di2 FD-R8150 2-/12-speed Front Derailleur

The Shimano FD-R8150 Ultegra Di2 Front Derailleur – Enormous shifting speed

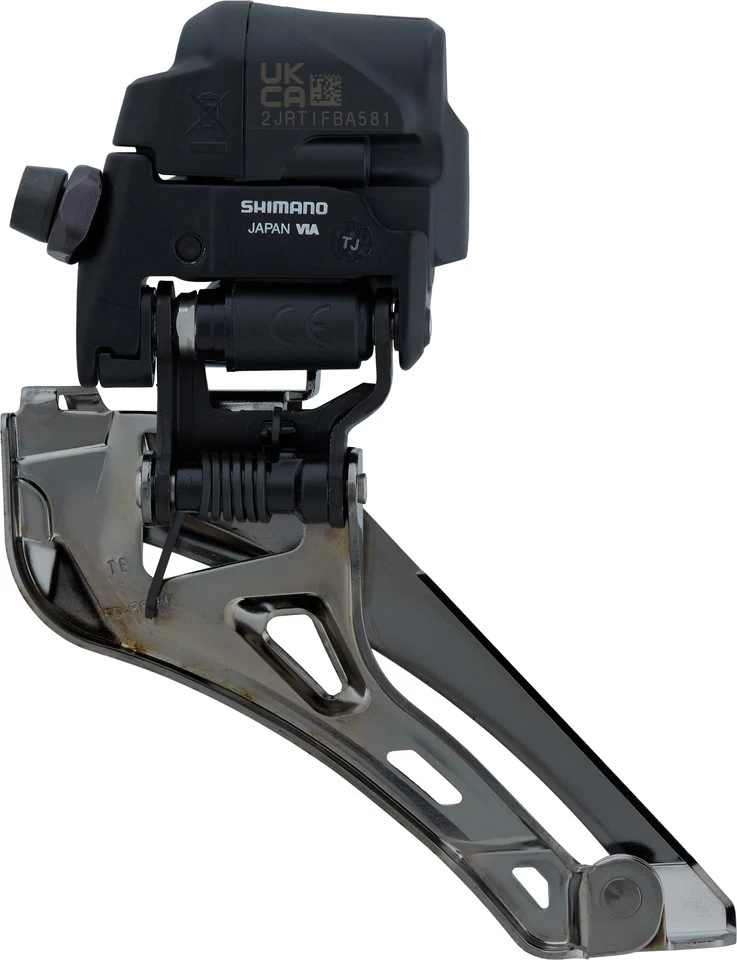

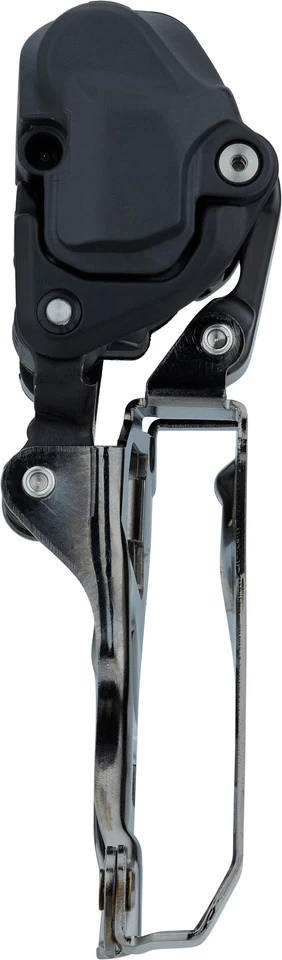

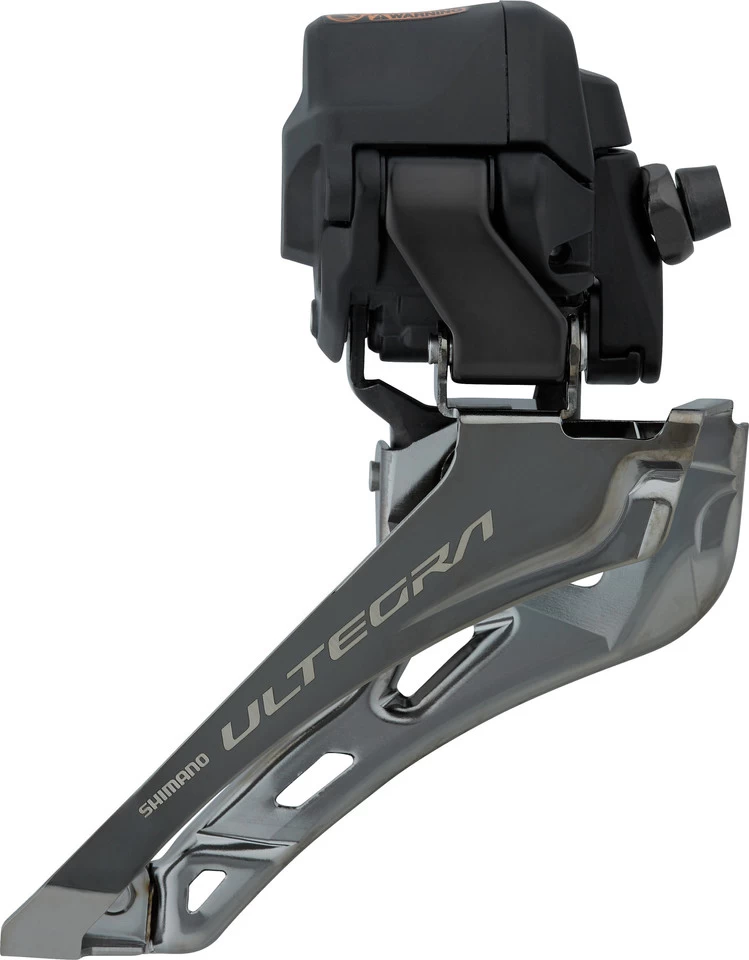

The FD-R8150 electronic front derailleur for the Ultegra 2×12-speed road bike groupset from Shimano has a more compact design than its predecessor and is therefore even more aerodynamic. With a total capacity of 16 teeth, this allows large chainrings with a maximum of 50 to 52 teeth to be shifted, whereby the shifting speed has been increased enormously compared to the past. The front derailleur is compatible with a chainline of 44.5 mm and is designed for braze-on mounting. With the help of a suitable adapter, however, it is also possible to mount a clamp on the frame. It is connected to the battery via a cable, which in turn is also connected to the rear derailleur and, if applicable, the STIs. Of course, FD-R8150 has the proven Synchro and Semi-Synchro Shift function, which enables an automated interaction with the rear derailleur and thus makes shifting easier. The inner parallelogram and the deflectors of the front derailleur are made of steel, the outer parallelogram is made of aluminium to save weight.
Information regarding the return of batteries and electrical equipment:Information on the return and disposal of batteries and electrical equipment can be found here.
Specifications:Series:Ultegra Di2 R8150Application:RoadGearing:2x (combined w/ 12-speed)Chainstay Angle:61 – 66°Chainline:44.5 mmChainring Size (max.):50 – 52 teethCapacity:16-toothMovement:down-swingMount:braze-onCompatibility:HG 12-speed chainsTechnical Information:Outer Body Material:aluminiumInner Body Material:steelCage Material:steelNumber of E-Tube Ports:1Compatibility:Power Cable:EW-SD300-I (1 x connection)Shift/Brake Lever:ST-R8150, ST-R8170, ST-R8060, ST-R9250, ST-R9270, ST-R9160, ST-R9180, ST-R7170Crank:FC-R8100, FC-R8100-P, FC-R9200, FC-R9200-P, FC-R7100, FC-RS520Chain:CN-M8100, CN-M9100, CN-M7100, CN-M6100Clamp Adapter:SM-AD91Features:high shifting speed: 45 % faster than FD-R9150slimmer, flatter and lighter than predecessorfront area reduced by 33 %, thereby less wind resistanceconnected to battery via cablefully- and semi-synchronous shift mode adjustable (via E-Tube or rear derailleur)firmware updates via E-Tube Project4 joint bushingspainted parallelogramplated cage platesTechnology:Digital Integrated Intelligence (Di2)
Di2 systems are the electronic shifting systems from Shimano. They are based on the SEIS, the Shimano Electronic Intelligent System, which takes over the index shifting function from the mechanical components, only via power cables or radio signals and not via a Bowden cable. Shifting is done by simply pressing a button. This has the advantage that no great effort is required, your concentration on the ride is not disturbed and operation is easy even with cold hands. In addition, the electronic gear changes are very fast and highly precise. There is also no risk of a defective circuit due to dirty cables or other problems. You can adjust individual settings via the E-Tube Project, such as adjusting the shifting speed, the number of shifting operations per button press or the Synchro or Semi-Synchro shifting function. Shimano offers an app for this purpose. Gear maintenance and firmware updates are also done via E-Tube, with the bike connected to a PC running the appropriate E-Tube software for more extensive workshop work.

Shimano Synchronized Shift
Shimano’s synchronised shifting function is a shifting mode that automatically matches the Di2 rear derailleur and Di2 front derailleur. It is activated either via the E-Tube platform or via the rear derailleurs with a function button. Synchro Shift means that the front derailleur automatically selects a suitable gear depending on the position of the rear derailleur, while Semi-Synchro Shift means that a suitable rear derailleur position is automatically set when you operate the front derailleur. This gives you the advantage that you only have to concentrate on one side of the shifting process and are not thrown off-rhythm by sudden unfavourable changes to the gear ratio.
Manufacturer Number:I-FDR8150F
Contents:1 x Shimano Ultegra Di2 FD-R8150 front derailleur
