Shimano WH-R501 Wheelset

The WH-R501 Wheelset by Shimano – An everyday companion at an entry-level price
The Shimano WH-R501 wheelset is a real perennial favourite. For years, these reliable and robust wheels have been inspiring passionate road cyclists in training and in their leisure time – in no small part due to their reasonable price. WH-R501 wheels are based on solid aluminium rims and hubs and have been equipped with a steel freehub, round stainless steel spokes and brass nipples. The sealed, low-maintenance conical bearings are characterised by efficient running and load capacity. Note that road cassettes can only be used on the rear wheel up to 10-speed. On the other hand, the installation of MTB 11-speed cassettes is possible without much fuss.
Specifications:Application:RoadWheel Size:28″Tyre Type:clincher tyreNumber of Spokes:20 (front), 24 (rear)Brake Type:rim brakeTubeless System:noneTechnical Information – Rim:Rim Flange:with hookDimensions (ETRTO):15-622Inner Width:15 mmOuter Width:20.8 mmDepth:24 mmValve Hole Diameter:SV/Presta (6.5 mm)Rim Material:aluminiumTechnical Information – Front Hub:Over Locknut Dimension:9 x 100 mm quick releaseBearings:cup & coneBody Material:aluminiumTechnical Information – Rear Hub:Over Locknut Dimension:10 x 130 mm quick releaseBearings:cup & coneBody Material:aluminiumFreehub Body Material:steelTechnical Information – Lacing:Front Lacing Pattern:radialRear Lacing Pattern:2-crossSpoke Type:J-bend / round (2.0)Spoke Size:278 mm (front) / 286 mm (rear)Spoke Material:stainless steelNipple Material:brassApproved For:Recommended Tyre Width:23 – 32 mmFeatures:for training and leisurerobust and reliable wheels in Shimano qualityanodised aluminium rims, anodised hubsShimano angular contact ball bearings (CBN finish/polished)round spokeswear indicator enables timely replacement of the rimsleeved rim jointsteel hub axlesfront 108 mm, rear 141 mm axle lengthcontact sealsquick release made of aluminium (quick release length front 133 mm, rear 163 mm)rim tape requiredTechnology:Cup and Cone Bearings
Angular contact ball bearings of the cup & cone type are superior to sealed cartridge bearings in terms of load carrying capacity, as they distribute lateral and vertical forces better, and thus run particularly smoothly and last a long time. They are also easier to adjust, maintain and replace.

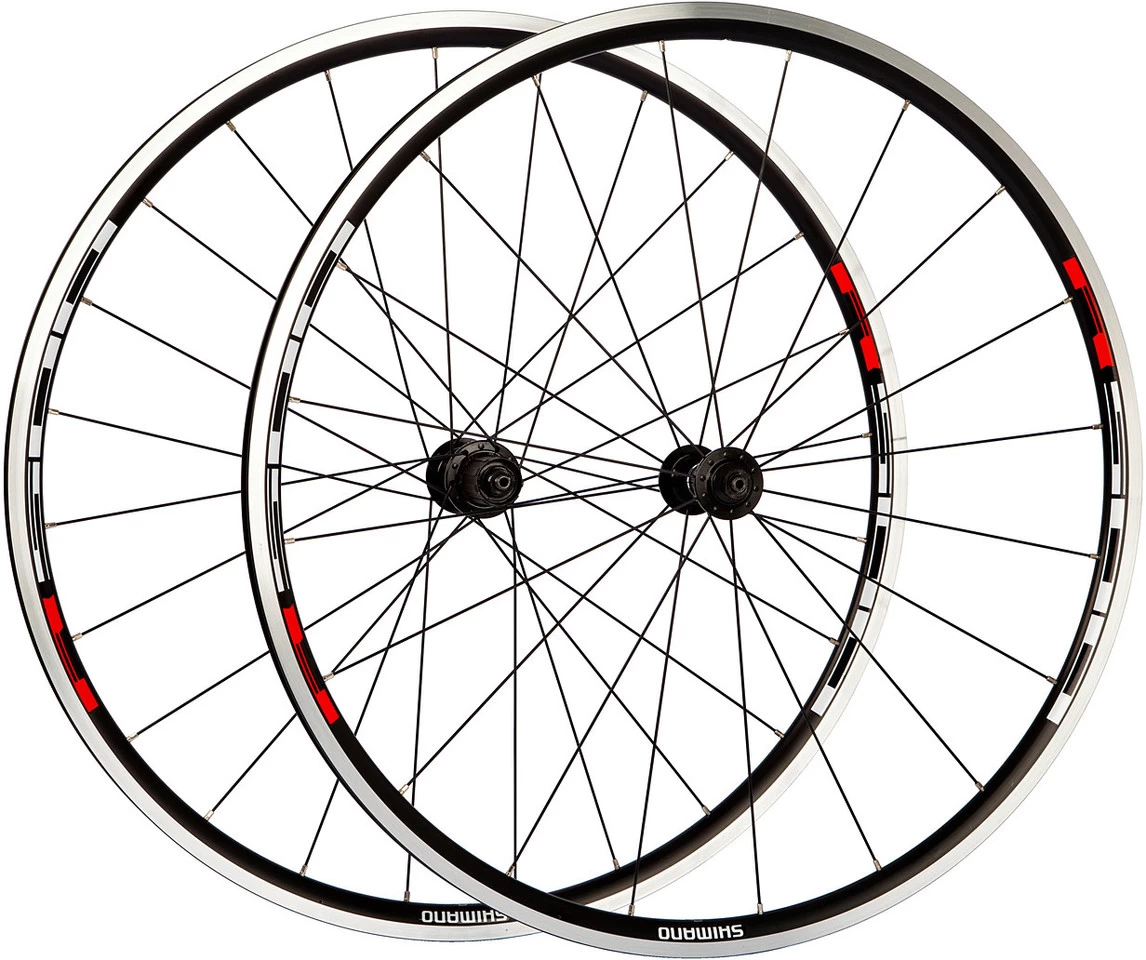

Colour Info:black-red:
Rims: black w/ white-red accentsHubs: blackSpokes: blackNipples: silver
Note:The decorative sticker displays the number ” R500″ . However, this is the still the model that Shimano officially refers to as ” R501″ .Models:28″ set (front + rear) clincher Shimano freehub:
Freehub:Shimano Road (Shimano MTB)Gearing:8-/9-/10-speedNote:Suited for 8-/9-/10-speed Shimano Road. A 1 mm spacer is required for installing 10-speed cassettes. Suited for 8-/9-/10-/11-speed Shimano MTB.Manufacturer Number:E-WHR501PCBYContents:1 x Shimano WH-R501 wheelset (front & rear)2 x Shimano quick releases2 x rolls of rim tape
